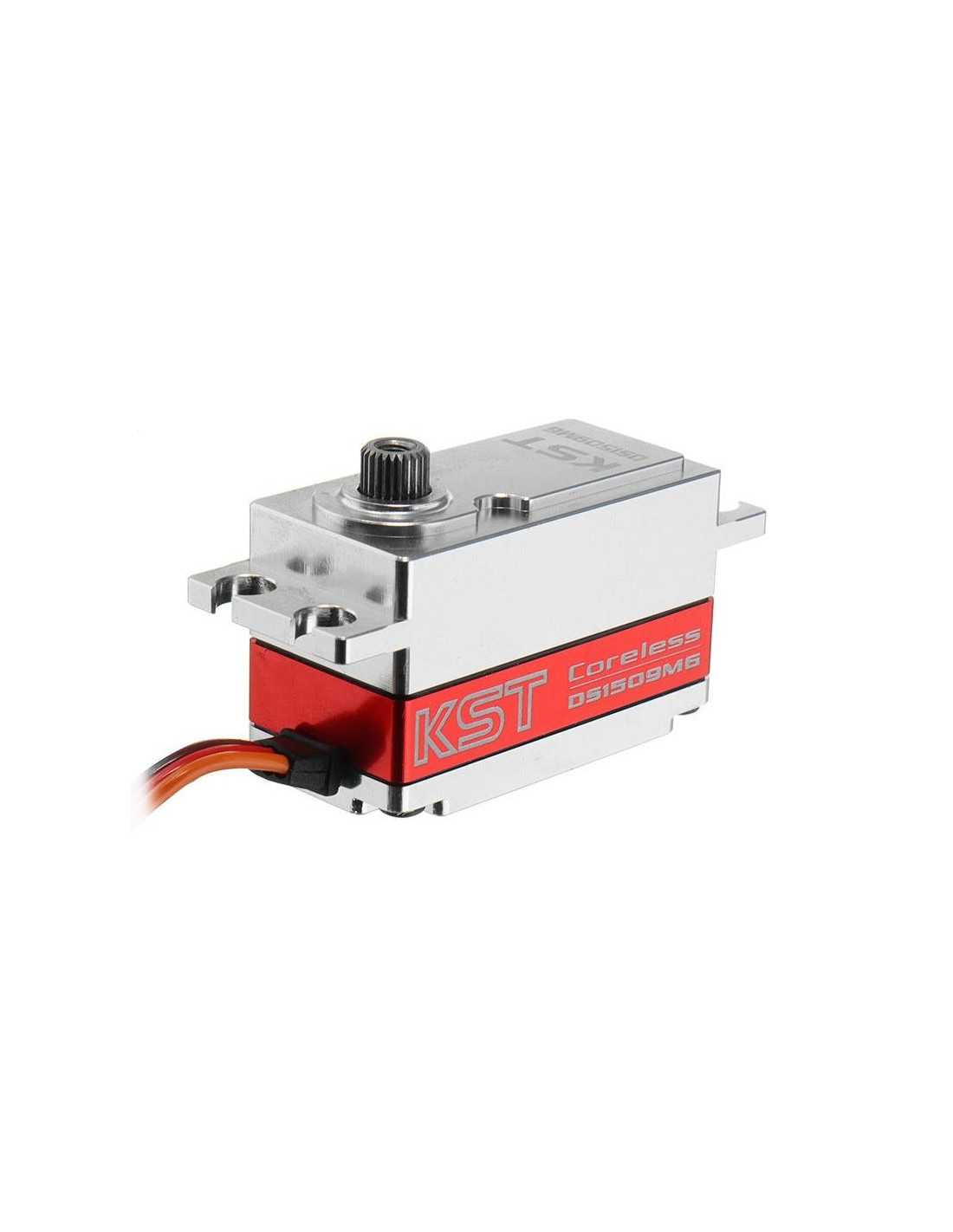

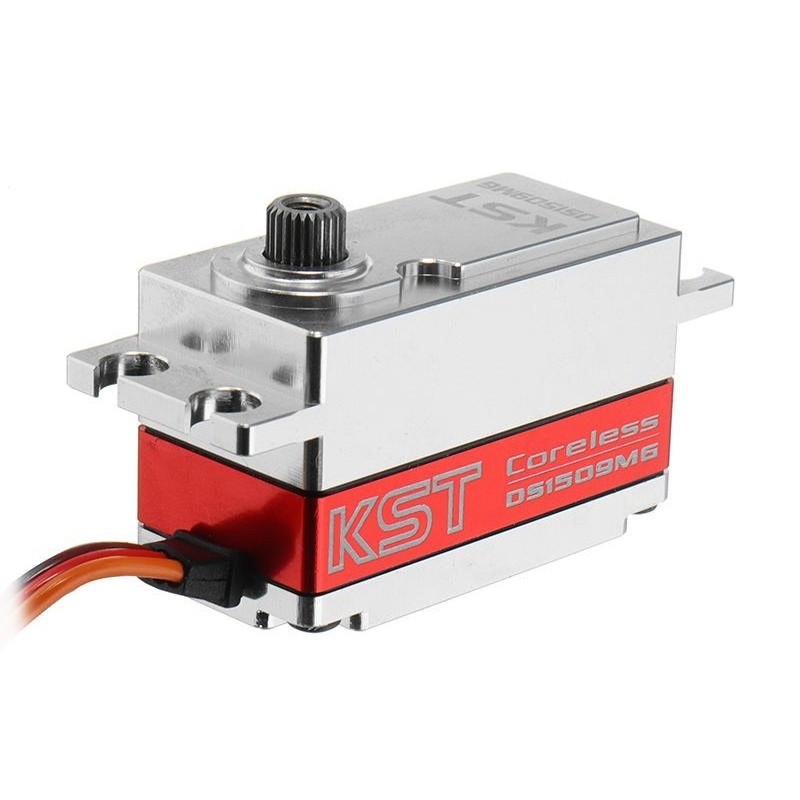

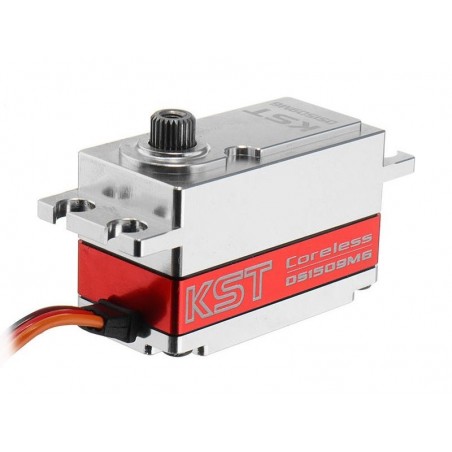

KST DS1509MG HV low profile servo (55g, 12.8kg.cm, 0.09s/60°)

€61.58
Tax included
The KST DS1509MG is a powerful digital servo with aluminum housing and metal gears, all with double bearings! Delivered with original rudder pedals and mounting screws.

custom html
you can configure this block in iqithtmlbanners module. It is hooked in displayRightColumnProduct hook.

To disable entire area go to iqitthemeeditor module > Content/Pages > Product page and set hidden for Right sidebar option


Technical specifications

  • Dimensions : 40.50 mm x 20 mm x 25.4 mm
  • Torque (6.0v/7.4v) : 10.7 Kg.cm/12.8 Kg.cm
  • Speed (6.0V/7.4V) : 0.08 sec/60° / 0.09 sec/60°
  • Power supply voltage : 6.0-7.4V
  • Weight : 55g
  • Max. frequency 333Hz
  • Pulse width : 1520us
  • Coreless motor
  • Double bearing
  • Metal gears

Thickness in mm (Servos)
20
Torque in kg.cm (servos)
12.8
Speed sec / 60° (servos)
0.09
Pinions (servos)
Metal
Bearing (servos)
yes
Technology (sevos)
Digital
HV (servos)
yes
Weight in g (servos)
55
153-DS1509MG
4897073540139
4897073540139
No reviews
Comments (0)
No customer reviews for the moment.
