MICRO CHAPE EMBOUT ø0,8mm M2 10pcs

Clevis pins are designed to connecting a clevis or ball-and-socket joint to a linkage.

They can be fixed to the linkage by welding or in the case of a bowden sleeve or cable, by pressing.

Micro ferrules (1312004 to 1302009) with rolled threads are suitable for smaller models.

Standard M2ferrules (external diameter 3 mm) are available in two types:

1- High quality - made of high-strength brass with rolled threads (1312011). This increases the fatigue strength of the threaded part by 40% compared with conventional manufacture .

2- Standard quality - high-strength brass with a machined thread (1312012-1312019).

M2.5 (1312020-1312023) and M4 (13121032-13121035)end fittings are supplied with amachined thread, while M3 (1312026-1312031) end f ittings are manufactured from high-strength brass with a rolled thread version only.

[%IMAGE1%]

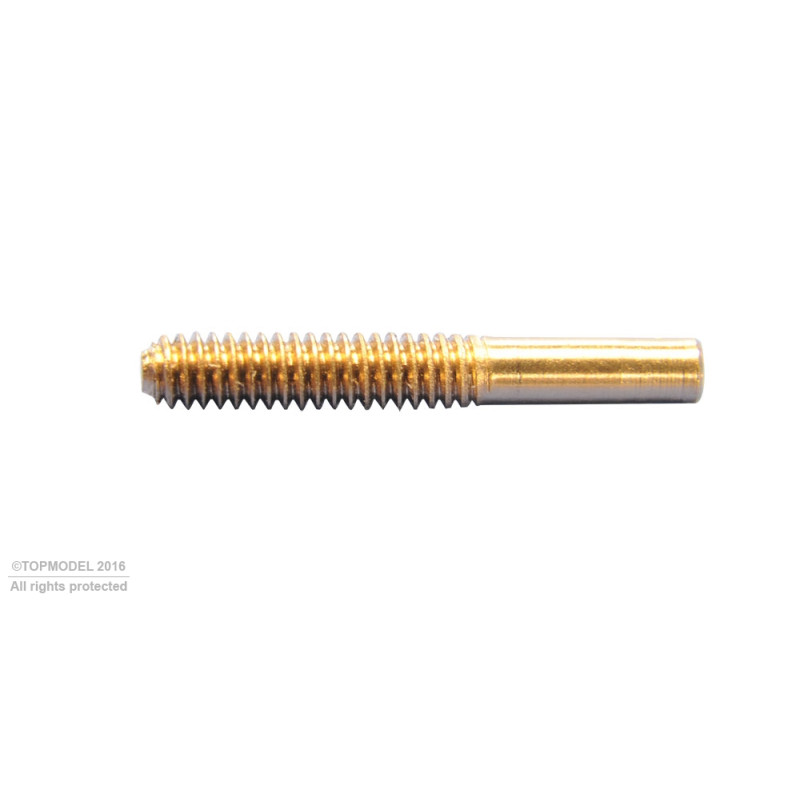

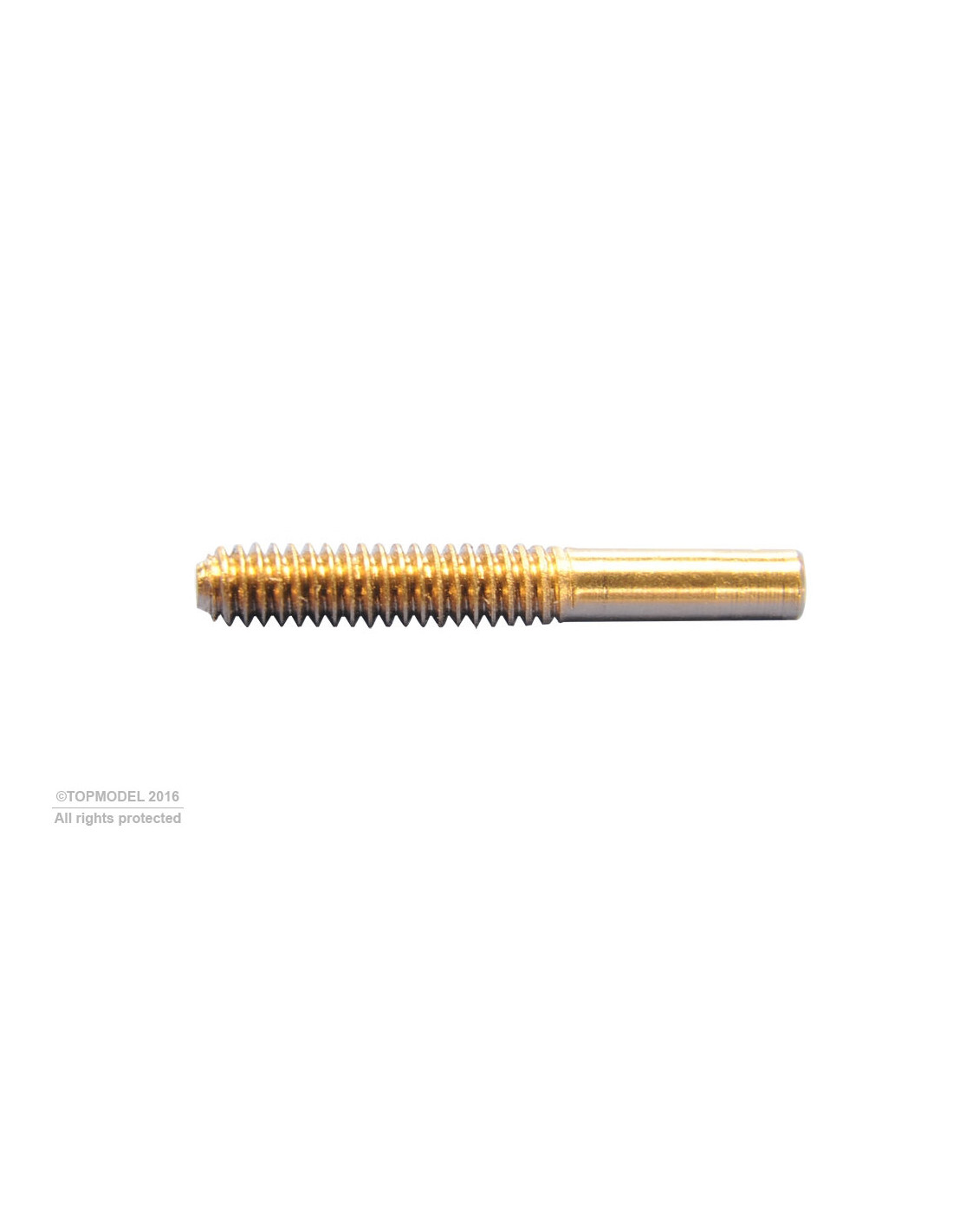

Technical specifications:

• Thread: M2
• Hole: Ø0.8mm
• Outside diameter: 1.7mm
• Length: 13.8mm

[%IMAGE2%]

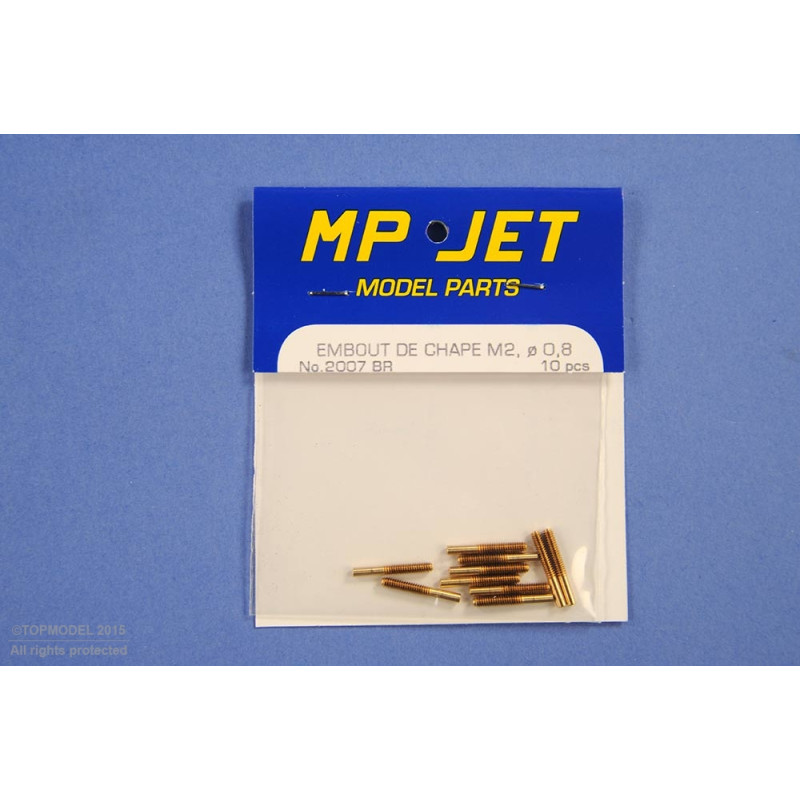

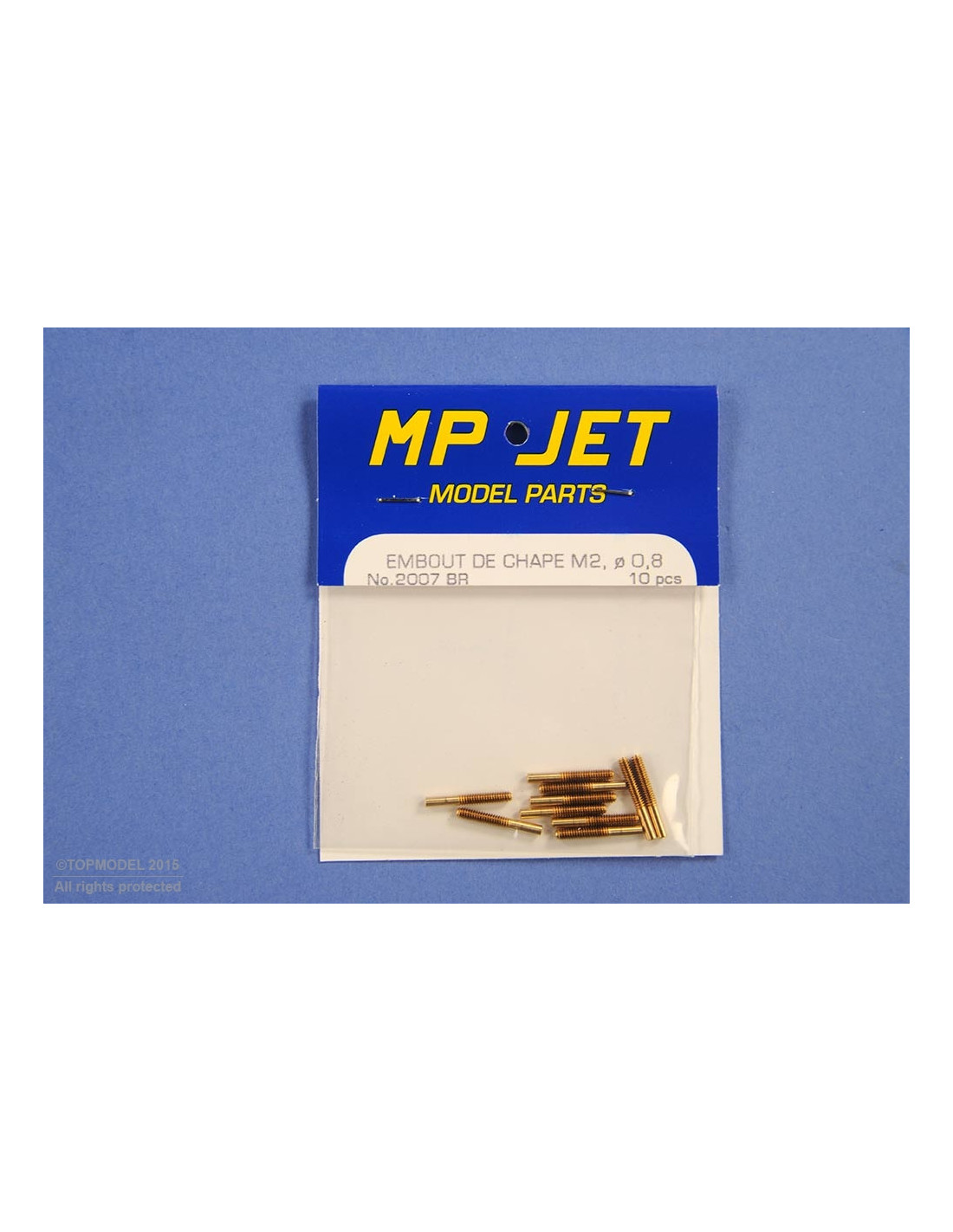

Supplied in packs of 10
