Digital servo DS06 Chaservo MICRO (6g, 1.8kg.cm, 0.07s)

€27.42
Tax included

The DS06 comes with tons of features and a competition weight of 6g.

Equipped with a high-quality DC Hollow Cup motor and packaged in an ultra-light, ultra-strong technopolymer fairing, this metal-transmission digital servo delivers champion performance. Without compromise.

custom html
you can configure this block in iqithtmlbanners module. It is hooked in displayRightColumnProduct hook.

To disable entire area go to iqitthemeeditor module > Content/Pages > Product page and set hidden for Right sidebar option


Specifications

  • Rated voltage: DC6.0V
  • Operating voltage : DC3.8V-8.4V

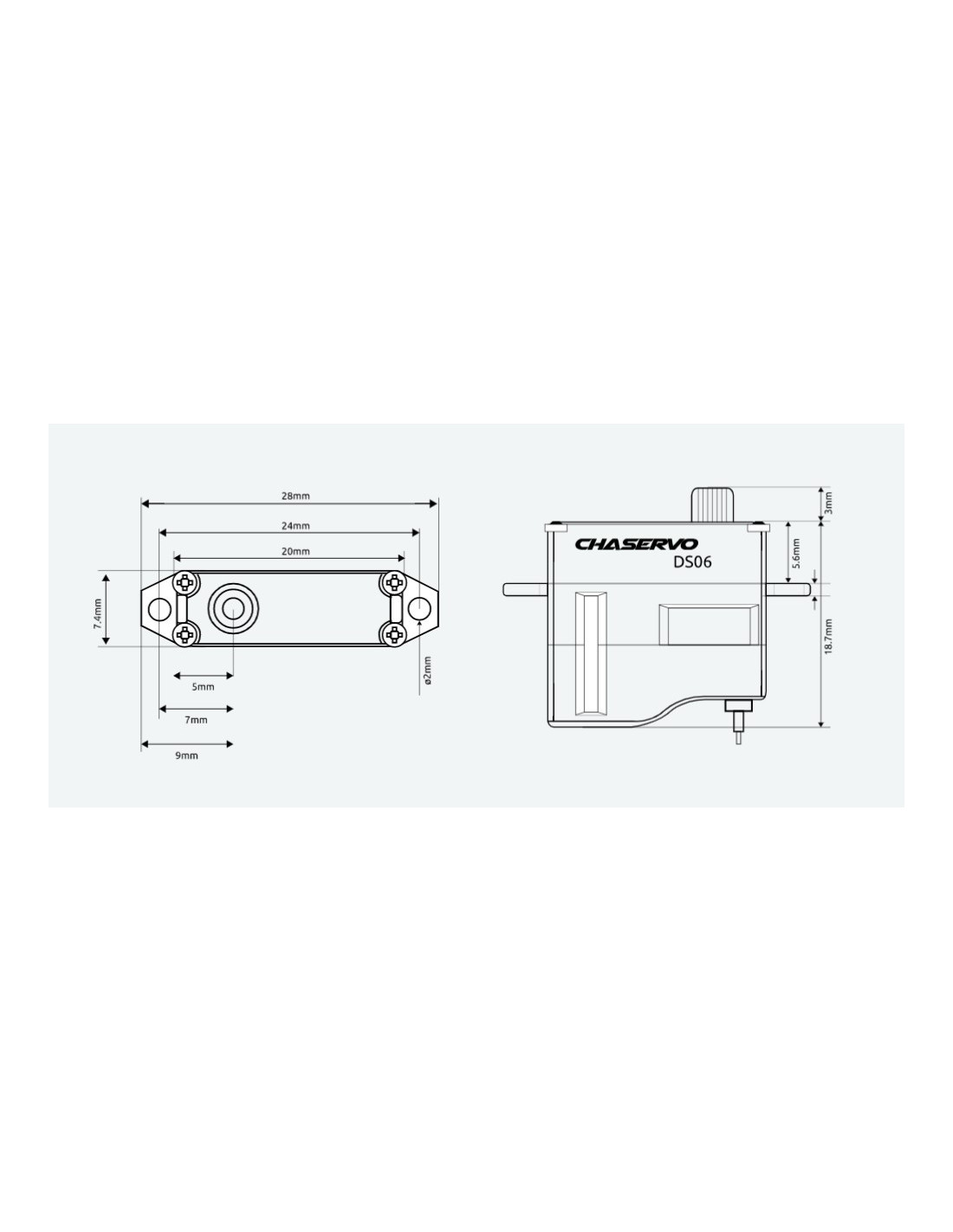

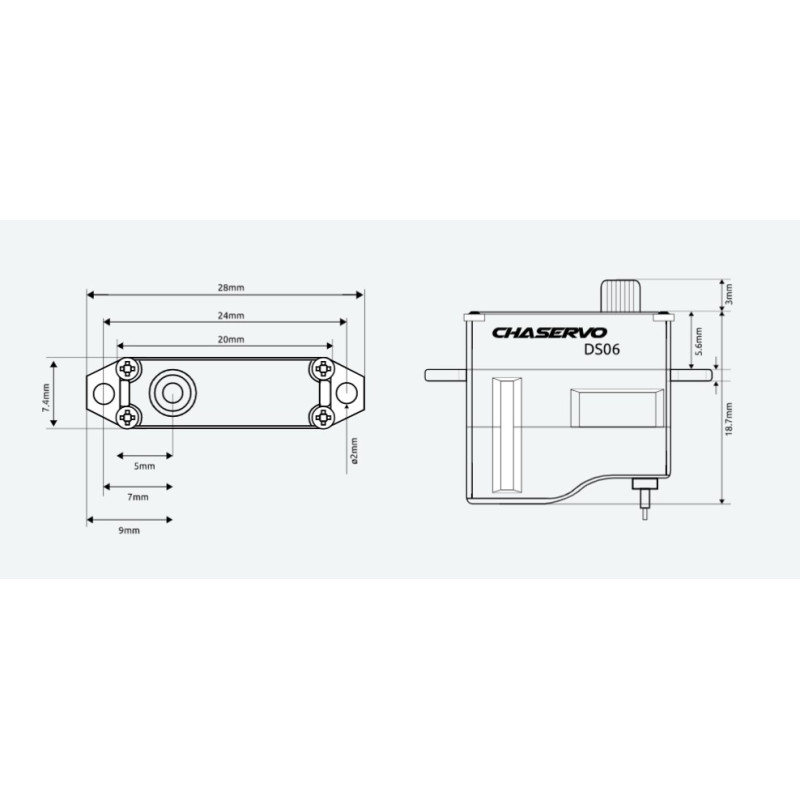

  • Size: 20*7.4*18.7±0.2mm
  • Torque:0.8Kgf.cm@3.8V/1.5Kgf.cm@6.0V/1.8kgf.cm@8.4V
  • Speed: 0.12sec/60°@3.8V/0.08sec/60°@6.0V/0.07sec/60°@8.4V
  • Weight: 6g
  • Rated current: 0.22A@6.0V
  • Working frequency: 1520us/20KHz
  • Operating temperature: -10°C......+65°C
Thickness in mm (Servos)
Torque in kg.cm (servos)
1.8
Speed sec / 60° (servos)
0.07
Pinions (servos)
Metal
Bearing (servos)
yes
Technology (sevos)
Digital
HV (servos)
yes
Weight in g (servos)
6
366-DS06
4897073542294
