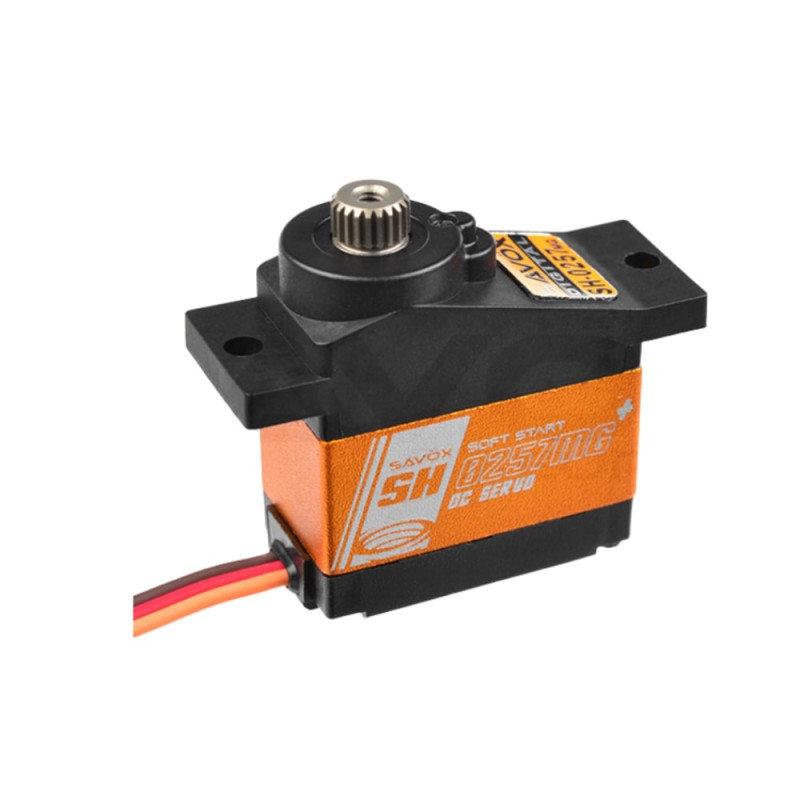

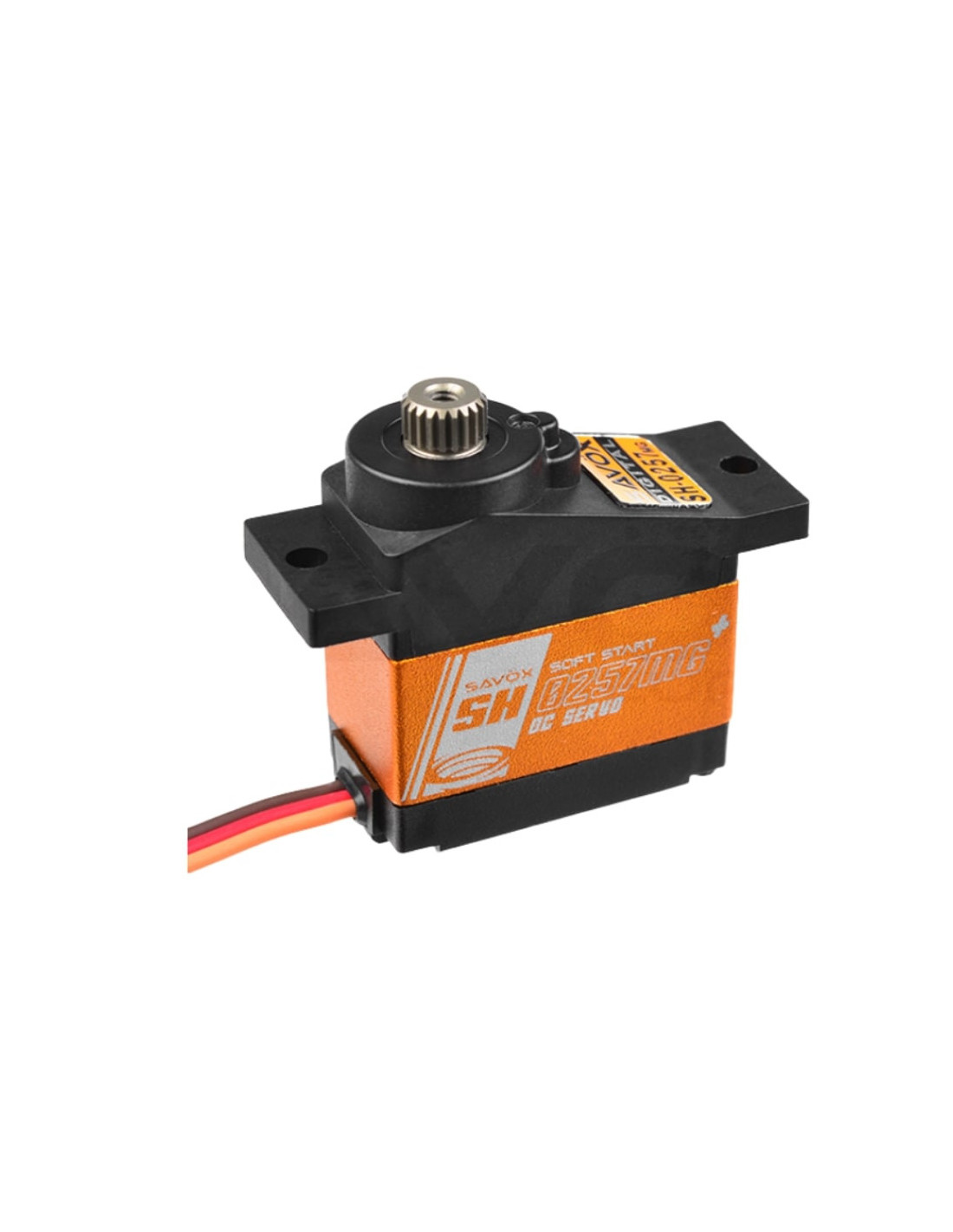

Savox SH-0257MG+ micro digital servo (14g, 2.2kg.cm, 0.09s/60°)

€17.42
Tax included

The aluminum housing is waterproof, so it can be used in wet or dusty conditions. This servo is suitable for the plate or tail of helicopters type 450 and parkflyer aircraft.

custom html
you can configure this block in iqithtmlbanners module. It is hooked in displayRightColumnProduct hook.

To disable entire area go to iqitthemeeditor module > Content/Pages > Product page and set hidden for Right sidebar option


Technical specifications

  • Dimensions (mm): 22.8X12.0X25.4
  • Weight (g): 14
  • Speed: 0.13 sec/60° (4.8V), 0.09 sec/60° (6.0V)
  • Torque: 1.8 Kg.cm (4.8V), 2.2Kg.cm (6.0V)
  • Frequency : 333 Hz
  • Pulse length : 1500 µs
  • DC motor
  • Metal gears
  • 1x bearing
  • Aluminium housing
  • Output gear : 21 teeth

Thickness in mm (Servos)
12
Torque in kg.cm (servos)
2.2
Speed sec / 60° (servos)
0.09
Pinions (servos)
Metal
Bearing (servos)
yes
Technology (sevos)
Digital
HV (servos)
no
Weight in g (servos)
14
191-SH-0257MG+
4710006994277
4,71001E+12
