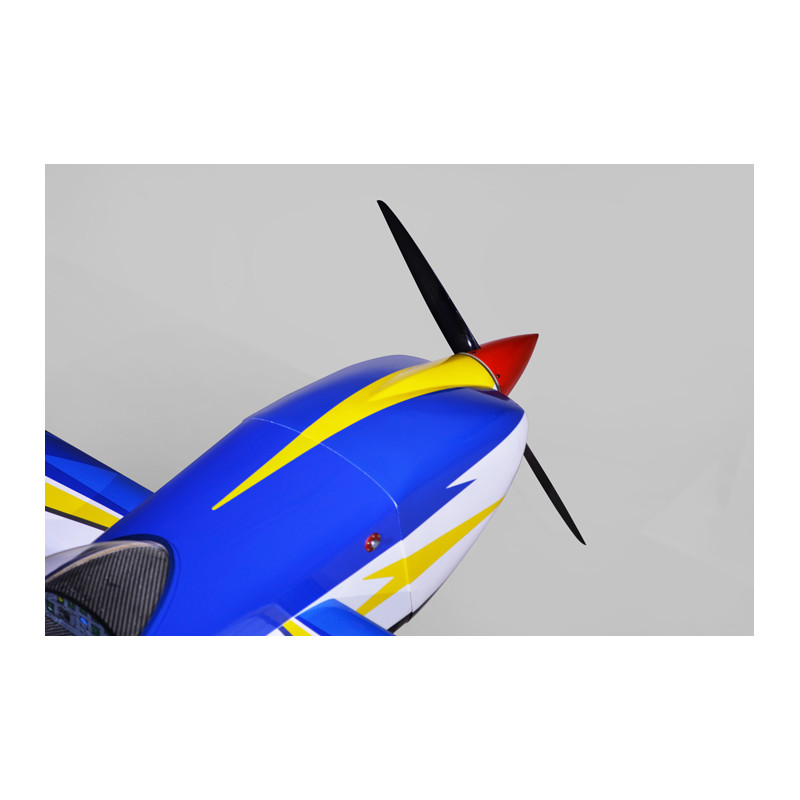

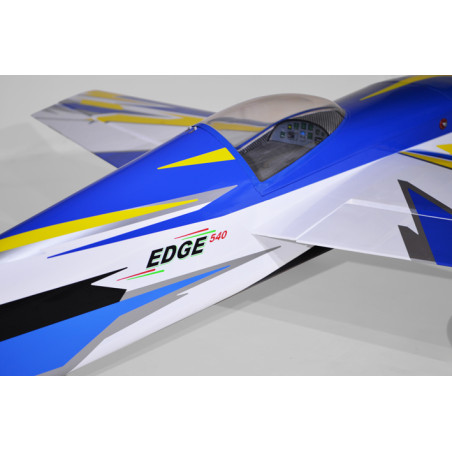

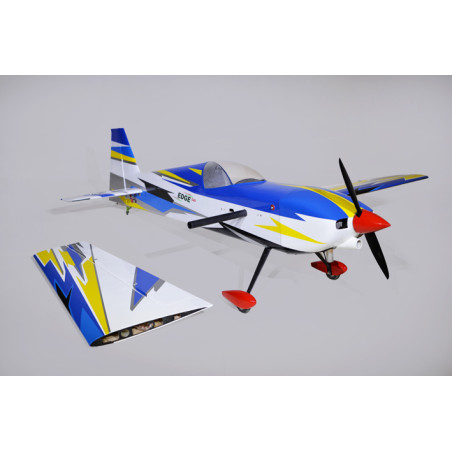

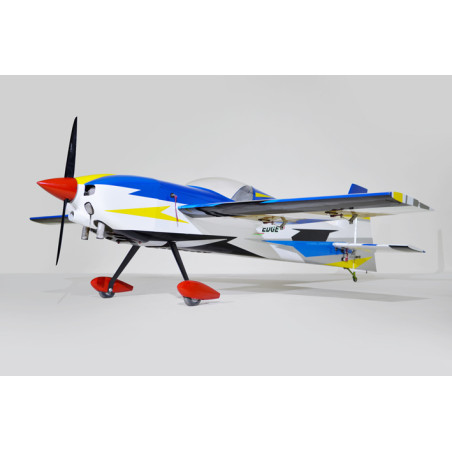

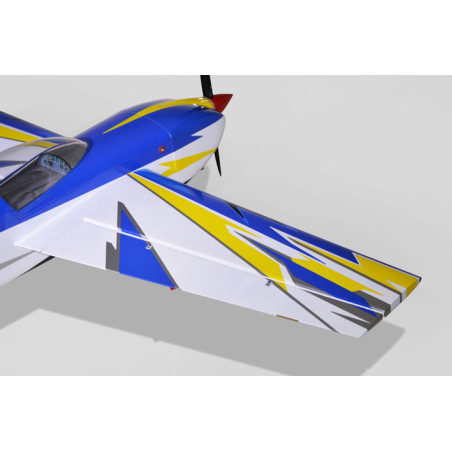

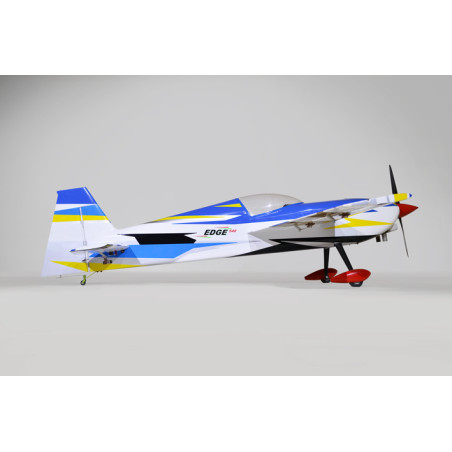

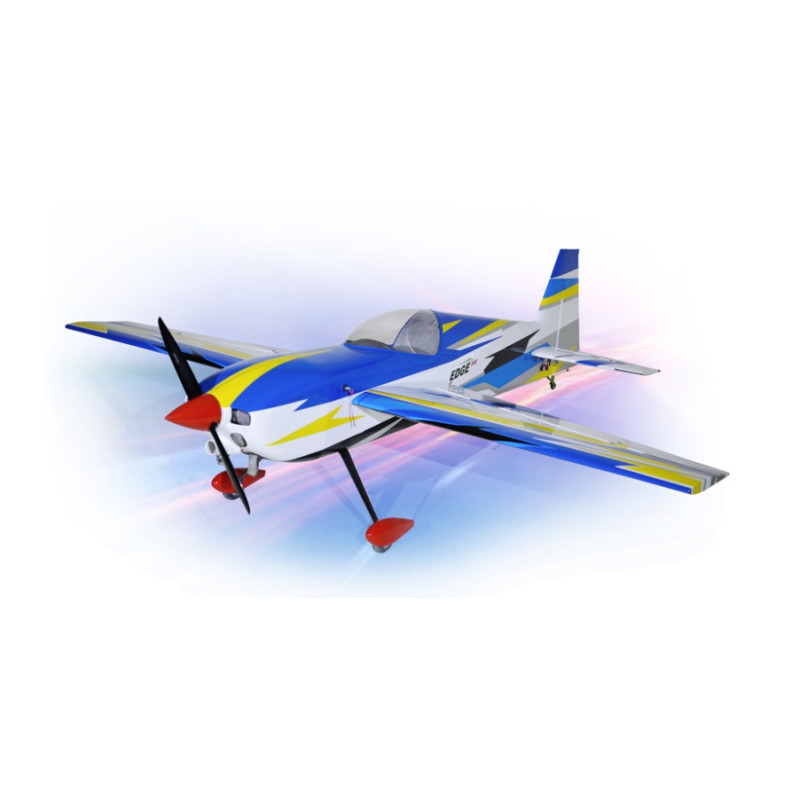

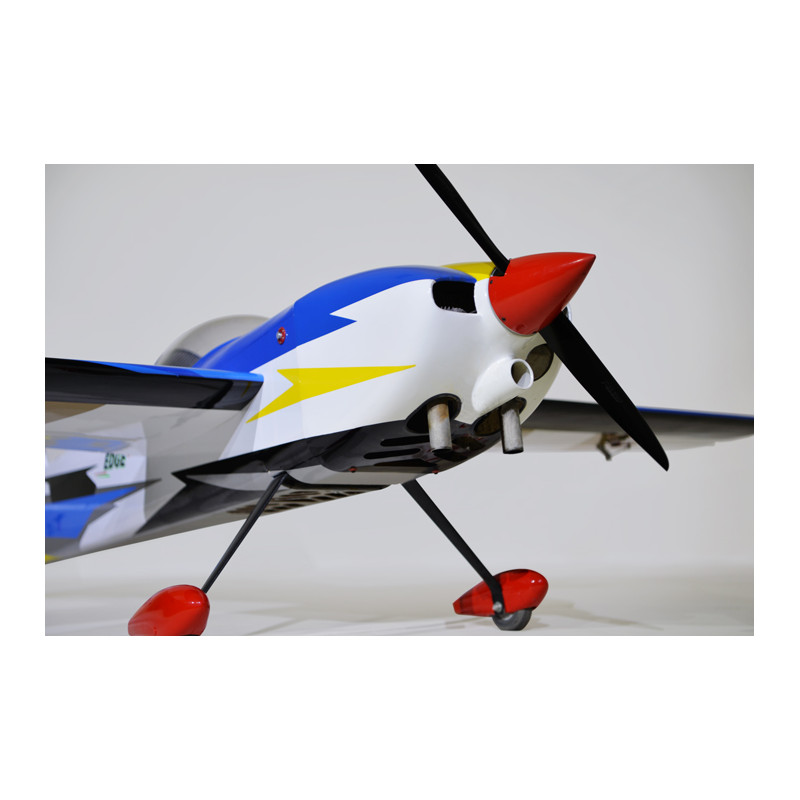

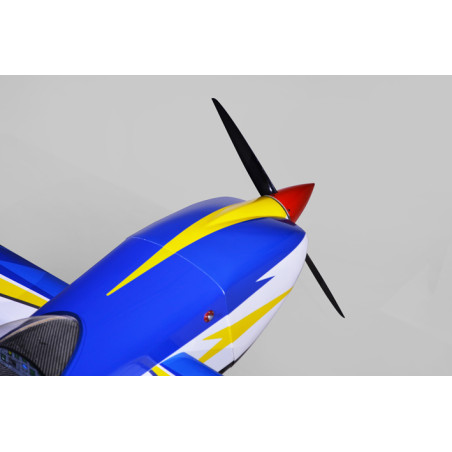

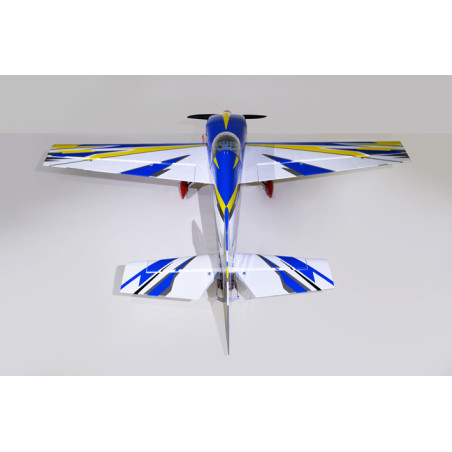

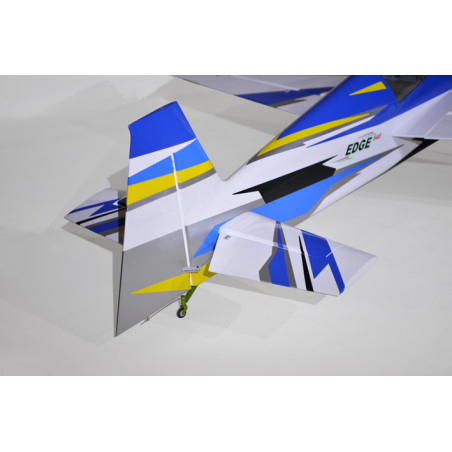

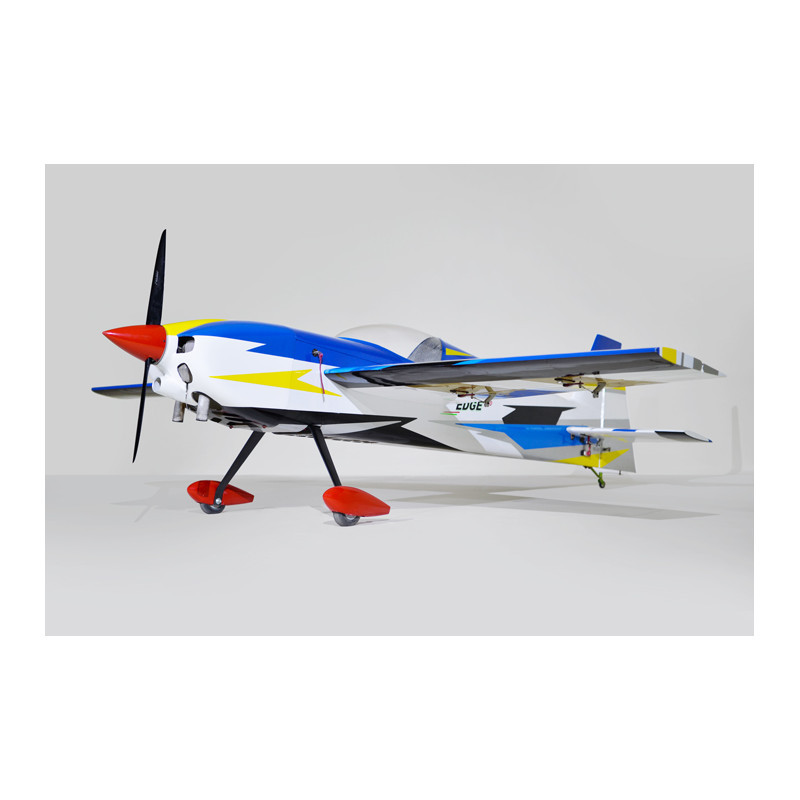

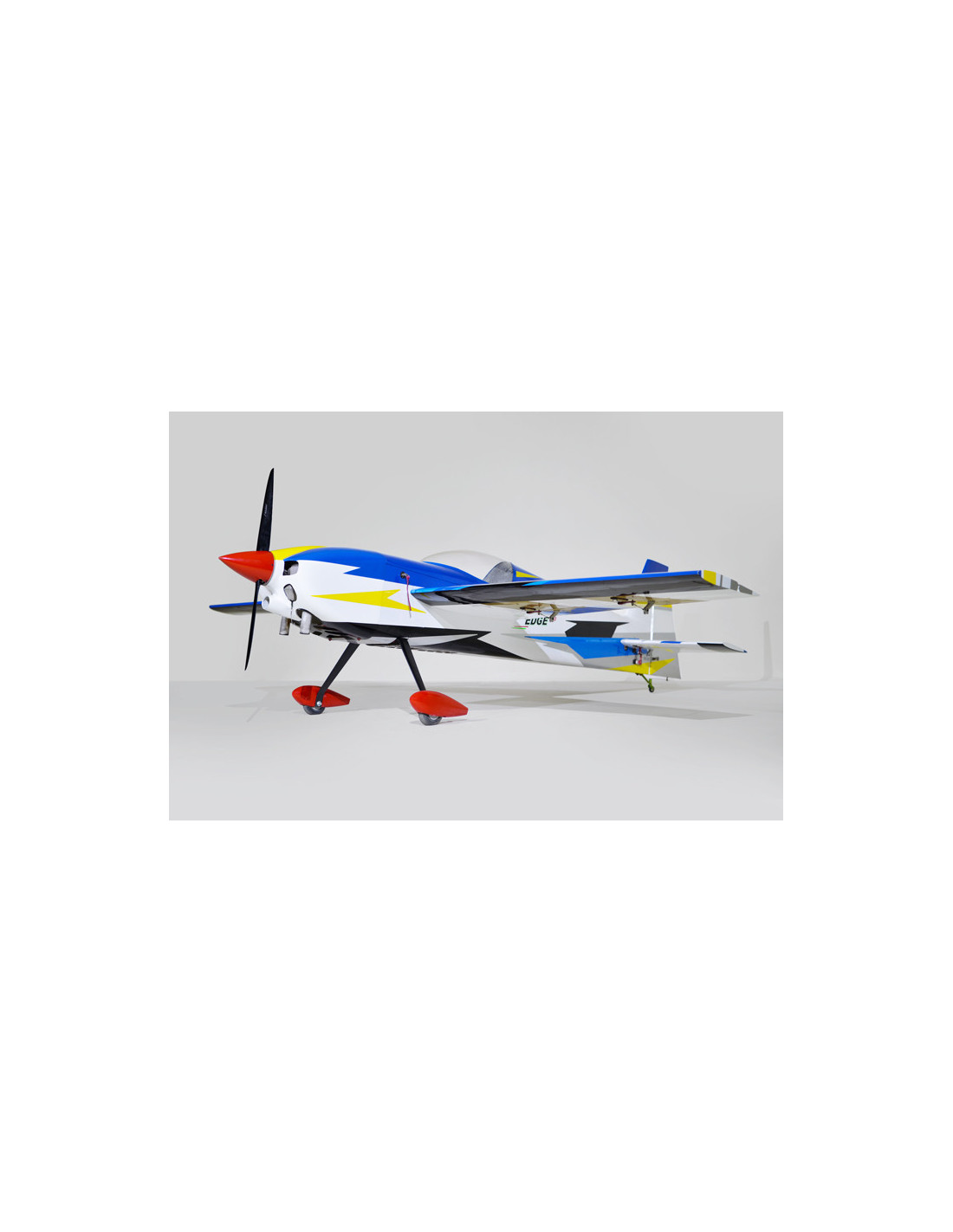

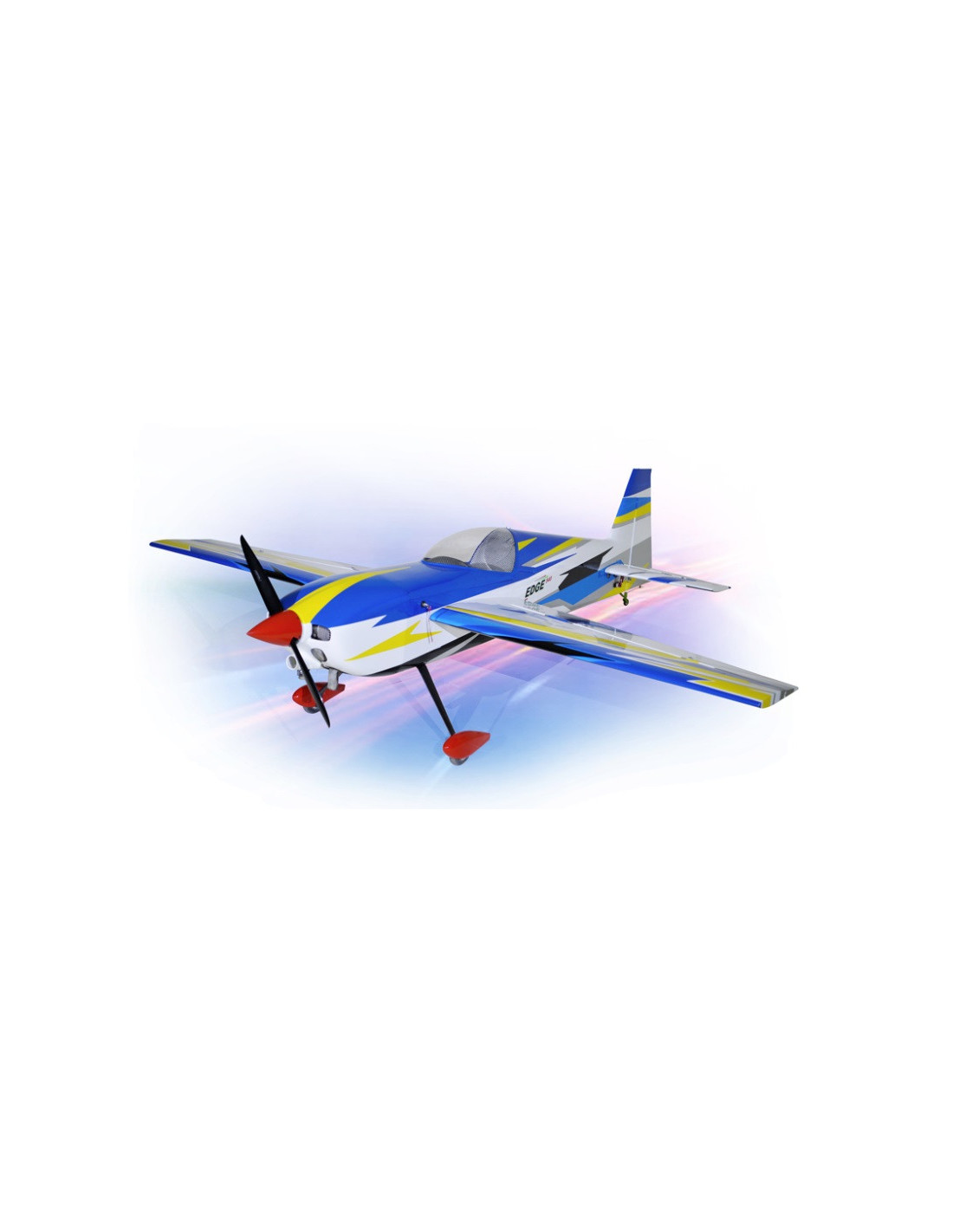

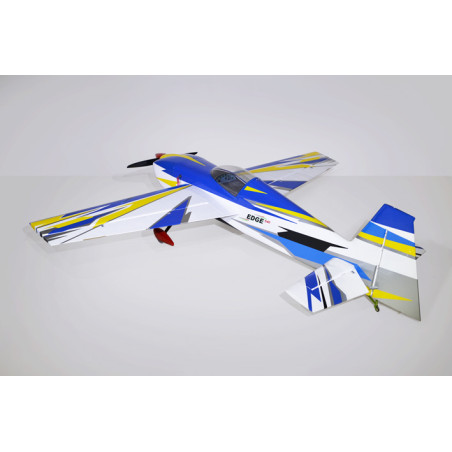

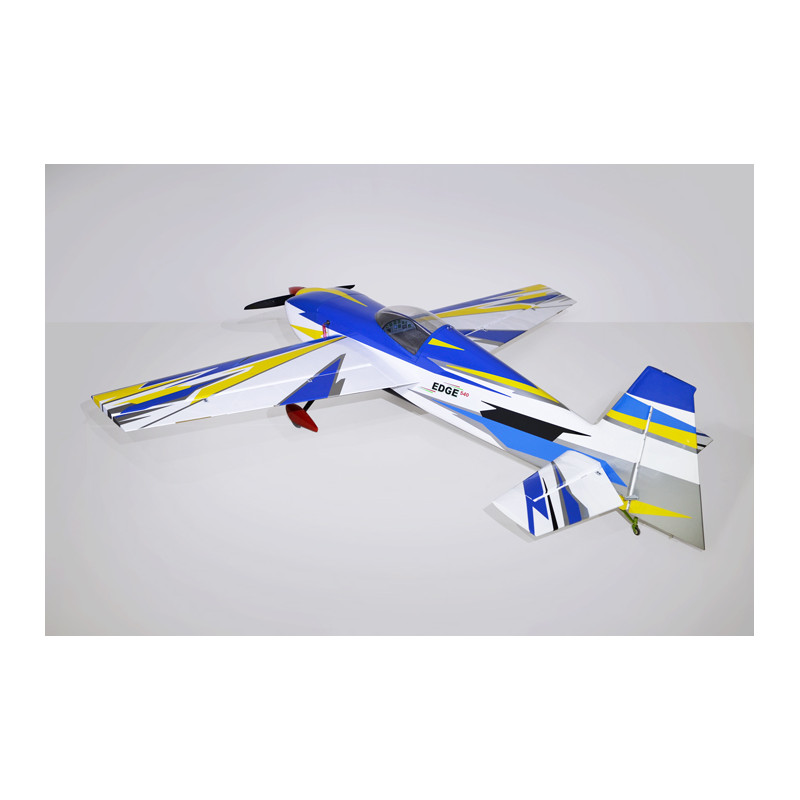

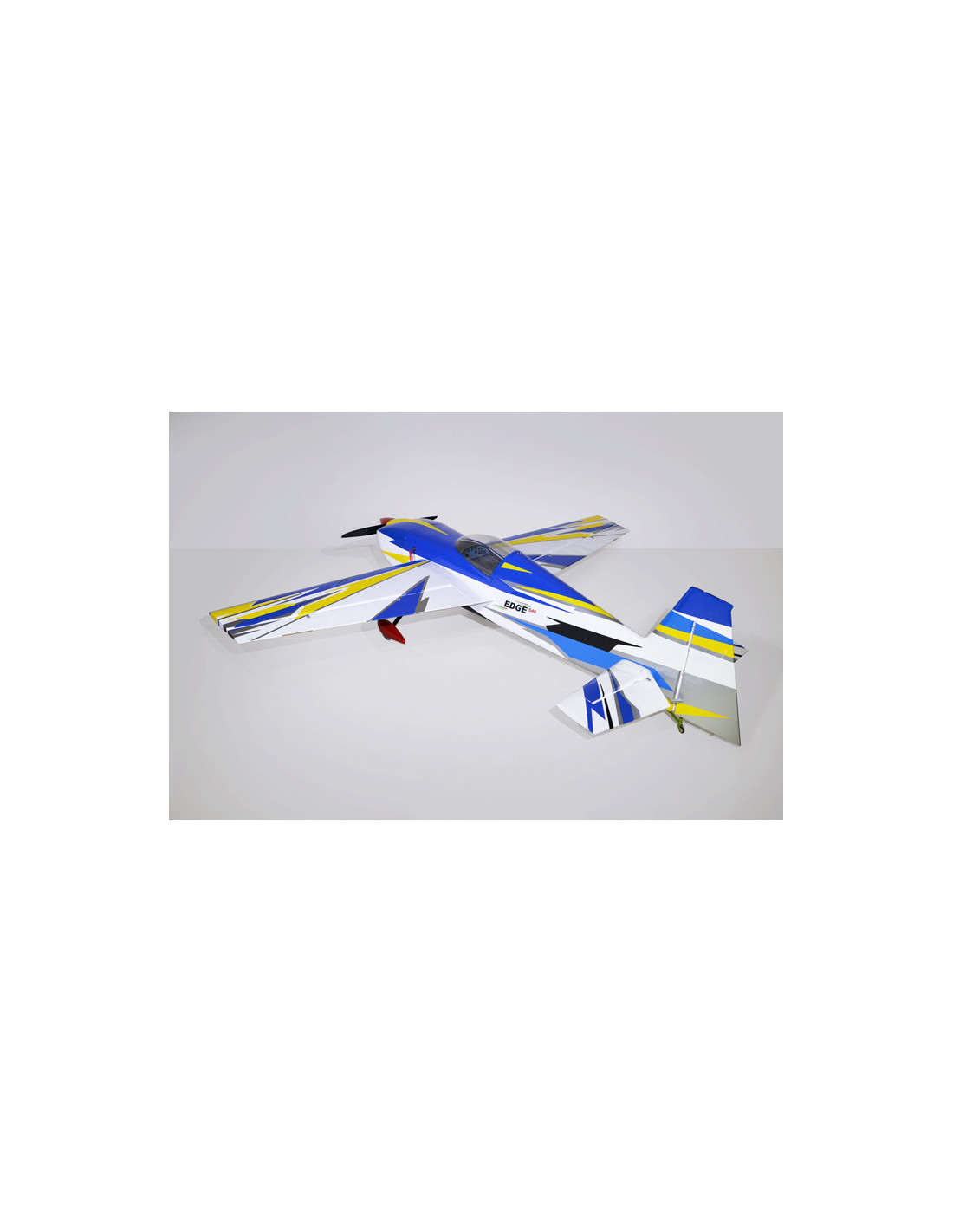

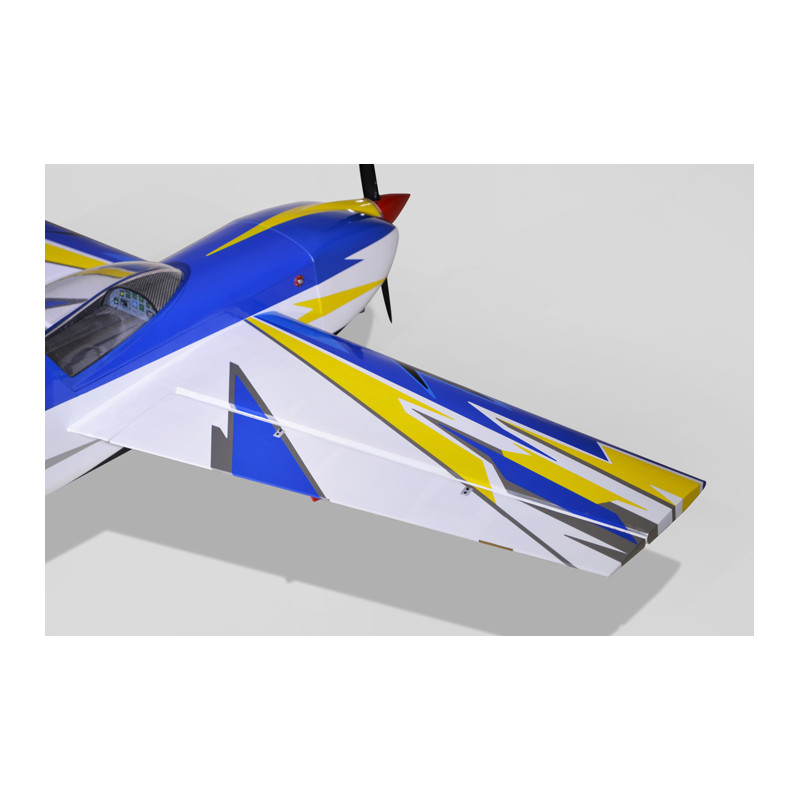

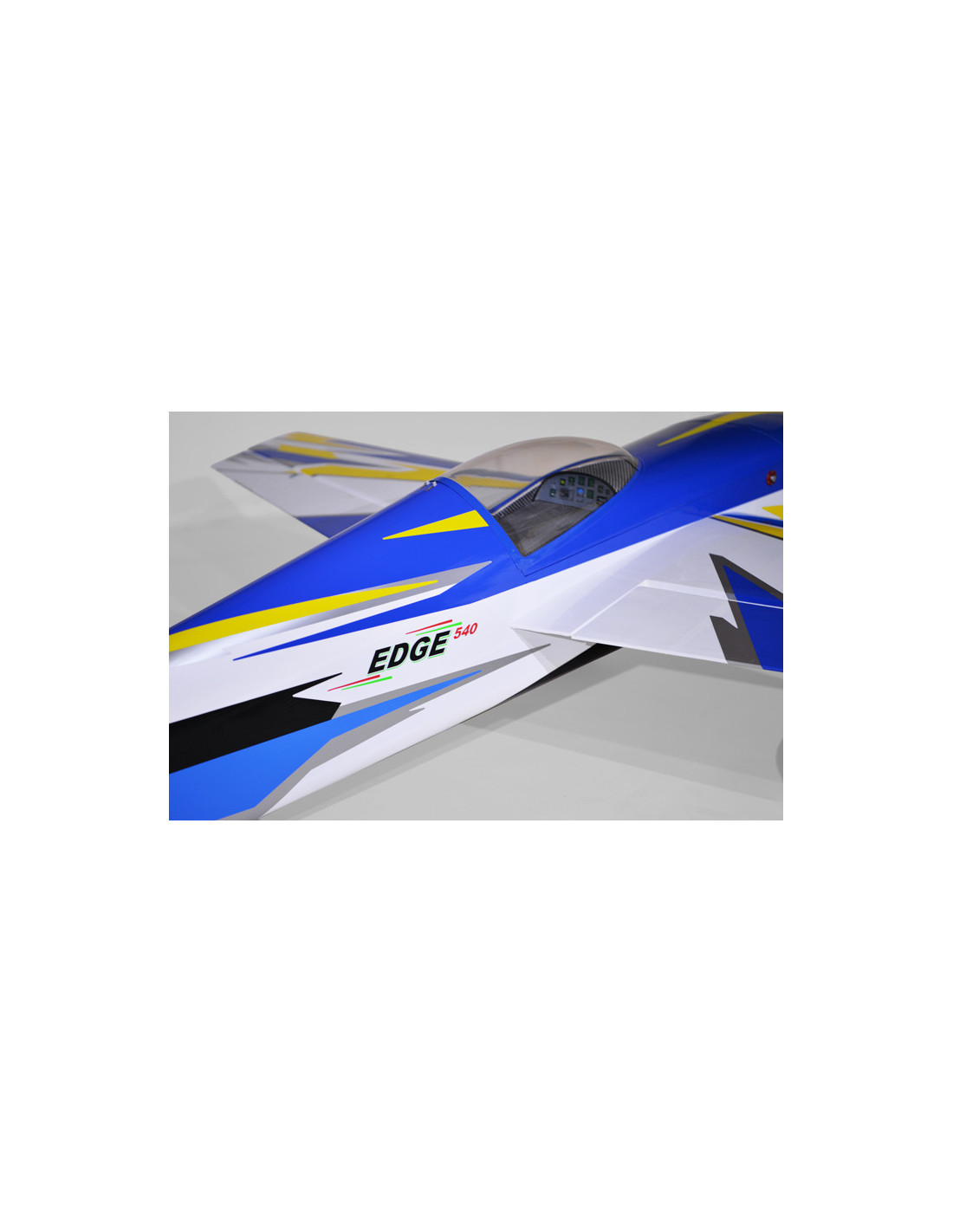

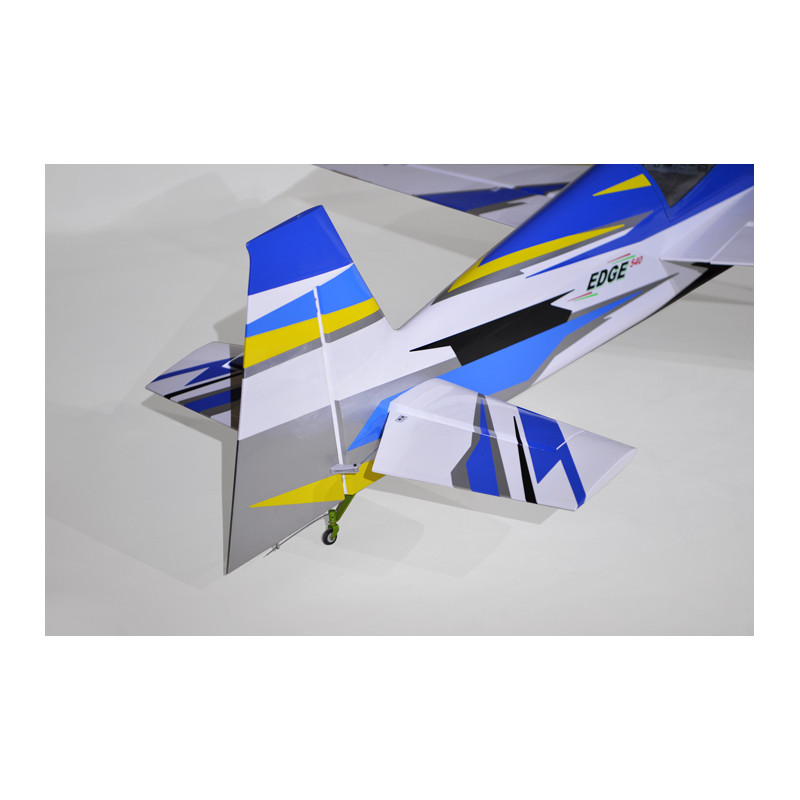

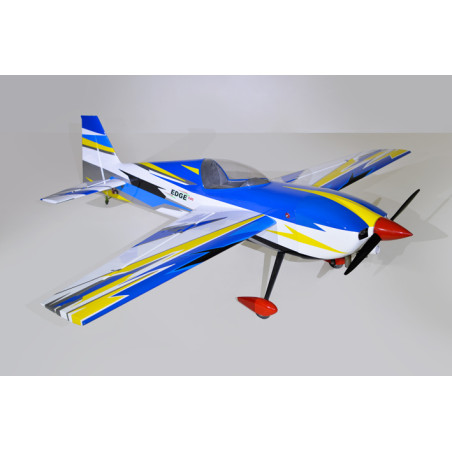

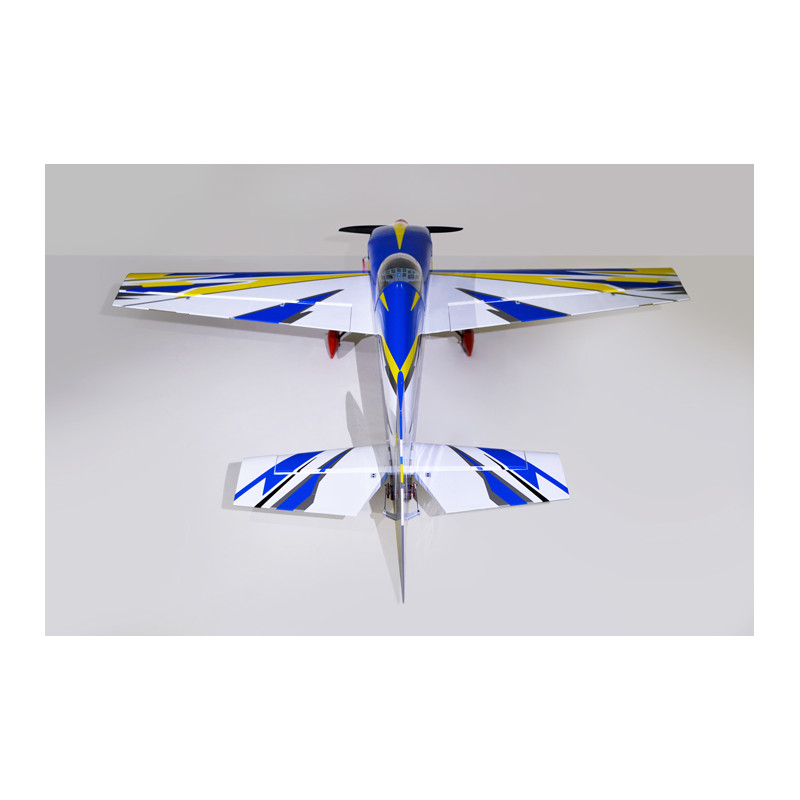

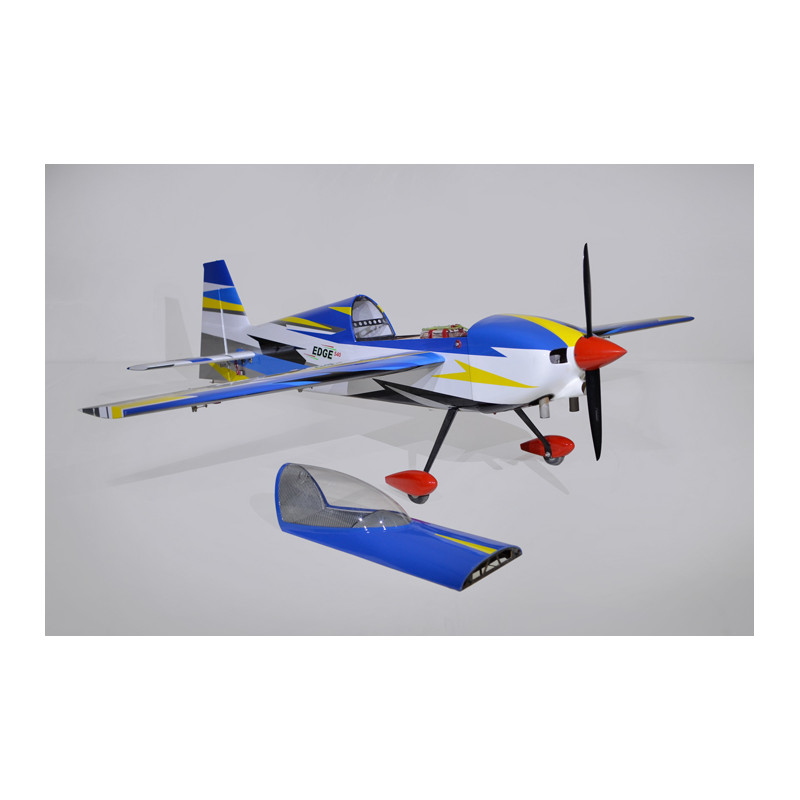

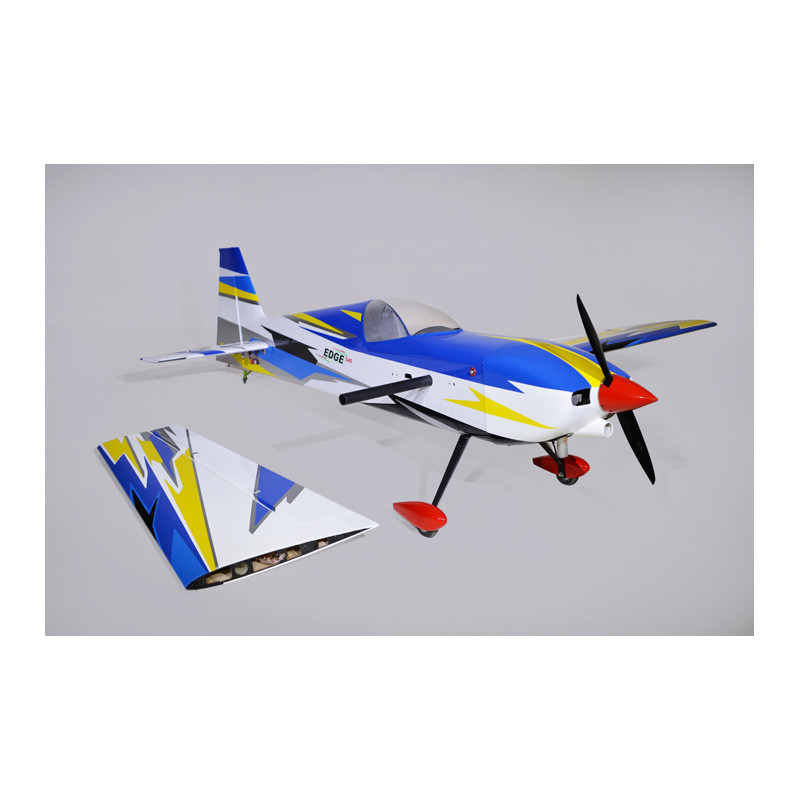

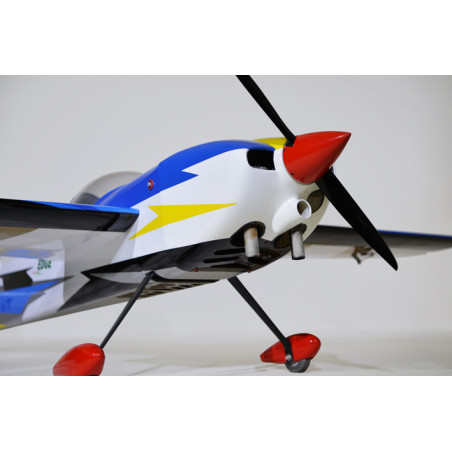

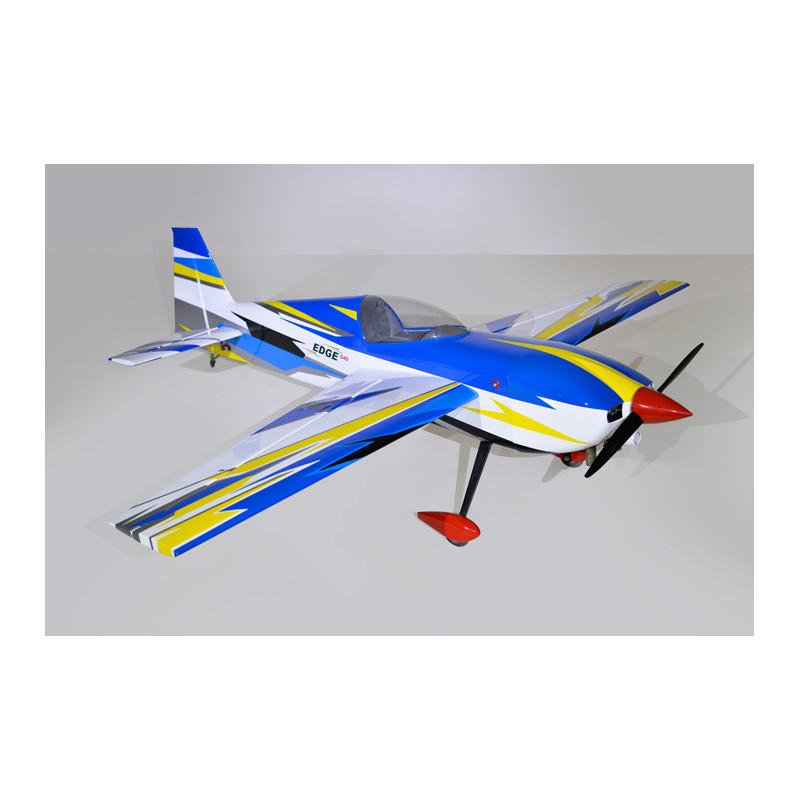

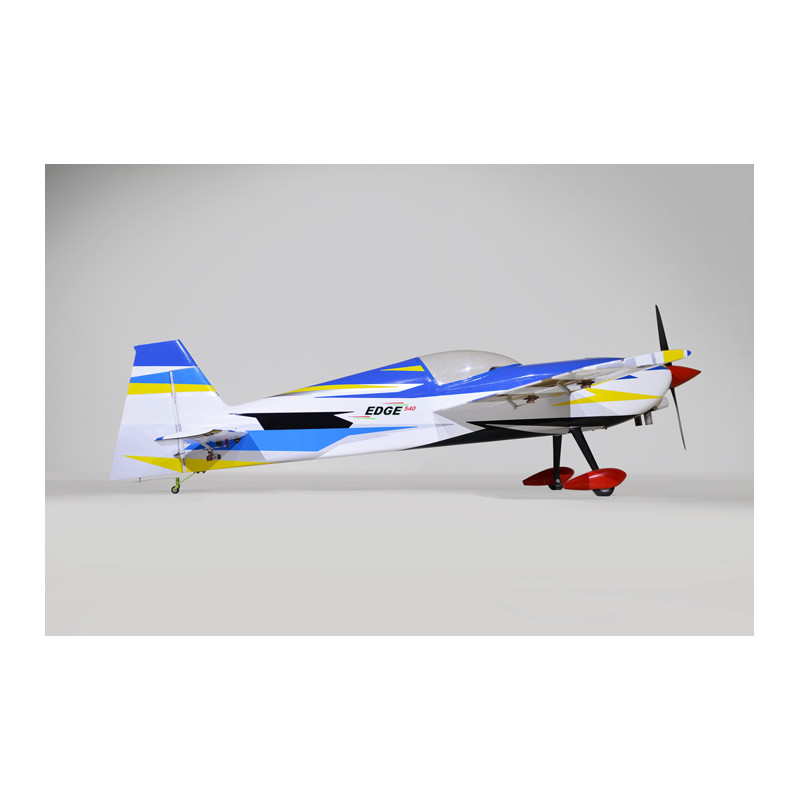

Plane BLUE EDGE 540 2,64m (104") 120cc ARF CARBON

Technical specifications

• Wingspan: 2640 mm (103.9 inches)
• Length: 2644 mm (104 inches)
• Weight in flight: 11900-12150 g
• Wing area: 125 dm²
• Wing loading: 95 g/dm²

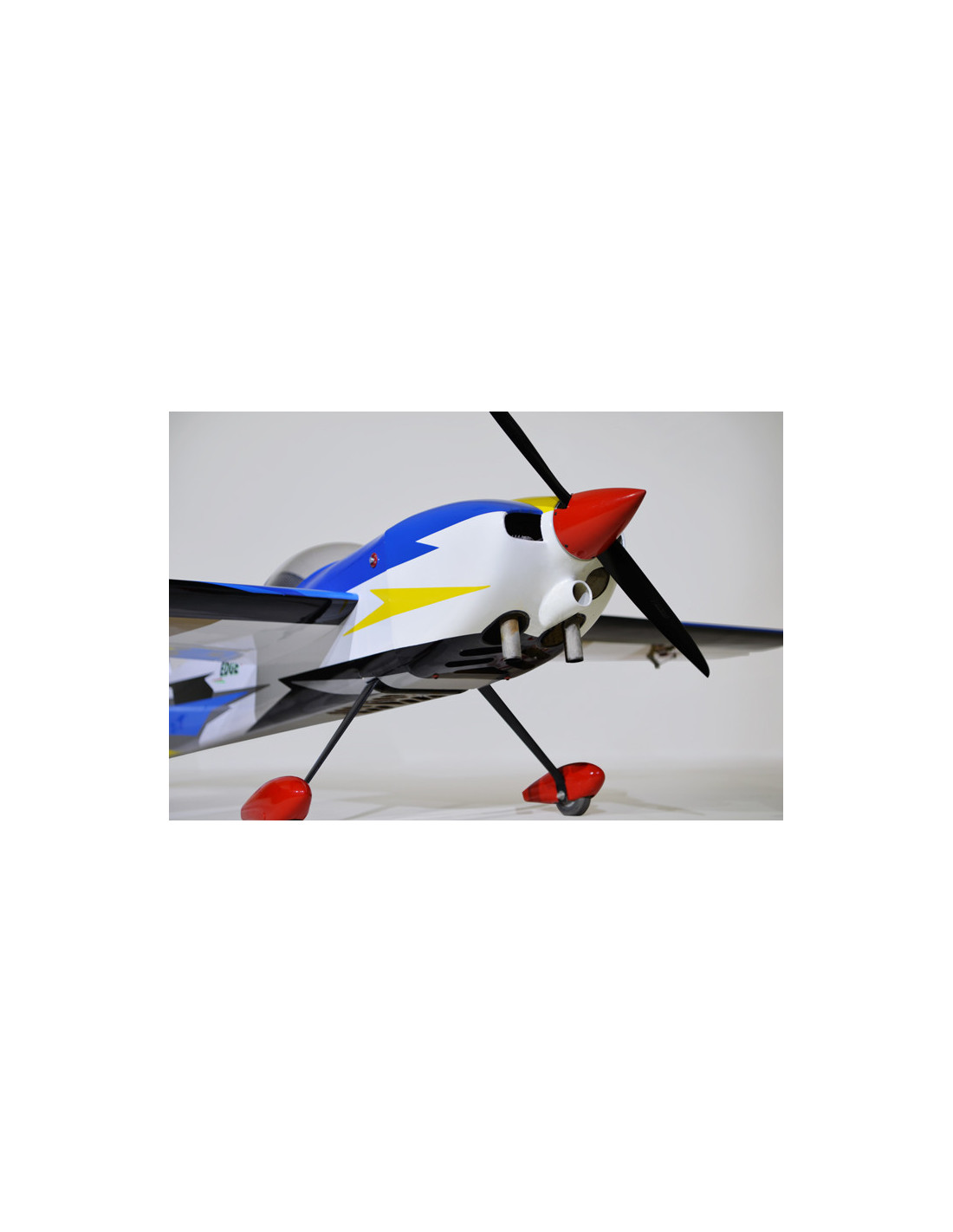

• Landing gear: Carbon fiber for main gear (included)
• Propeller cone: 115 mm (included)
• Radio: 6-channel minimum (not included)
• Servos: 9 standard high-torque servos (up to 25 kg): 4 ailerons, 2 elevators, 2 rudders, 1 throttle (not included)
• Propeller: Fits your engine
• Engine: 120cc internal combustion engine (not included)

Flight movements

• Ailerons:
  • Low rate: 18-20 degrees, 30-40% exponential
  • High rate: 40-45 degrees, 50-60% exponential
• Elevators:
  • Low rate: 10-12 degrees, 18-20% exponential
  • High rate: 45-60 degrees, 50-60% exponential
• Drift:
  • Low rate: 20 degrees, 50-60% exponential
  • High rate: 45-55 degrees, 60-80% exponential

Aircraft type: Acro
Experience level: Intermediate

Additional features

• Capable of extreme 3D acrobatics and precision maneuvers
• Designed to be compatible with GP flights (gasoline engine)

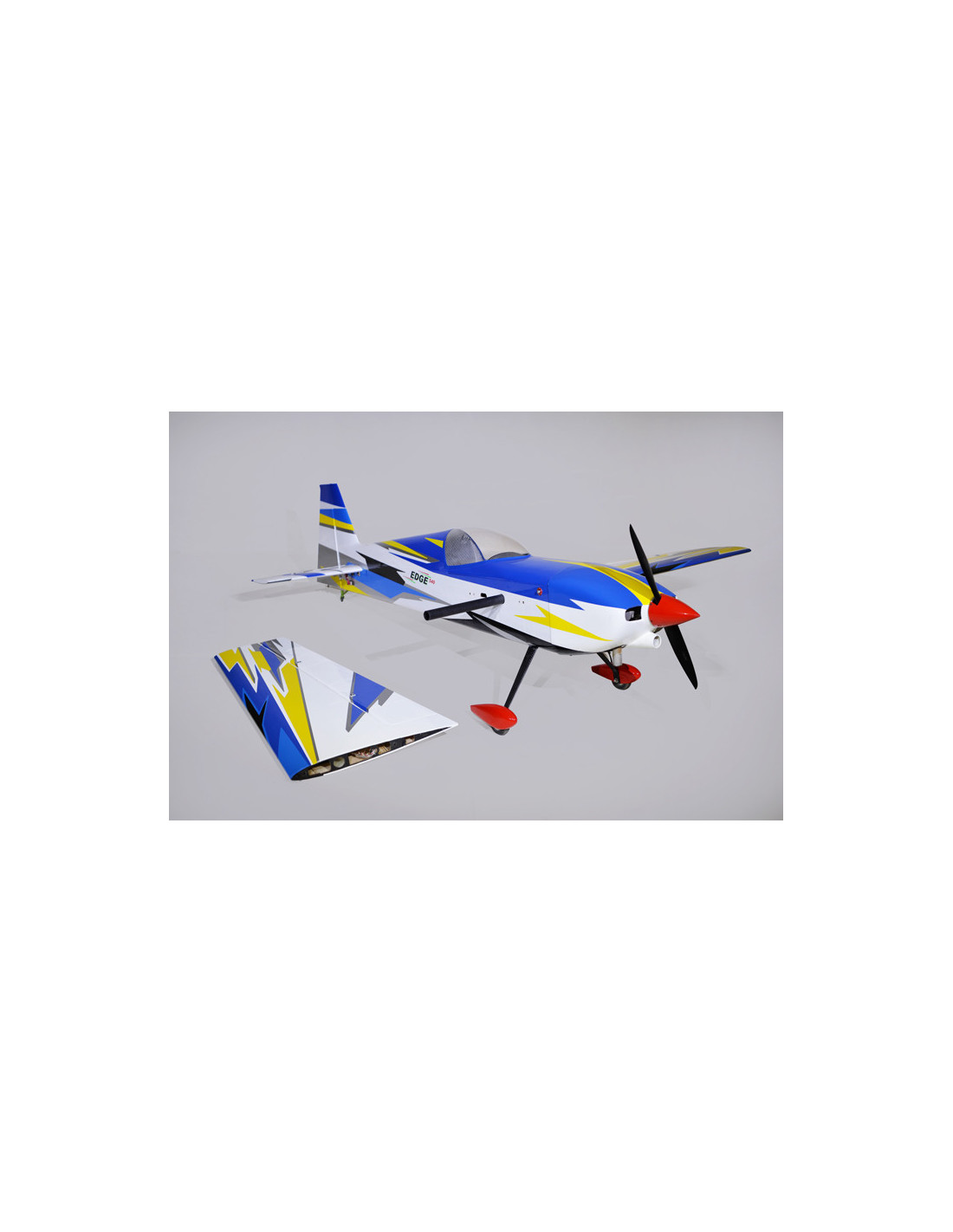

• Quick-assembly wings for easy transport and rapid assembly in the field

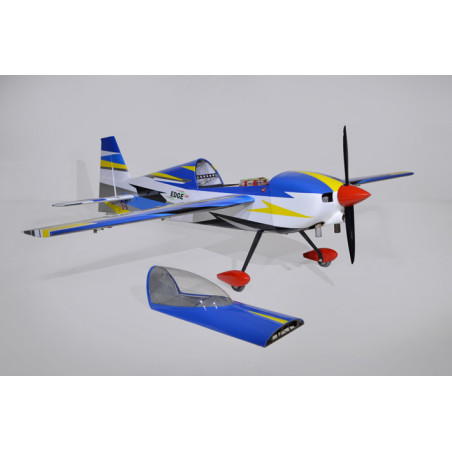

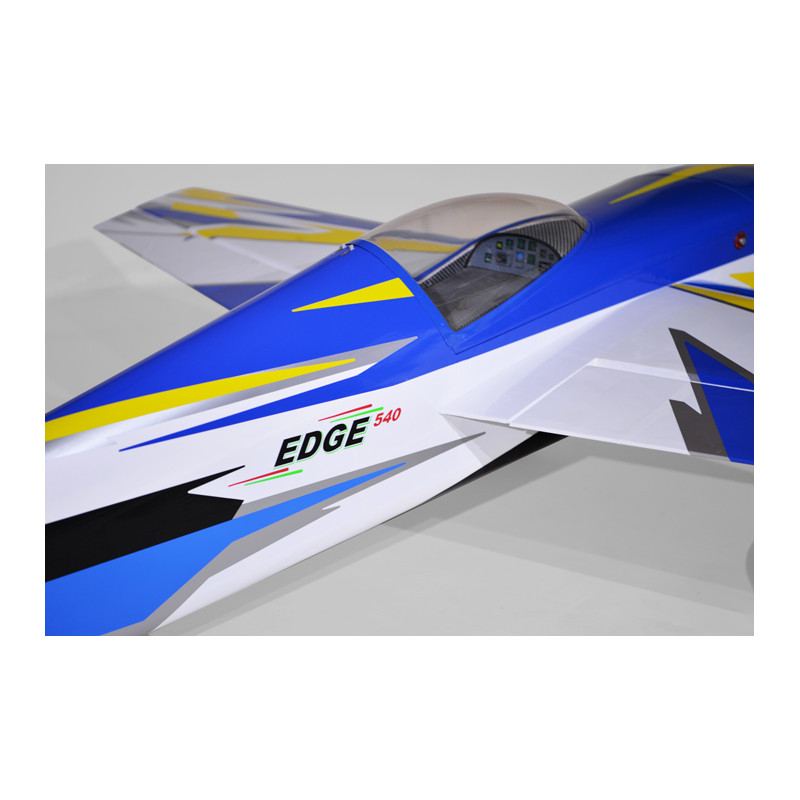

• Removable canopy for easy access to Lipo battery and radio configuration
• Composite materials for lightness and strength
• Factory-painted fiberglass cover for optimum durability
• All necessary hardware included

Color palette

• Blue (# 21050)
• Light blue (# 21053)
• Cadmium yellow (# 21033)
• Black (# 21071)
• White (# 21010)
• Silver (# 21091)
• Gold (# 21092)

Packaging dimensions

• 2109 mm x 715 mm x 388 mm (L x W x H)
