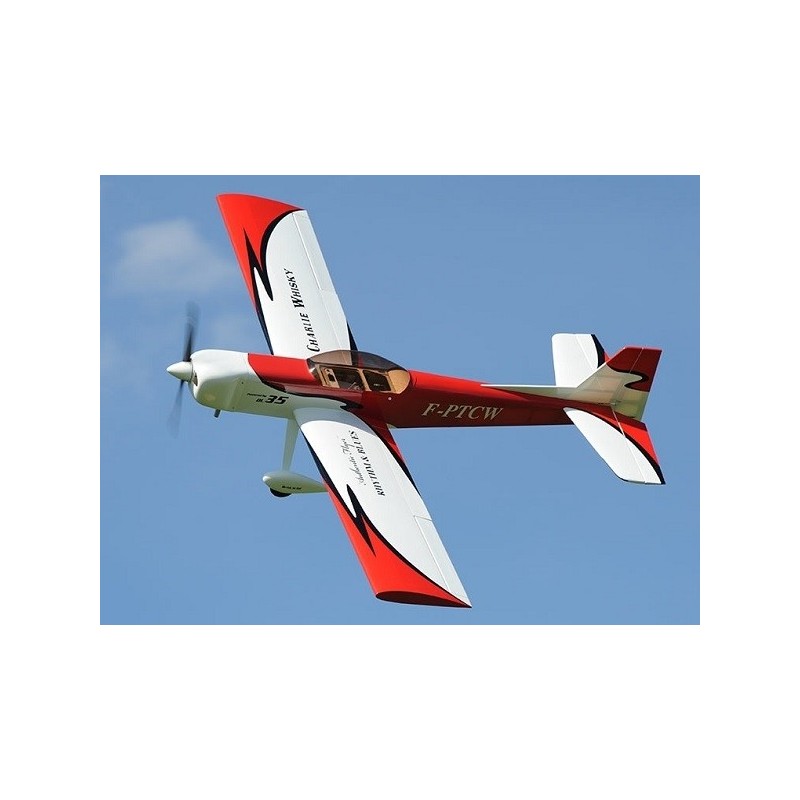

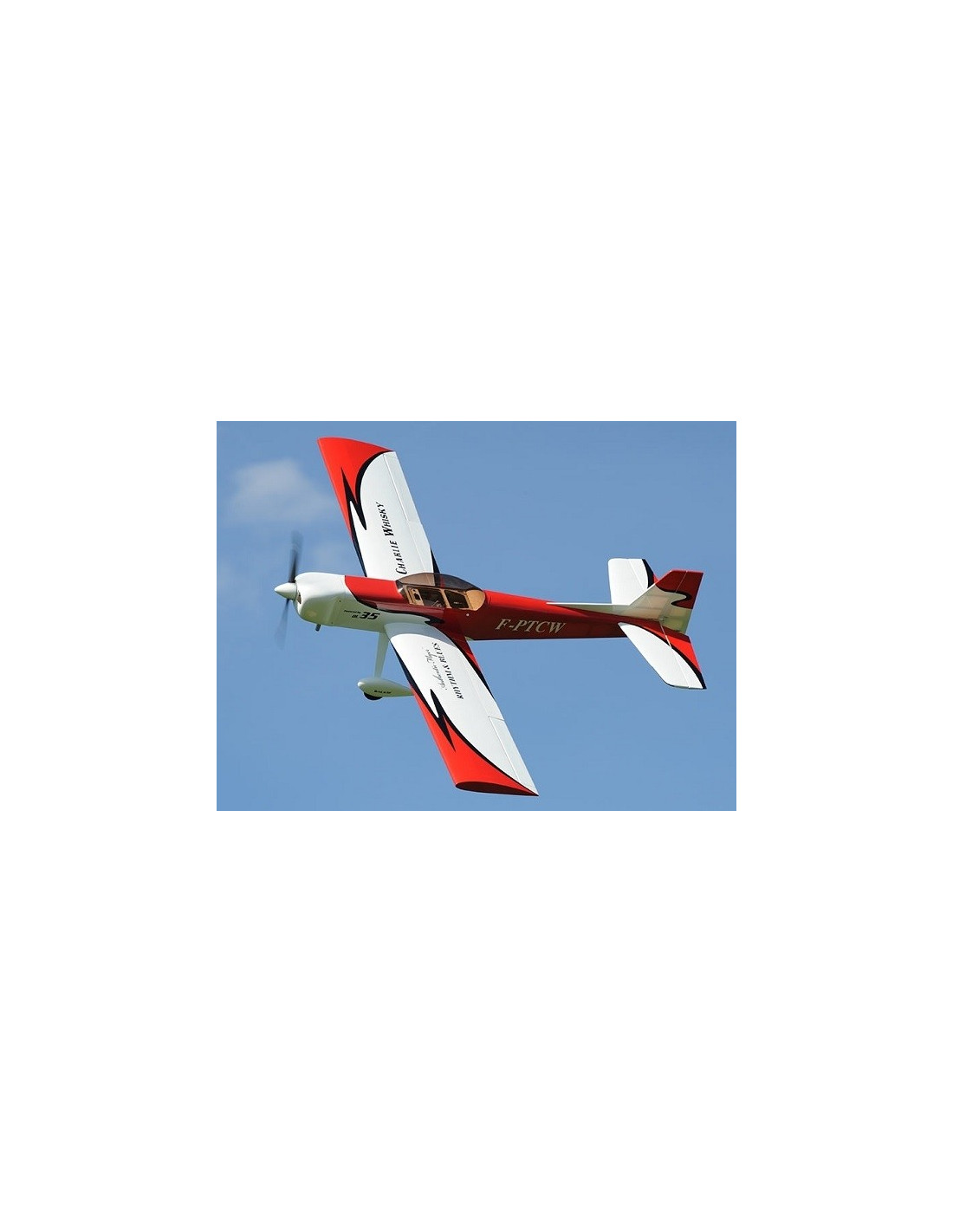

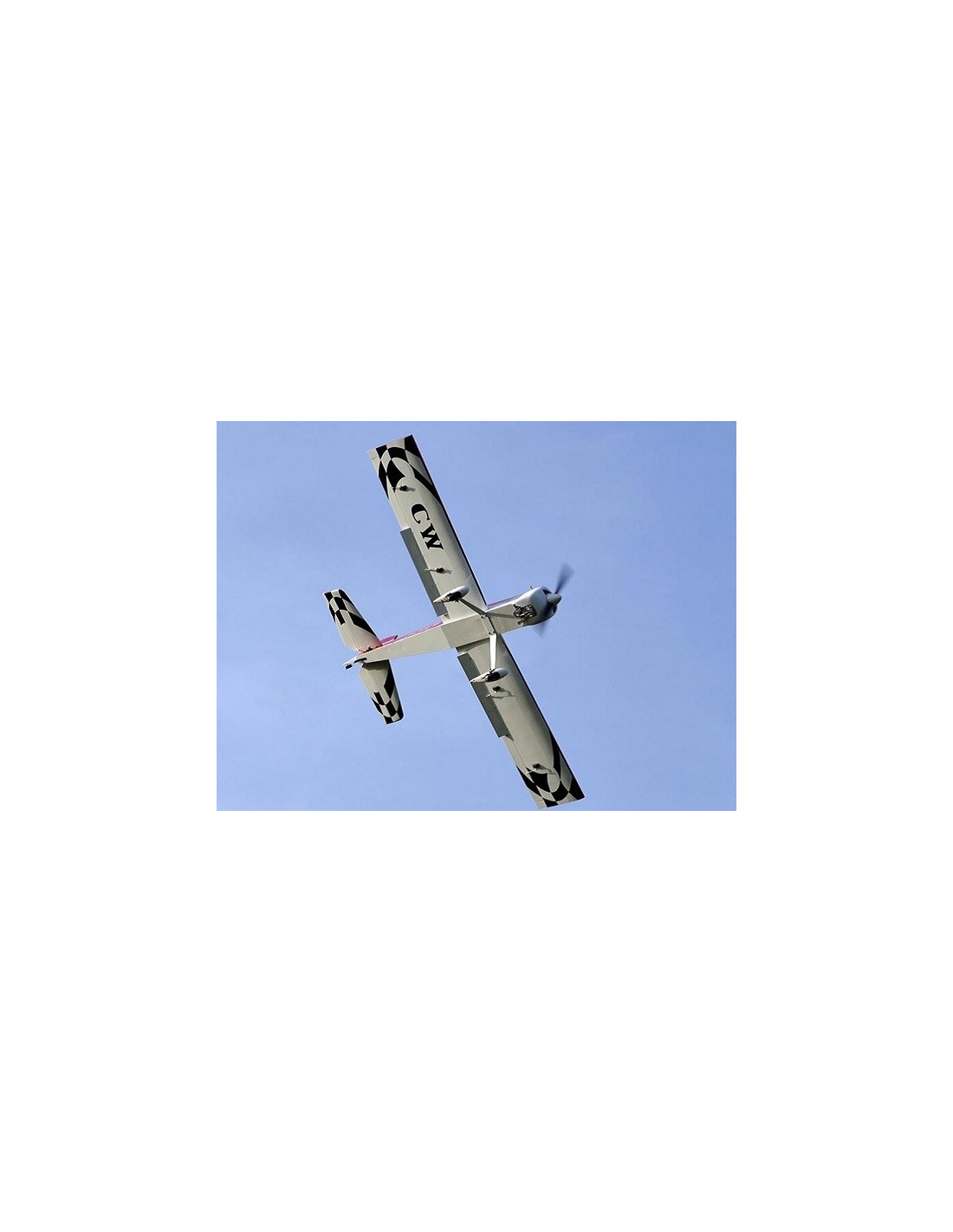

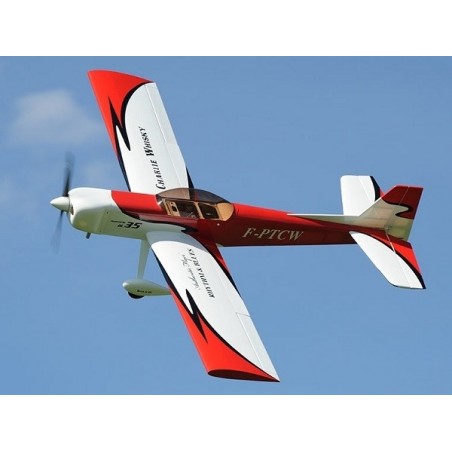

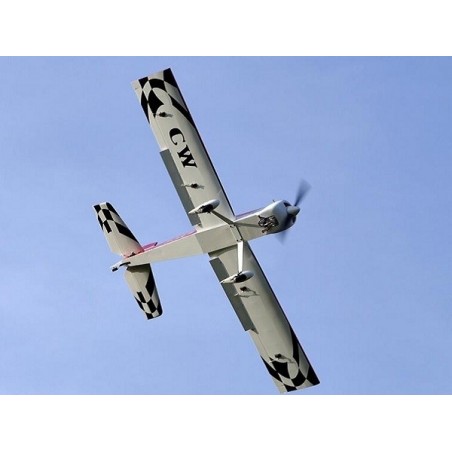

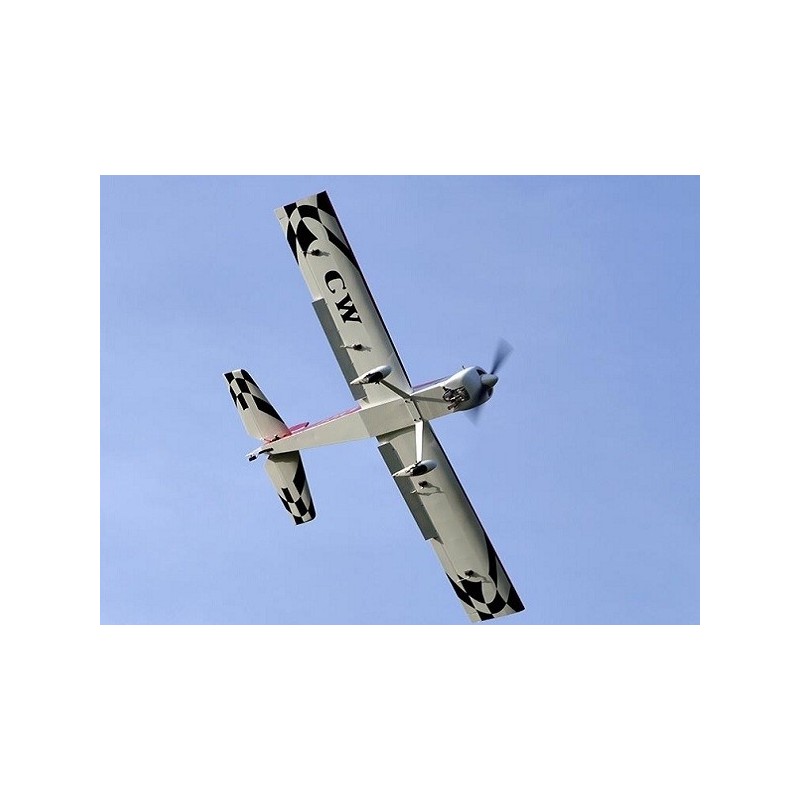

Aircraft Ecotop Charlie Whisky 35cc ARF approx.2,25m

Technical characteristics

• Span: 225mm
• Length: 186mm
• Weight: 6.60-7.30kg
• Wing loading: 83.2 g/dm²
• Wing profile: NACA 2414
• Controls: motor, ailerons x2, flaps x2, elevator x2

What is missing !

• Gasoline engine: 35cc
• Adapted propeller
• Transmitter/receiver: 6 channels minimum
• Servos: 7-8 std
• Requires a battery for ignition and reception.

Contents of the kit

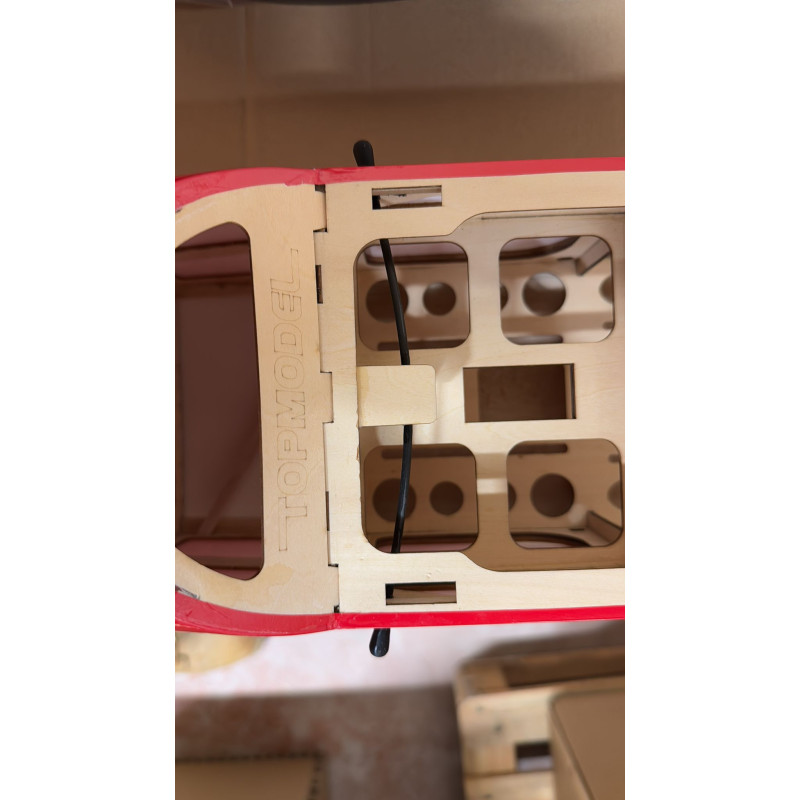

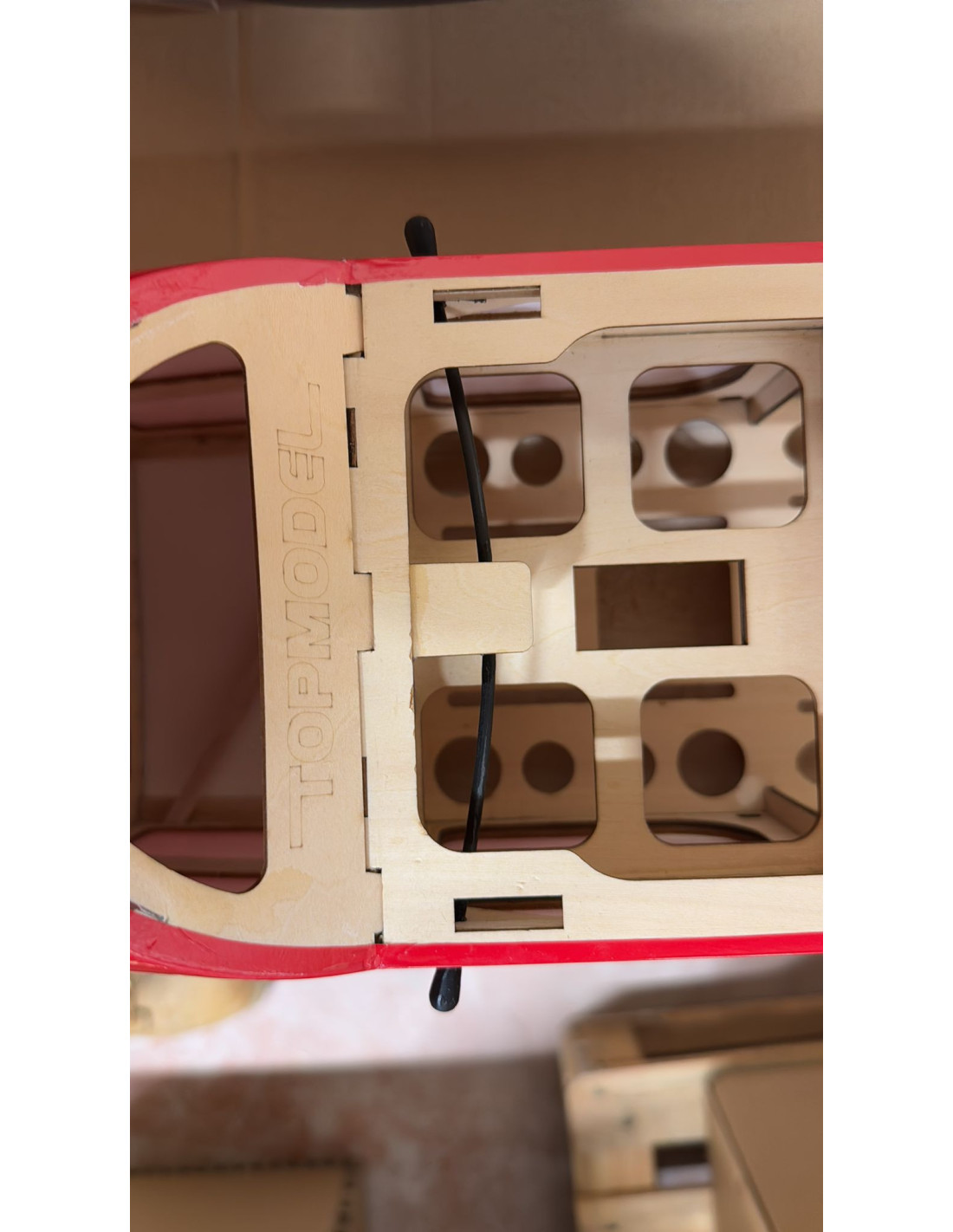

• Fuselage completely built in CTP-balsa structure and covered with Oracover® with decoration installed at the factory. Wing key sleeve installed - Triangulation done at the factory.
• Painted fiberglass engine cowling.

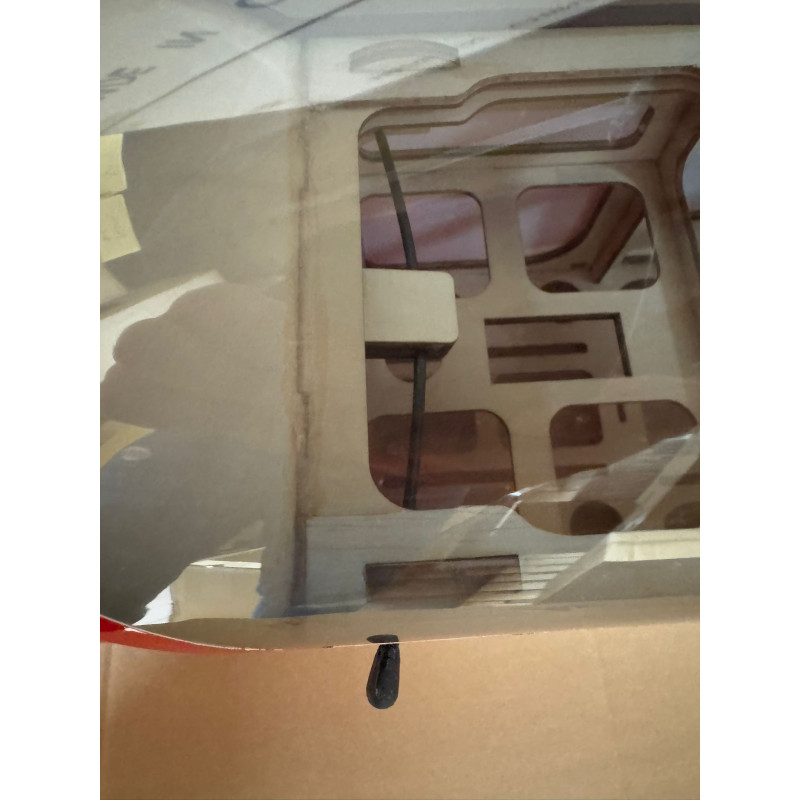

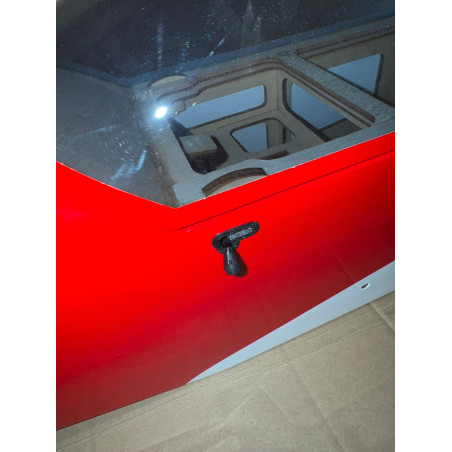

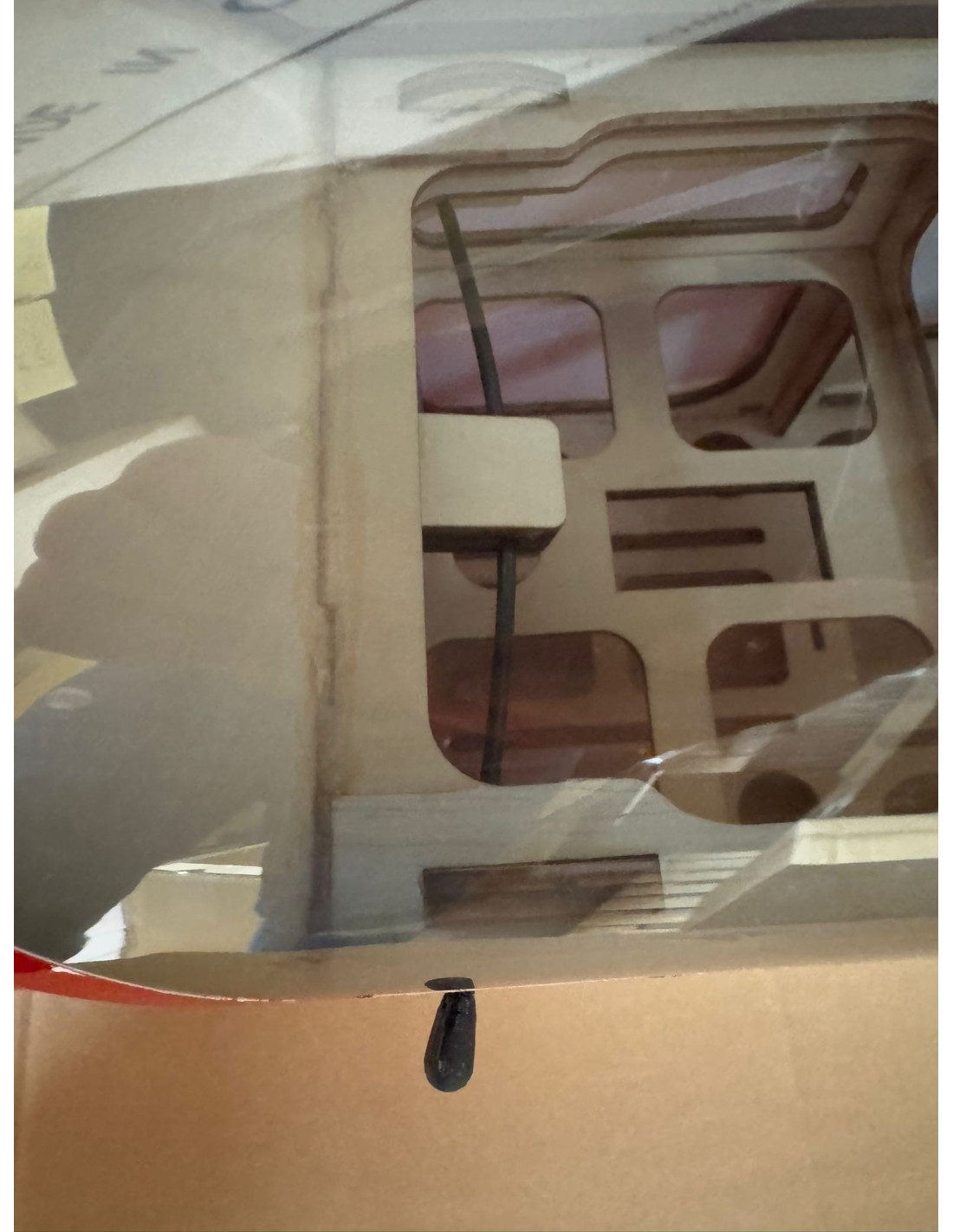

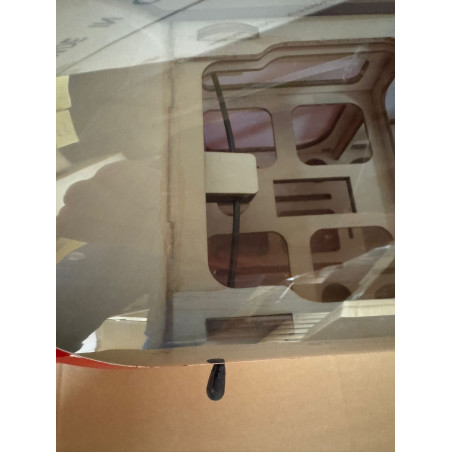

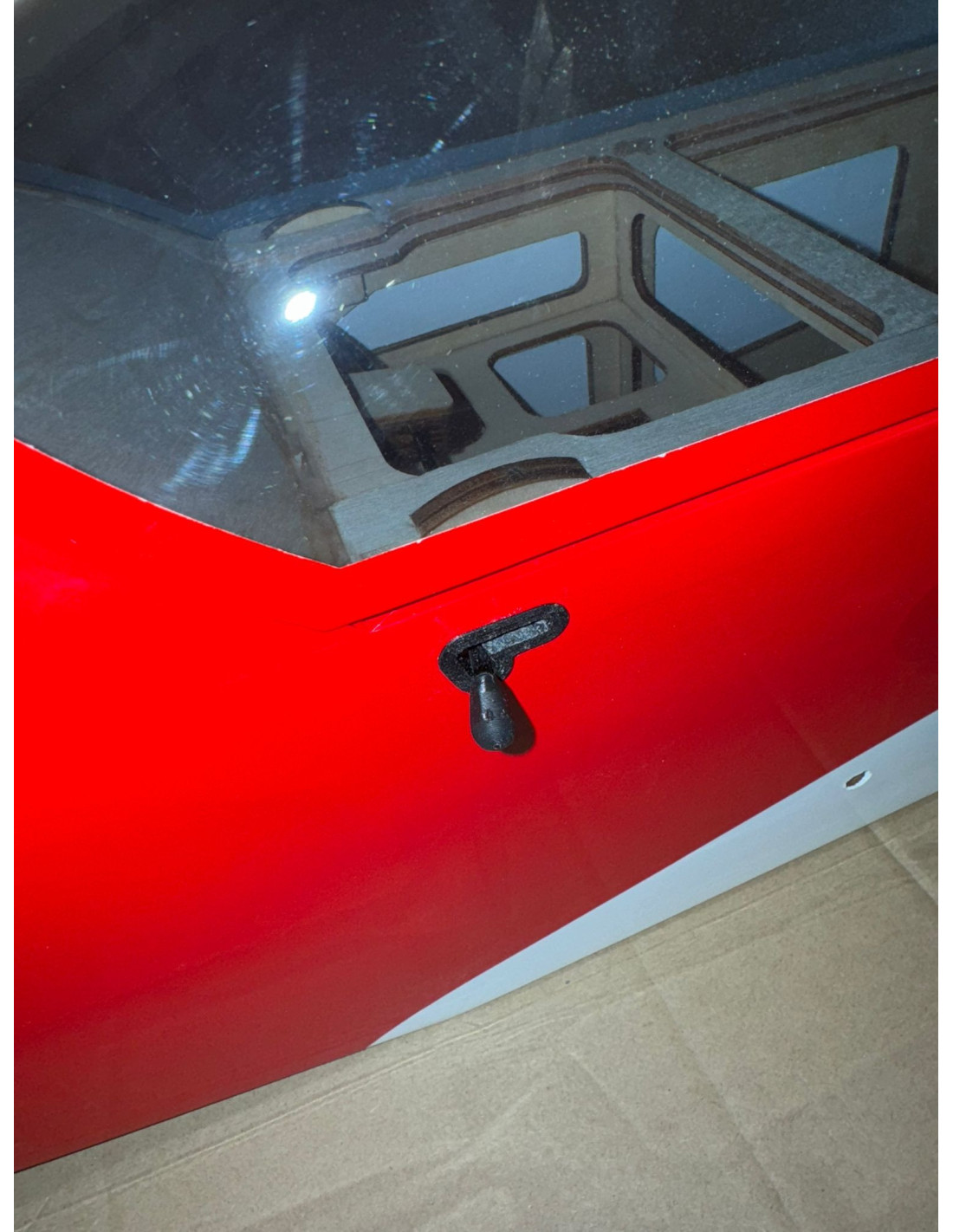

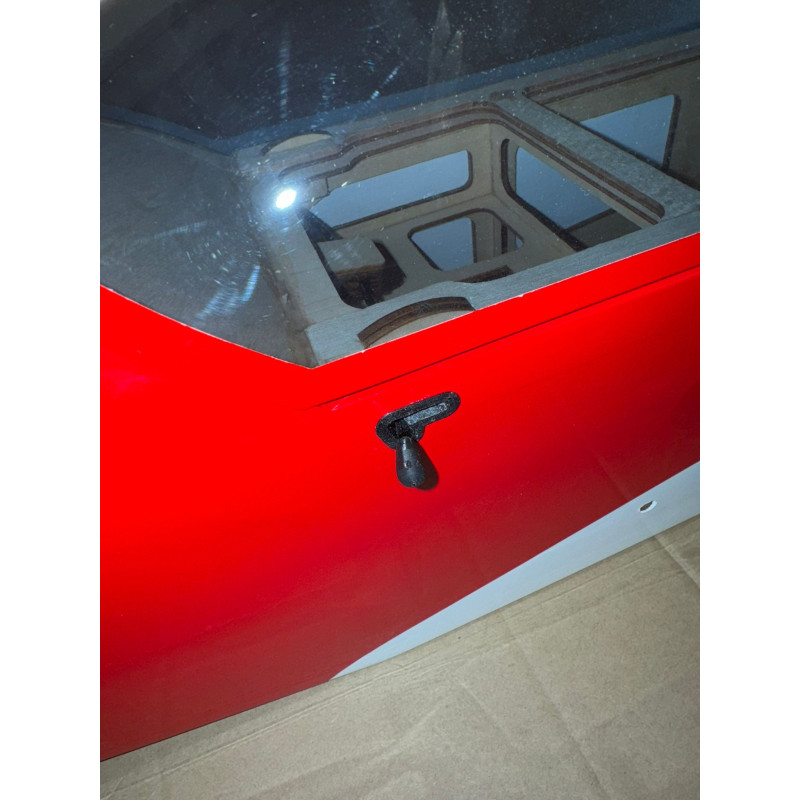

• Smoked transparent PVC bubble bucket, finished and with fastening system installed.
• Main gear in painted duralumin. Fiberglass wheel fairings. Carbon tail wheel with steering system.
• Wings in Oracover® structure (2 parts). Fin and landing flaps finished with stick hinges installed to glue. Decoration done at the factory. Tie rod installed. Aileron and flap servo plates
• repaired. Servo cable ties passed through the wing.
• Carbon tubular wing key.
• Oracover® canvas tailplane structure with rudders completed, stick hinges installed, to be glued. Carbon stab keys.
• Wing and stab covers made of aluminized bubble film for maximum protection against shocks and heat.
• Accessories (motor mounting template, fiberglass horns, aluminum hub wheels, wheel axles, quick-links, ball clevises, complete round trip cable (steering), screws, etc.).
• Illustrated step-by-step assembly instructions.
