Electric landing gear ELR15 XPOWER

General features

• Heavy duty landing gear strut and support
• Integrated electric motor with micro circuitry
• Built-in over-current protection

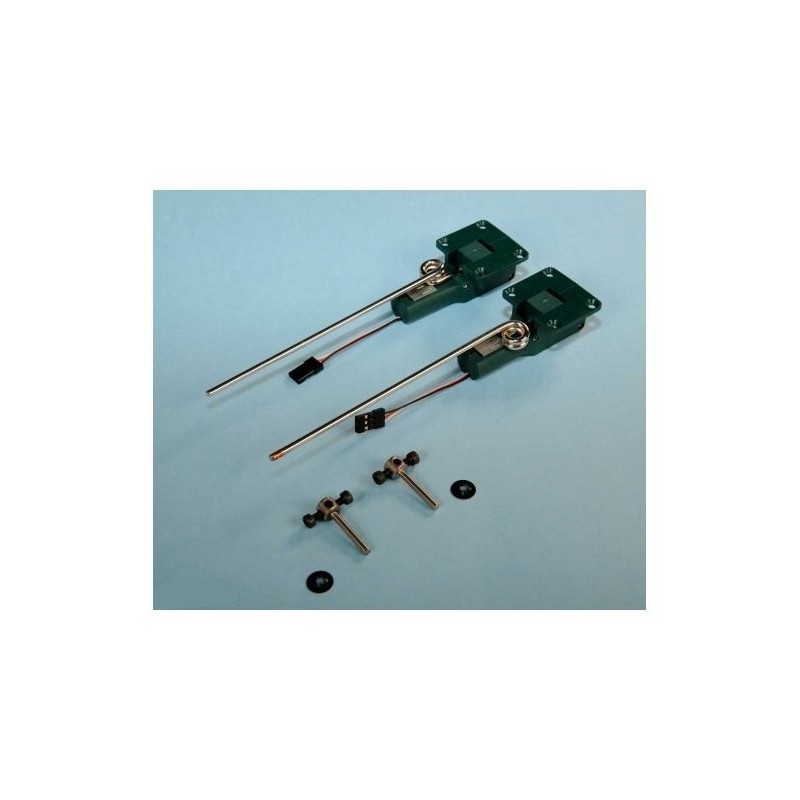

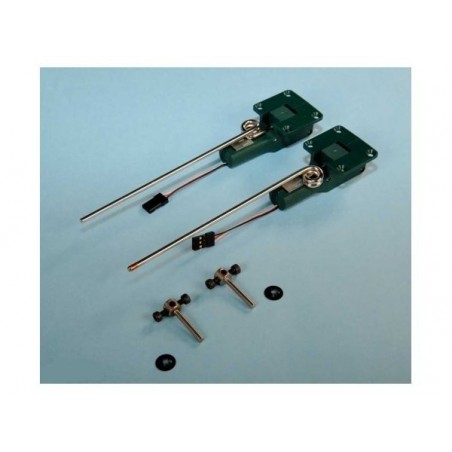

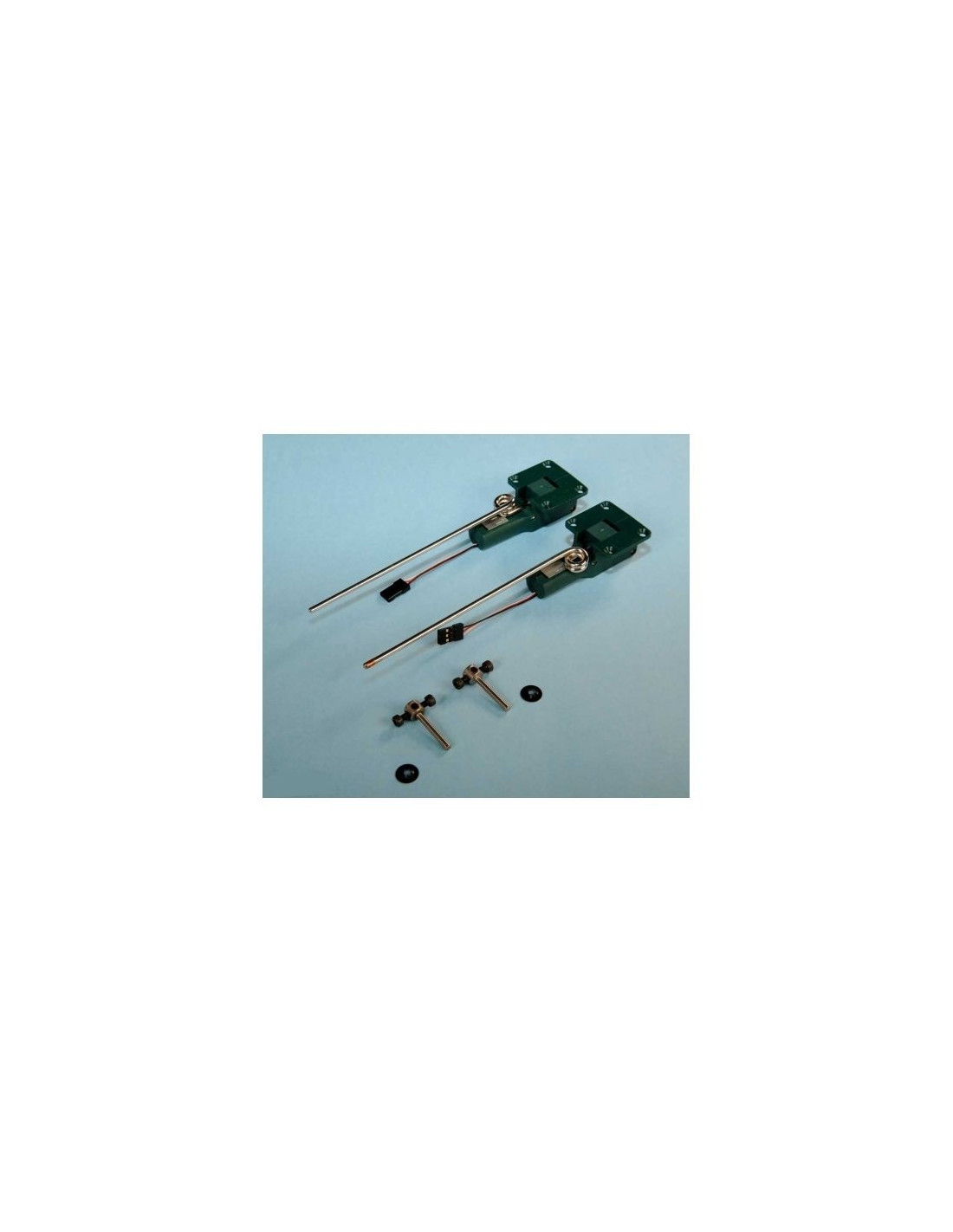

• Main gear comes with spring loaded CAP gear legs, adjustable axles, wheel stops, Allen keys and special 2-in-1 Y-cord.
• The nose wheel is adjustable and has a groove machined into the steering arm to prevent the control from flapping during retraction.

Technical specifications

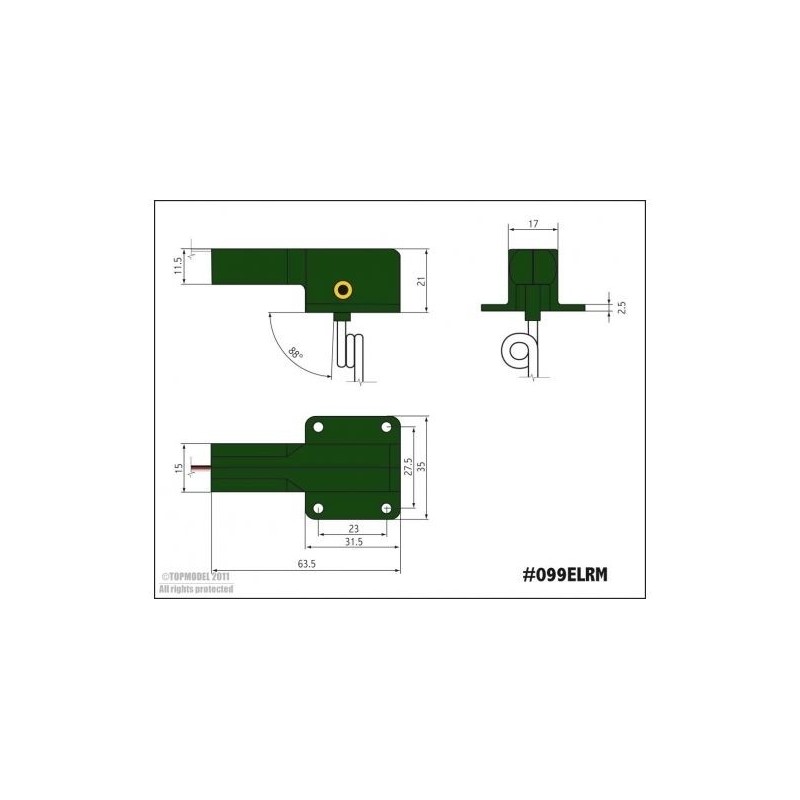

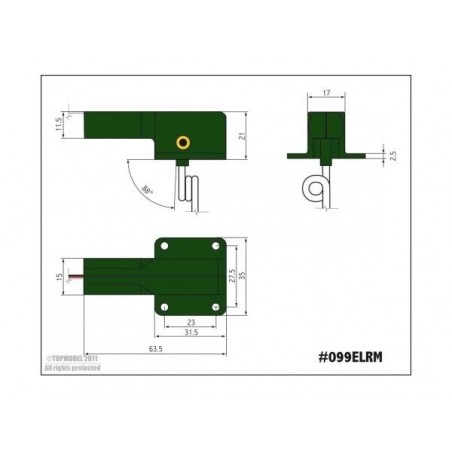

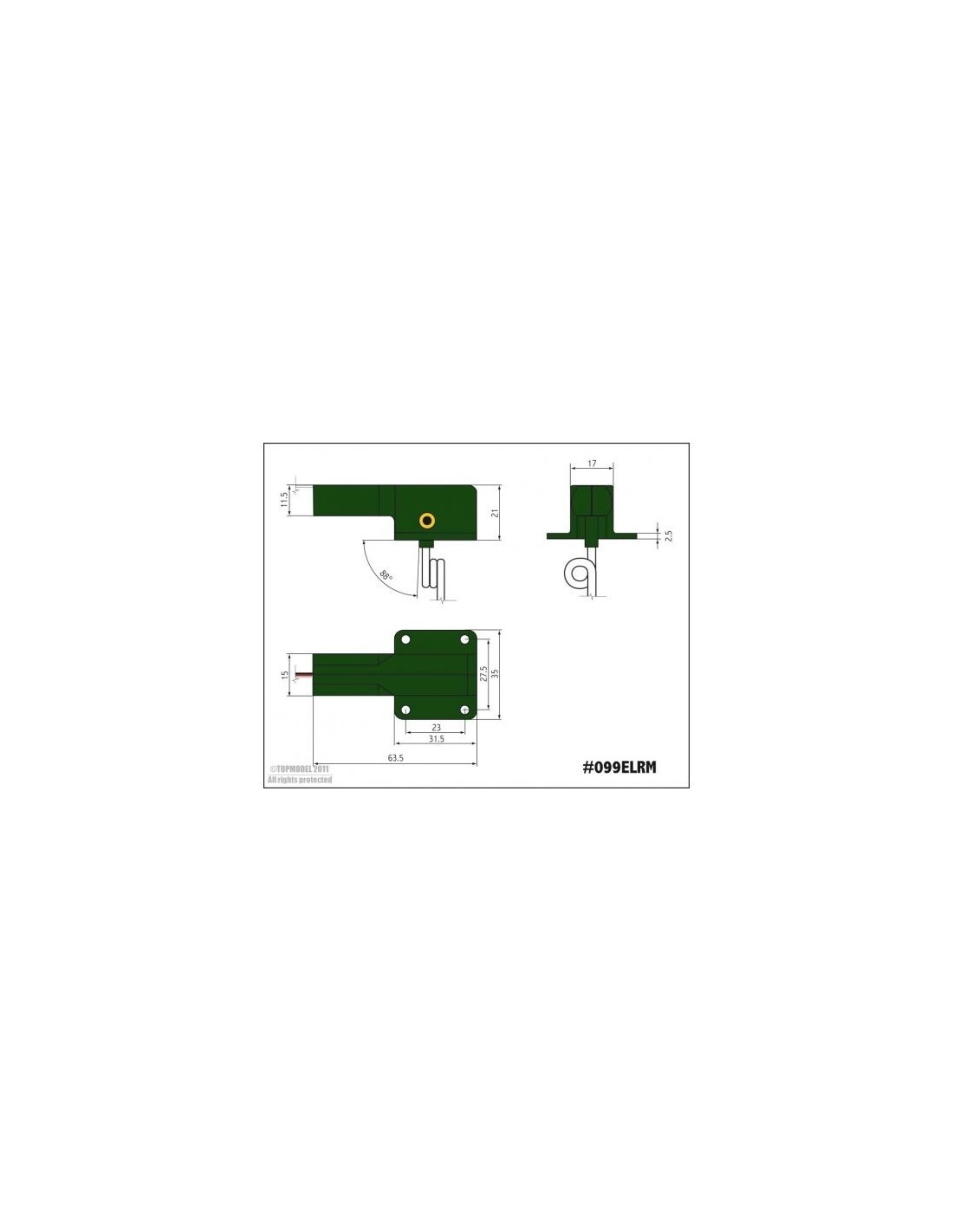

• Dimensions: see pictures
• Power supply: 4,8-8,0V
• Signal: pulse + 1200μs~1800μs
• Sequence time and consumption: Under 4,8V, sequence 1,5", consumption 350mA (1 unit), Under 6,0V, sequence 1,1", consumption 300mA (1 unit), Under 8,0V, sequence 0,8", consumption 350mA (1 unit)
• Overcurrent protection function: from 2" and above
• Operating temperature: 0C° to 50°C (however below 10°C, the operating speed decreases)
• Weight: main gear 40g (x2), nose wheel 50g approx.
