The 'first-generation' Funcub Multiplex was an easy, lightweight, highly agile machine that was a pleasure to fly, and a great success.
The FUNCUB Next Generation (NG) is a brand-new machine, which takes up and improves on the qualities of the previous model, and adds numerous evolutions:
The new wing (1.41m wingspan, in two parts) is now guyed for greater rigidity and lightness, and easy to attach using the supplied Multitool
The new landing gearfeatures sturdy double legs in welded steel.
The new fuselage is designed around a fiberglass square which takes up all the main structural stresses: the engine mount, the propulsion bag-holder with its quick strap, the reinforced main gear mount and the strut bases are directly attached to this high-strength spar. FUNCUB is stronger, stiffer and more reliable over time.
Easy access to the battery pack.
The towing hook (optional HS-65HB servo) can be fitted at any time.
The two HITEC HS-65HB elevator and rudder servos (included in the RR version, optional for the KIT version) are direct-drive.
The four aileron and flap servos are HITEC HS55+ long-cord servos (included in RR version, optional for KIT version)

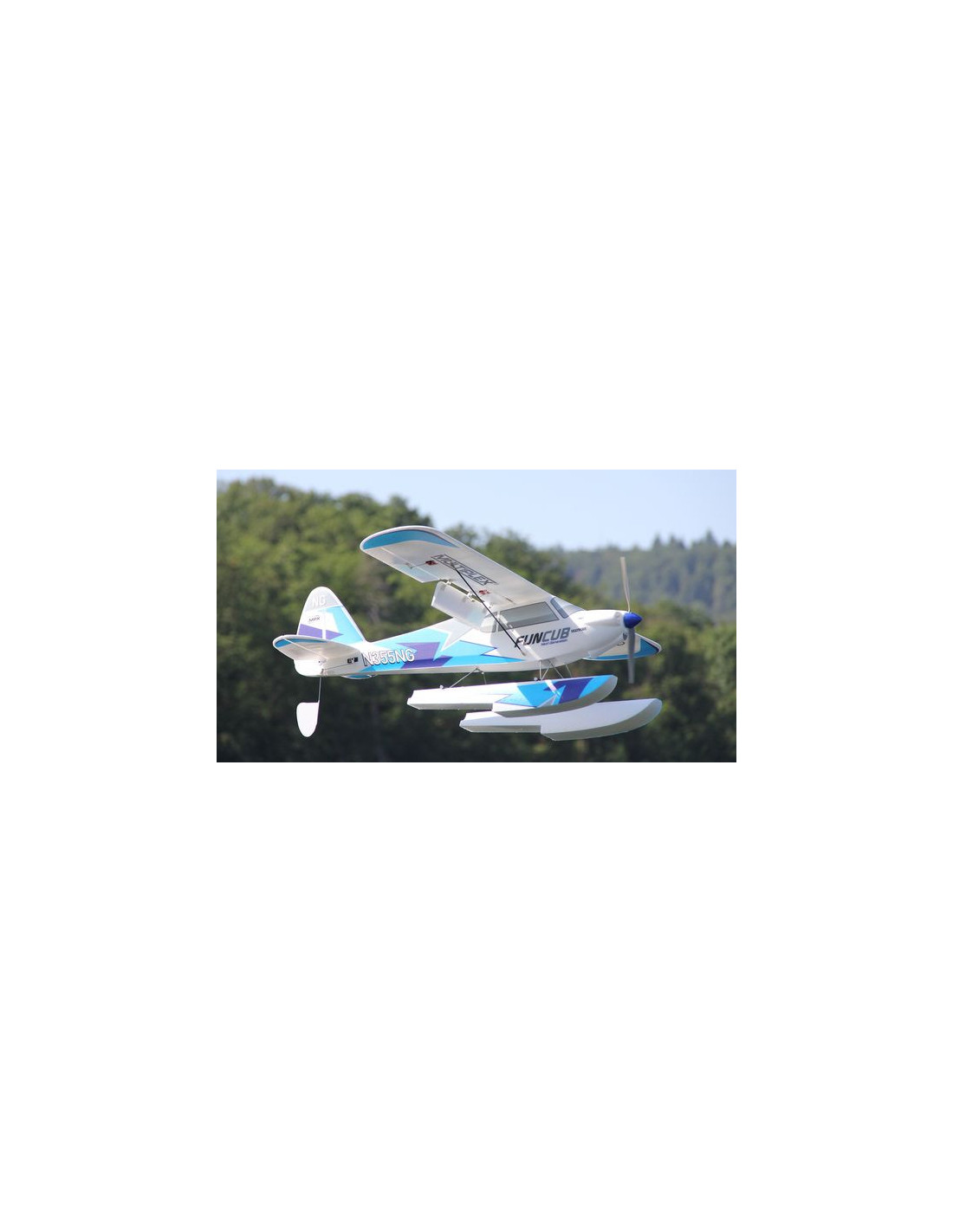

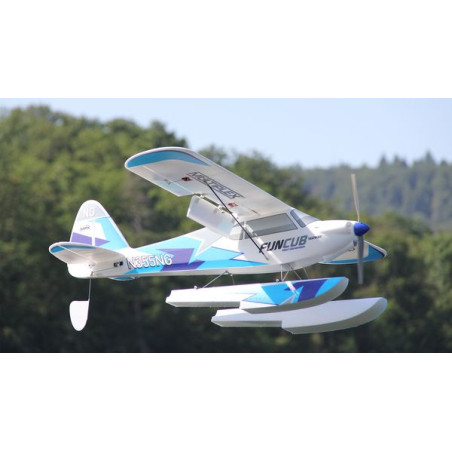

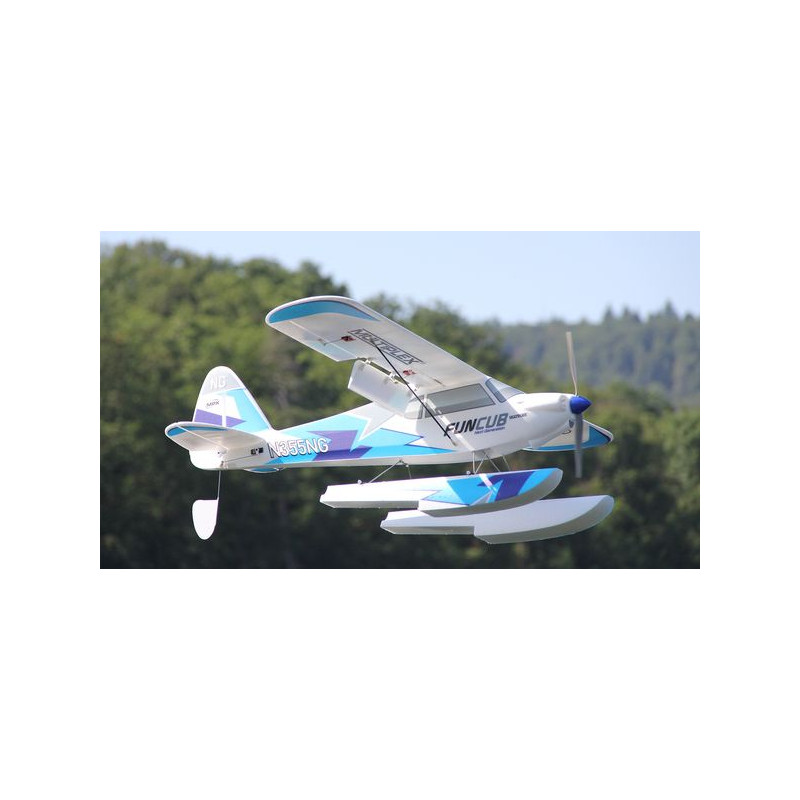

Seaplane fans can complete the configuration with the float set with accessories.
Specifications
Wingspan: 1410 mm
Length: 1050 mm
Weight: 1380 g
Surface area: 39.9 dm²
Load: 34.6g/dm²
Number of channels: 7 minimum, 8 with optional hook (a 6-channel radio is unsuitable)
Autonomy: approx. 8mn. with 11.1V 2600mAh battery not included
