Last items in stock
€124.92
Tax included

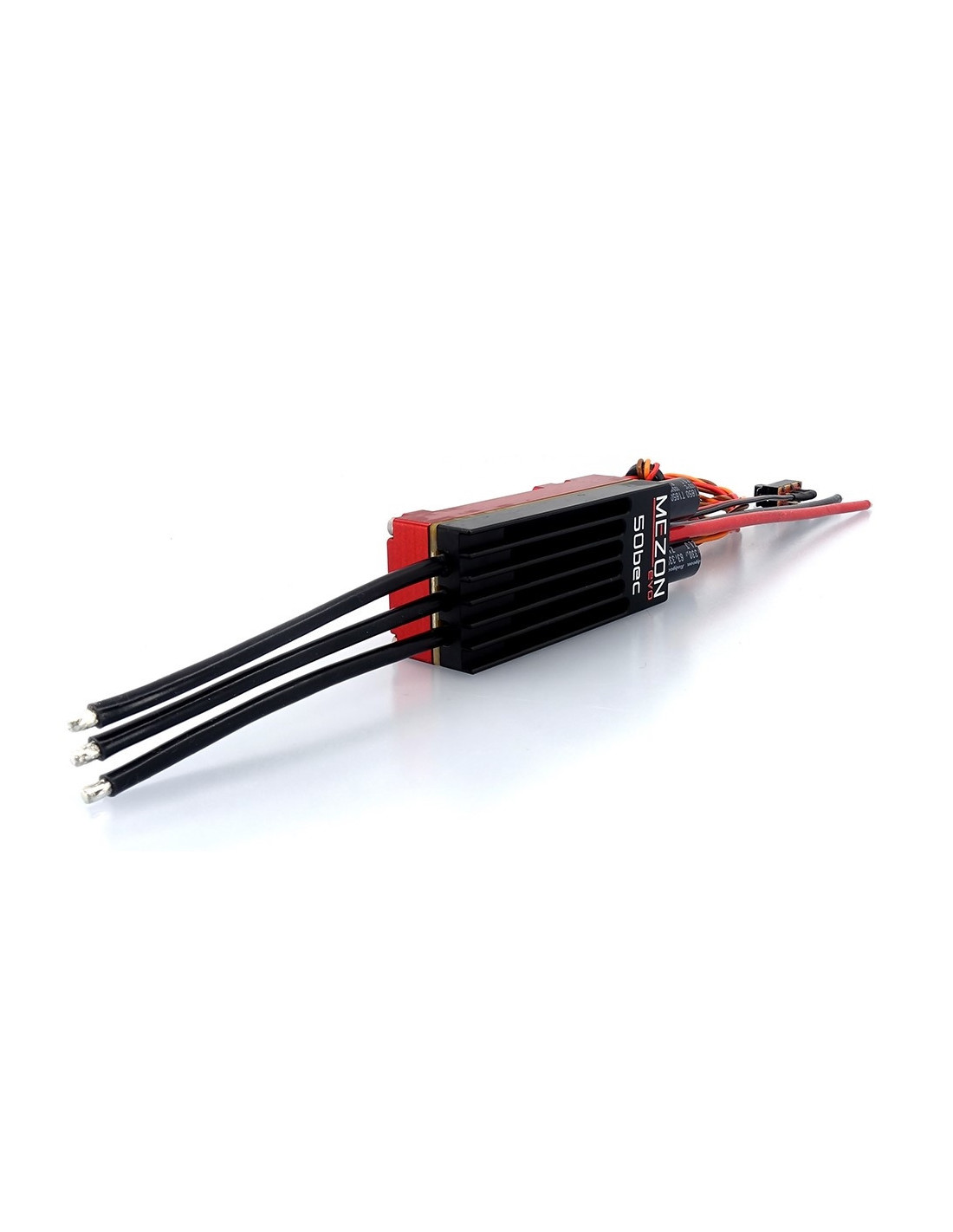

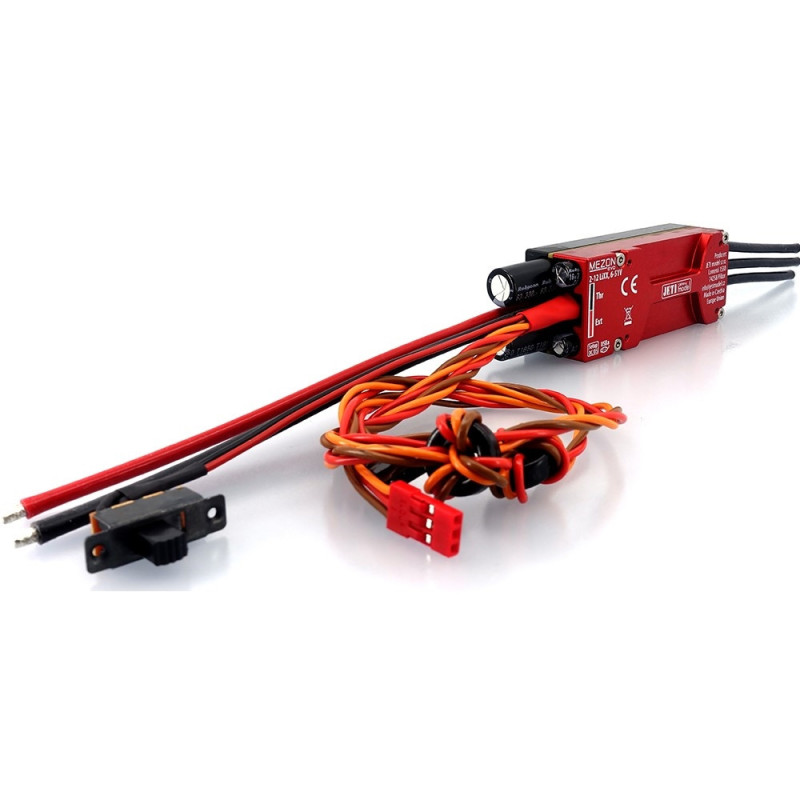

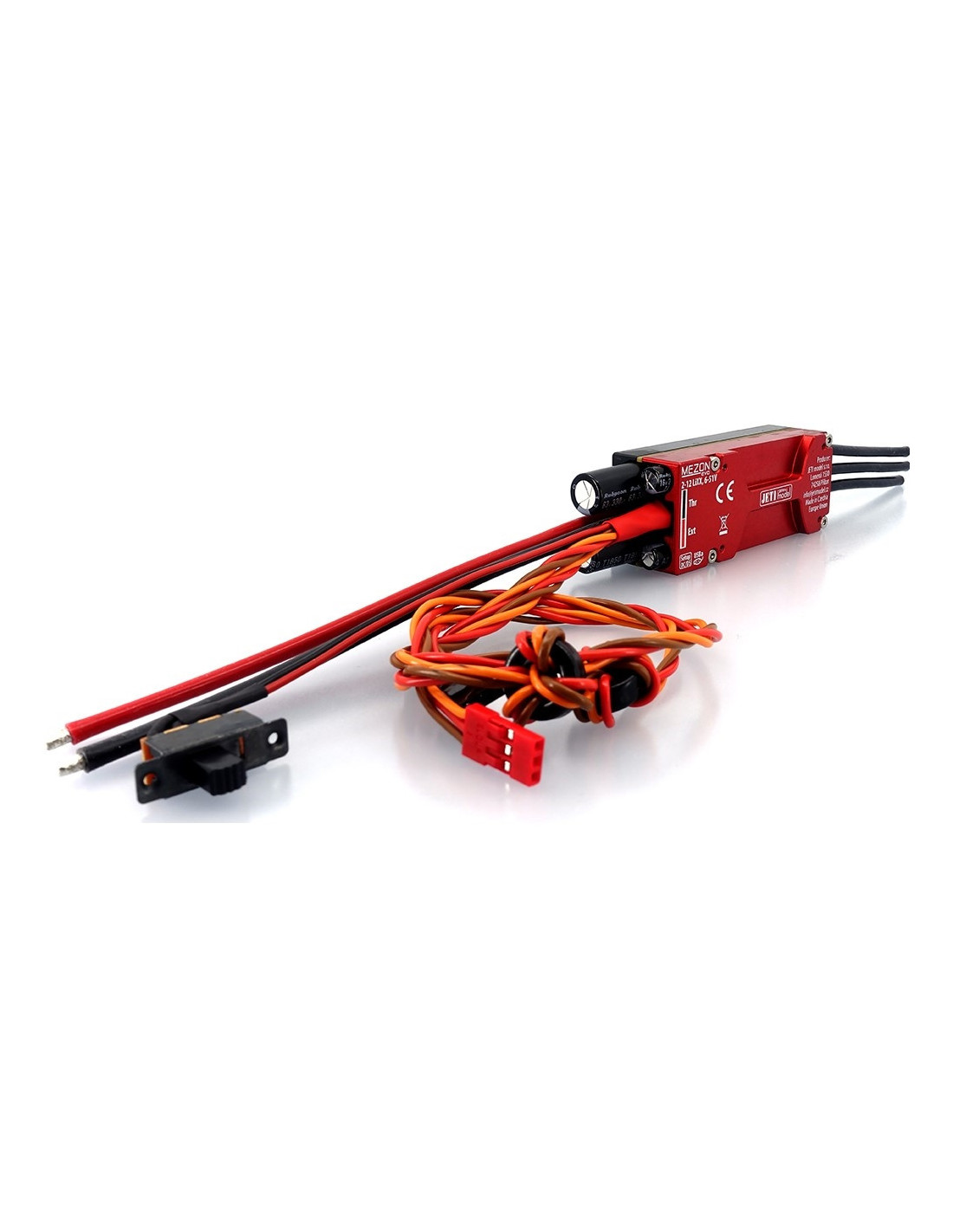

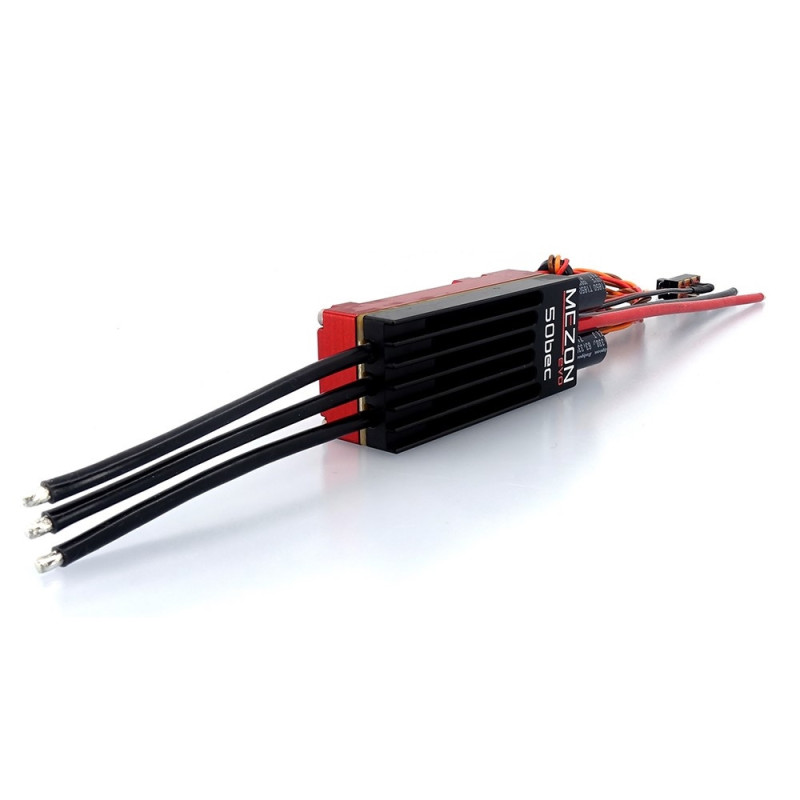

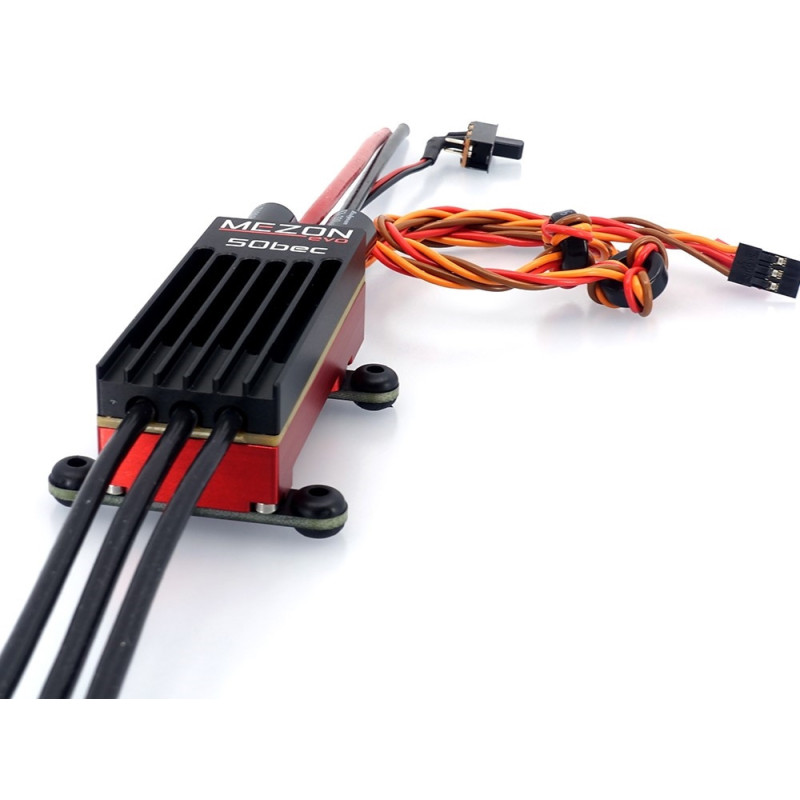

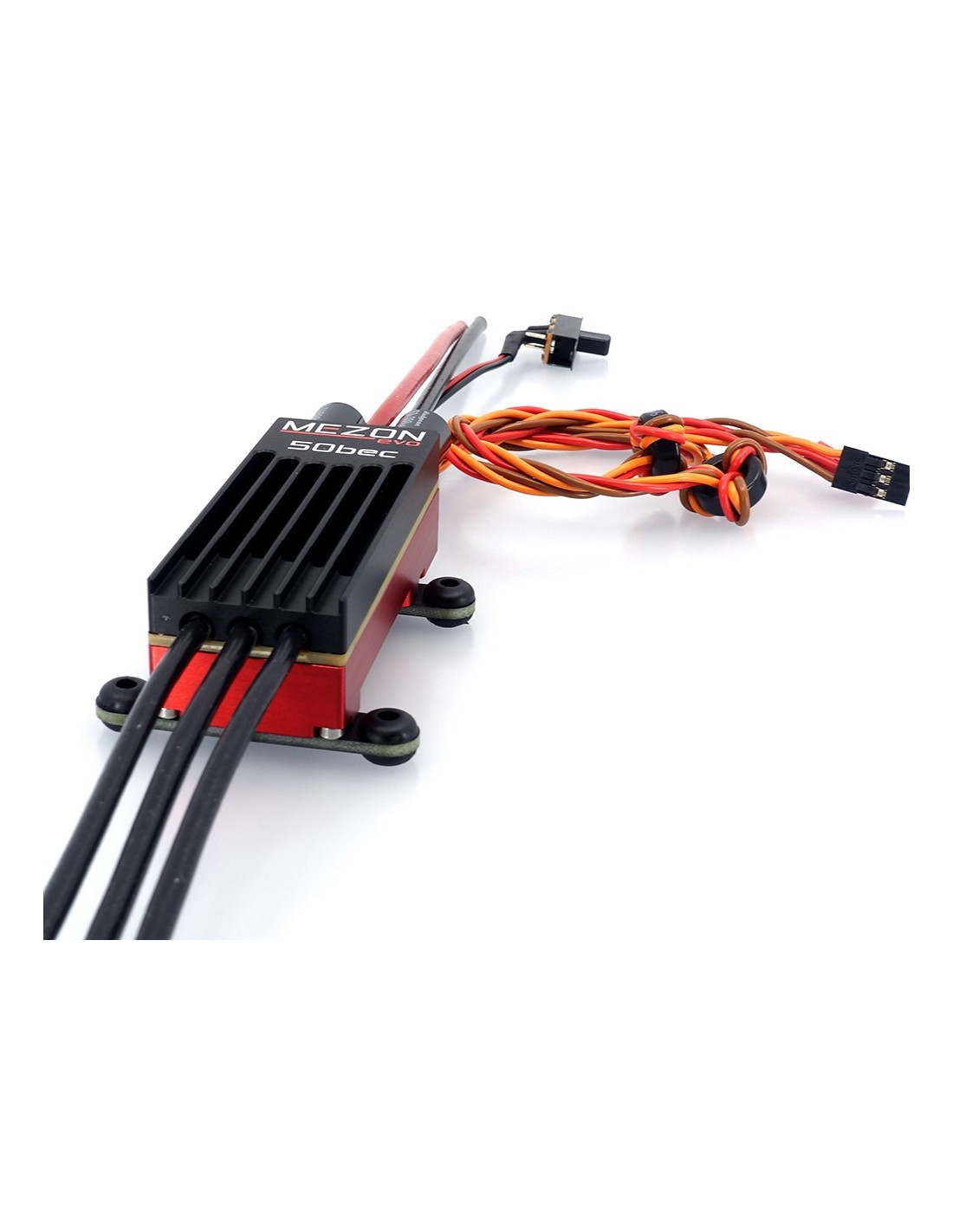

MEZON EVO 50 BEC controllers have an aluminum housing that allows for efficient cooling.

MEZON EVO 50 BEC is a completely universal controller for aircraft, helicopter, boat and vehicle models for users of not only JETI Duplex transmitters, but also other RC systems.

custom html
you can configure this block in iqithtmlbanners module. It is hooked in displayRightColumnProduct hook.

To disable entire area go to iqitthemeeditor module > Content/Pages > Product page and set hidden for Right sidebar option


Specifications:

  • full EX telemetry (voltage, current, capacity, revolution, etc.)
  • device configuration via EX Bus communication from the JETI Duplex transmitter
  • accurate governor and full support of helicopter models
  • F3A mode for aerobatic aircraft
  • adjustable brake with energy recovery in the accumulator
  • powerful BEC with adjustable output voltage
  • wide supply voltage range 2 - 12 Lixx (max. 51V)
  • bi-directional motor operation possible
  • active proportional brake
  • efficient cooling
  • compact dimensions
  • user-friendly wizard for quick configuration of the controller ("Quick Setup mode")
  • in "expert mode", access to all controller programming options
  • Firmware update possible

Features :

  • Weight [g] 109
  • Dimensions [mm] 28 x 22 x 85
  • Sustained current [A] 50
  • Telemetry Yes
  • Operating temperature [°C] -10 to 85
  • Supply voltage [V] 6 to 51
  • LiXX batteries 2 to 12
  • BEC voltage [V] 5 to 8.4
  • Conductive resistance [mΩ] 2.4
  • Cable cross section (input/output) [mm²] 2.5 / 2.5
  • OPTO (radio signal optically separated from power management) No
  • Average current BEC [A] 15
  • Peak current BEC 1s [A] 30
  • Aluminum box
Intensité Contrôleurs
50
308-JME-050-B
