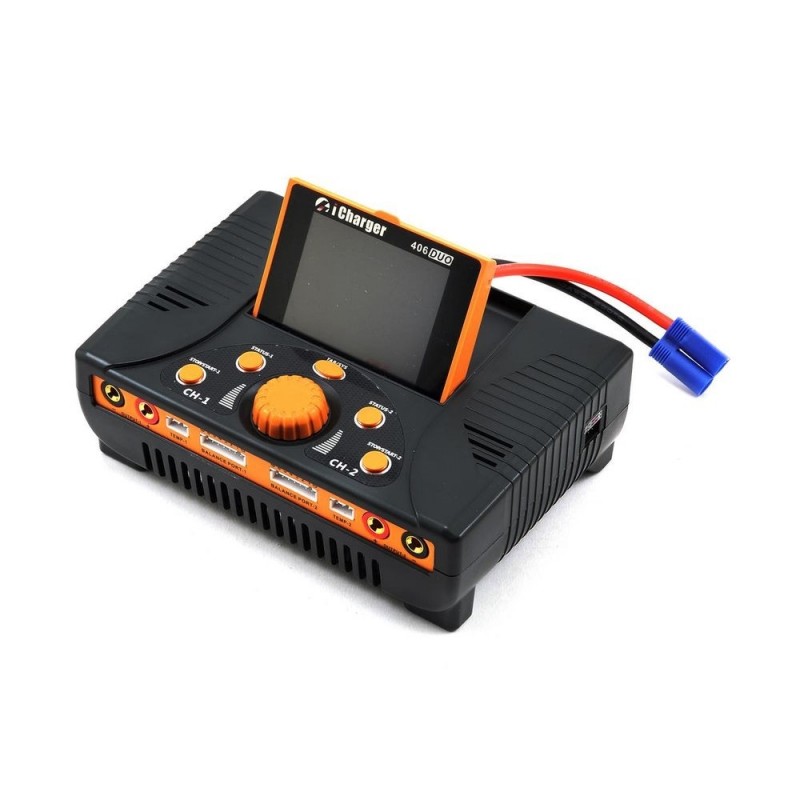

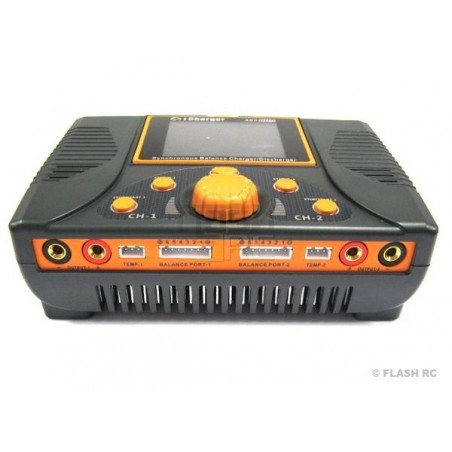

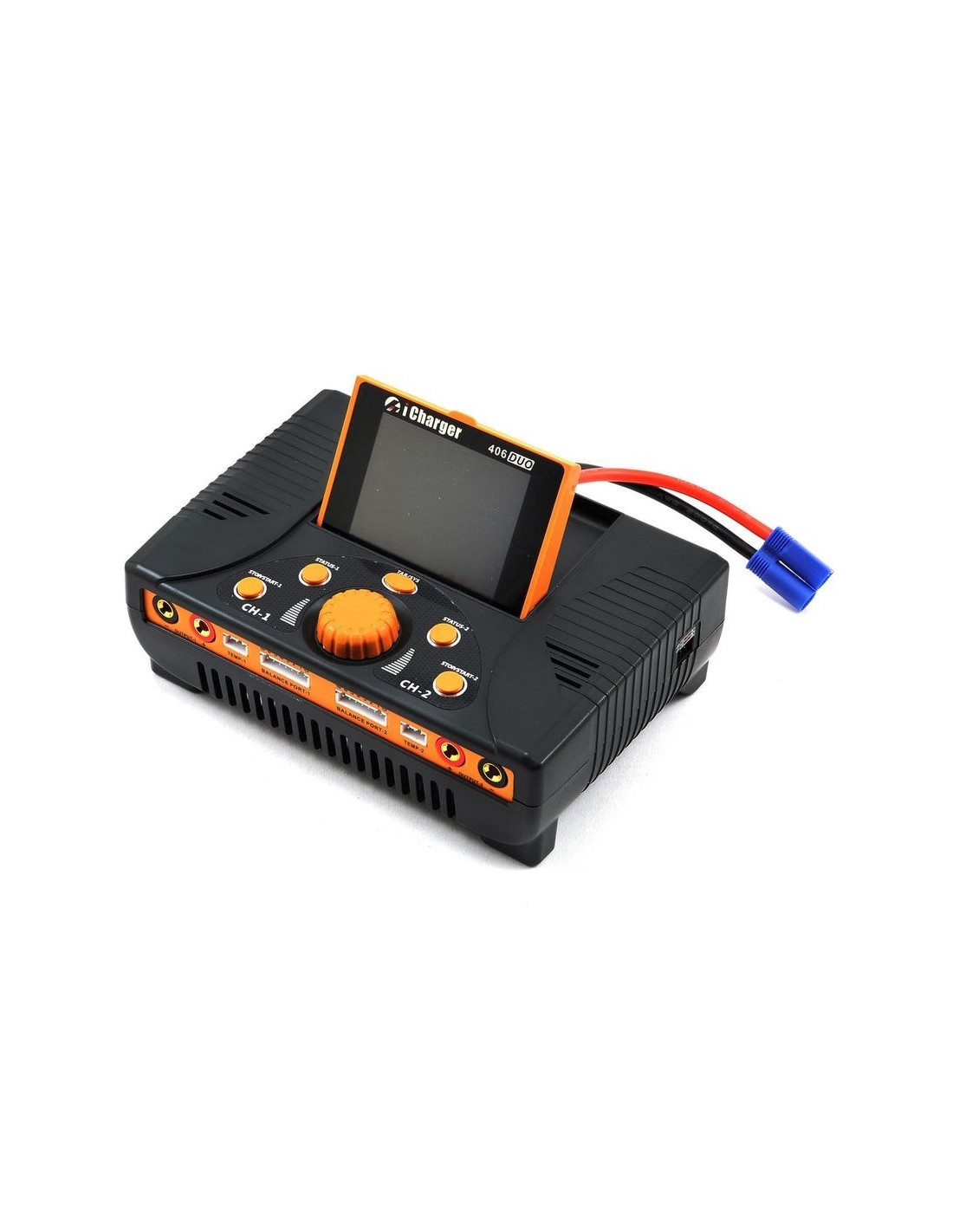

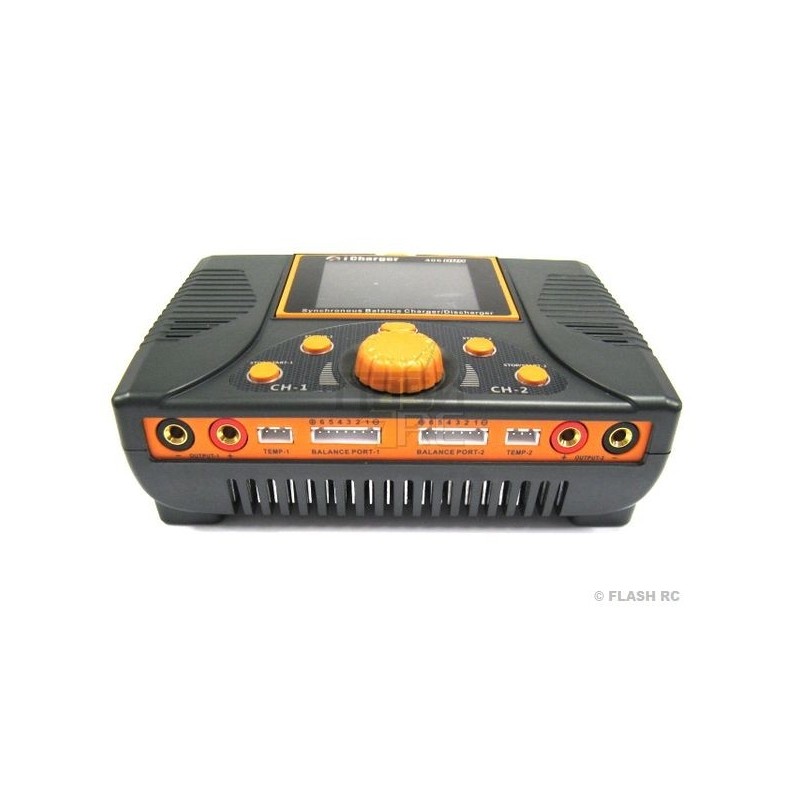

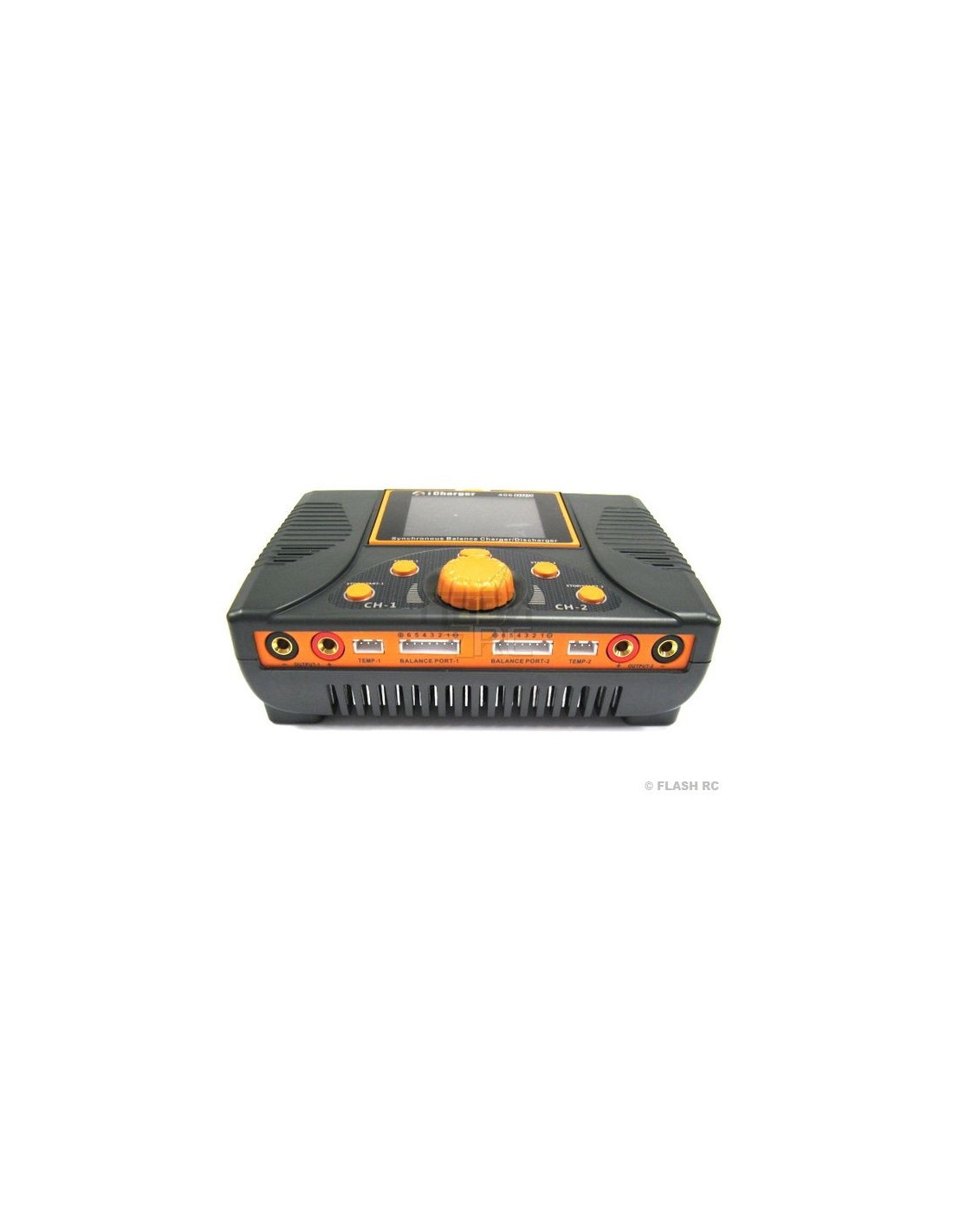

Charger 406DUO 1400W 12V Icharger

General characteristics

• Up to 6S LiPo, LiIo, LiFe and NiZn
• from 1 to 20 NiMh/NiCd cells, from 1 to 12 Pb cells
• 1A/5V USB output, suitable for charging a smartphone
• Spark protection
• Intelligent cooling by a sensor: control of the fan speed
• Internal temperature protection
• Possibility to save up to 64 parameters, import/export to SD card
• 2.8" LCD displaying: current, voltage, power, capacity, internal resistance, duration ...
• Internal resistance measurement of LiPo batteries by cells
• Protection against polarity reversal
• Possibility to update the charger by USB or SD card. The "Logview" software can display, analyze the data of the charge or discharge (http://www.logview.info )

Technical specifications

• Dimensions : 171×118×59 ±0.5mm
• Weight : 910g
• Power supply voltage: 10-30V Dc
• Max. input current: <60A, CH1/2<47A
• Max. charge/discharge current: 70A in synchronous mode 70A in synchronous mode, 40A in asynchronous mode
• Max. load power 1400W in synchronous mode (1000W per output at input voltage > 23.5V)
• Max. discharge power 140W in synchronous mode (80W per output)
• Max. regenerative discharge power 1400W in synchronous mode (1000W per output)
• Extra" discharge power for LiPo (by adding an external resistor on the "red" wire of the chagrass cord): 2000W in synchronous mode (1000W per output @25V/40A)
• Max. balancing current 2.4A in synchronous mode, 1.2A in asynchronous mode

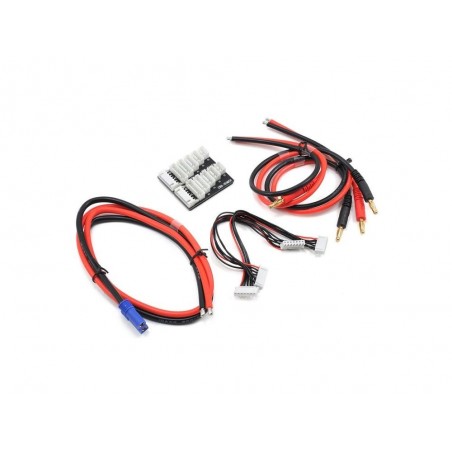

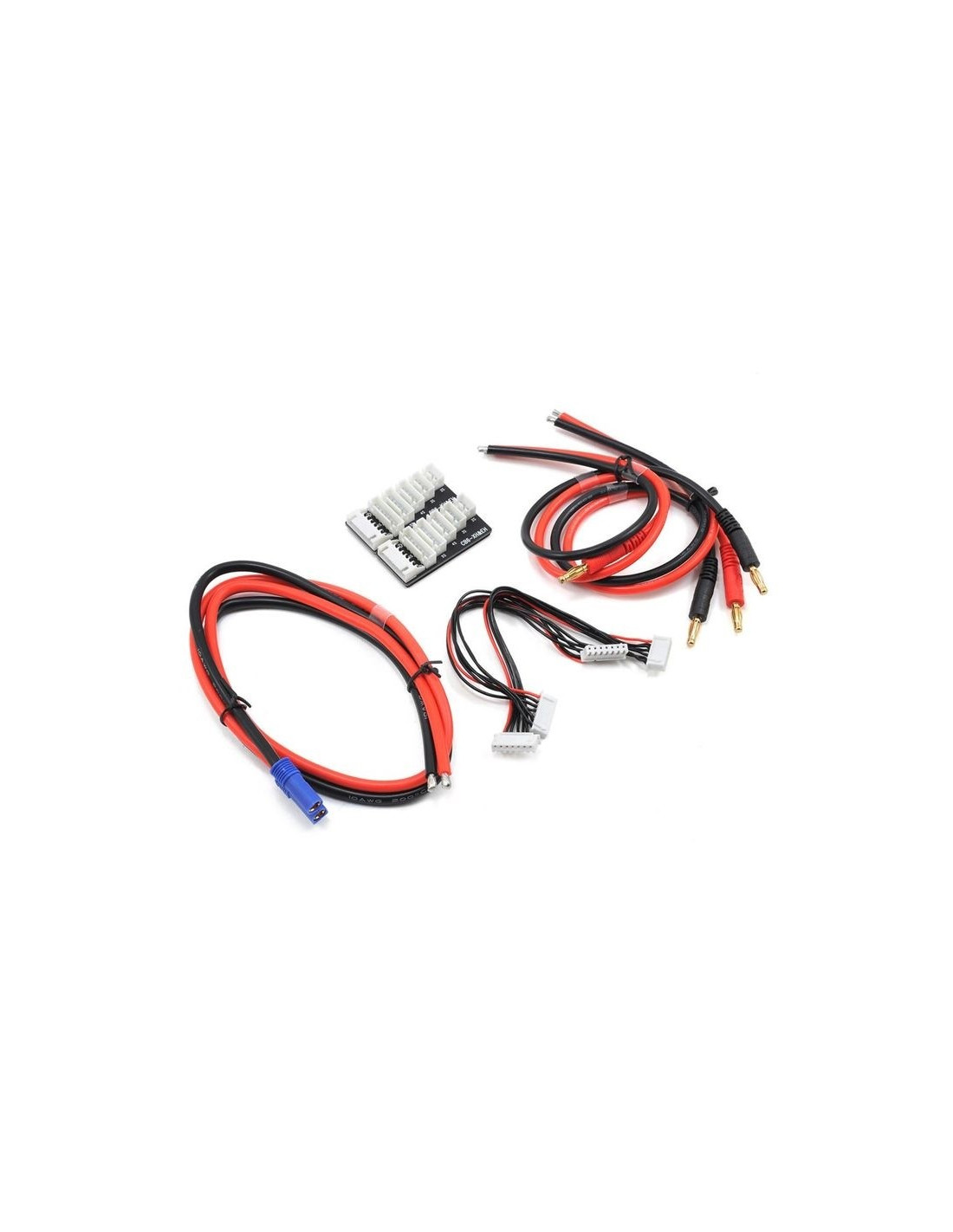

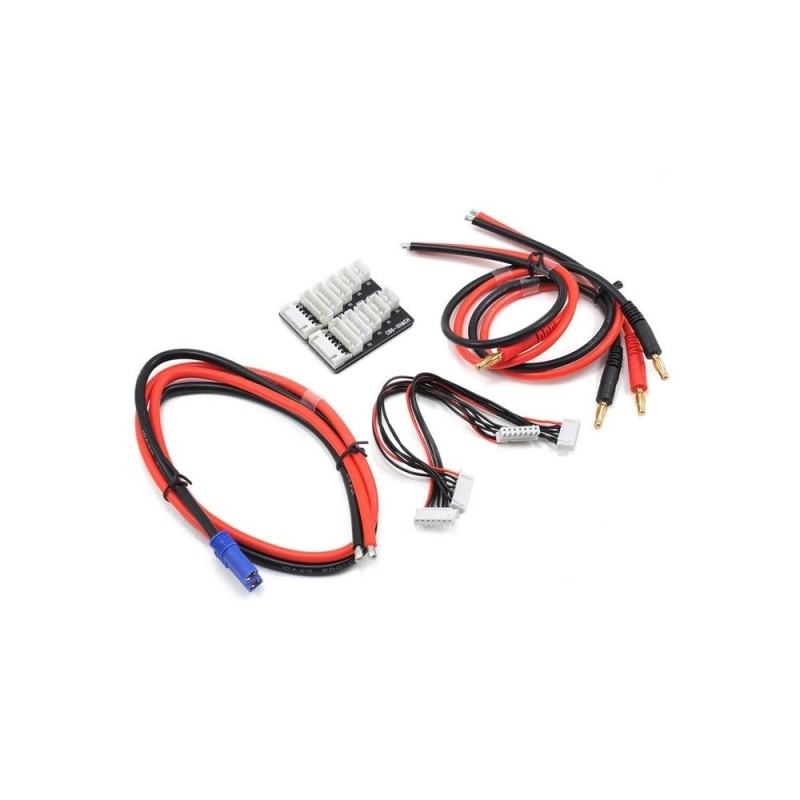

Contents of the box

• 406DUO charger
• 12V power cord (with stripped wires at one end)
• 2 cords with banana plugs, other end stripped wires
• 2 balance boards JST-XH
• 2 cables for balancing board
• 1 CDROM containing the manual and the "Logview" software
