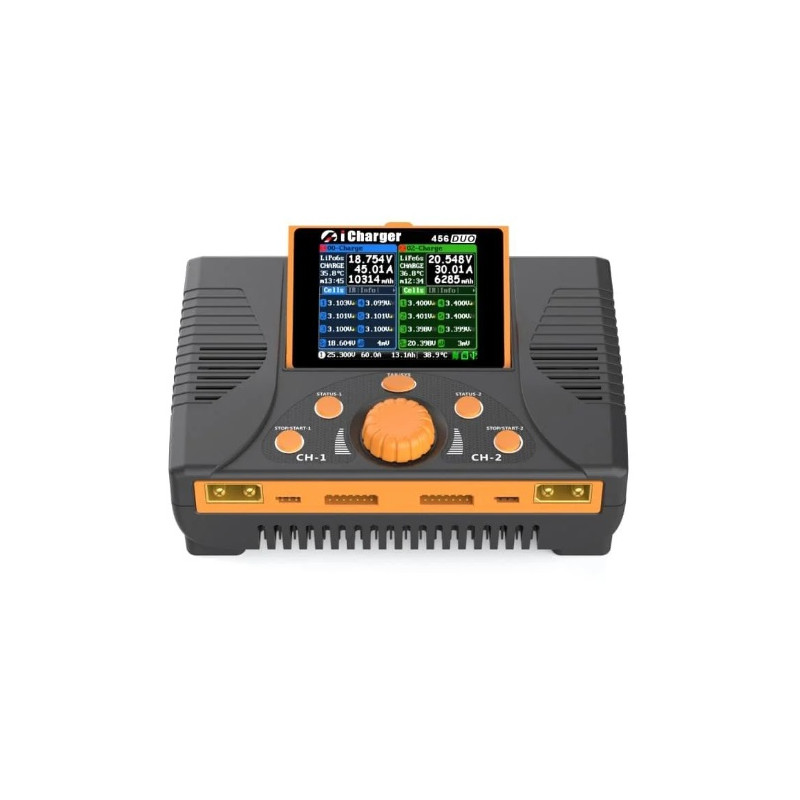

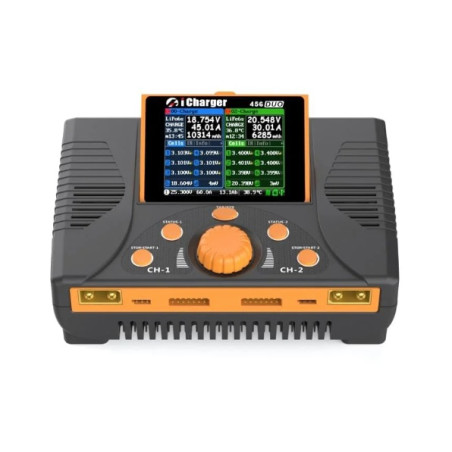

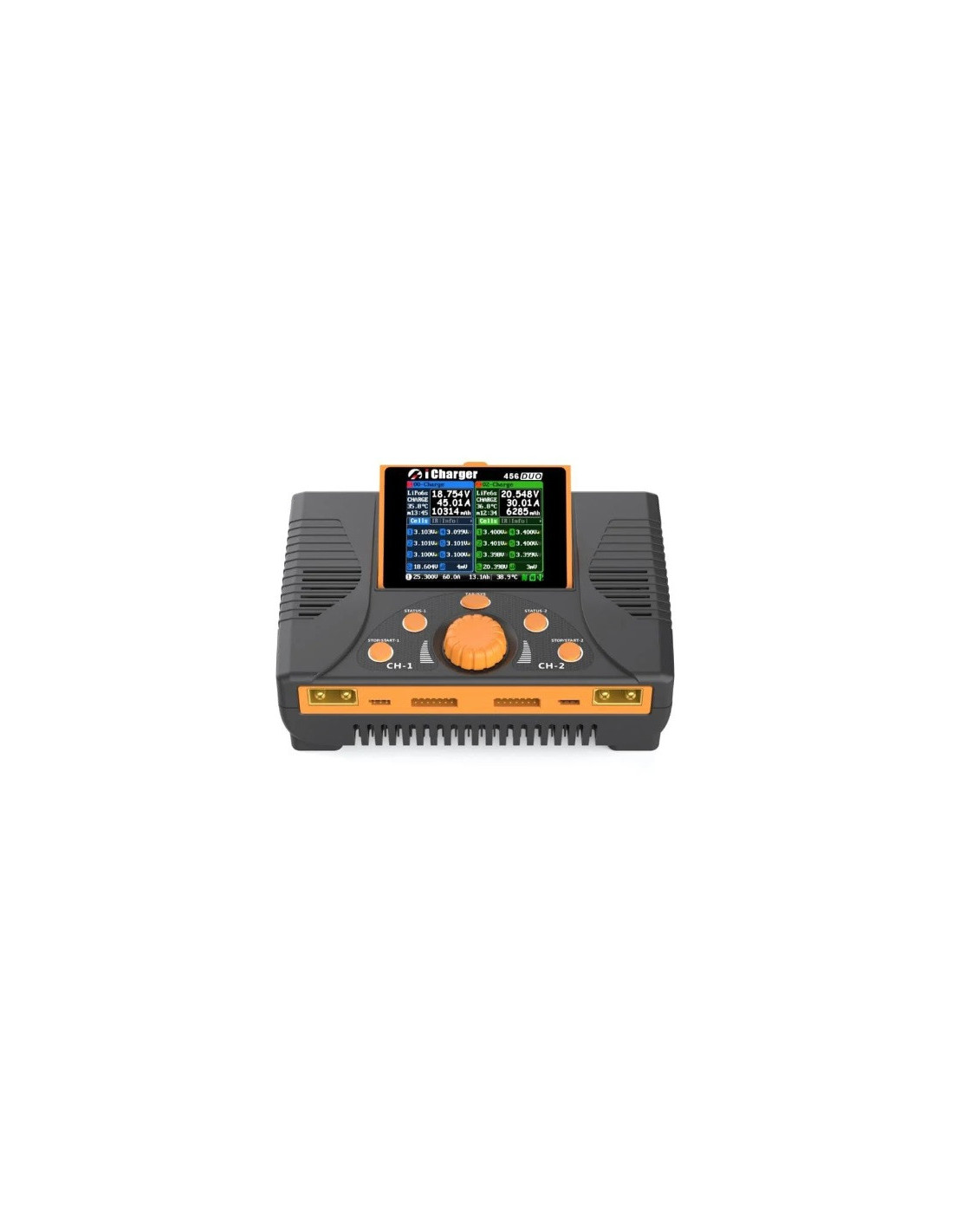

Charger 456 Duo iCharger

With the iCharger 456DUO, the renowned manufacturer Junsi has completely renewed the technology of the famous 406DUO charger.

The new 456DUO charger combines the advantages of the famous Junsi iCharger 406DUO with the latest technology, giving it significantly greater power and new functions.

The two charging outputs are equipped with XT90 connectors with high current resistance to ensure long-lasting power transmission.

The technical specifications are impressive: a charging power of 2200 W (from >40 V), LiXx cells from 1 to 6 s and a charging current of up to 45 amps are sufficient even for large, high-capacity batteries. Of course, all other battery types can be charged, such as LiHV, LiIo, NiZn, PB, NiCd or NiMh.

Discharge power is 140 watts in total (80 watts per output if only one output is used), but can be increased to 2200 watts by means of an external load (discharge resistor). Of course, the iCharger 456DUO can also handle regenerative charging. In this case, for example, battery capacity is fed back into the supply battery from a full flight battery.

The balancing current of 4 amps in total (2A per output) always guarantees perfectly balanced cell voltages.

A USB-C PD port is also integrated for charging smartphones, etc. (5V/3A, 9V/2A, 12V/1.5A) or for software updates. The Micro SD slot can be used to store data, but also for future updates.

The "Digital Power" function is new: one output can be used as a stabilized power supply. Output voltage can be set from 2V to 32V, current from 1A to 45A (please note that a corresponding power supply must be available! ).

A servo tester is also integrated; please note that an external power supply is required!

The menu is almost identical to that of the famous Junsi iCharger 308DUO, 406 DUO or 4010DUO.

A 2.8" IPS LCD display ensures good readability, even in low light conditions.

Scope of delivery: 2x XT90 sockets, DIY EC8 cable (charger connection counterpart)

INFO: Charging cables with XT90 connectors are NOT included in delivery.

An English-language instruction manual is supplied on CD with the charger, while the German-language version is available for download from our website.

All Junsi X and DUO series chargers are designed and approved for model-making use.

Industrial use is not intended and therefore not permitted!
