Dual power supplies - D-BIC : dual 6A A2pro power supplies - FLASH RC
Dual power supplies - D-BIC : dual 6A A2pro power supplies - FLASH RC

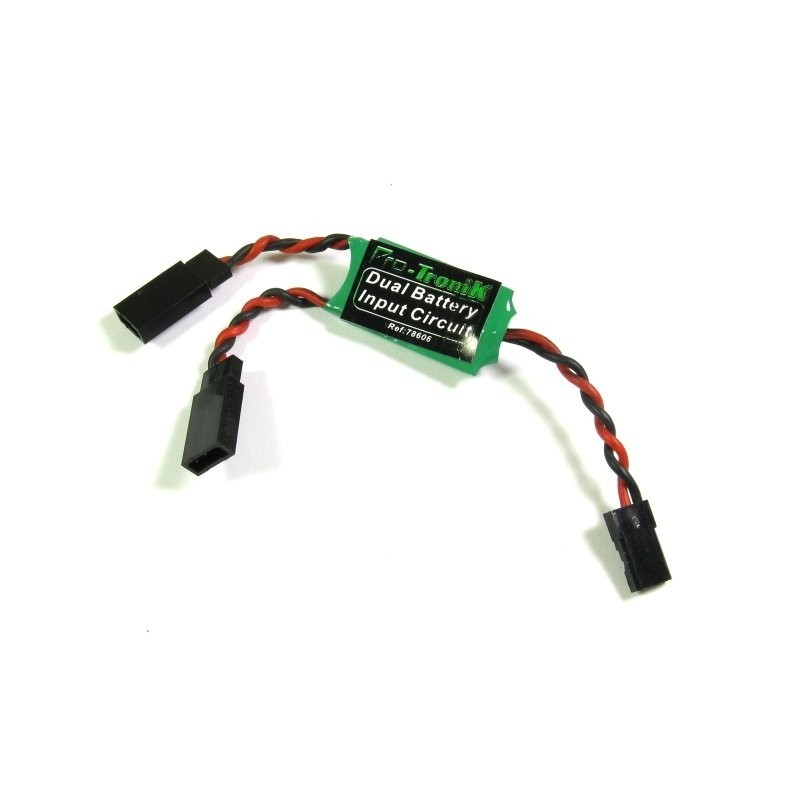

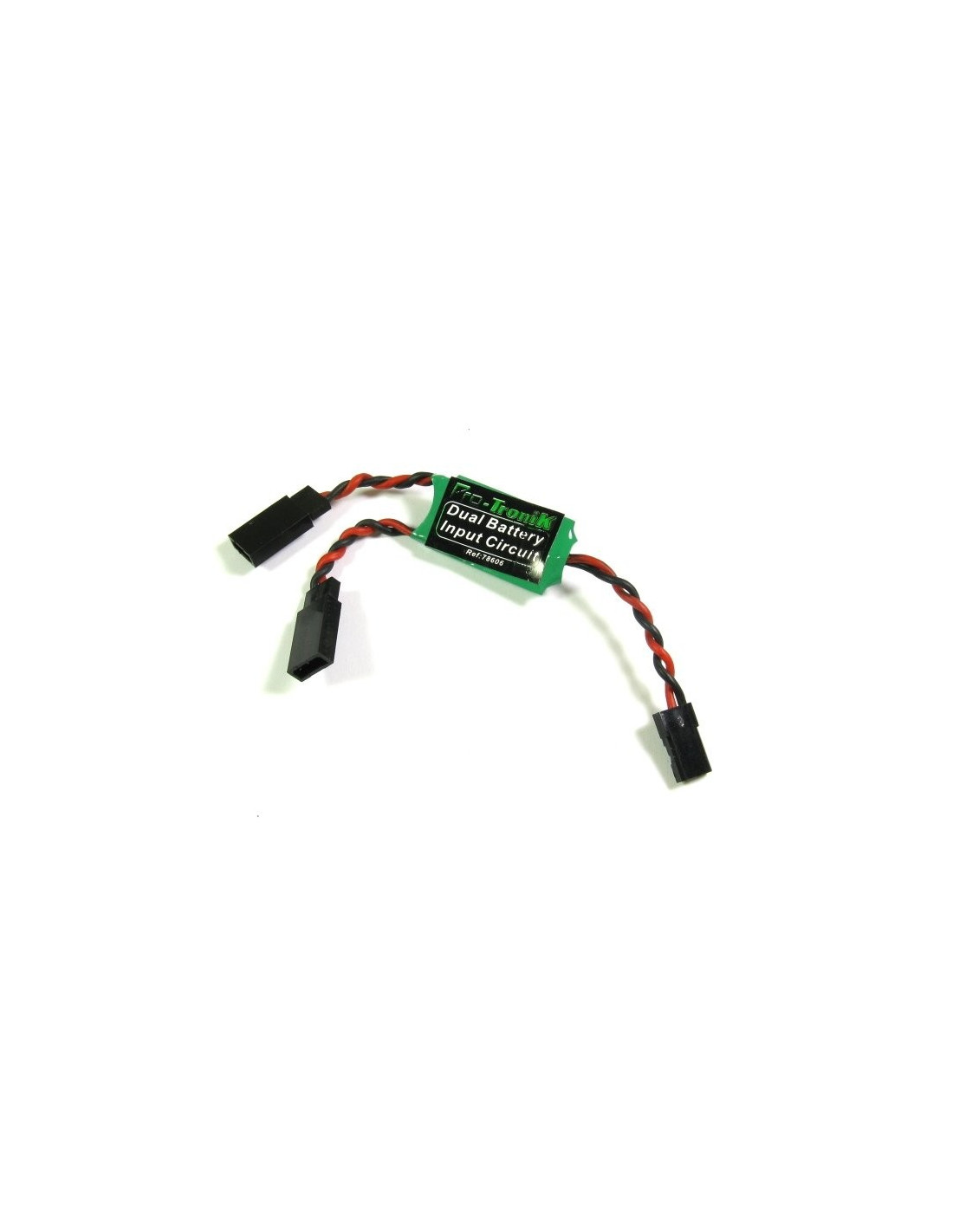

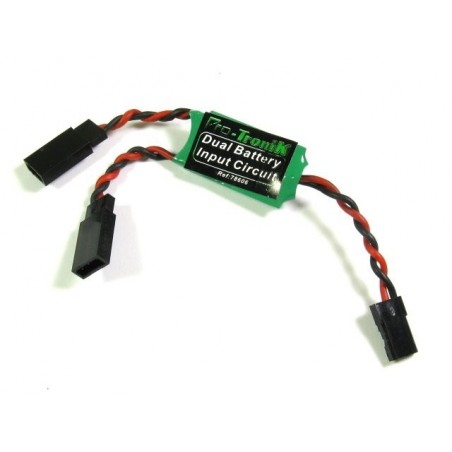

D-BIC : dual 6A A2pro power supply

Out-of-Stock
€11.63
Tax included
This system is used alone and allows a double supply of the receiver by two independent sources. Ideal for securing your radio installation.4 to 10V input / output voltage, max current 6A. Current source type battery, ubec ... Full manual downloadable here


custom html
you can configure this block in iqithtmlbanners module. It is hooked in displayRightColumnProduct hook.

To disable entire area go to iqitthemeeditor module > Content/Pages > Product page and set hidden for Right sidebar option


Characteristics:
. Weight: 13 g
. Connections: 0.5mm² silicone cable with JR type plug
. Input voltage: 4 to 10 V
. Battery compatibility: NiCd, NiMH, LiIon, LiPo and LiFe
. No-load power consumption: None
. Voltage drop in the module: 0,24 V @ 1 A, 0,33 V @ 3 A, 0,43 V @ 6 A
. Continuous output current: 6 A (12 A for 10 s)
. Reverse polarity protection: Yes
. Output short circuit protection: No

272-S03878606
3701383606960
3701383606960
No reviews
Comments (0)
No customer reviews for the moment.
