2-stroke gasoline engine DLE-20 - Dle Engines

€224.96
Tax included
DL Engine has thought of all the modellers who complain about the greasy residue on their planes or the price of methanol and offers a small displacement. The new 20cc engine benefits from the experience acquired with the "big cubes", especially in terms of casting, and is presented in a compact form comparable to the habits of the "glow" engines.engine delivered with a very detailed and precise printed manual in French, full of advice for use.

custom html
you can configure this block in iqithtmlbanners module. It is hooked in displayRightColumnProduct hook.

To disable entire area go to iqitthemeeditor module > Content/Pages > Product page and set hidden for Right sidebar option


General characteristics

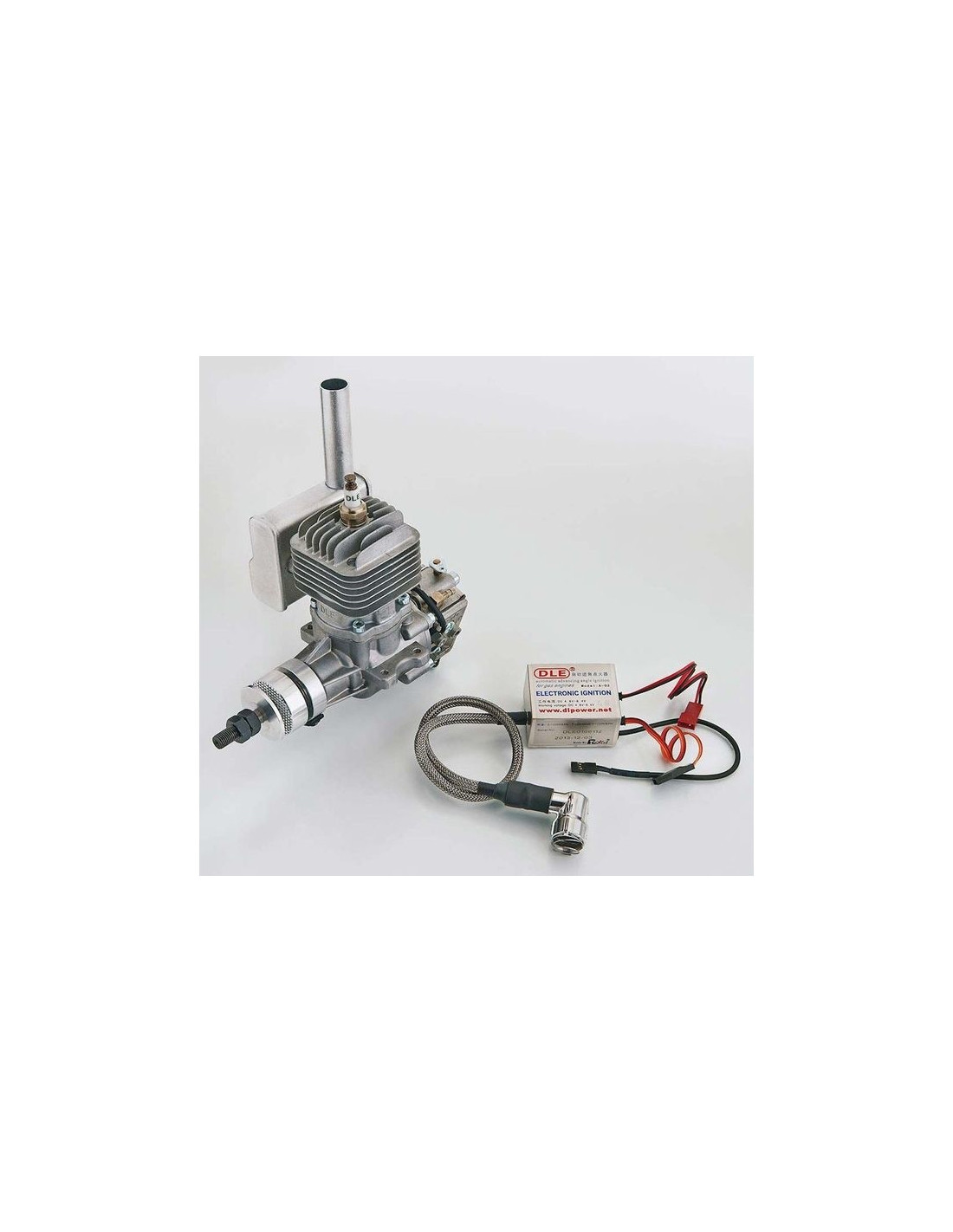

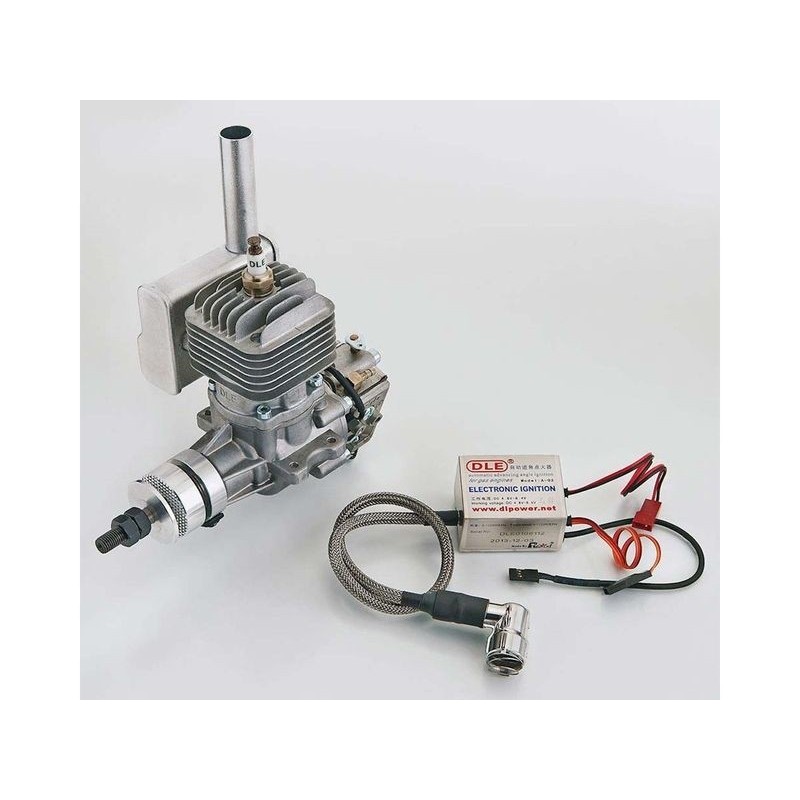

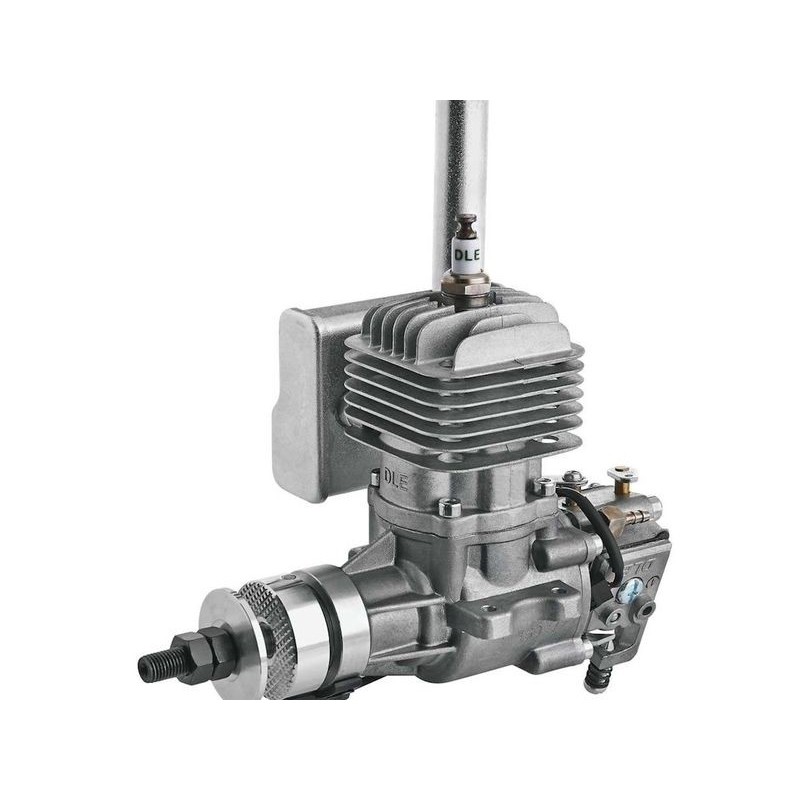

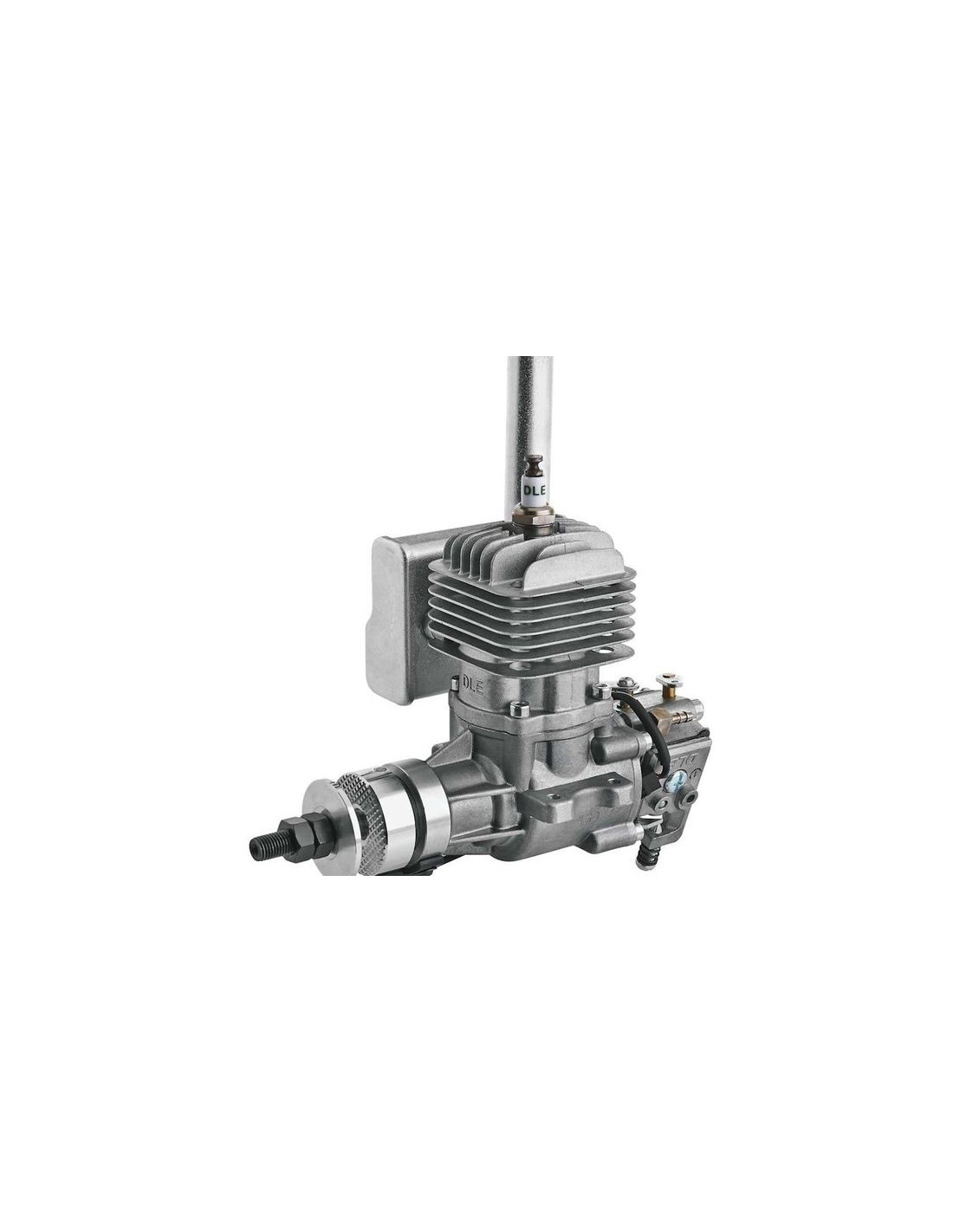

Click on the pictures to zoom in.

Technical specifications

  • Displacement: 20.0 cc (1.22 cu in)
  • Weight: 660g (engine), 80g (silencer), ignition system: 120g
  • Speed range: 1,700-9,000 rpm
  • Power: 2 .5 hp at 9,000 rpm
  • Fuel: 87-92 octane (95 unleaded + 2.5% 2-stroke engine oil)
  • Recommended propellers: 14x10, 15x8, 16x6, 16x8 & 17x6
  • Recommended battery for ignition system: 4.8-6.0V NiCd or NiMH, 6.6V LiFe or 7.4V LiPo
  • Fuel/oil mixture: 30:1
  • Spark plug: NGK CM6 (DLEG5510) or equivalent

Kit Contents

  • DLE-20 engine
  • Ignition system
  • Muffler
  • Spark plug
  • Gasket
  • Bolts
  • Exhaust extension
  • Mounting template
Engine type
2T
Engine weight
More than 1000g/1kg
