Some details:
- A greatly improved base configuration for immediate takeoff
- The introduction of optional speed-dependent control for optimal performance in all flight conditions
- The introduction of a stop function for a natural and smooth flight stabilization effect
- The possibility of dual receiver operation via SRXL for absolute safety in every flight
- Support for 8-flap wings, canards, optimized FAIL-Safe and much more
- Compatible with all common RC systems | Compatible with all common RC systems : Jeti (EX-Bus, UDI) Graupner (SUMD) Futaba (S.BUS) FrSky (S.BUS) Spectrum (SRXL) HiTEC (MAXIMA SL, OPTIMA SL)
Weatronic (PPM) MULTIPLEX (SRXL) - CORE (S.BUS , SRXL) - WINGSTABI Evolution EasyControl mode
- Model fully programmed on the transmitter (deflections, flaps, expo, phases of flight...)
- Requires a free channel with a proportional channel
- Very simple parameterization even without a PC - WINGSTABI Evolution Classic mode
- Almost entirely programmed in the WINGSTABI (deflections, mixer, flaps...)
- Requires a free 3-position switch and at least one free proportional control
- Complete configuration on PC or via APP. - Every new Wingstabi Evolution is always delivered as "Evolution EasyControl" and can be reconfigured to "Evolution classic" free of charge using the MPX Launcher.
- Speed compensation via pitot tube or GPS patent: DE 10 2013 201 554 B3 PowerboxSystems.

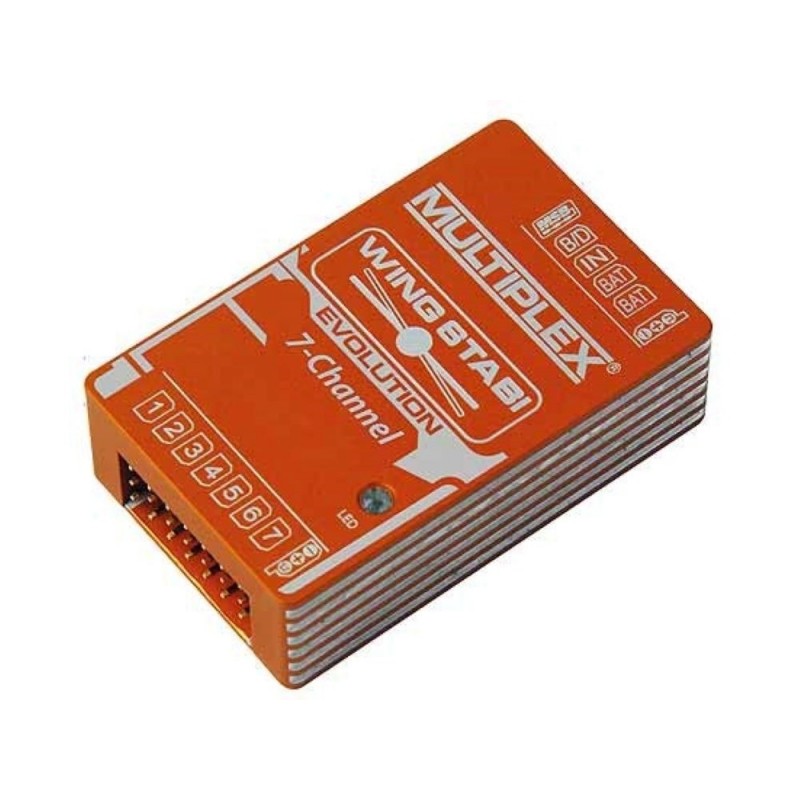

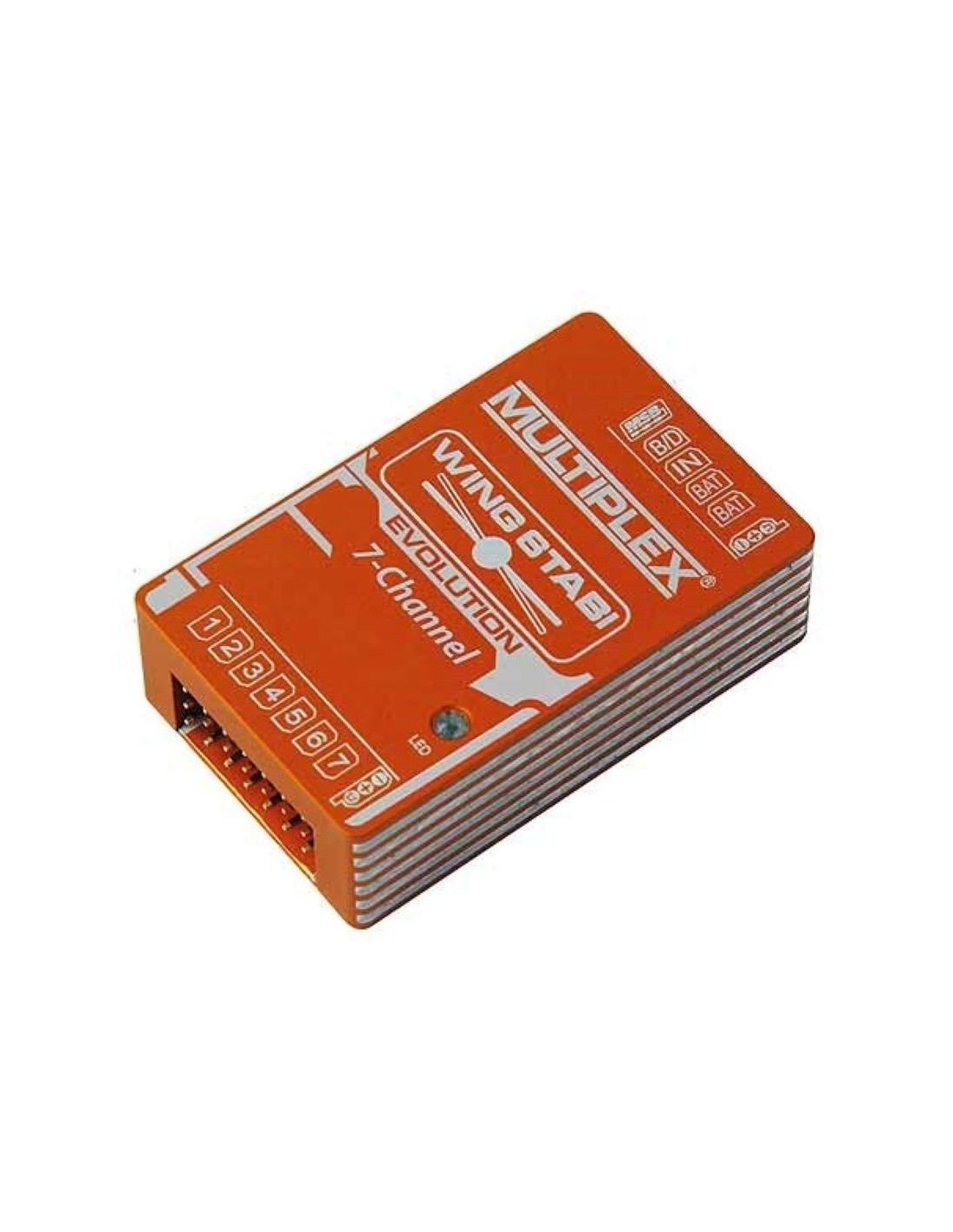

- WINGSTABI EVOLUTION 7-channel 3-axis gyro system freely programmable for all RC planar models.
Technical data:
- No. of control channels: 7
- Weight: 27 g
- Dimensions (L x W x H): approx. 54 x 34 x 15 mm
- Operating voltage 3.5 to 9.0 V
- Power supply 4 to 6 NiXX, 2S LiPo/Lilo cells
- Permitted operating temperature range -20°C to +55°C
Contents of the box:
(1) WINGSTABI-7
(1) Instructions
(7) 320 mm patch cable
(1) WINGSTABI Easy Control learning plug
