Gyroscopes - Gyroscope GYA440 AVION (for depth or drift) Futaba - FLASH RC

Gyroscopes - Gyroscope GYA440 AVION (for depth or drift) Futaba - FLASH RC

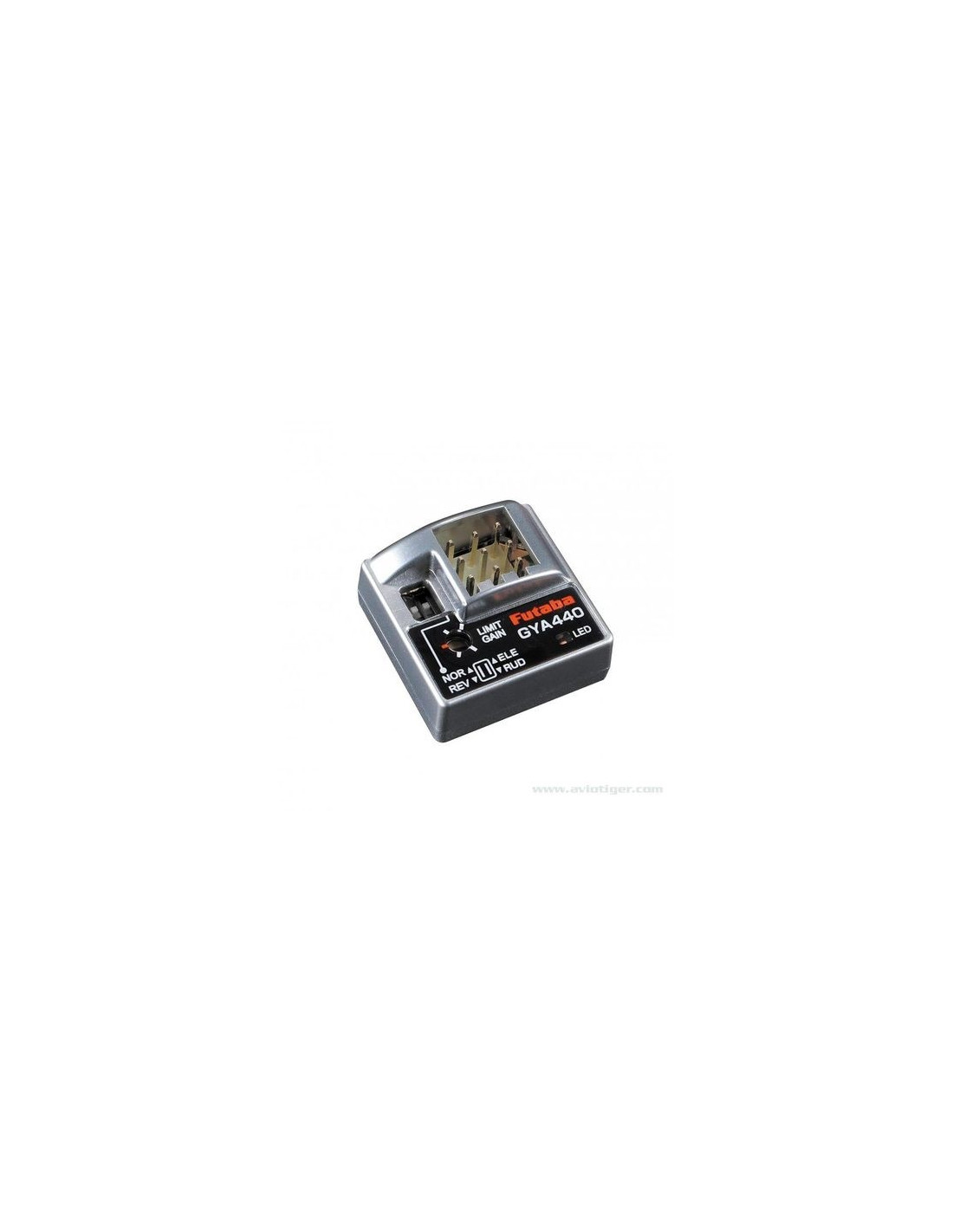

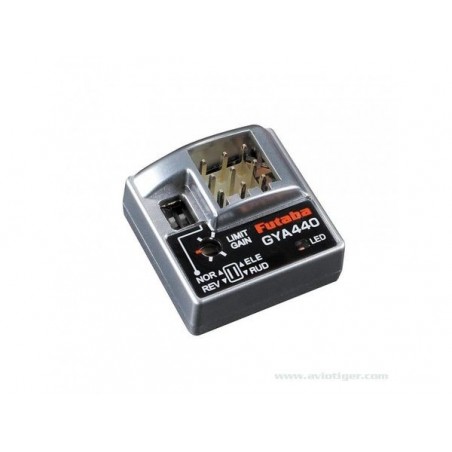

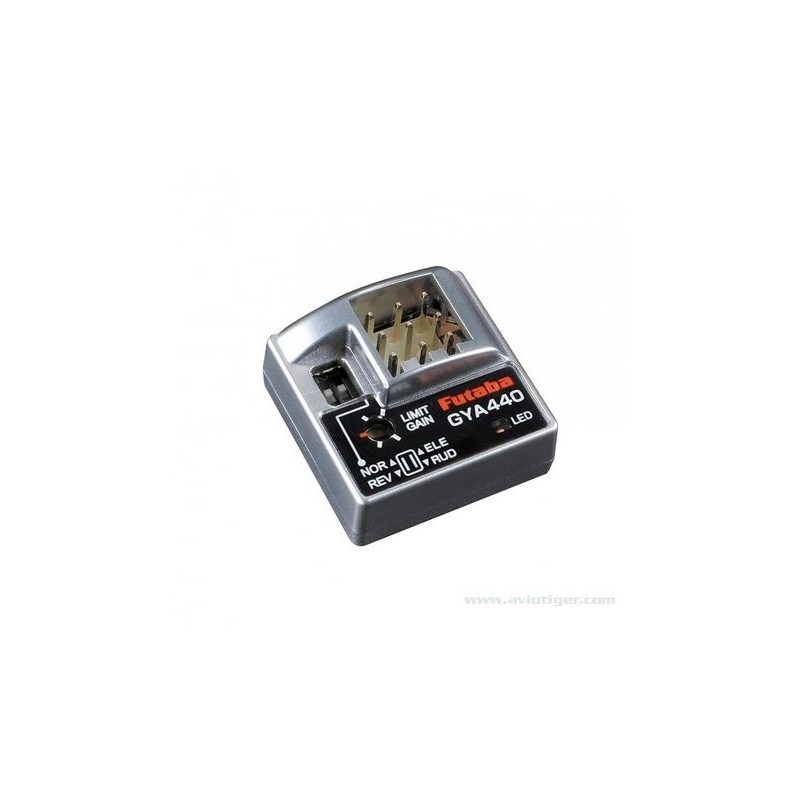

GYA440 AIRCRAFT gyroscope (for depth or drift) Futaba

Out-of-Stock

€94.17

Tax included

Micro gyroscope for elevator or drift of aircraft, compact, light, with heading conservator, it allows to stabilize the flight even for models delicate to control. The gain can be adjusted either from your transmitter or directly on the gyro via a potentiometer. The GYA430 can be connected to the SBUS or SBUS2 channel of your Futaba receiver.

General characteristics

Flight stabilization
Depth or drift compatible (Depth or drift selection directly on the gyro)
Gain adjustment directly on the gyro or from your transmitter
Easy installation (GYA440 can be used immediately with minimal programming)
Can be connected to SBUS OR SBUS2 channels (only one wire is needed)

Technical specifications

MEMS sensors
Supply voltage : 4.0V - 8.4V
No-load power consumption (without servo) : 30mA
Operating temperature range : -10°C - 45°C
Dimensions: 20.5x20.5x11 mm
Weight : 3.7g
Servo type selection (1520uS or 760uS) by switch on the gyroscope

Contents of the box

Gyroscope GYA440
Double-sided foam
Velcro strap
2 patch extensions (1 red, 1 black)
a mini screwdriver (for gyroscope adjustments)

Reference 066-01000931

EAN13 4513886028922

MPN 4005697818057
