RadioMaster - 2.4 GHz ELRS Ranger Module

The RadioMaster Ranger is the ultimate in ExpressLRS module design. Built not only to look good but to last with its rugged CNC machined aluminum enclosure that helps the high efficiency cooling system as a heat sink. The Ranger is up to any task and provides all the power and functionality you need.

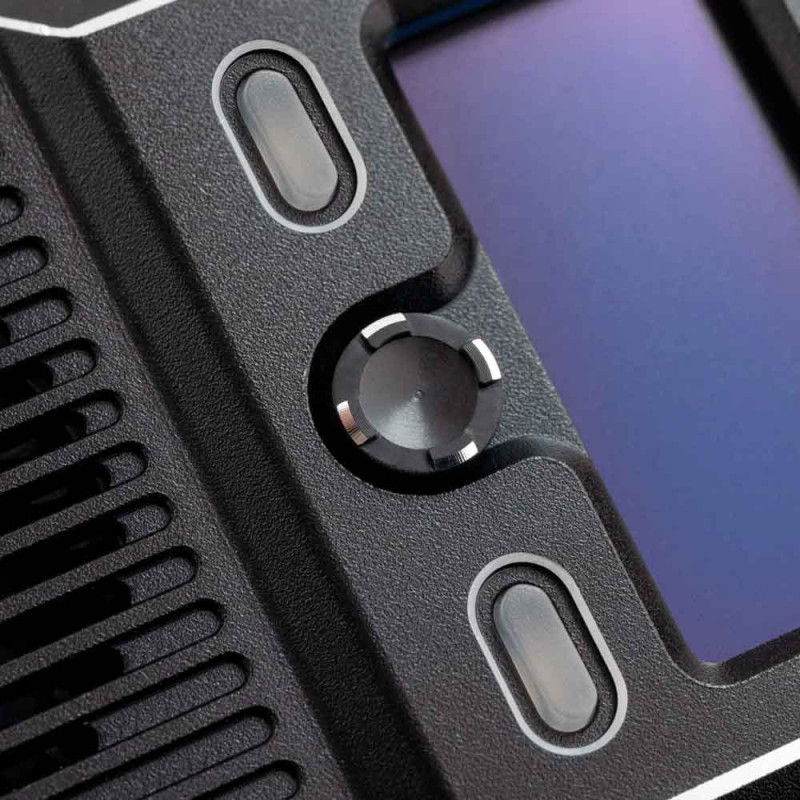

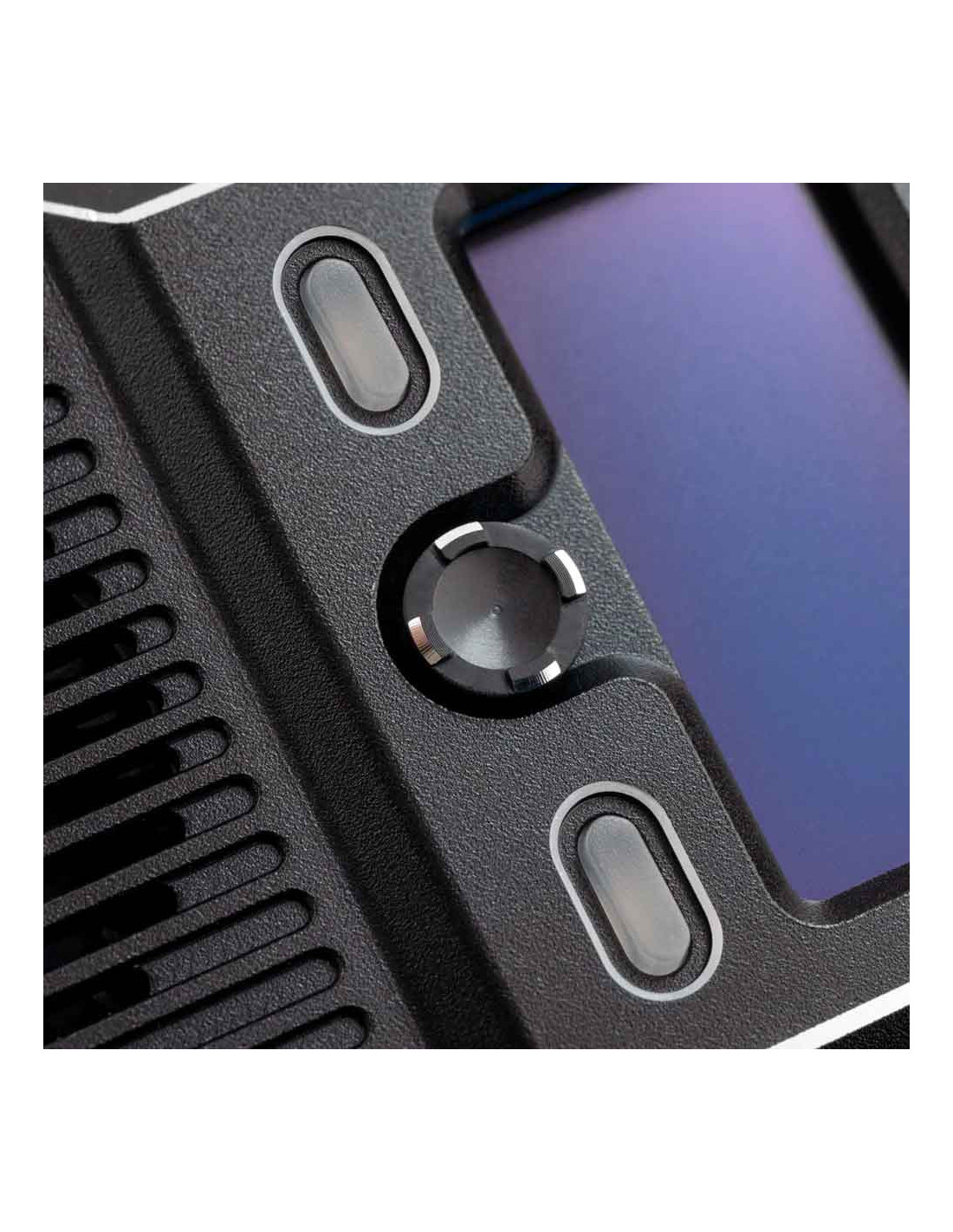

Featuring an OLED display, directional menu button and two assignable hotkeys, the Ranger can be adjusted on the fly and customized to your needs.

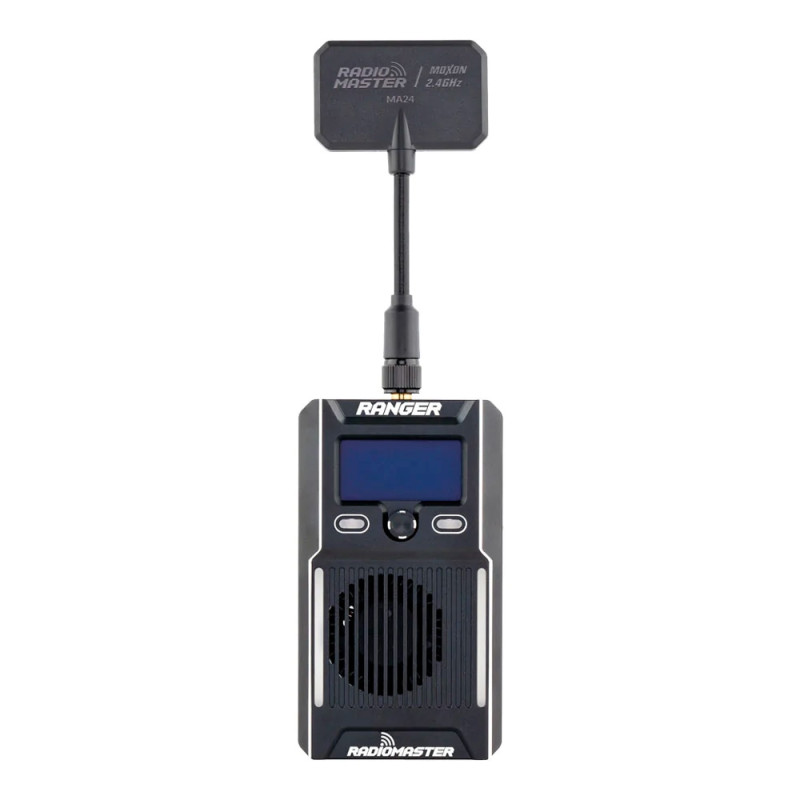

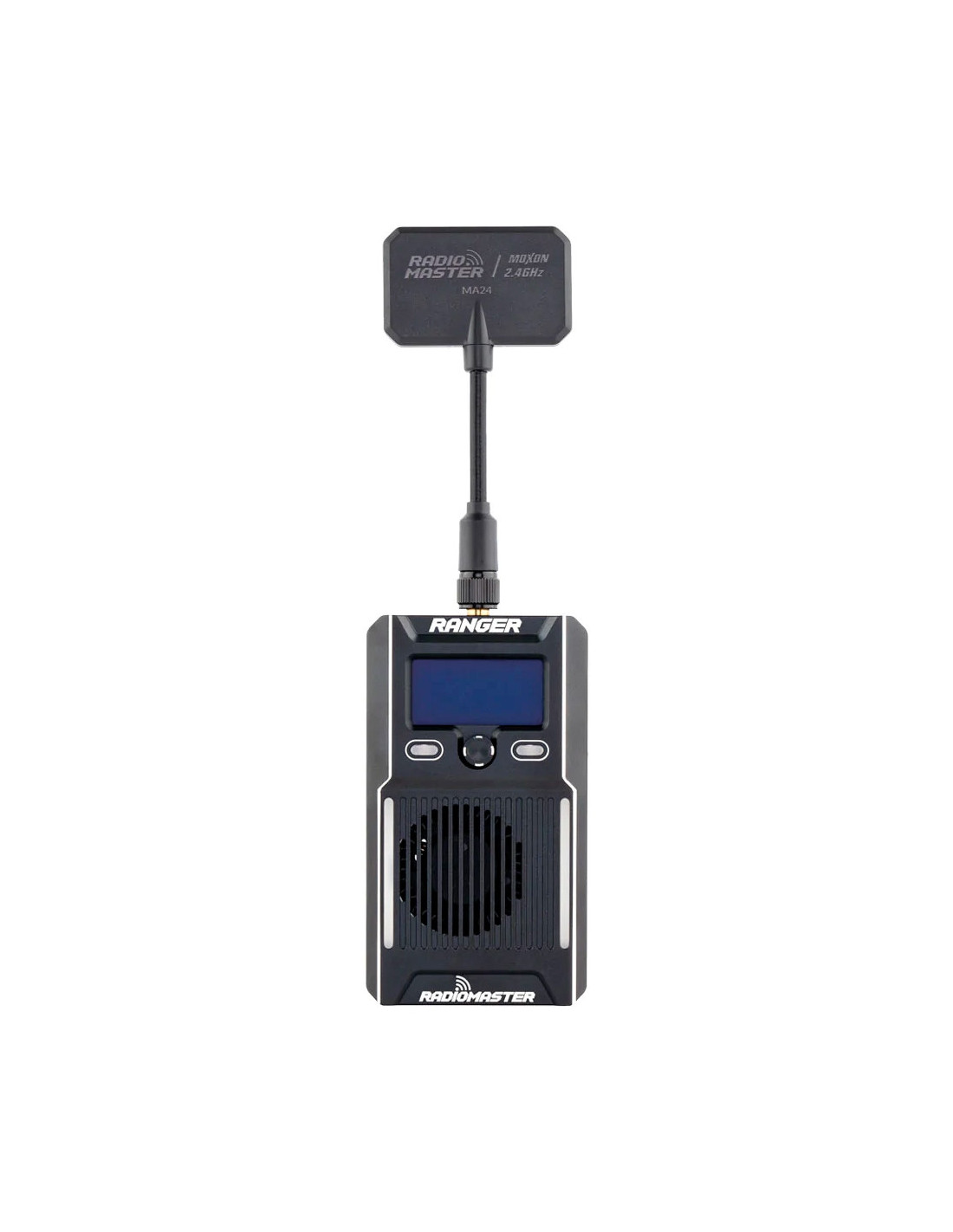

The Ranger includes a T-antenna for general use and a Moxon RadioMaster antenna for long-range directional applications. A micro module and nano module adapter are included to ensure that the Ranger is compatible with most radios on the market today. A cable has also been included for use with CRSF compatible Futaba radios.

Features

• OLED display
• Rugged CNC housing
• Integrated accelerometer
• Packet rates up to F-1000Hz
• Power output up to 1 Watt
• Wifi and Bluetooth support
• High efficiency cooling system
• 5-way navigation and customizable shortcut buttons
• Micro and Nano Adapters included
• Moxon and T-antenna included
• CRSF cable for compatible Futaba radios included

Specification

• Item: ELRS Ranger 2.4 GHz module
• Regulatory Area: ISM2400
• MCU: ESP32 (main), ESP8285 (aux, as espbackpack)
• RF chip: SX1281IMLTRT
• Frequency range: 2400 MHz to 2480 MHz
• Maximum packet rate: 500 Hz/F1000 Hz (F1000 mode requires EdgeTX 2.7.1 or later)
• Minimum receiver refresh rate: 25 Hz RF output power
• RF output power: 30 dBm for FCC, 20 dBm for CE (adjustable via LUA)
• Module bay Adapters: standard 5-pin JR plug and standard 8-pin Nano plug
• Futaba CRSF plug cable: included
• OLED display: 64 x 128 pixels
• Wifi support: Yes
• Bluetooth support: Yes
• 3-axis accelerometer: Yes (STK8BA58 MEMS Accelerometer)
• Integrated RGB light strip

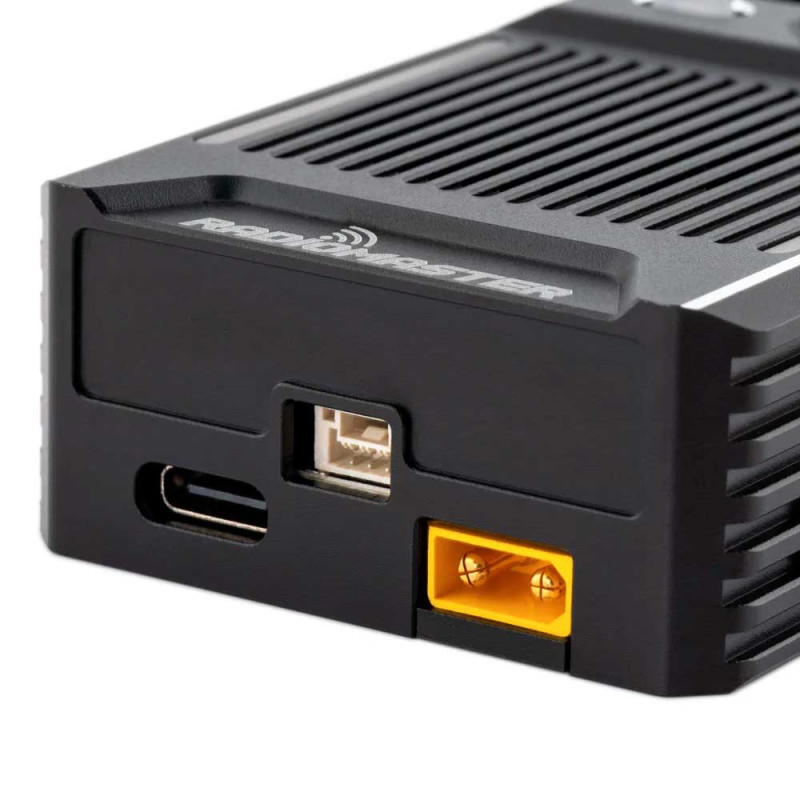

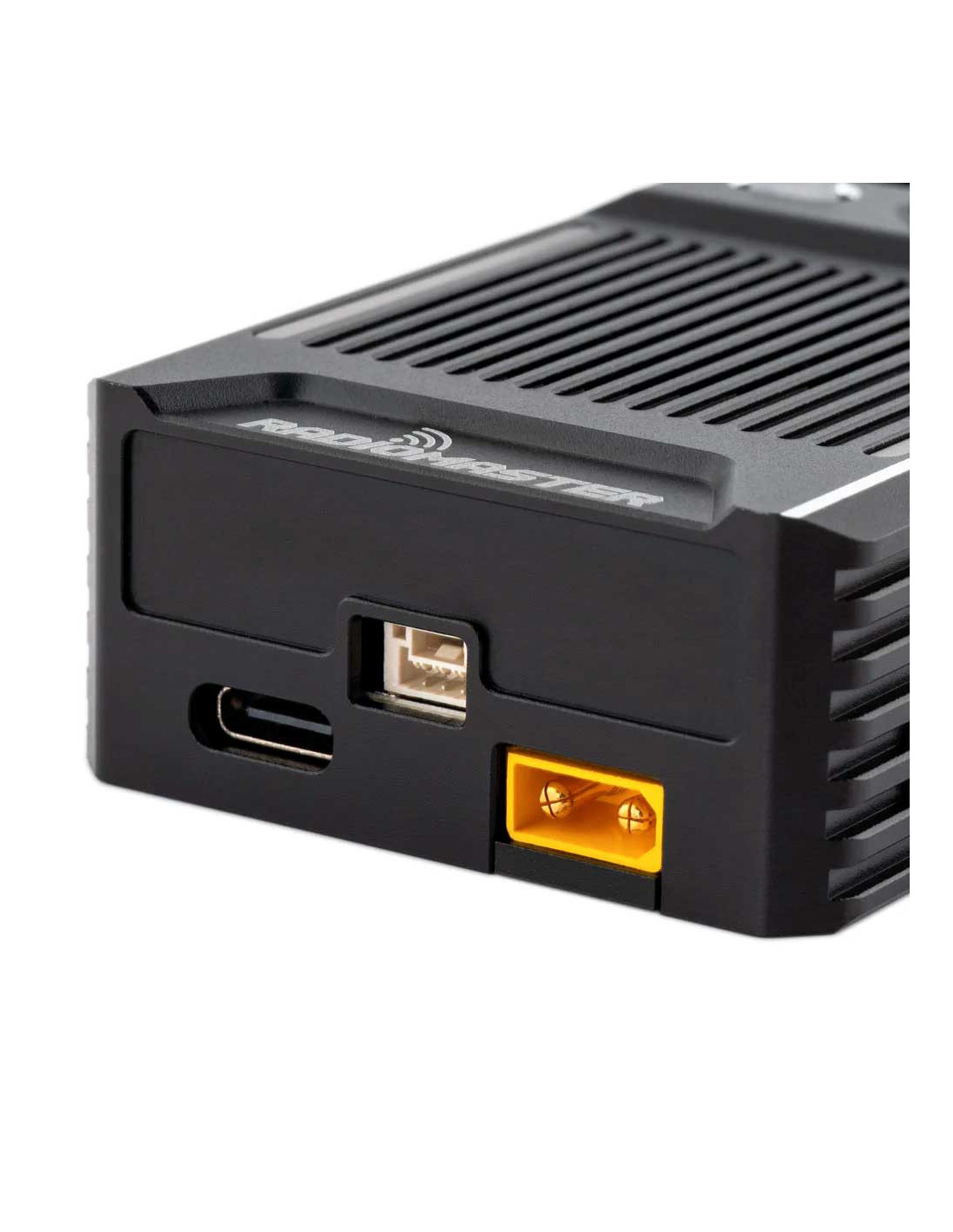

• XT30 Power supply voltage: DC 6V - 16.8V
• Weight: 138g (with Moxon antenna) / 135g (with T antenna) / 126g (without antenna)
• Dimension: 95*51*25mm (without antenna)
