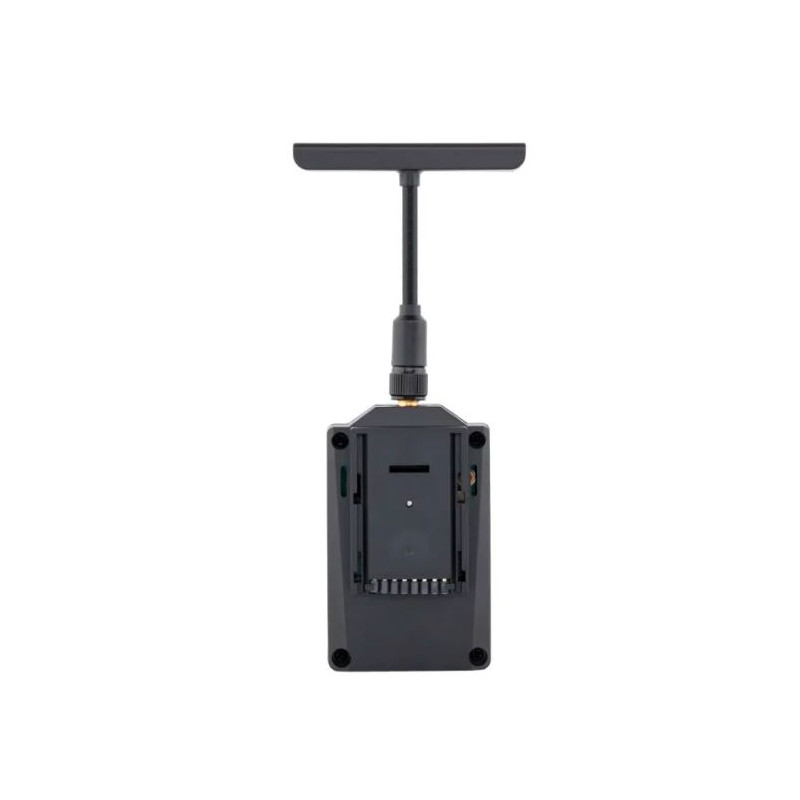

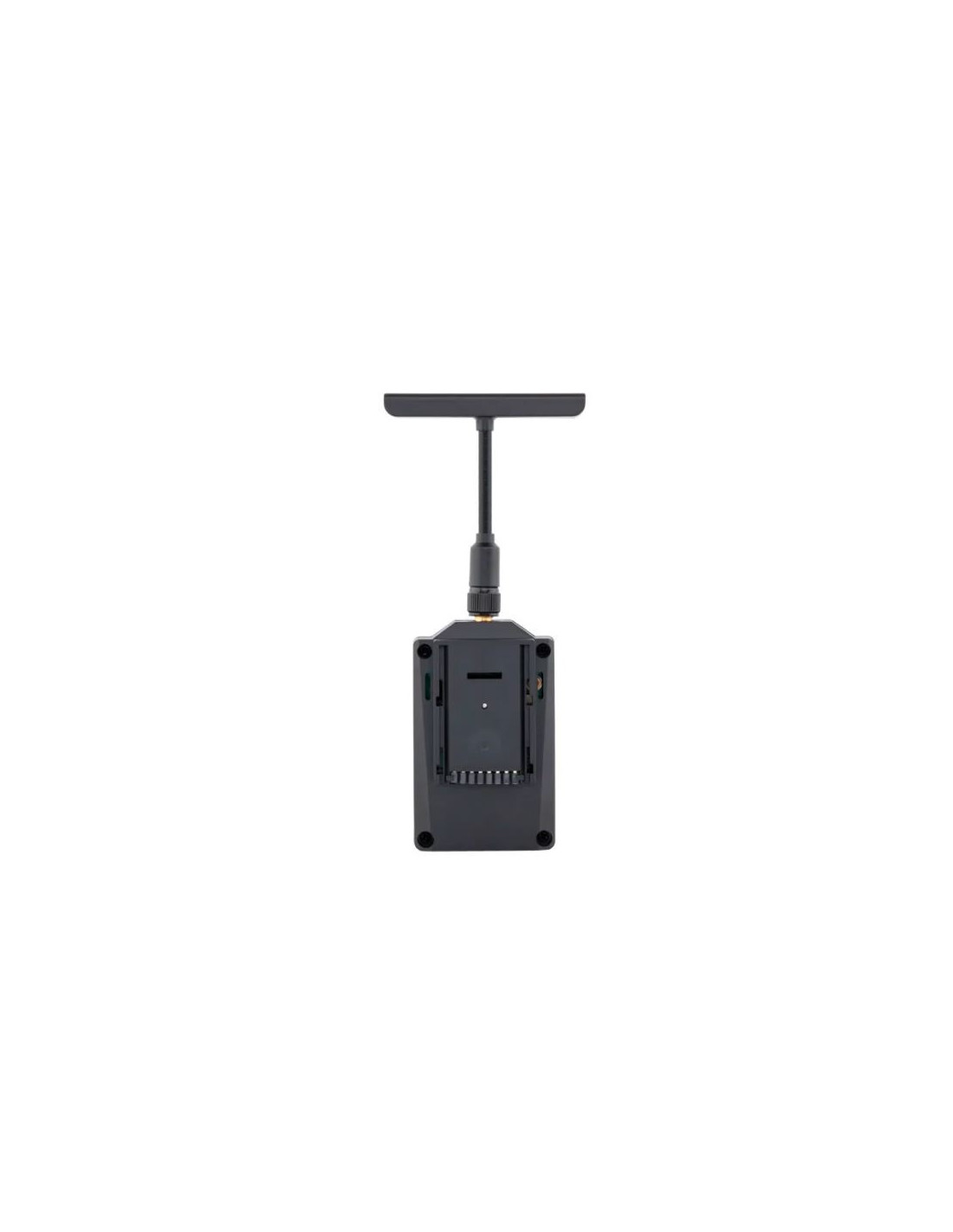

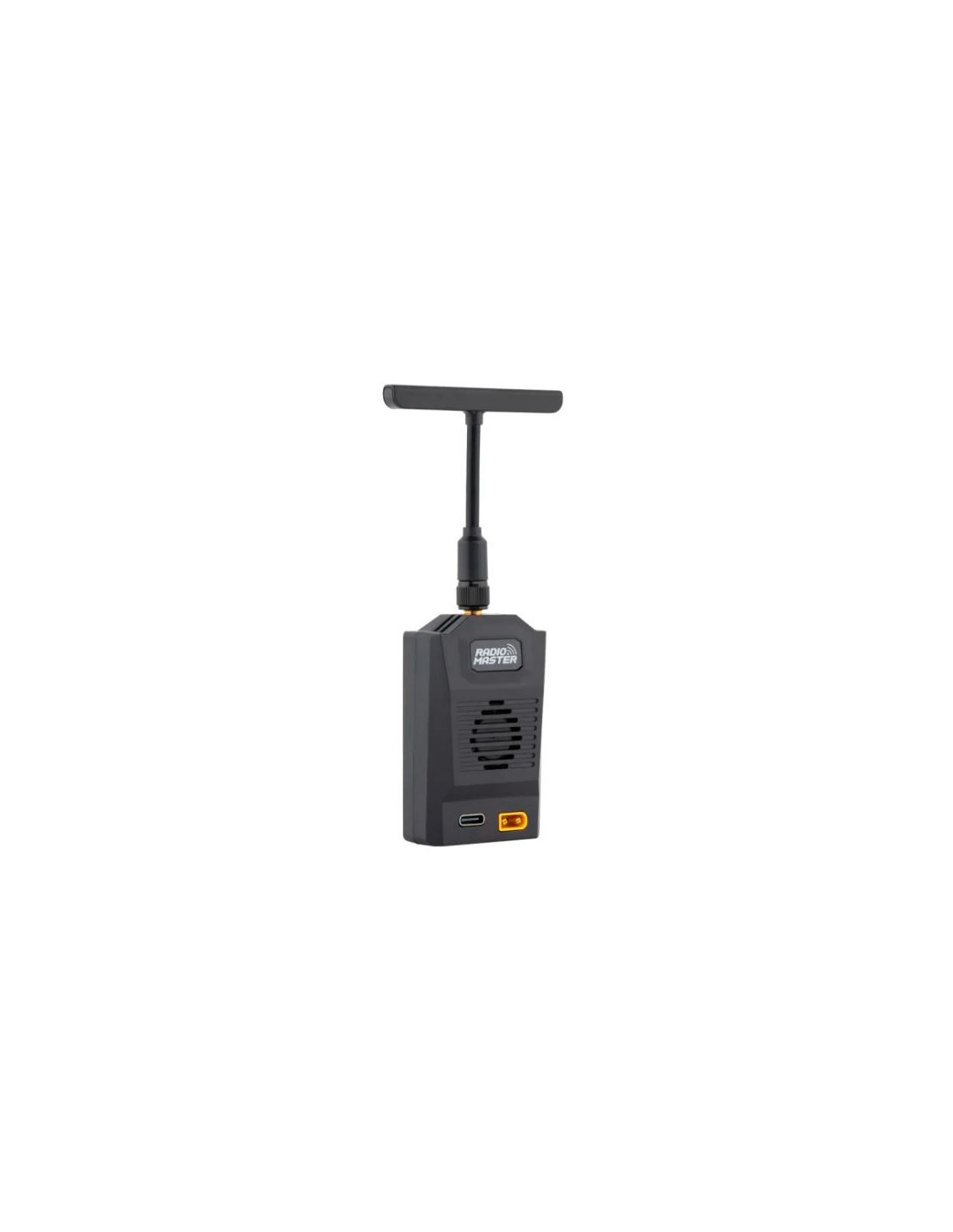

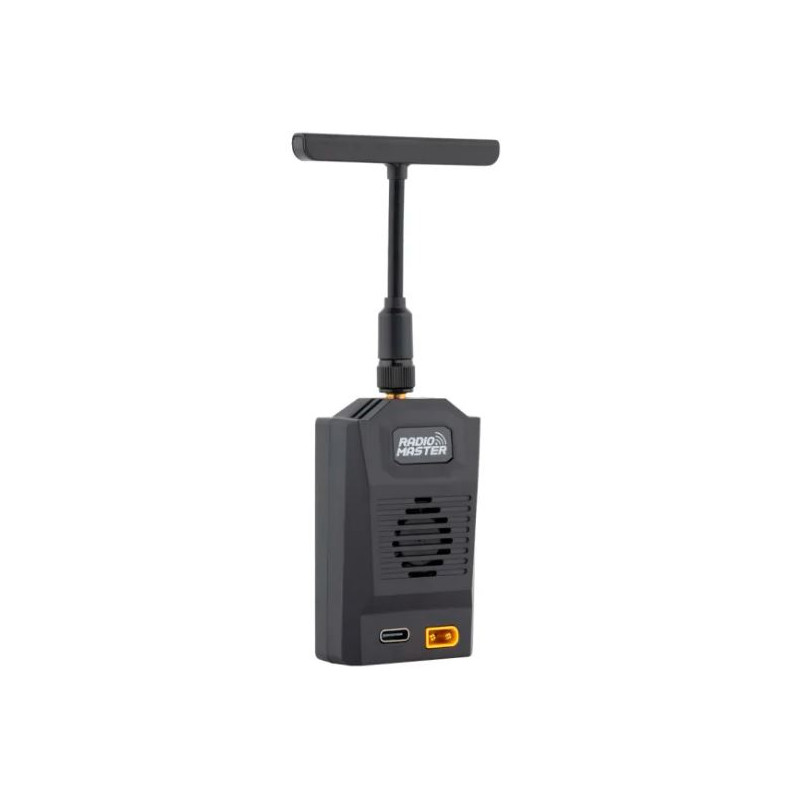

RadioMaster - Ranger Nano 2.4 GHz ELRS Module

With up to 1 W output, F-1000 Hz refresh rates, and a high-efficiency cooling system, the ELRS Ranger Micro 2.4 GHz module represents the cutting edge of ELRS technology. Attach the module to a compatible radio (RadioMaster Zorro and above) to take advantage of all that ELRS has to offer.

The included T-shaped antenna is designed for maximum signal coverage. An optional MOXON antenna is available for directional applications.

Features

• ★High efficiency cooling system.
• ★ Output power up to 1 Watt
• ★ Wi-Fi and Bluetooth support
• ★ Packet rates up to F-1000 Hz
• ★ T-antenna included

specification

• Ranger Micro Module
• Regulatory Domain: ISM2400
• MCU: ESP32(main), ESP8285(aux,as espbackpack)
• RF chip: SX1281IMLTRT
• Frequency range: 2400 MHz to 2480 MHz
• Maximum packet rate: 500Hz/F1000Hz (F1000 mode requires EdgeTX 2.7.1 or later)
• Minimum receiver refresh rate:
• 25 Hz RF output power: 30 dBm for FCC, 20 dBm for CE (adjustable via LUA)
• Wifi support: Yes
• Bluetooth support: Yes
• XT30 Power supply voltage : DC 6V - 16.8V
• Weight : 50g (with antenna) / 40.5g (without antenna)
• Dimension: 136*49*33mm (with T antenna) / 74*49*33mm (without antenna)
