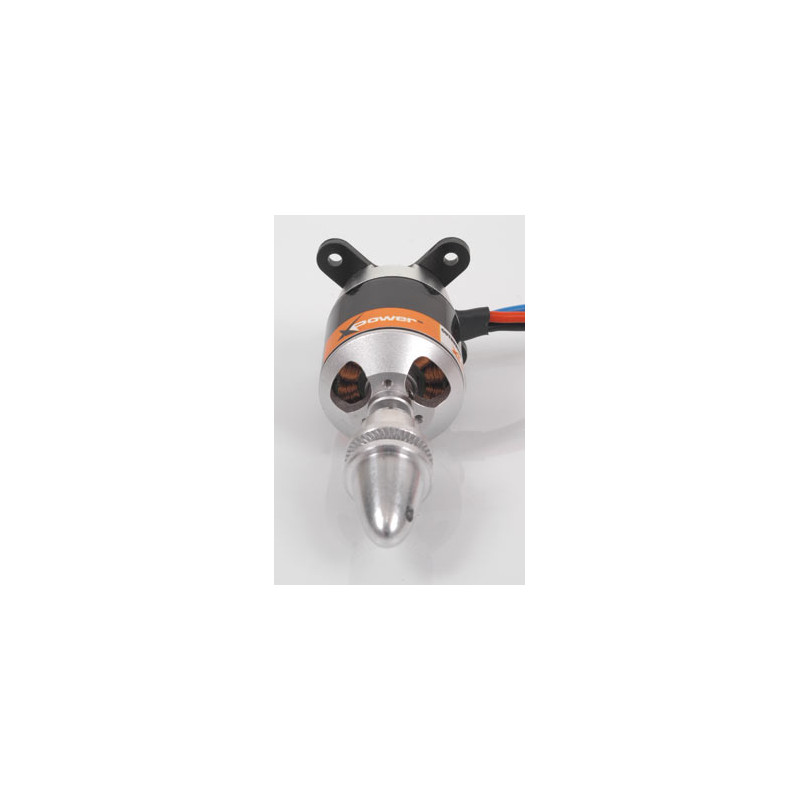

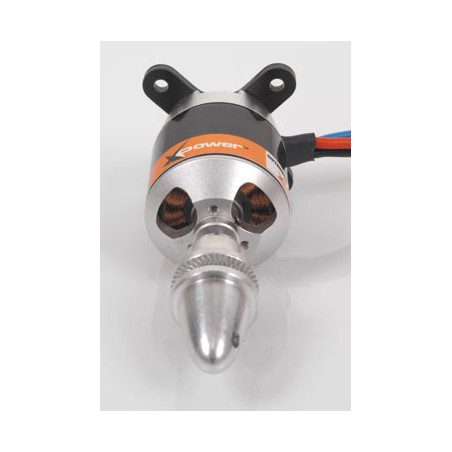

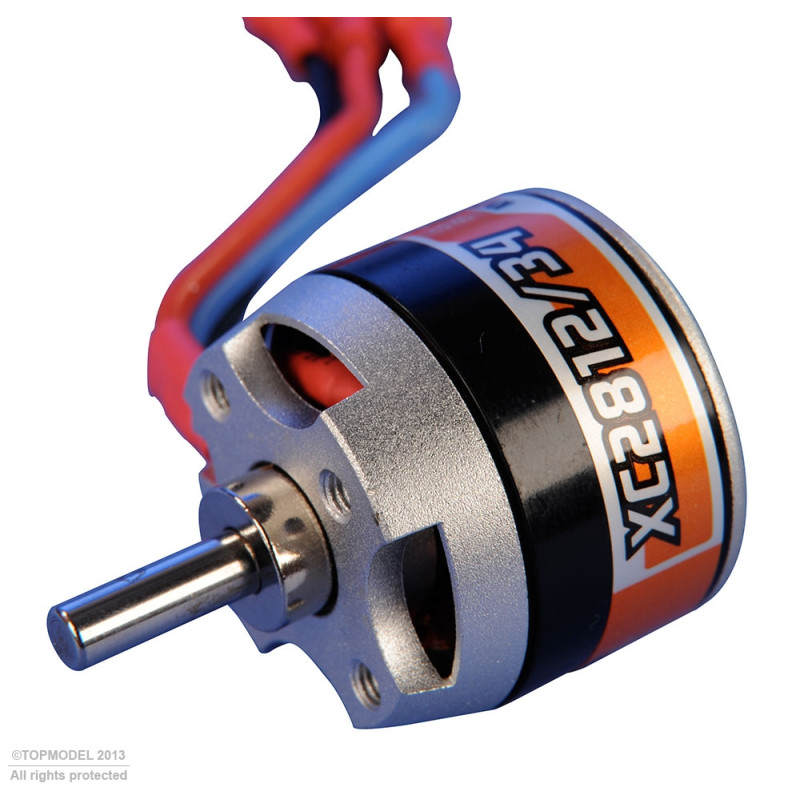

OUTRUNNER brushless performance motor
Format 400

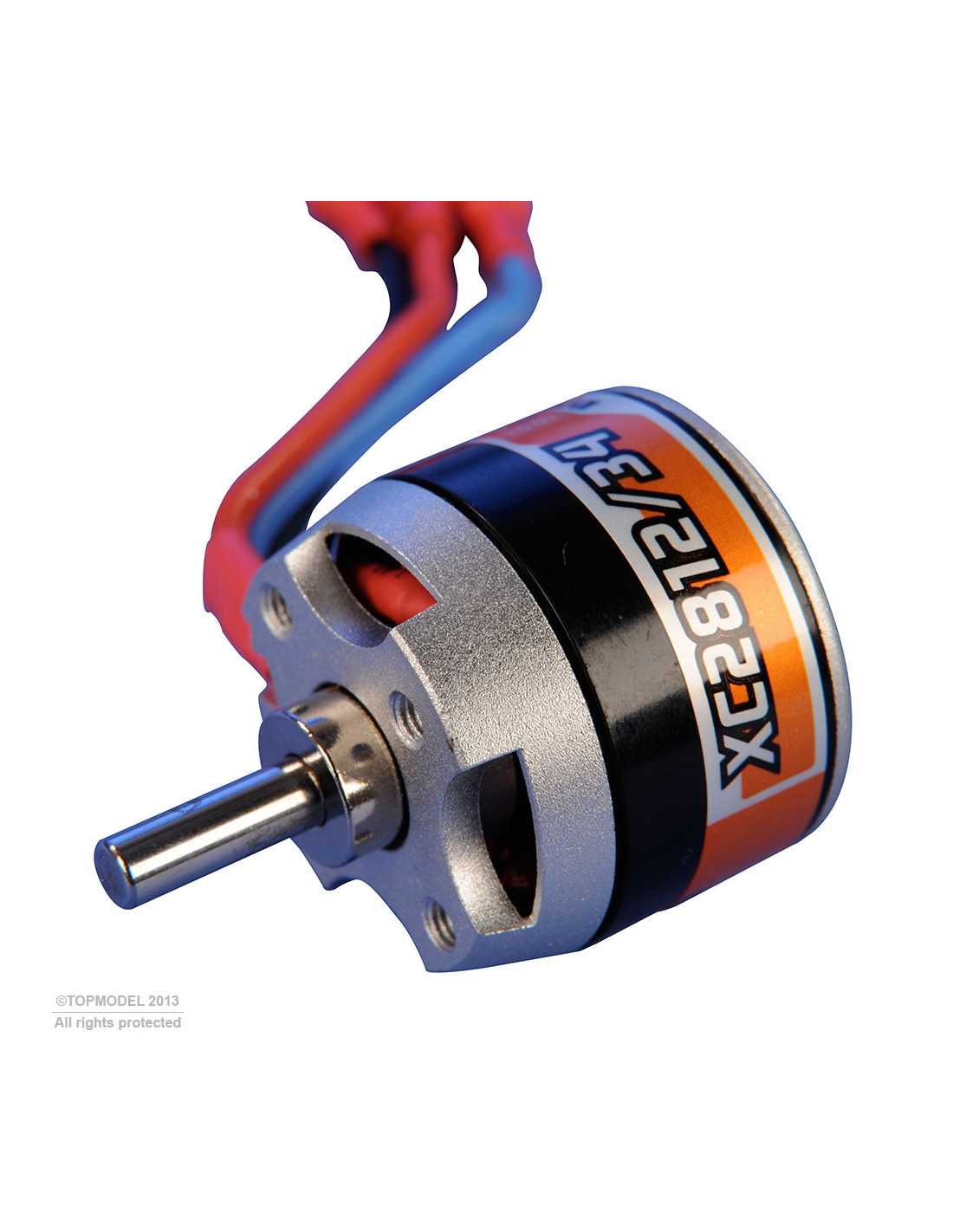

XPower XC2812/34
Technical specifications:
- Recommended number of cells: 6-10 or 2-3 LiPo
- Revolutions per Volt: 740
- Max. current: 8A
- Internal resistance: 234mOhm
- Dimensions: Ø28x28.5mm
- Motor shaft diameter: 4mm
- Weight: 58g
- Recommended propellers: 9x4.7-11x8
Measurements:
- Propeller: APC SF 10x3,8
- Controller: Xpower REG 10
- Battery: HOT Lips 600 3S1P
- Speed: 6300 rpm
- Consumption: 7.5A
Measurements:
- Propeller: APC SF 9x4.7
- Controller: Xpower REG 10
- Battery: HOT Lips 600 3S1P
- Speed: 6300 rpm
- Consumption: 5.5A
Measurements:
- Propeller: APC SF 10x4.7
- Controller: Xpower REG 10
- Battery: HOT Lips 600 3S1P
- Speed: 6100 rpm
- Consumption: 8A
Measurements:
- Propeller: APC SF 10x3,8
- Controller: Xpower REG 10
- Battery: HOT Lips 600 3S1P
- Speed: 6300 rpm
- Consumption: 7.5A
Measurements:
- Propeller: APC SF 9x4.7
- Controller: Xpower REG 10
- Battery: HOT Lips 600 3S1P
- Speed: 6300 rpm
- Consumption: 5.5A
Measurements:
- Propeller: GWS 10x4.7
- Controller: Xpower REG 10
- Battery: HOT Lips 600 2S1P
- Speed: 4500 rpm
- Consumption: 4.5A
Measurements:
- Propeller: GWS 10x4.7
- Controller: Xpower REG 10
- Battery: HOT Lips 600 3S1P
- Speed: 6300 rpm
- Consumption: 8.7A
Recommended controller: Xpower REG 10
For models such as: Warbirds FSK, etc.

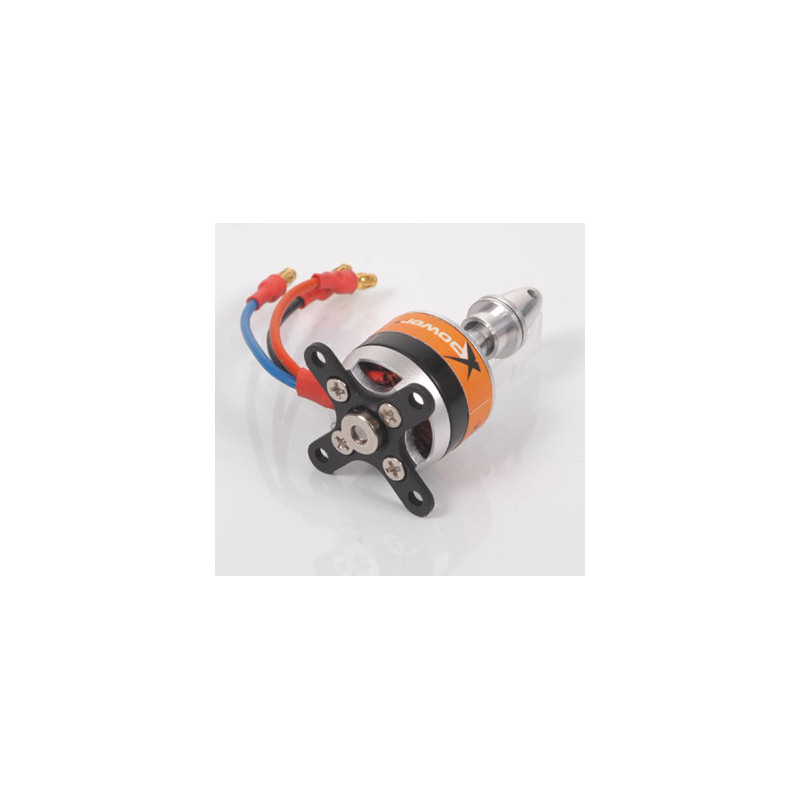

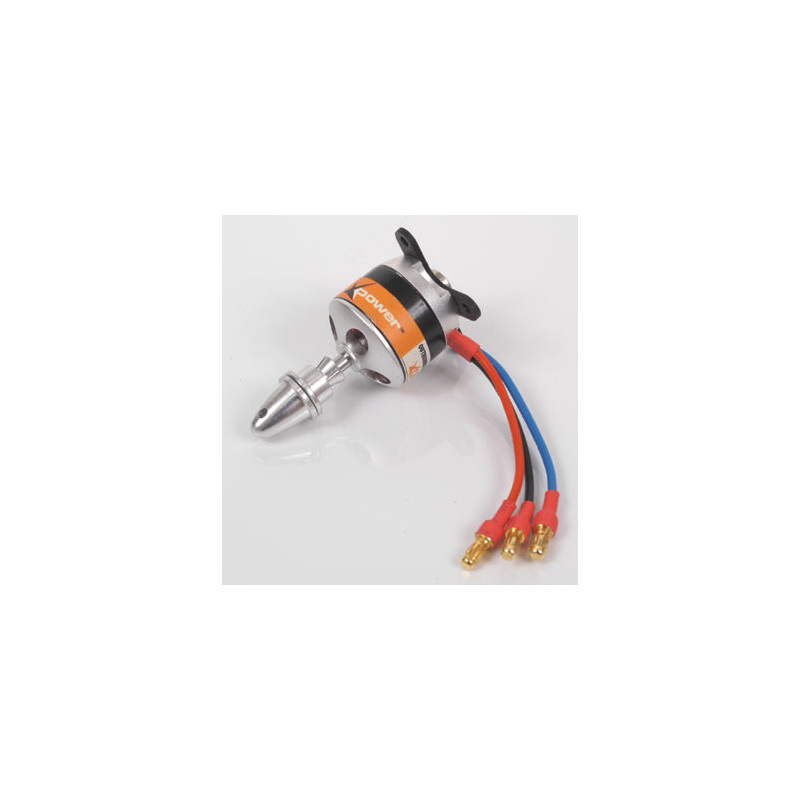

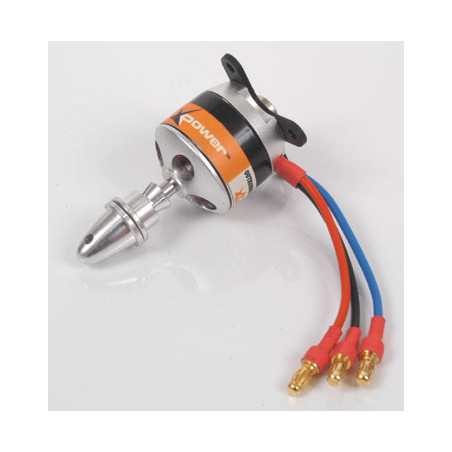

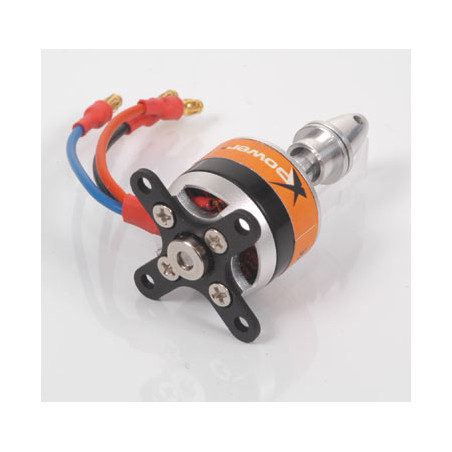

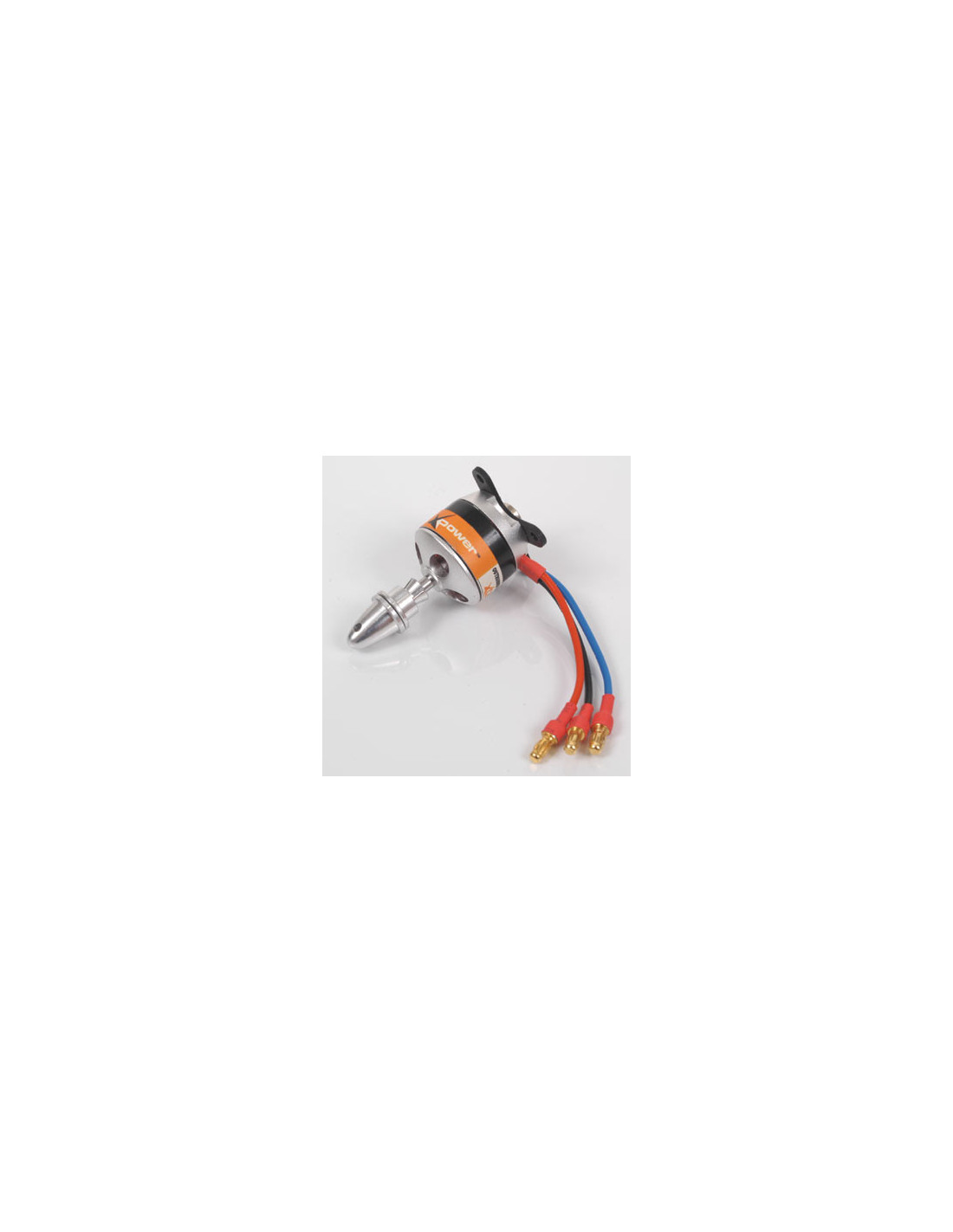

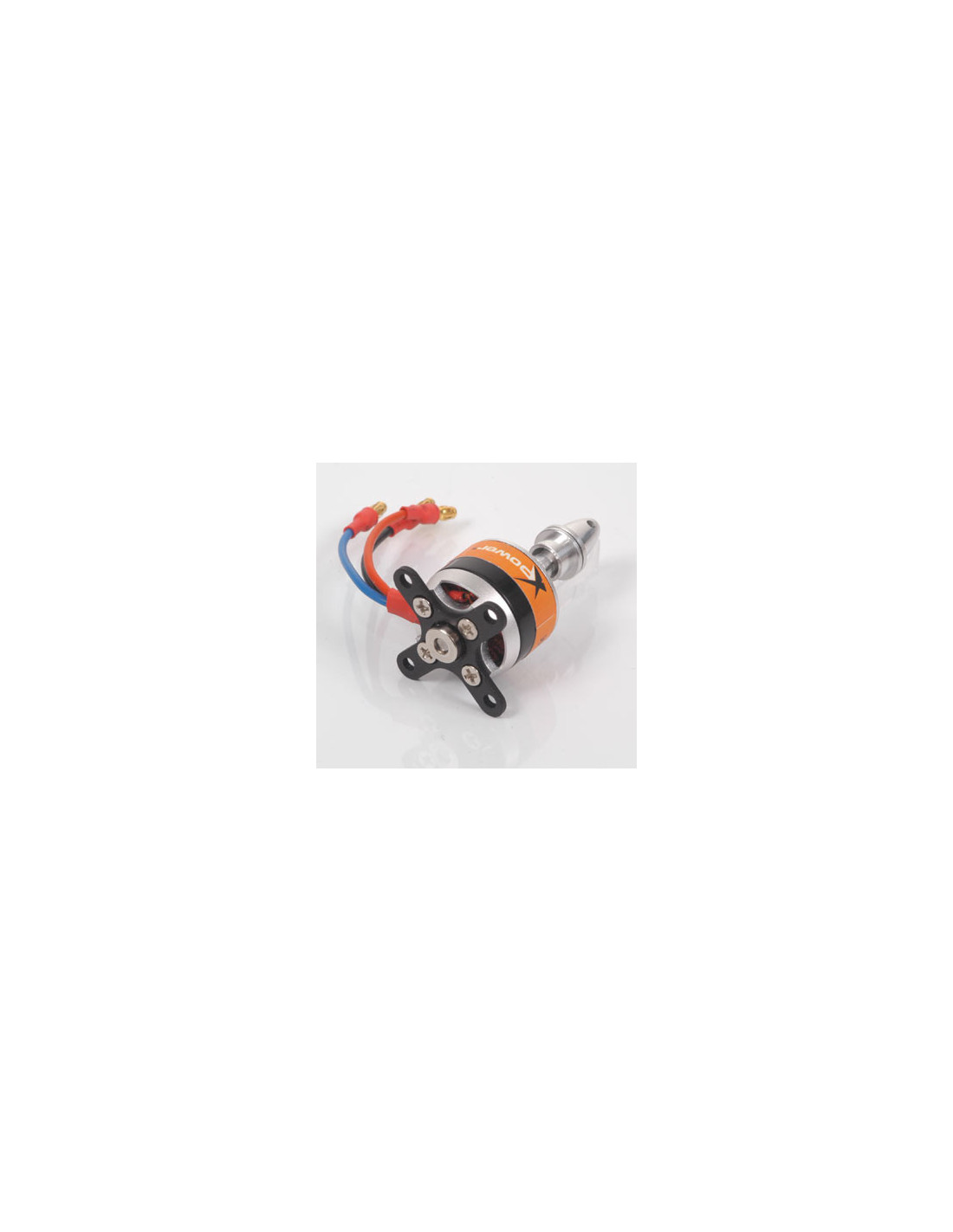

Supplied complete with 3.5mm gold connectors, radial mount and propeller adapter.
