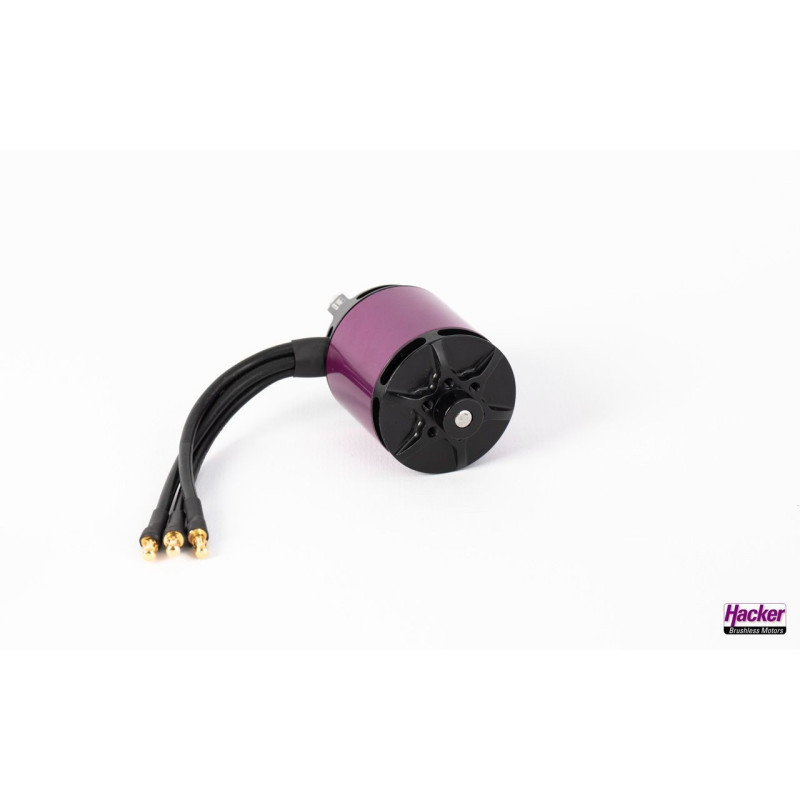

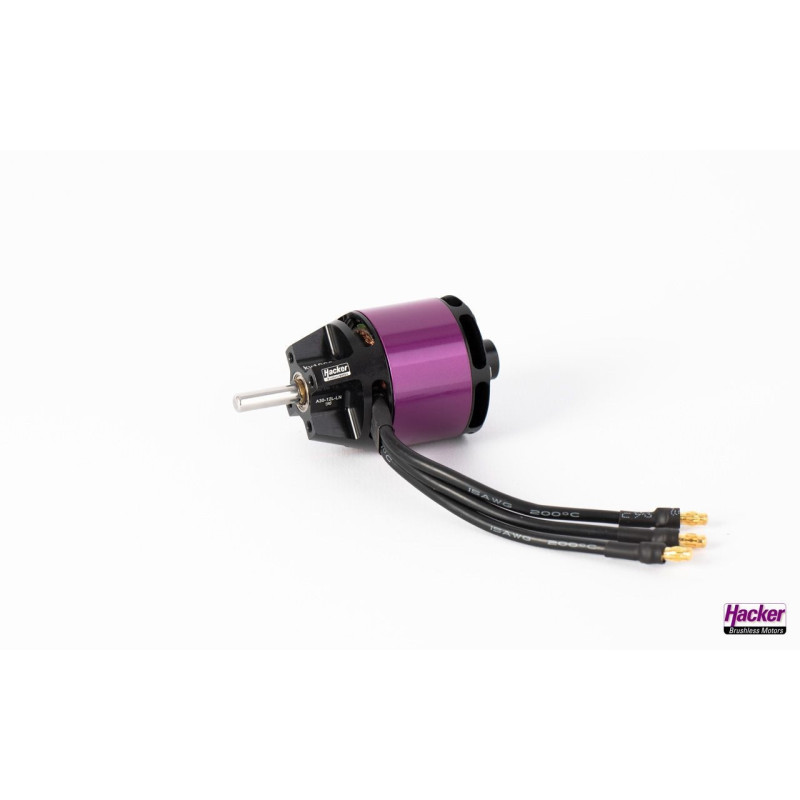

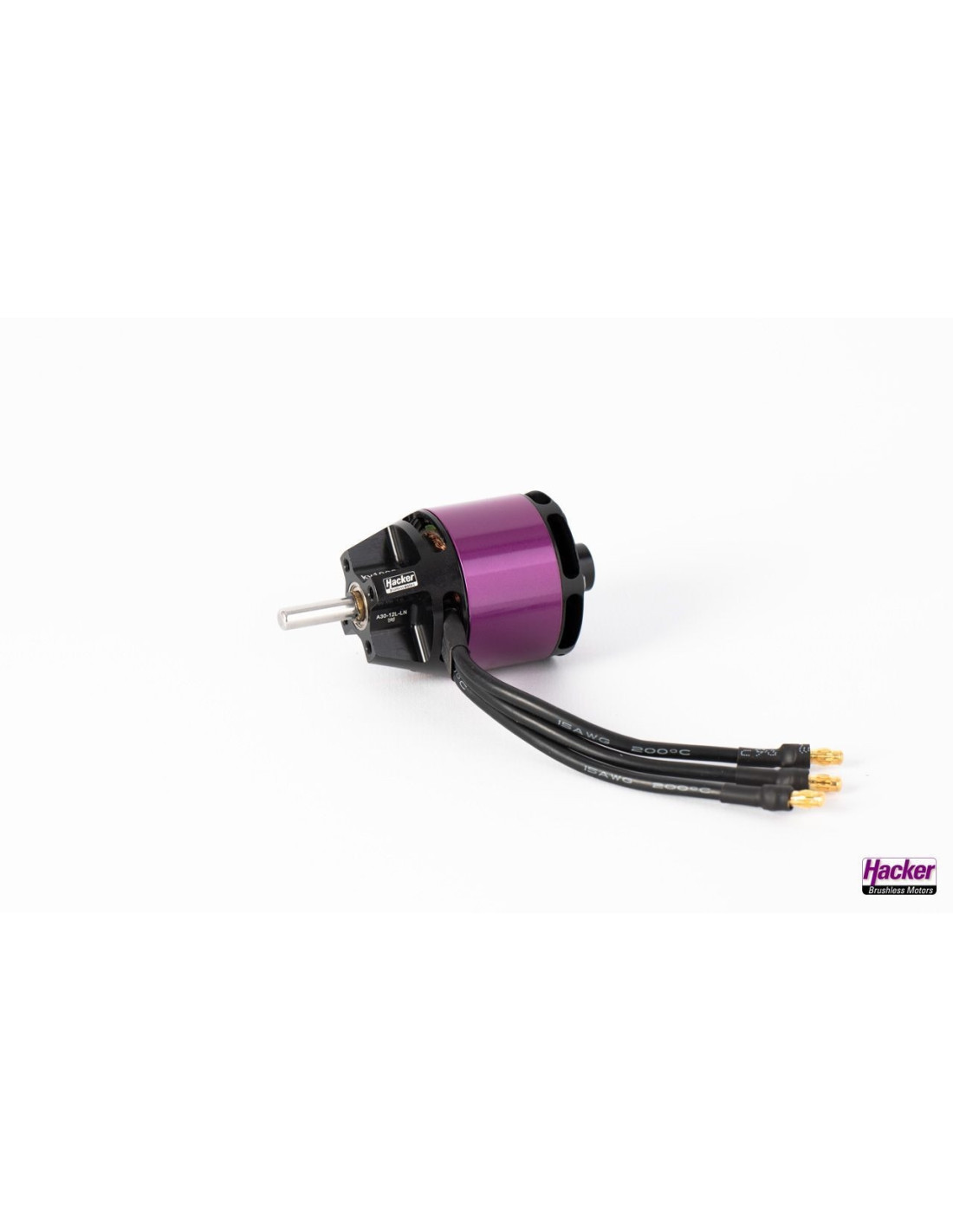

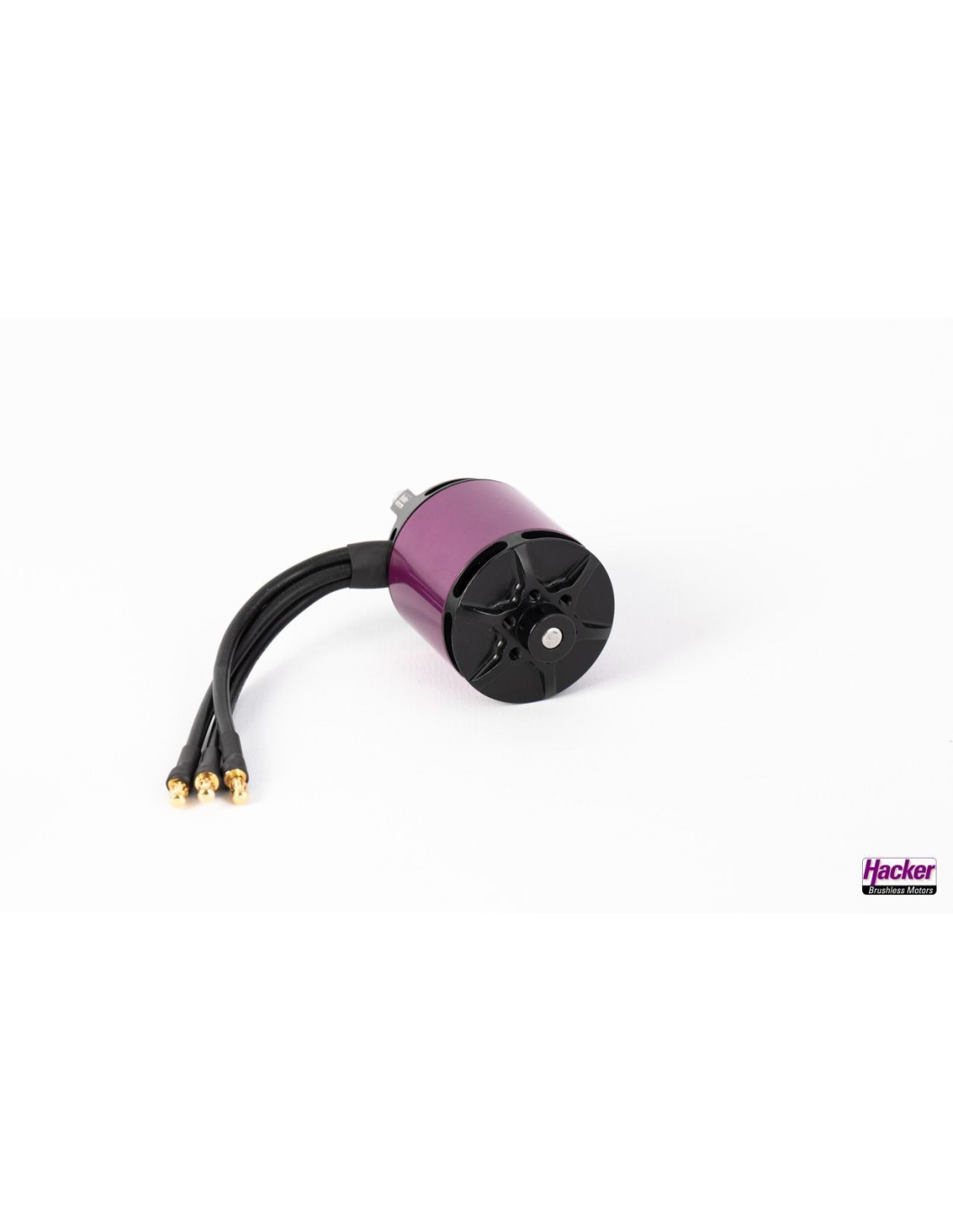

The A30-LN series has been specially developed for glider models with a narrow fuselage. Since the fuselage becomes significantly thicker a few centimeters beyond the motor frame, a compact, high-torque outrunner can be used in direct drive. Thanks to the high efficiency and the integrated fan, the motor remains cool for a long time, even in narrow, poorly ventilated hulls.
This weight-optimized high-end motor with a weight of only 159g is often used in glider models up to 2.5kg. Of course, the A30-12 L-LN V4 kv1000 also fits perfectly in powerplanes and sports planes up to about 1.4Kg takeoff weight when tightened under the hood.
Specifications
Power range [W] 500
Poles 14
Turns 12
Idle current (I0) at 8.4V [A] 1.8
Internal resistance (Ri) [Ohm] 0.03
Recommended cadence [°] 20 - 25
Recommended cadence [kHz] 8
Controller recommendation 45 - 55
No load speed per volt (kv) 1000

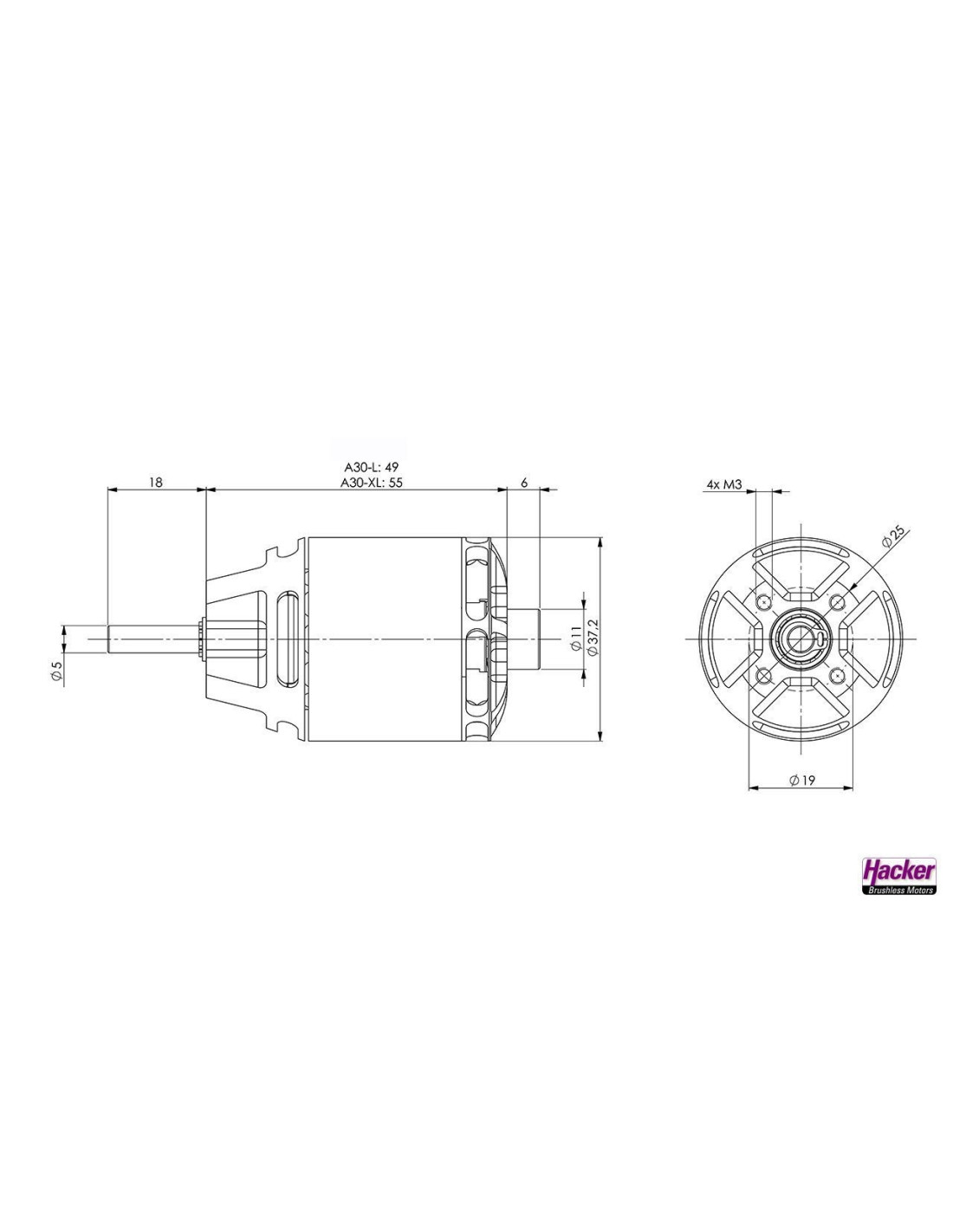

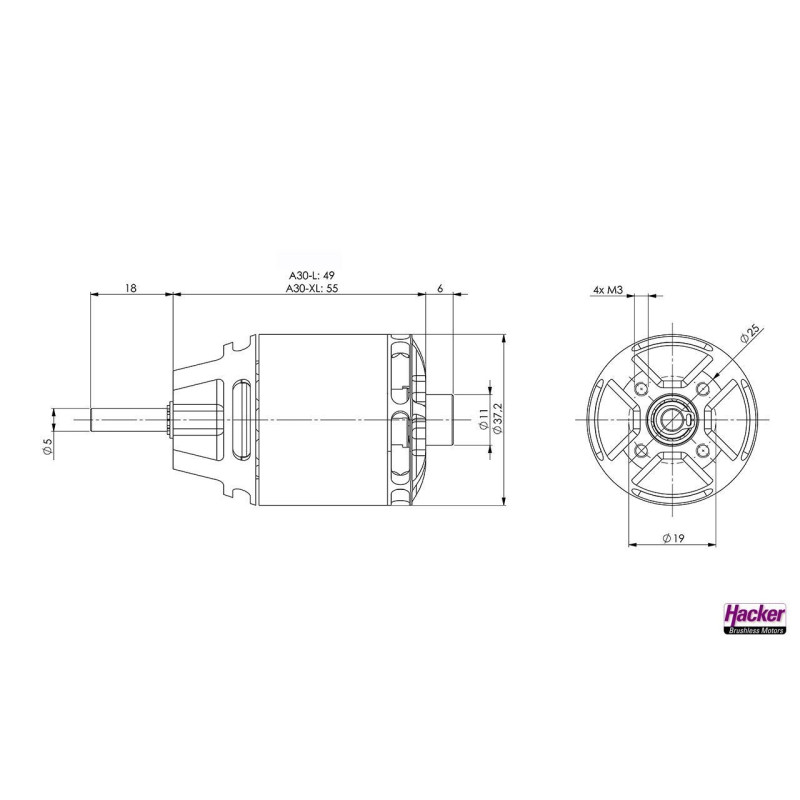

Dimensions and weights
Weight [g] 159
Length [mm]/[in] 49
Outer diameter [mm]/[in] 37,2
Shaft diameter [mm]/[in] 5
Scope of delivery
Promoters: No
Mounting cross: No
Gold plug mm (soldered) 3,5
Rear mounting possible: No
Front mounting possible: Yes
