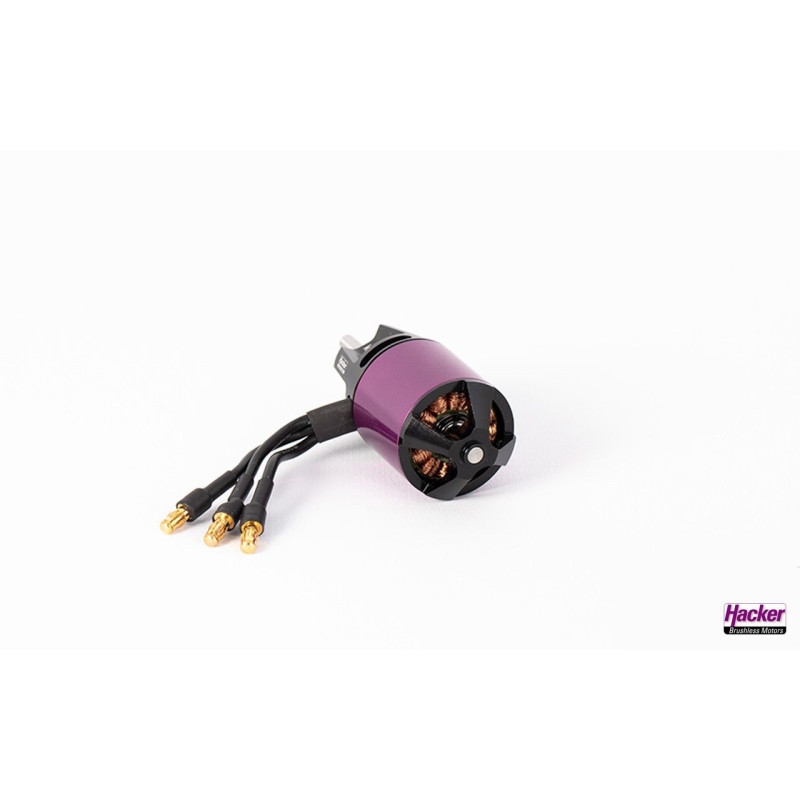

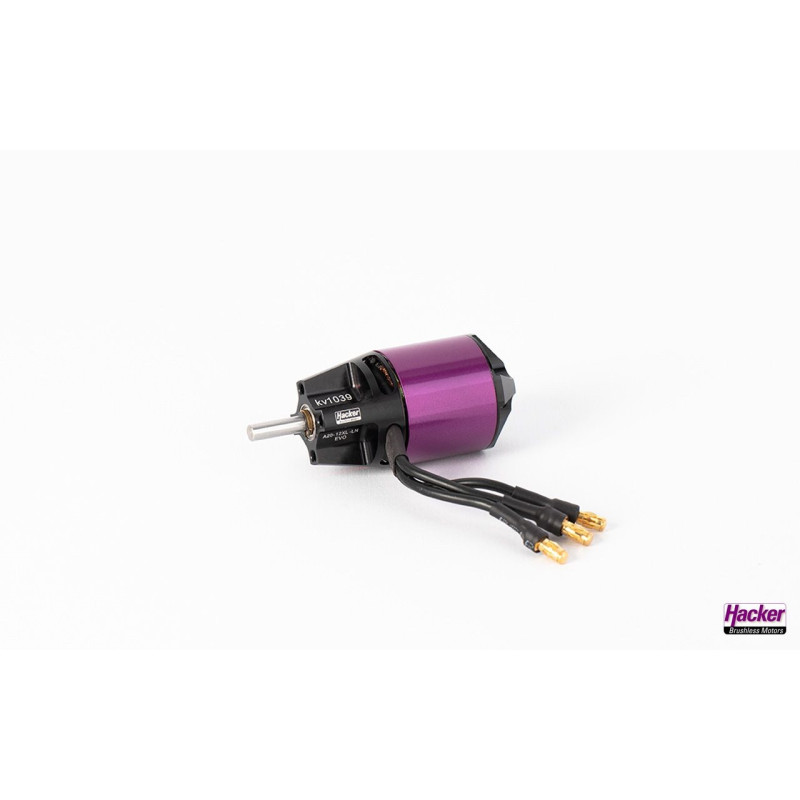

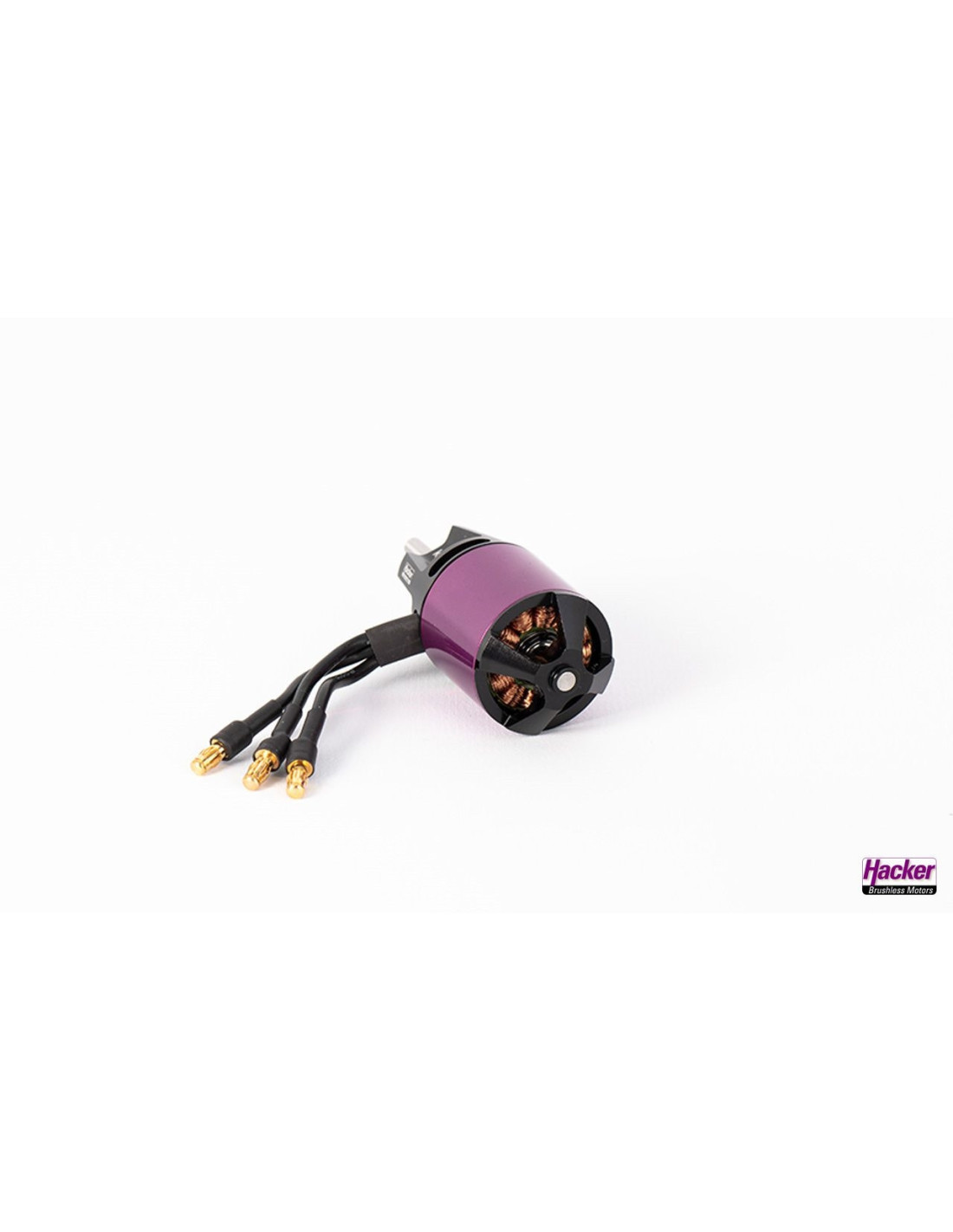

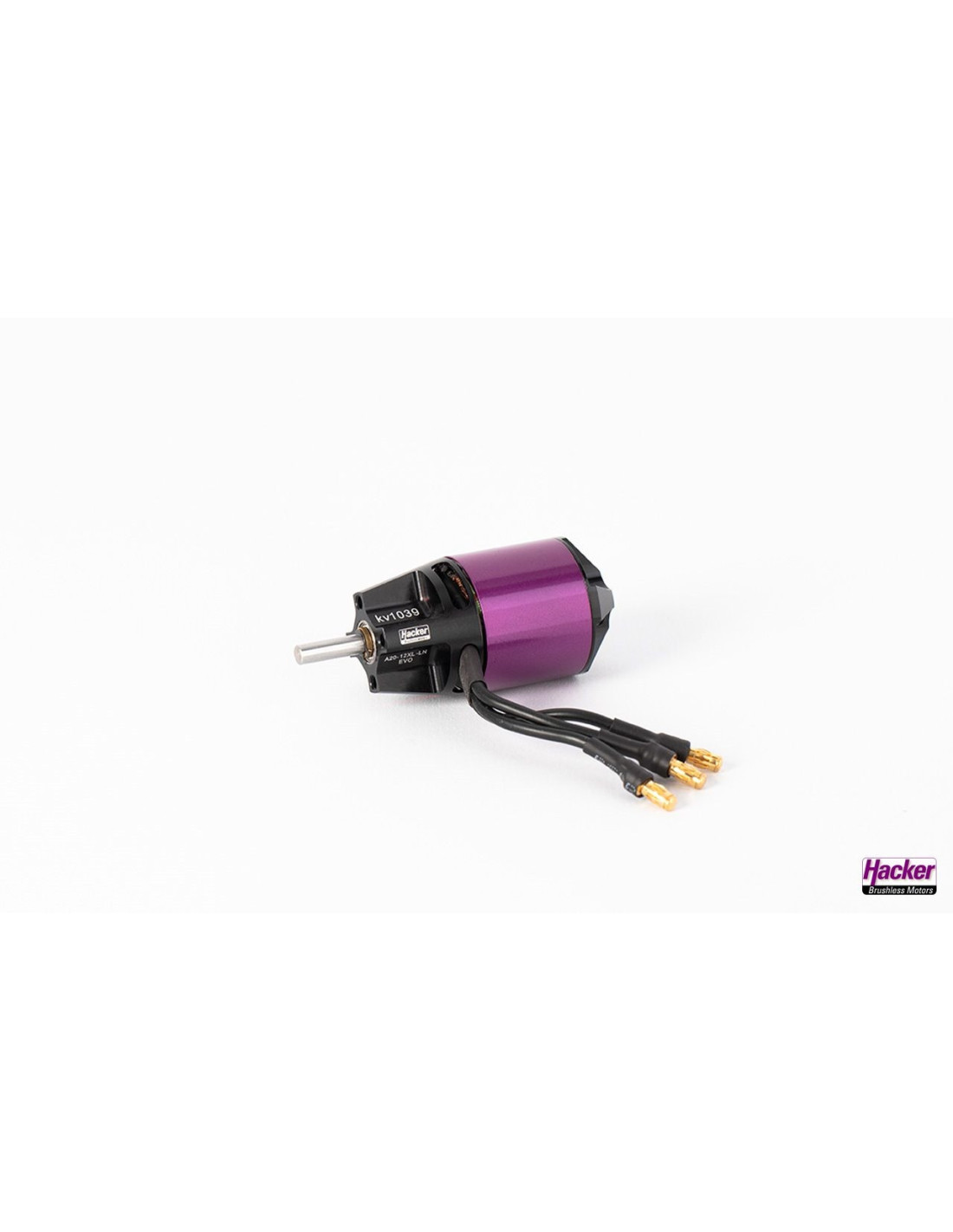

Hacke A20-12 XL-LN EVO brushless motor (90g, 1039kv,300W)
Hacke A20-12 XL-LN EVO brushless motor (90g, 1039kv,300W)
Hacke A20-12 XL-LN EVO brushless motor (90g, 1039kv,300W)
Hacke A20-12 XL-LN EVO brushless motor (90g, 1039kv,300W)
Hacke A20-12 XL-LN EVO brushless motor (90g, 1039kv,300W)
Hacke A20-12 XL-LN EVO brushless motor (90g, 1039kv,300W)

Hacke A20-12 XL-LN EVO brushless motor (90g, 1039kv,300W)

Last items in stock
€69.92
Tax included

The A20-LN series has been specially developed for glider models with narrow fuselages. Since the fuselage becomes significantly wider a few centimeters after the motor mount, a small diameter outrunner can be used in direct drive. This small, weight-optimized high-end motor, weighing only 90 g, is often used in glider models up to 1.5 kg.

The A20-12 XL-LN EVO kv1039 also fits perfectly in motor and sport aircraft up to approx. 1.0 kg take-off weight when things get tight under the cowling.

custom html
you can configure this block in iqithtmlbanners module. It is hooked in displayRightColumnProduct hook.

To disable entire area go to iqitthemeeditor module > Content/Pages > Product page and set hidden for Right sidebar option



Features:

Specifications
Power range [W] 300
Poles 14
Turns 12
Idle current (I0) at 8.4V [A] 1.2
Internal resistance (Ri) [Ohm] 0.075
Recommended duty cycle [°] 20-25
Recommended duty cycle [kHz] 8
No-load speed per volt (kv) 1039

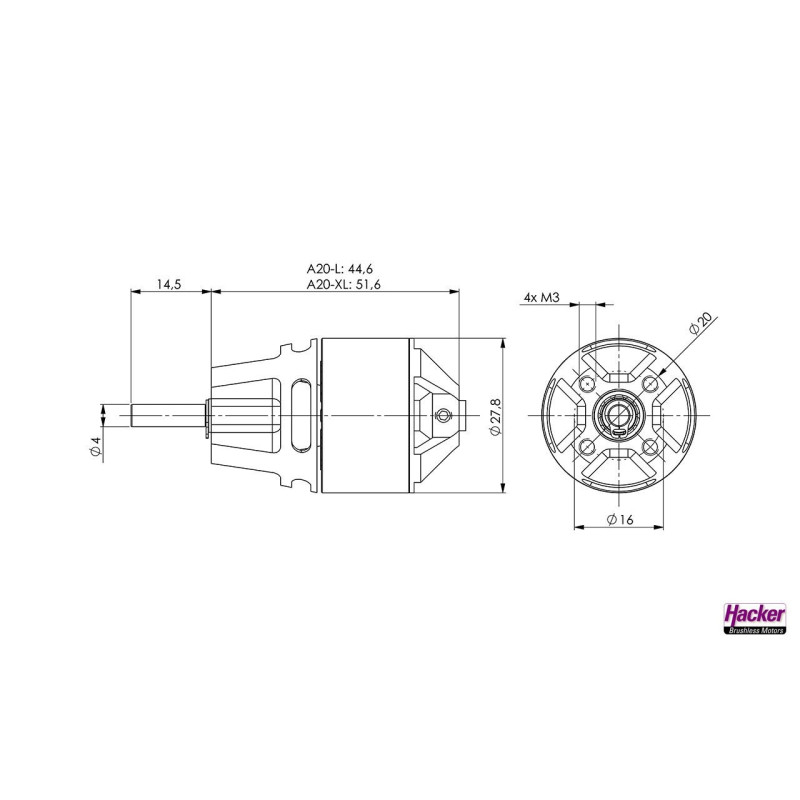

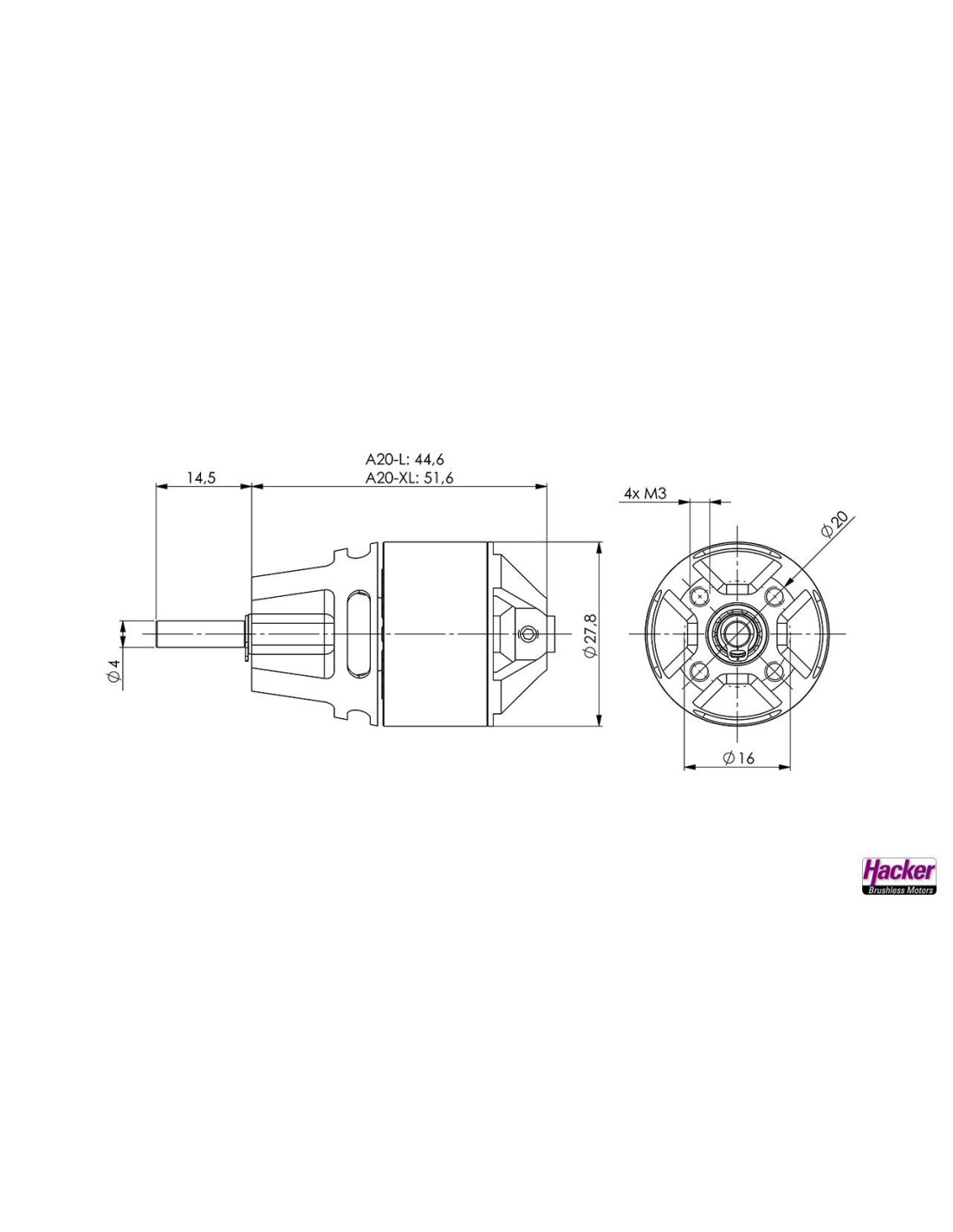

Dimensions and weights
Weight [g] 90
Length [mm]/[in] 51,6
Outer diameter [mm]/[in] 27,8
Shaft diameter [mm]/[in] 4


Scope of delivery
Promoters: No
Mounting cross: No
Gold plug mm (soldered) 3,5
Rear mounting possible: No
Front mounting possible: No

102-10109151
4250320271109
4,25032E+12
