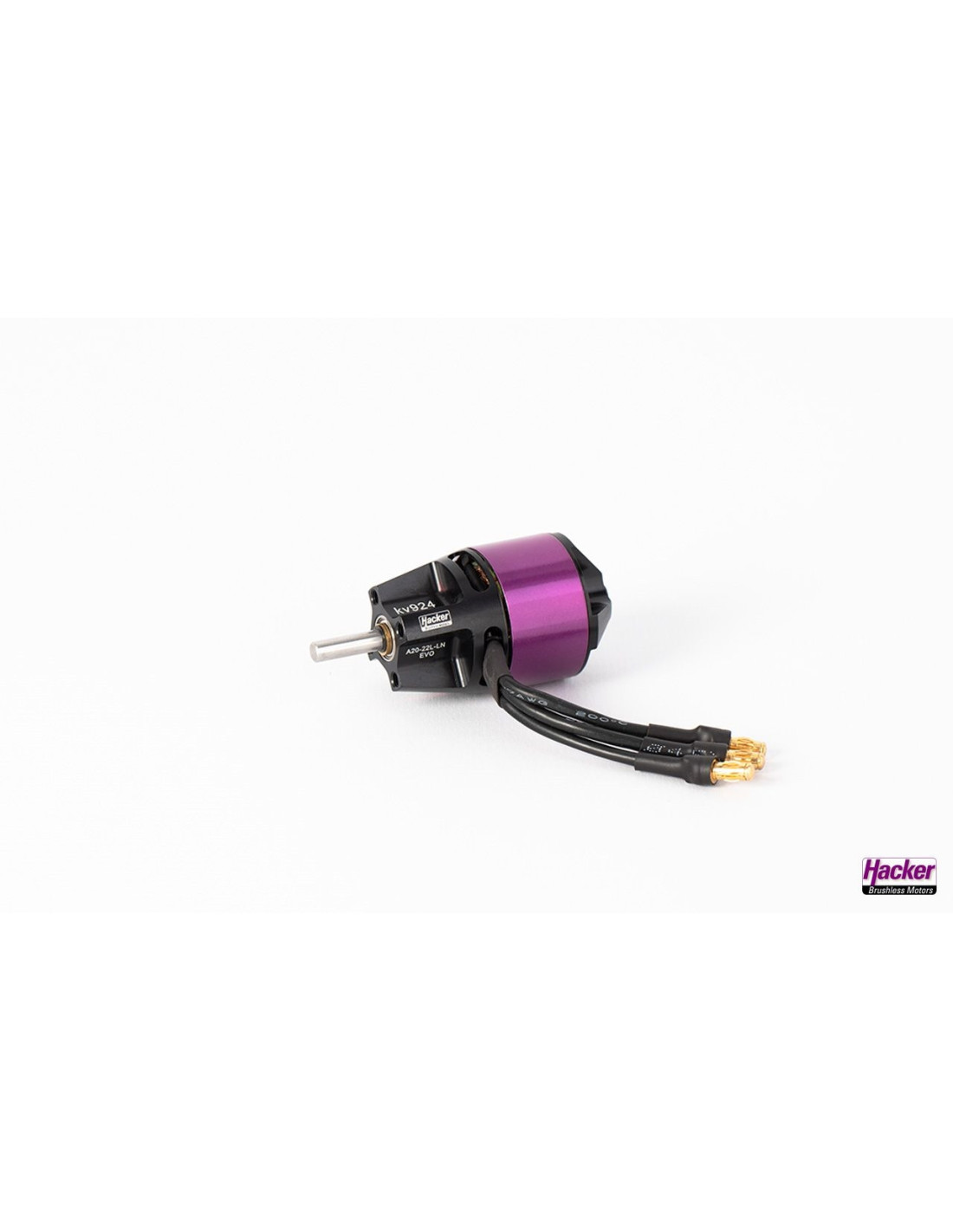

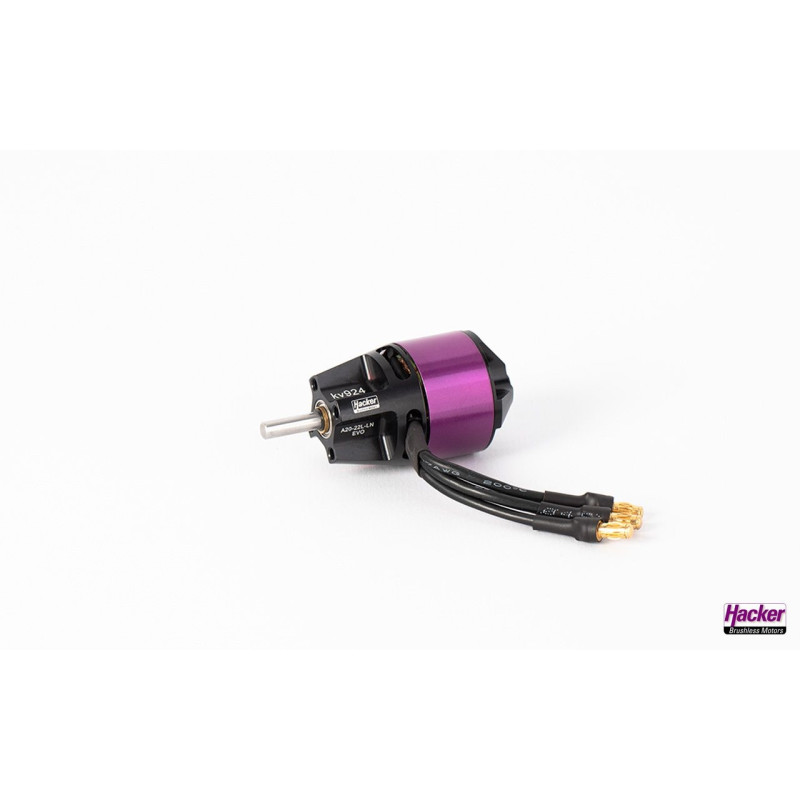

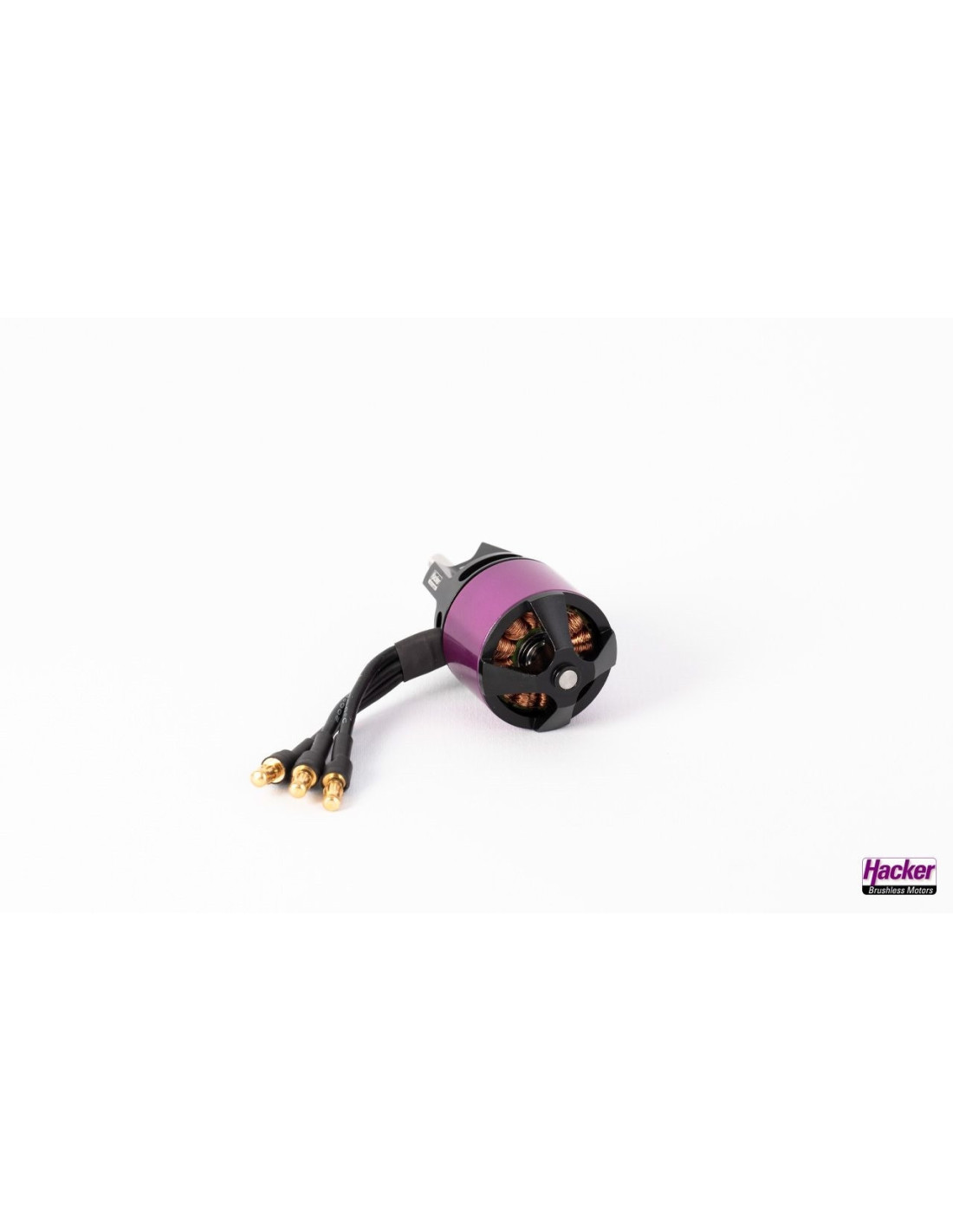

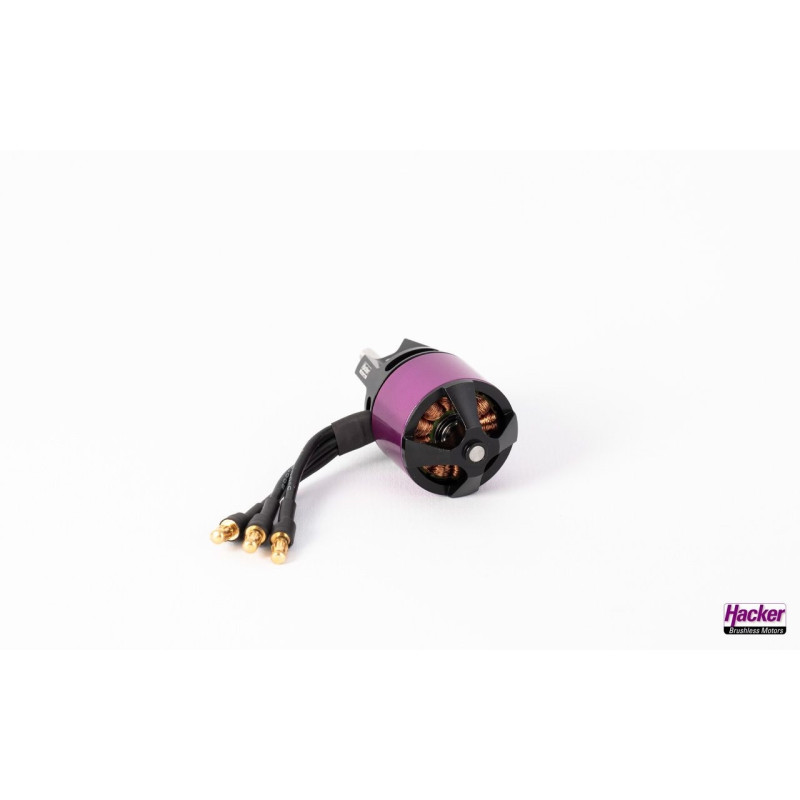

Hacke A20-22 L-LN EVO brushless motor (68g, 924kv,200W)
Hacke A20-22 L-LN EVO brushless motor (68g, 924kv,200W)
Hacke A20-22 L-LN EVO brushless motor (68g, 924kv,200W)
Hacke A20-22 L-LN EVO brushless motor (68g, 924kv,200W)
Hacke A20-22 L-LN EVO brushless motor (68g, 924kv,200W)
Hacke A20-22 L-LN EVO brushless motor (68g, 924kv,200W)

Hacke A20-22 L-LN EVO brushless motor (68g, 924kv,200W)

Last items in stock
€59.16
Tax included

The A20-LN series has been specially developed for glider models with a narrow fuselage. Since the fuselage becomes significantly thicker a few centimeters beyond the motor frame, a small direct-drive torsion motor can be used. This small, weight-optimized, high-end motor with a weight of only 68g is often used in glider models up to 1.0kg.

The A20-22 L-LN EVO kv924 is also ideally suited for powerplanes and sports aircraft up to a takeoff weight of about 600g, when the situation is tight under the hood.

custom html
you can configure this block in iqithtmlbanners module. It is hooked in displayRightColumnProduct hook.

To disable entire area go to iqitthemeeditor module > Content/Pages > Product page and set hidden for Right sidebar option



Features:

Specifications
Power range [W] 200
Poles 14
Turns 22
Idle current (I0) at 8.4V [A] 0.75
Internal resistance (Ri) [Ohm] 0.109
Recommended cadence [°] 20 - 25
Recommended cadence [kHz] 8
Controller recommendation 20 -30
No-load speed per volt (kv) 924

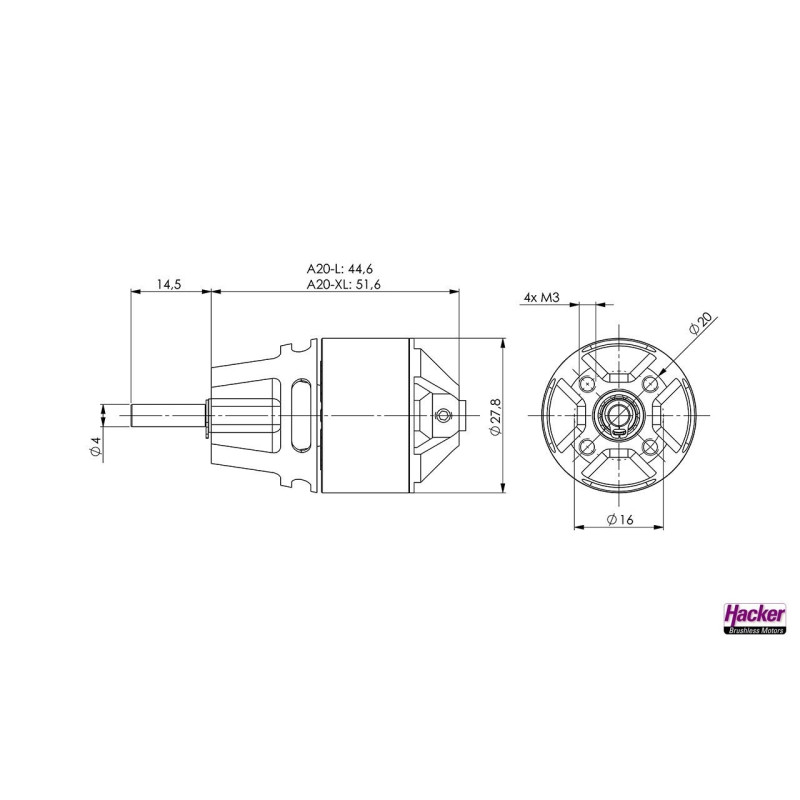

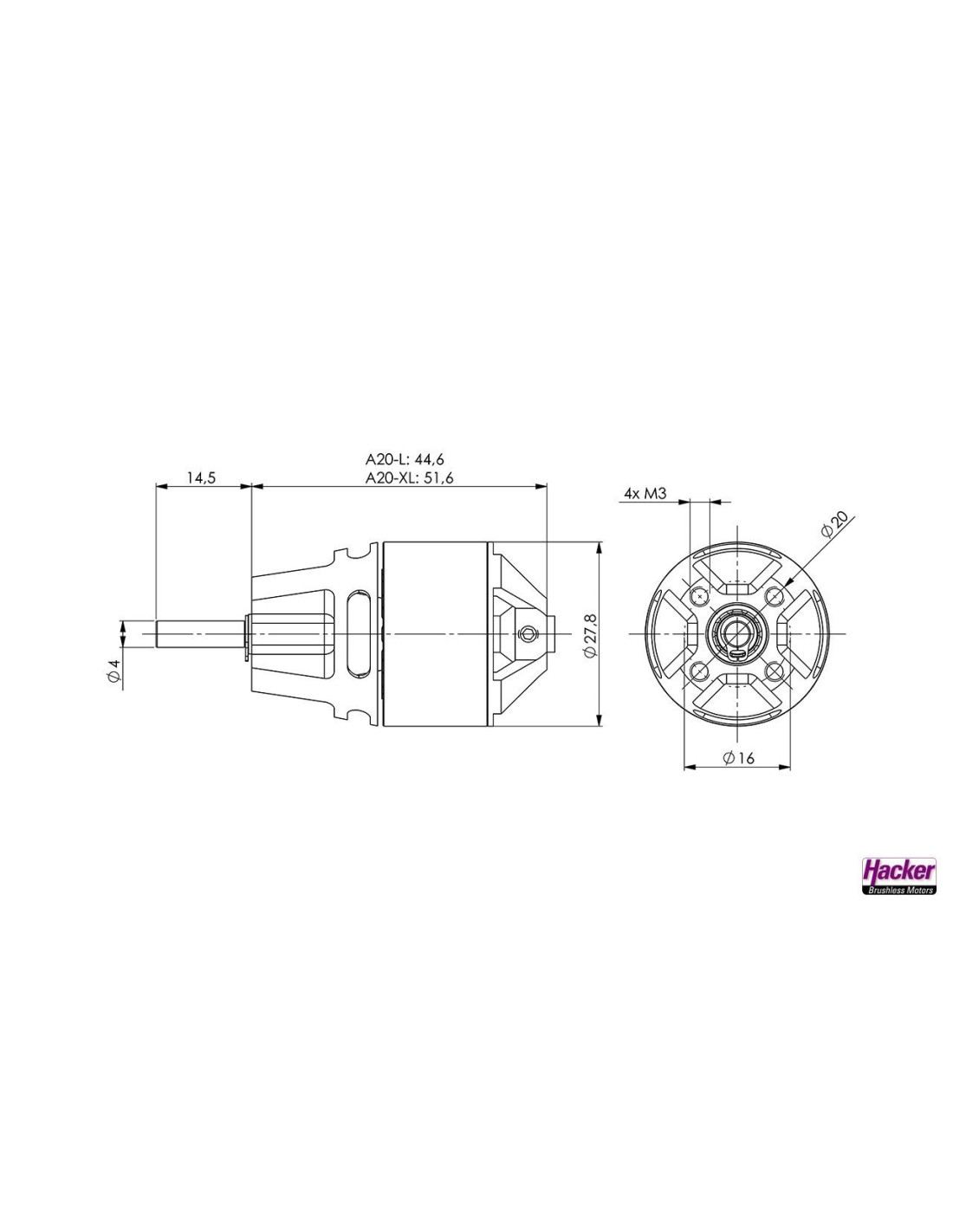

Dimensions and weights
Weight [g] 68
Length [mm]/[in] 44,6
Outer diameter [mm]/[in] 27,8
Shaft diameter [mm]/[in] 4


Scope of delivery
Promoters: No
Mounting cross: No
Gold plug mm (soldered) 3,5
Rear mounting possible: No
Front mounting possible: Yes

102-10109203
4250320271628
4,25032E+12
