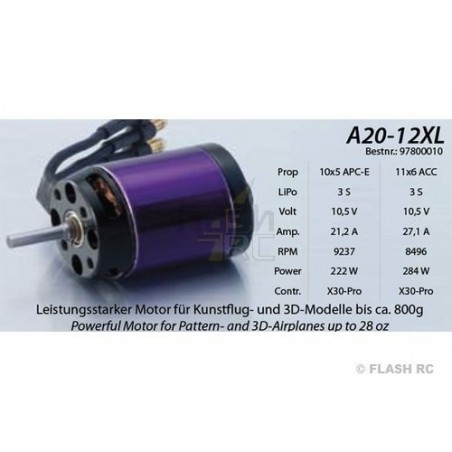

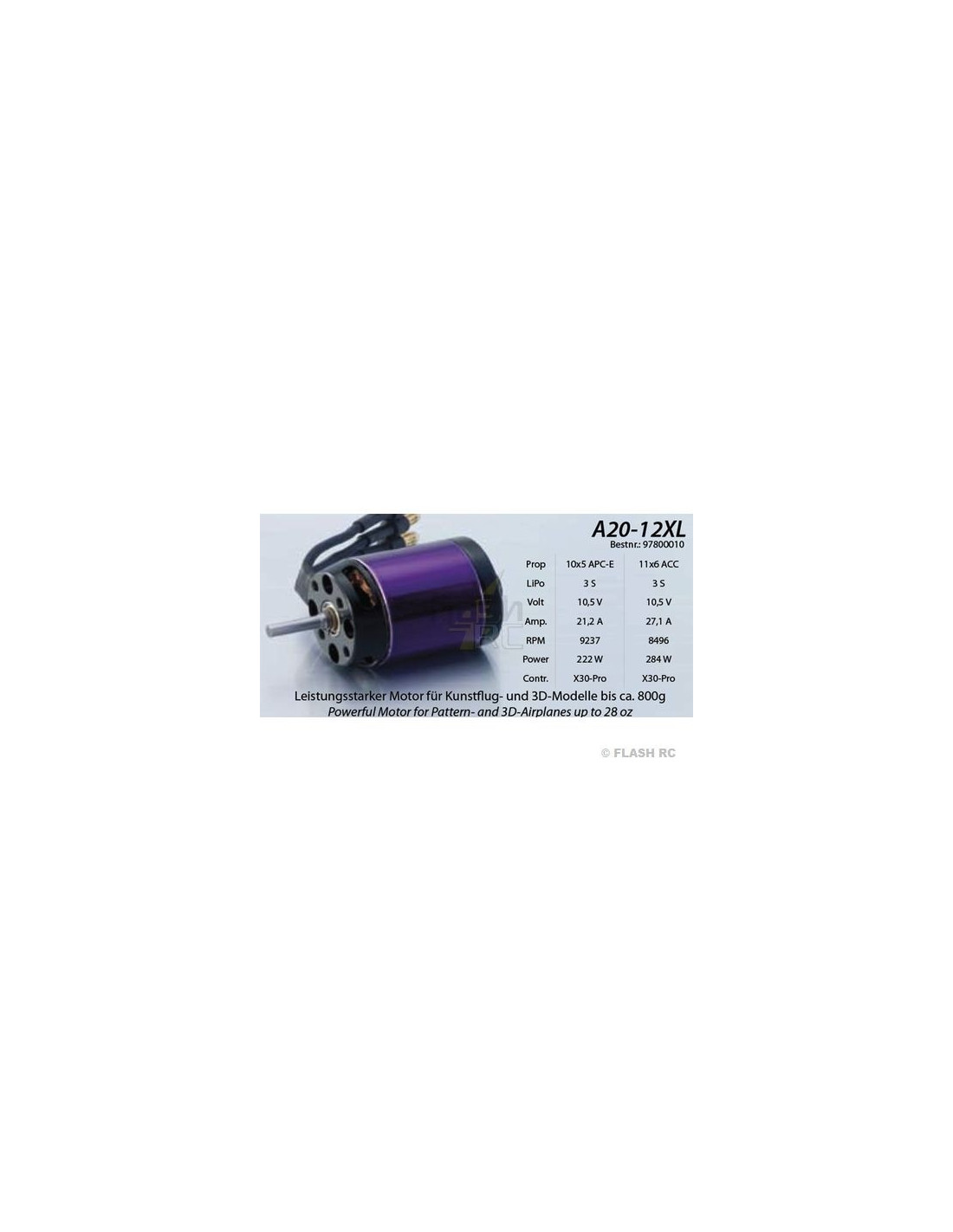

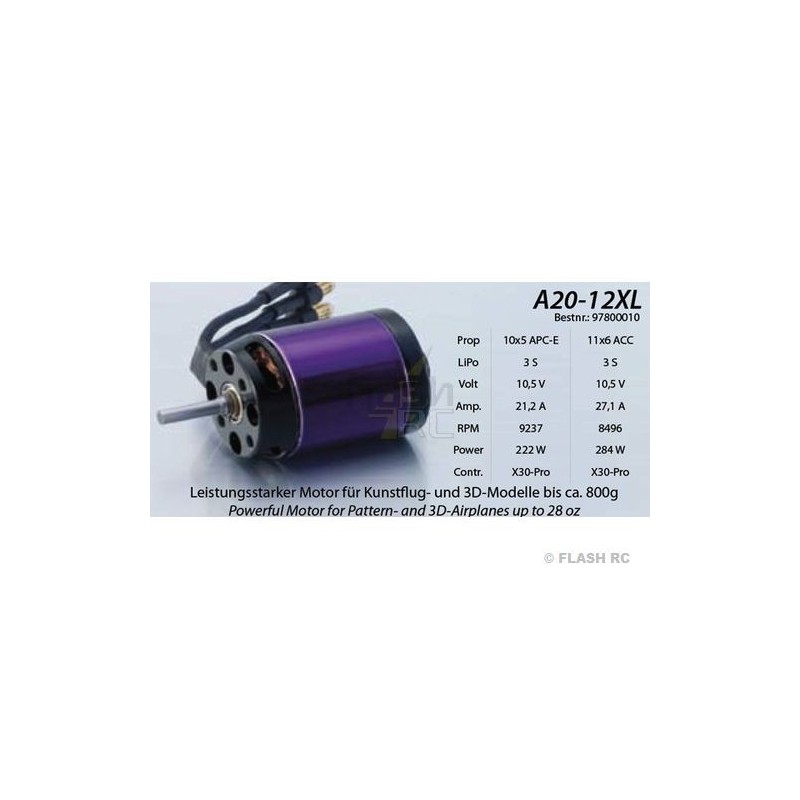

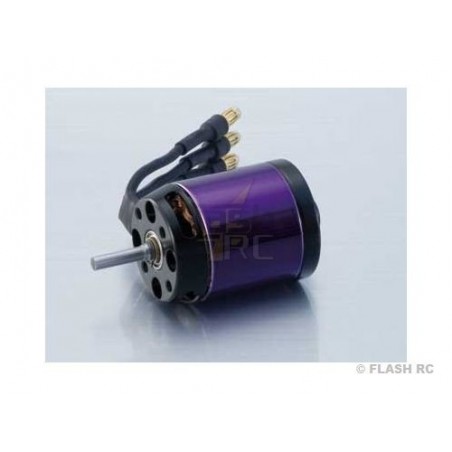

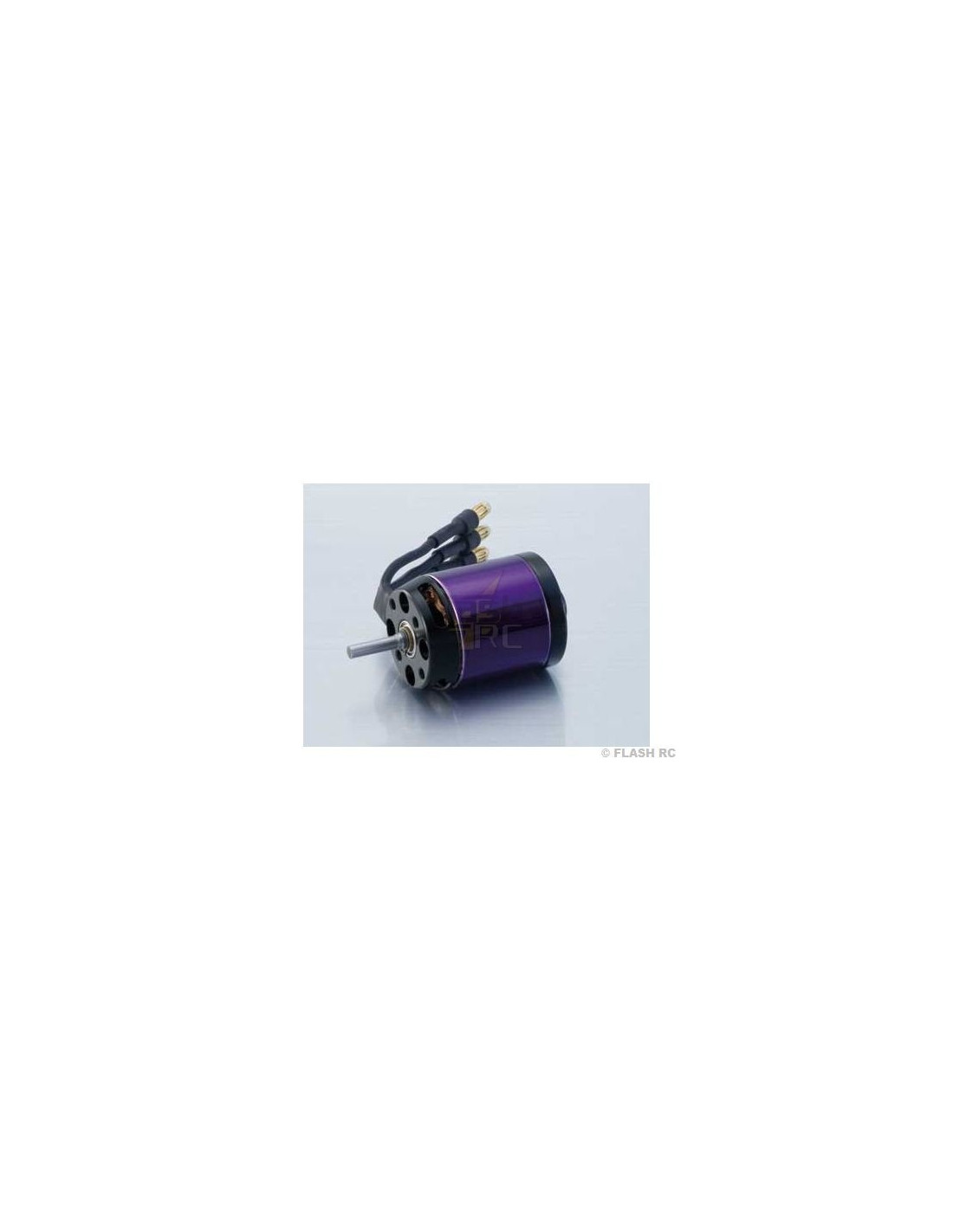

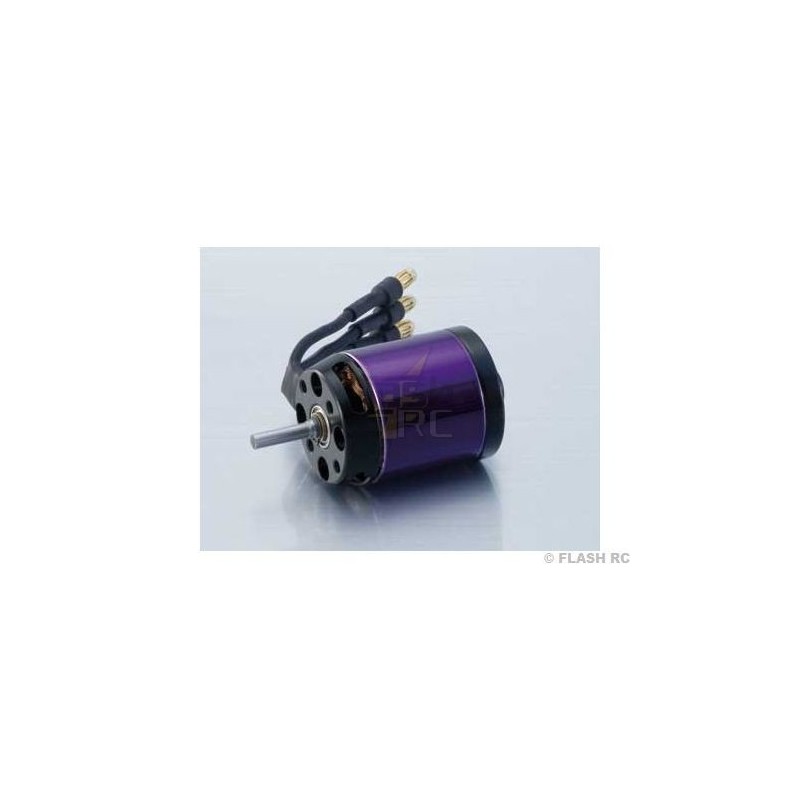

Hacker A20-12XL EVO brushless motor

Name: Hacker A20-12XL EVO brushless motor
Brand: HACKER
SKU: 102-97800010
Price: 69.99 EUR
Availability: InStock

Last items in stock

€69.99

Tax included

German brushless motor Hacker A20-12XL particularly well adapted in LiPo 3SP power supply Can be mounted with any brushless controller as for example the brands Hacker, JETI or DUALSKY

Product Plus

Powerful and reliable quality motor
original accessories (propeller holder, PTC torque, mounting screws)
compatible with any type of brushless controller

Contents of the kit

Brushless motor with PK 3.5mm gold soldered plugs
Propeller clamp on shaft side (4mm thread)
4 fixing screws
2 sets of spare circlips
2 spare shafts

Technical specifications

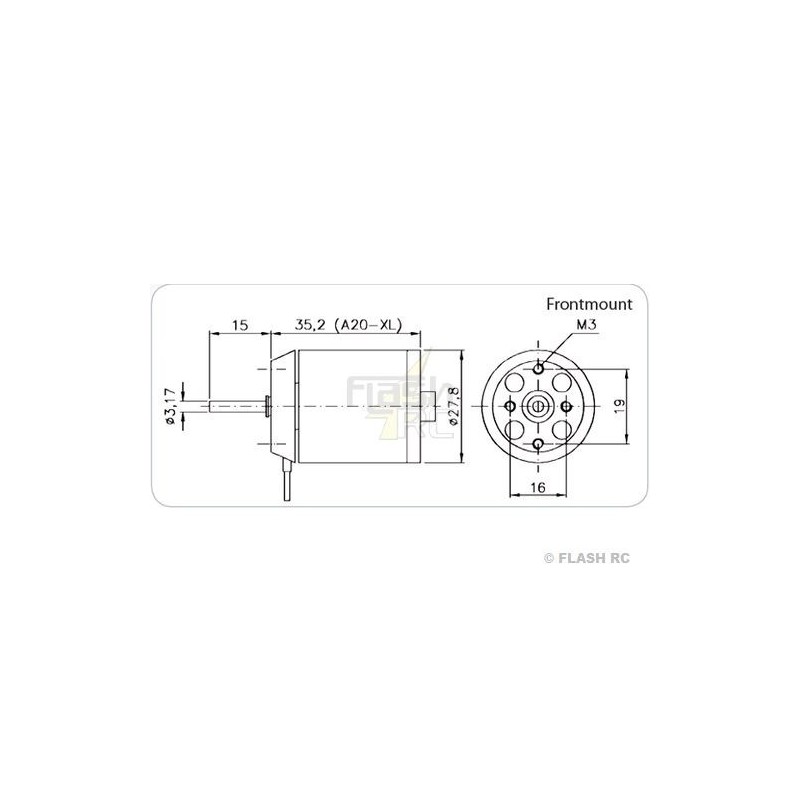

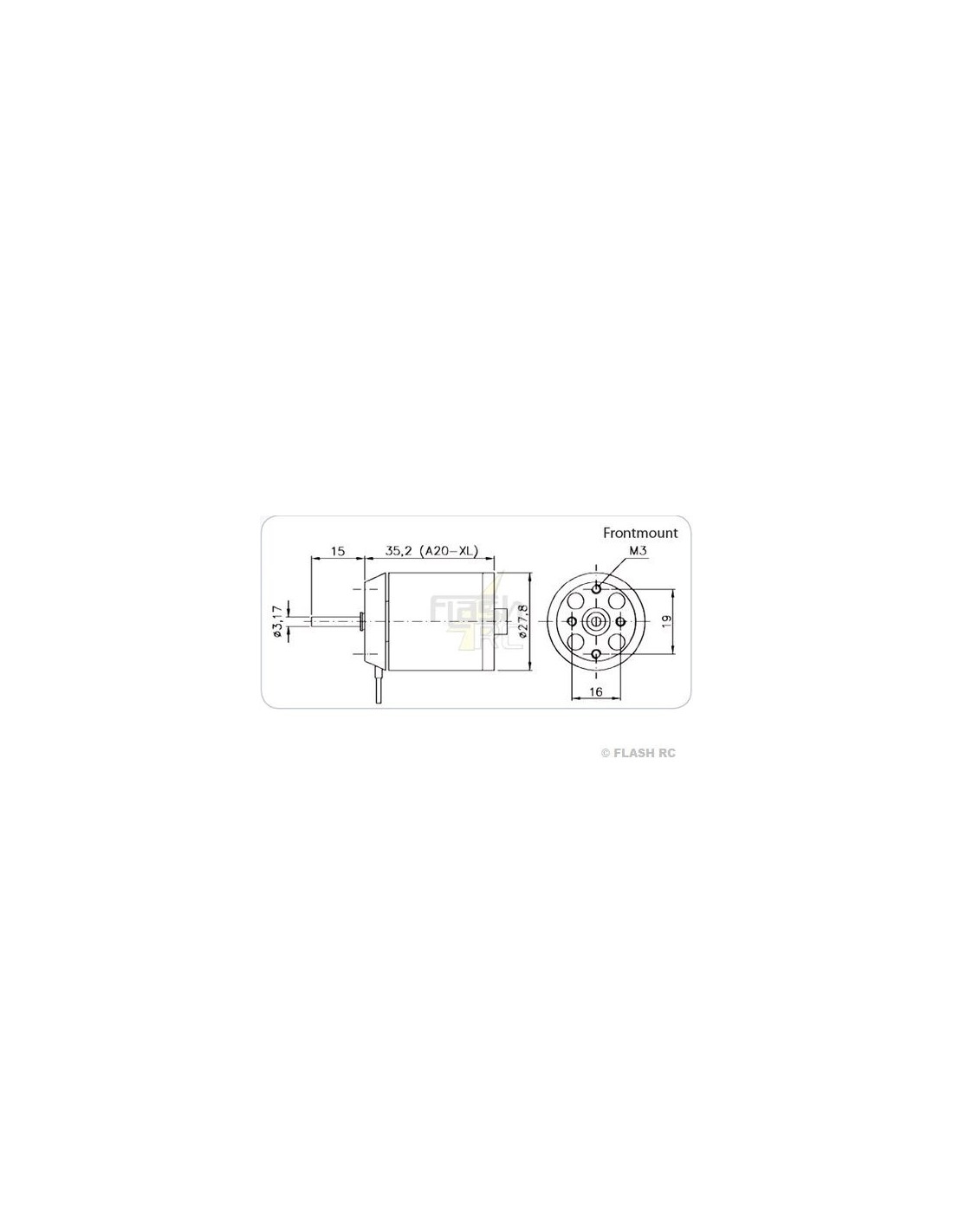

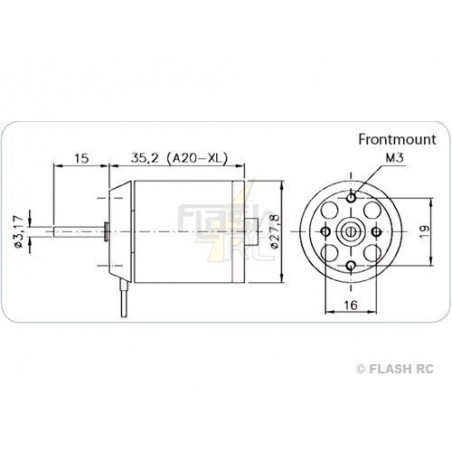

Dimensions :28x40mm

Weight :78g

Power :300W max 15sec.

kV :1039 rpm/V

Shaft diameter :3.2mm

Voltage :3SLiPo

Continuous current :25A

Max current :30A (15 sec)

Recommended propeller :APC Electric 10x5" to 11X6" in 3S

Engine weight: from 100g to 599g
Motor power in Watts: 300
Revs/ minute Kv: 1039
Type of tree: standard

Reference 102-97800010

EAN13 4250320200710

MPN 4250320200710
