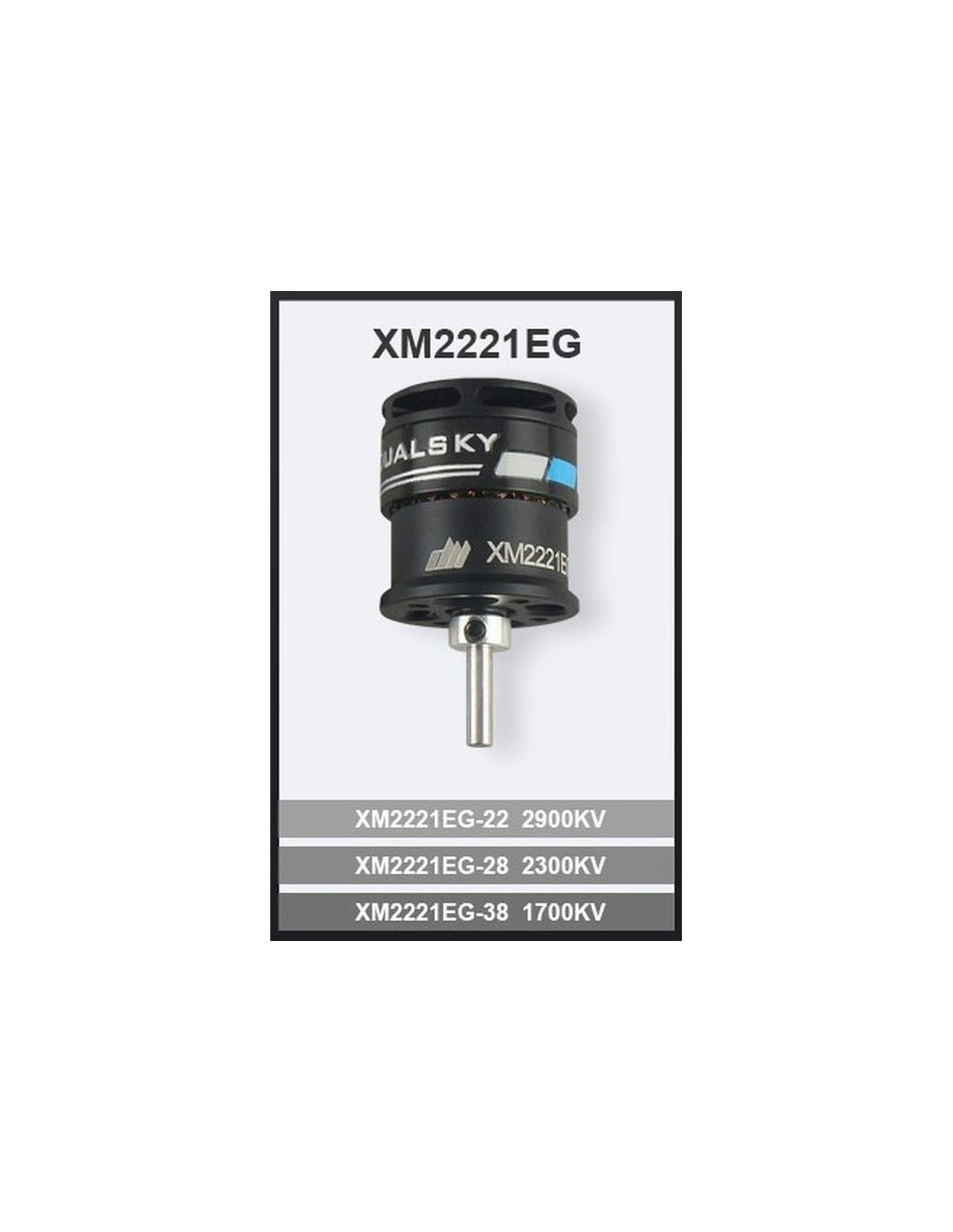

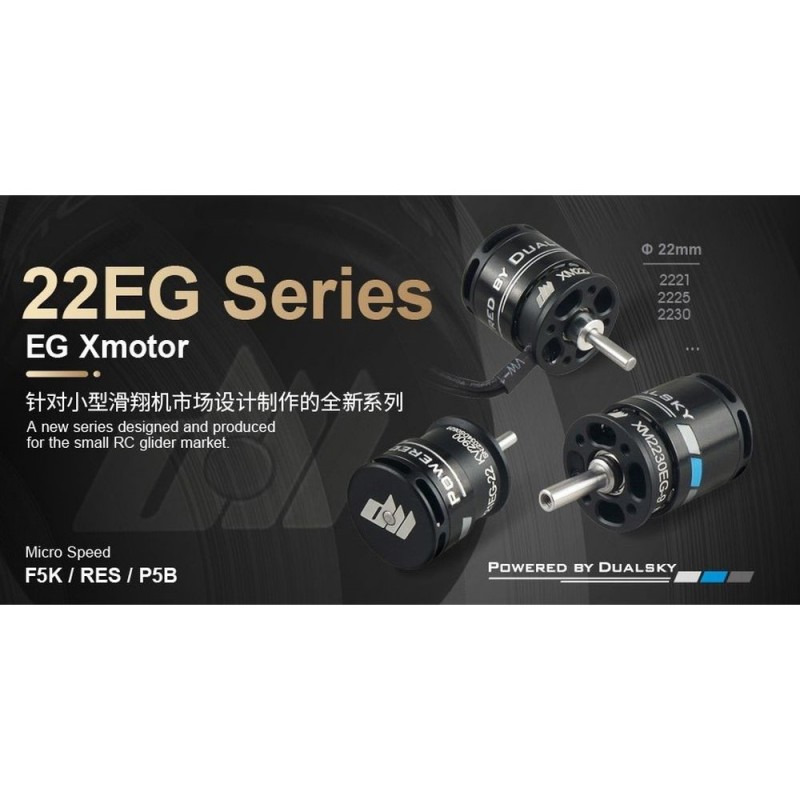

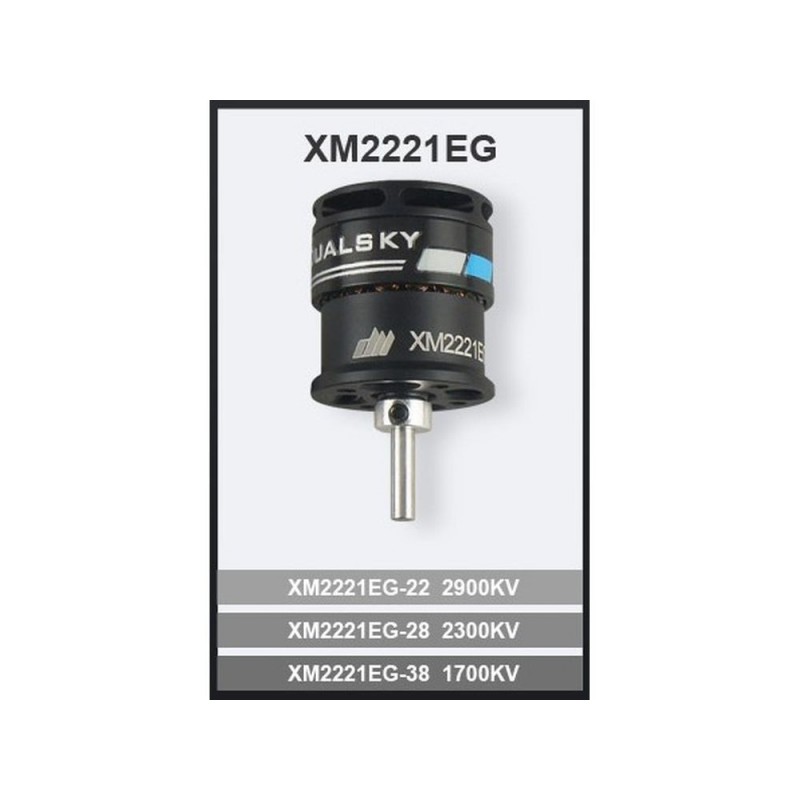

Dualsky XM2221EG-22 motor (23g, 2900kV, 126W)

Dualsky was founded in early 2004.
Dualsky produces Xmotor brushless motors, Xcontroller brushless ESCs, Xpower high-speed Lipo batteries and other accessories.

Some details:

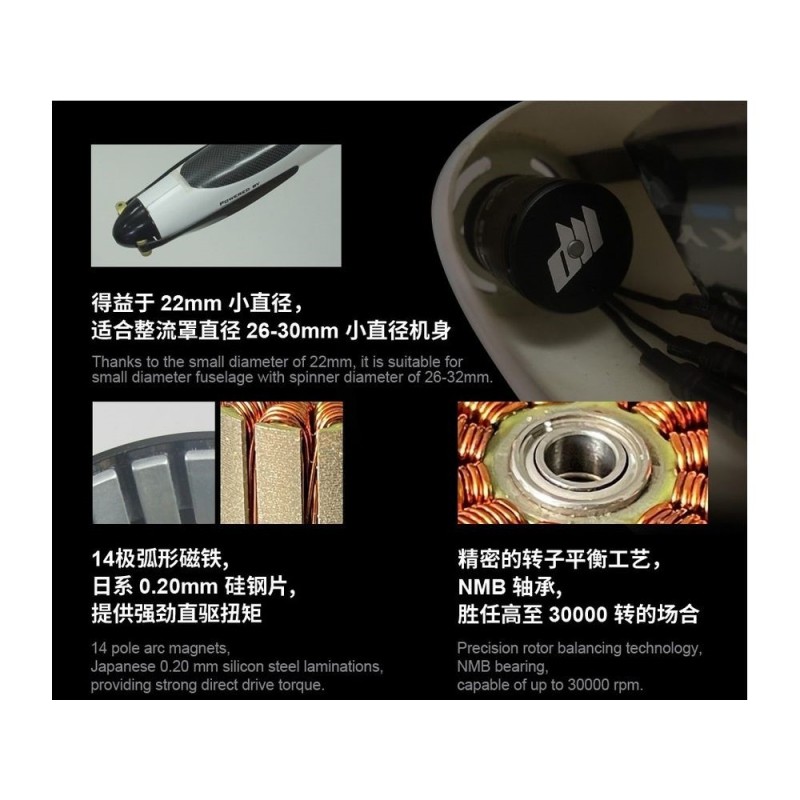

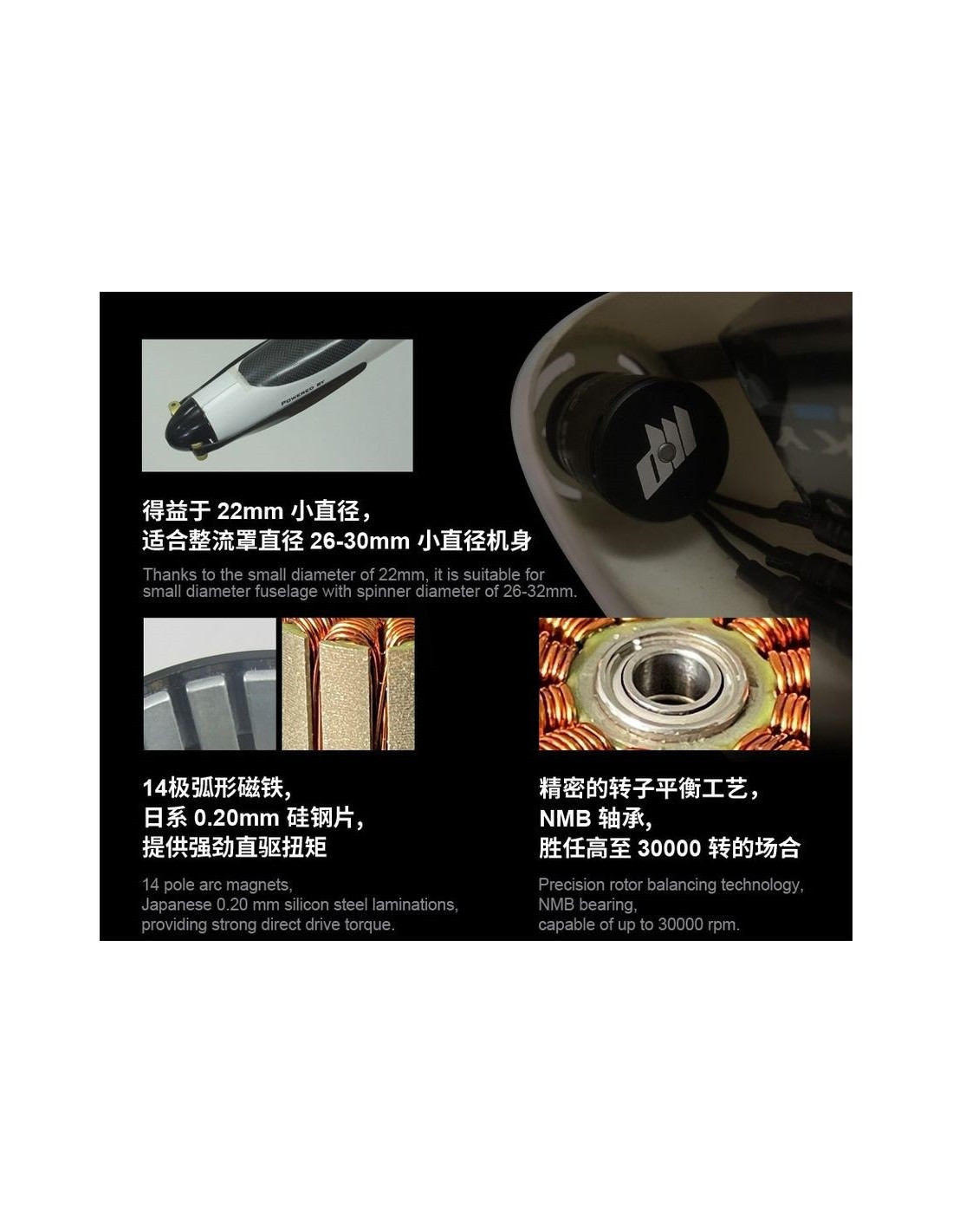

• 14 poles composed of curved magnets, Japanese 0.20mm silicon laminated steel, offering high direct drive torque.
• Precision rotor balancing technology, NMB bearing, up to 30000 rpm

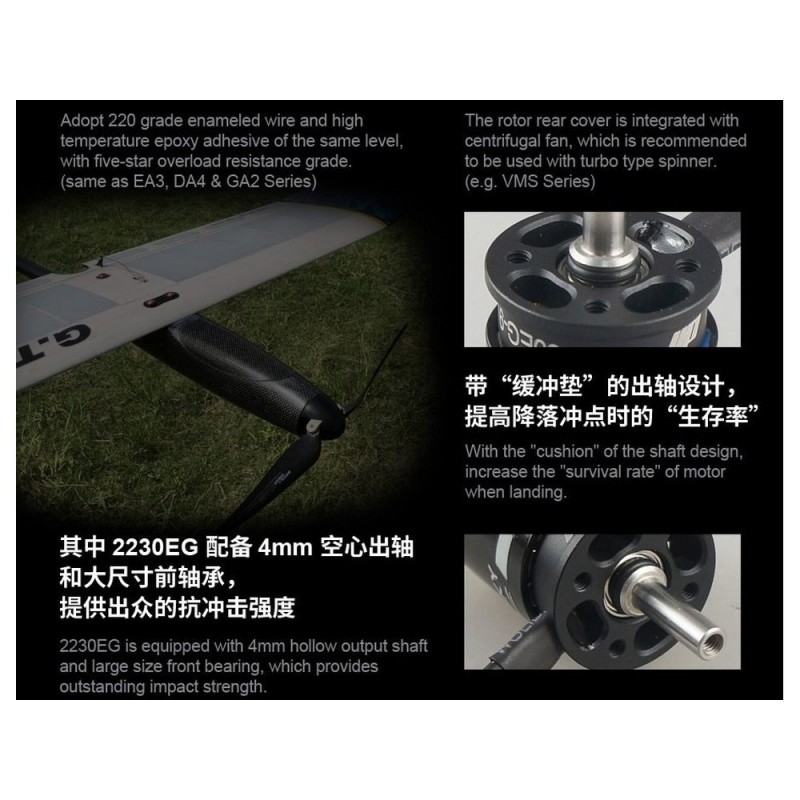

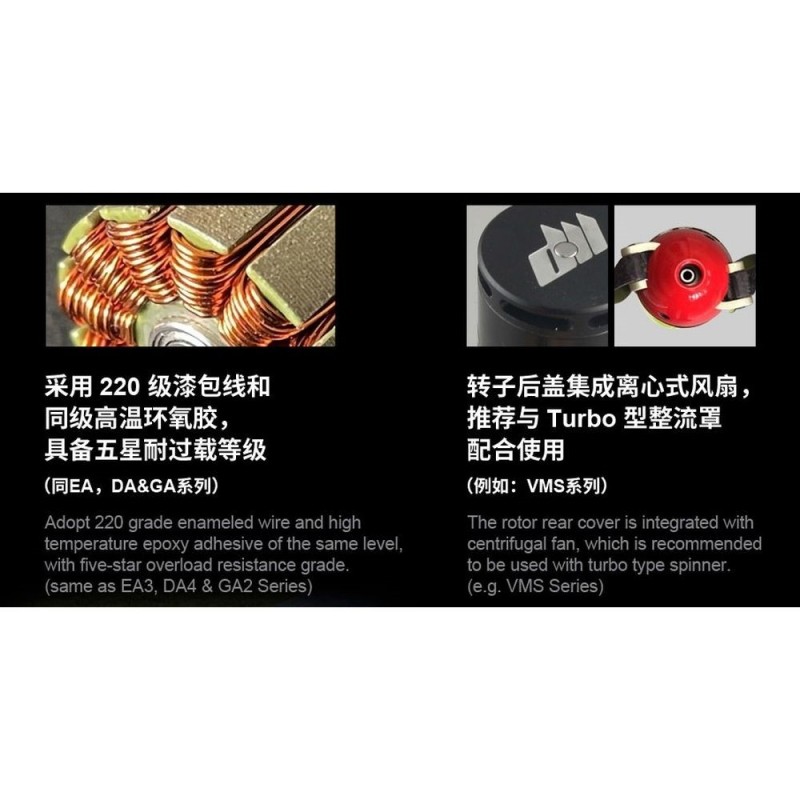

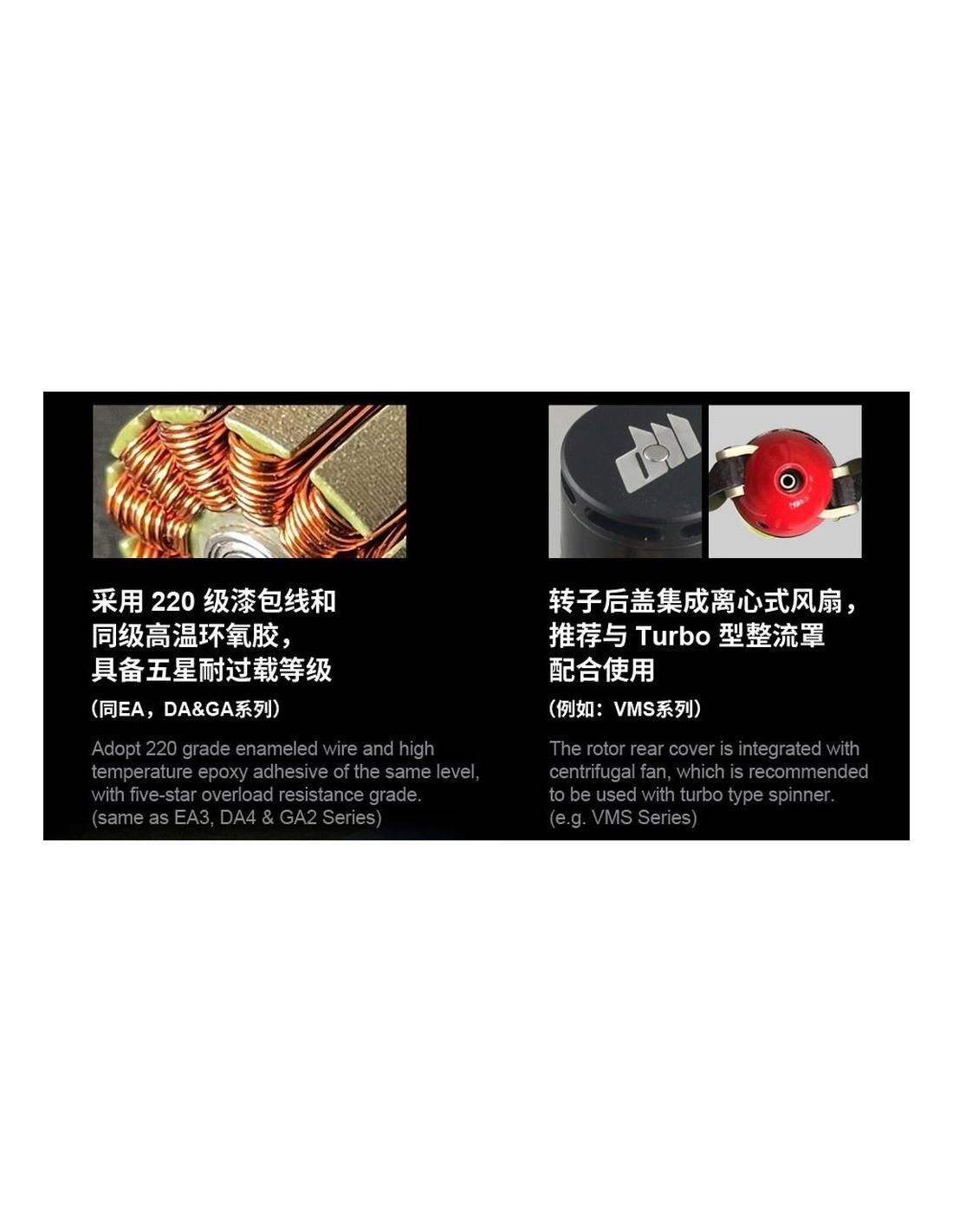

• Uses 220 grade enameled wire and the same level of high temperature epoxy adhesive, with five-star quality overload resistance

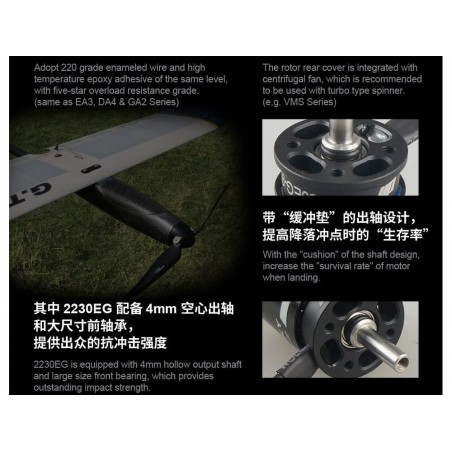

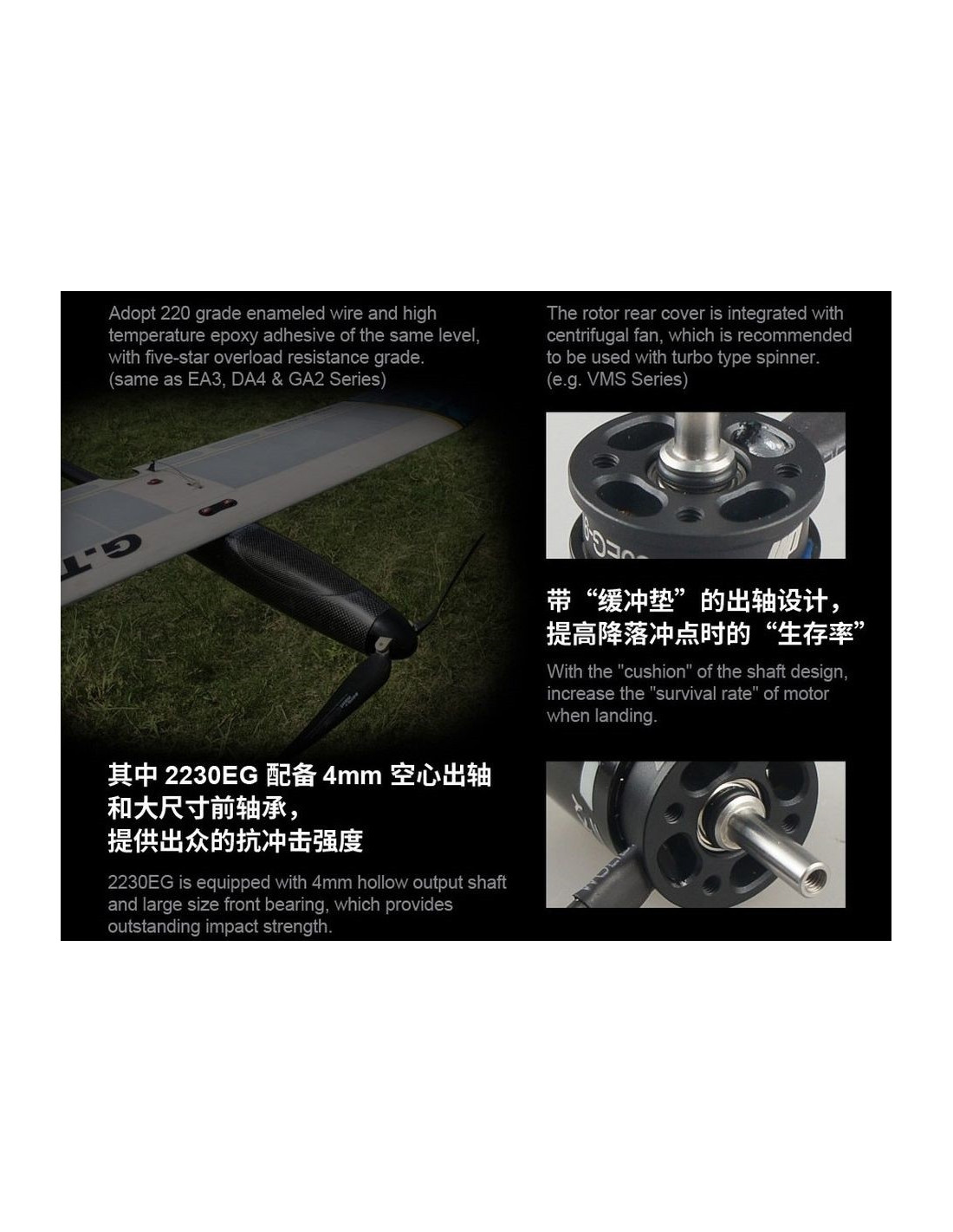

• The rear rotor flange incorporates a centrifugal fan, which is recommended for use with a vented cone propeller (Aeronaut for example)

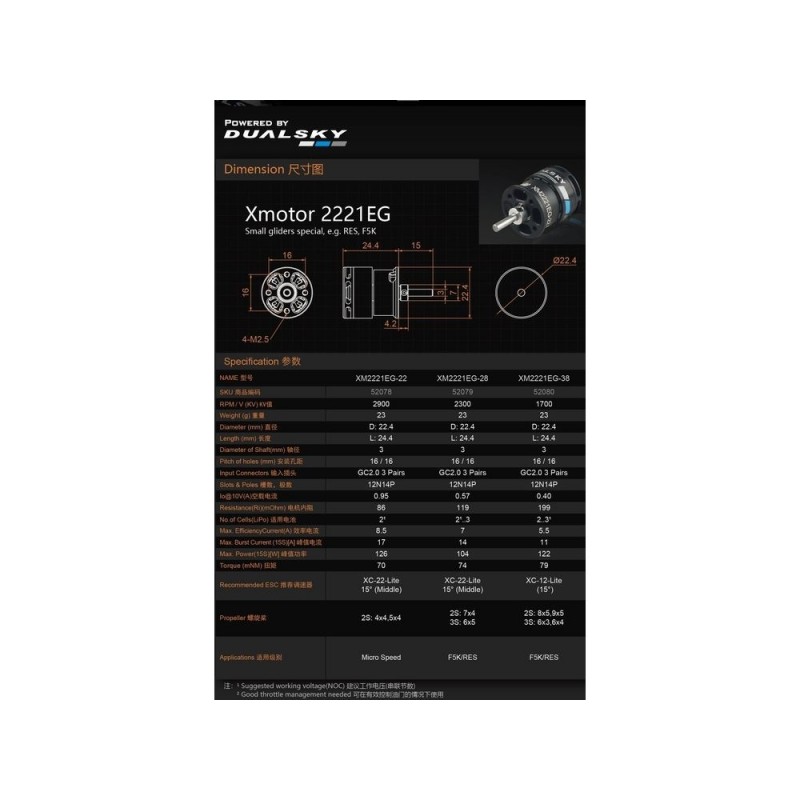

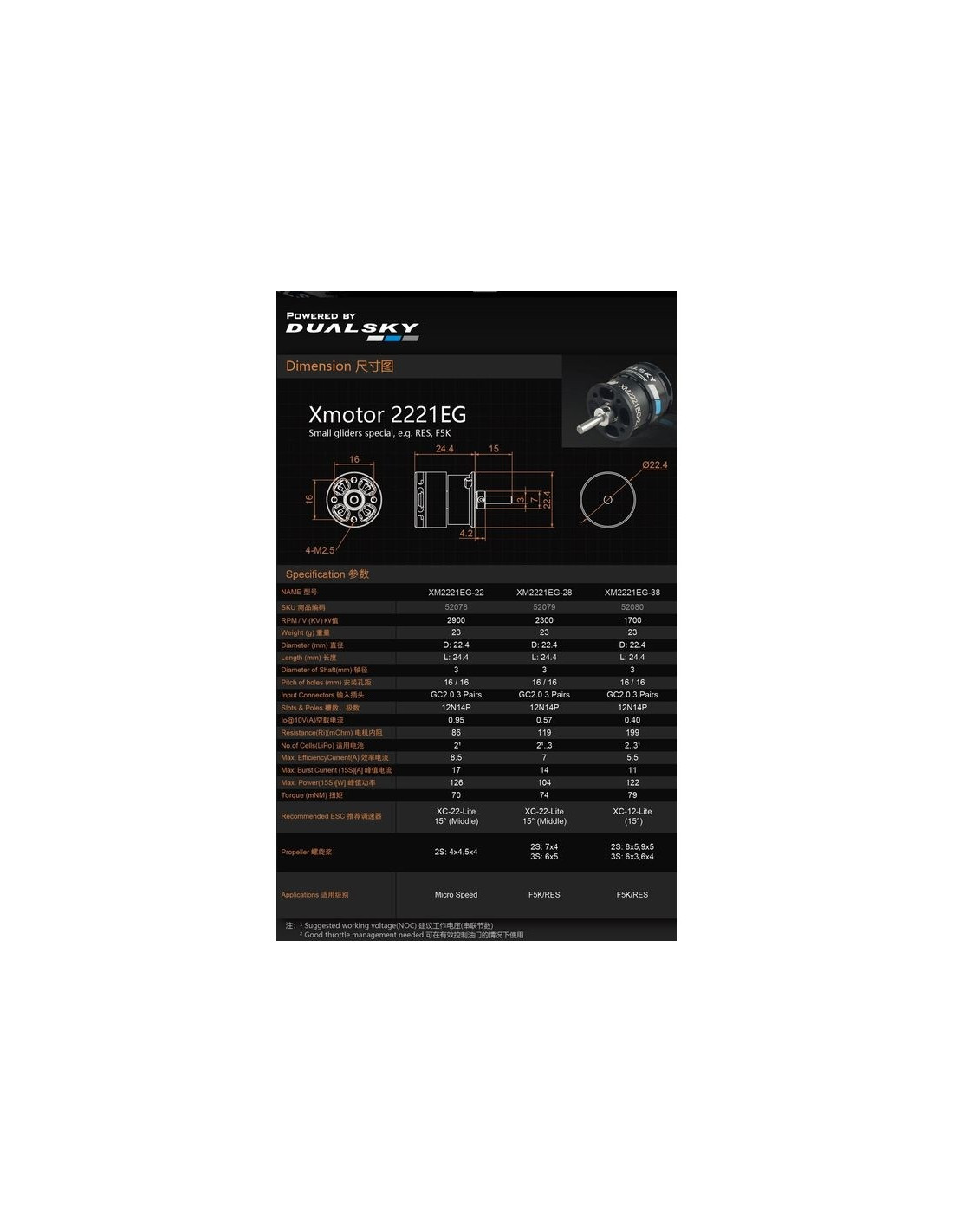

Technical data :

• Recommended application: Micro Speed
• Diameter: 22.4mm
• Length : 24.4mm
• Weight : 23g
• kV : 2900 rpm/V
• Shaft diameter : 3,00mm
• Connectors: GC2.0 (3 pairs)
• Recommended voltage: 2S LiPo
• Max current (15s) : 17A
• Max power (15s) : 126W
• Recommended propeller: 4x4, 5x4

Contents of the box :

• (1) Motor XM2221EG-22
• (3) Pair of GC2.0 connectors

Additional product(s) needed

• Brushless controller 17A or more
