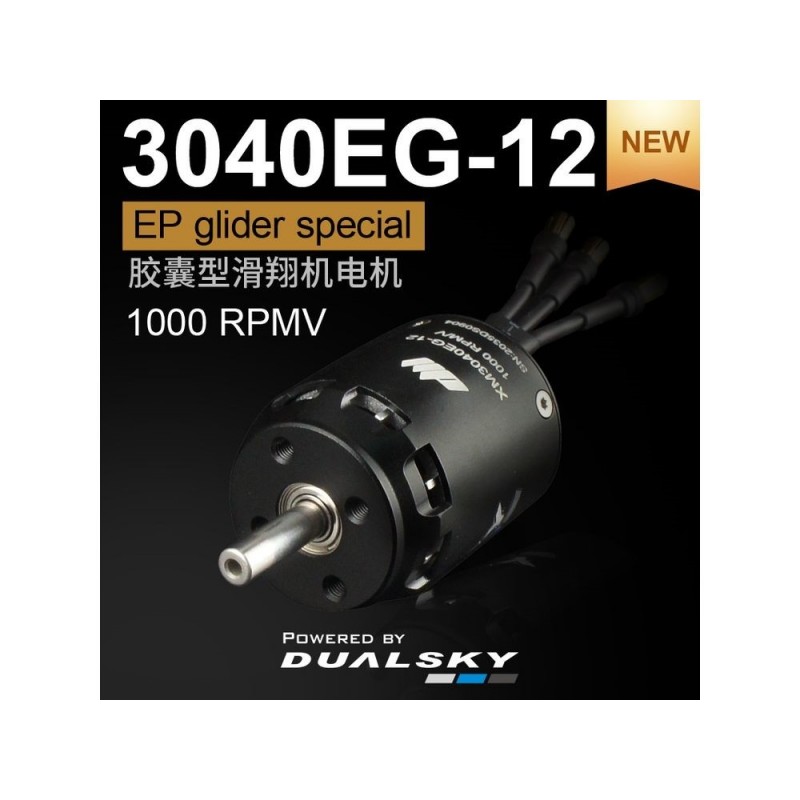

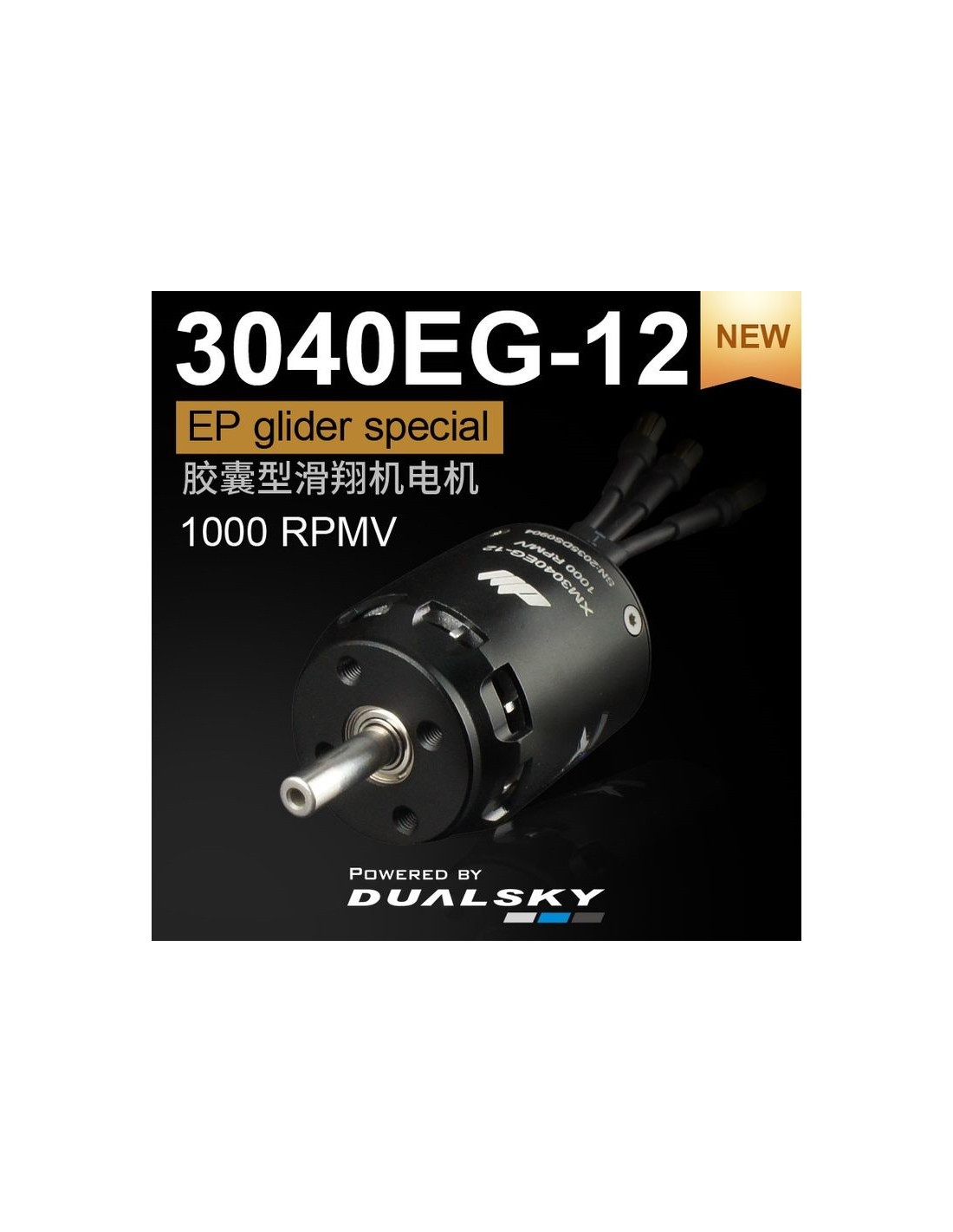

Dualsky XM3040EG-12 motor (104g, 1000kV, 560W)

Dualsky was founded in early 2004.
Dualsky produces Xmotor brushless motors, Xcontroller brushless ESCs, Xpower high-speed Lipo batteries and other accessories.

Some details:

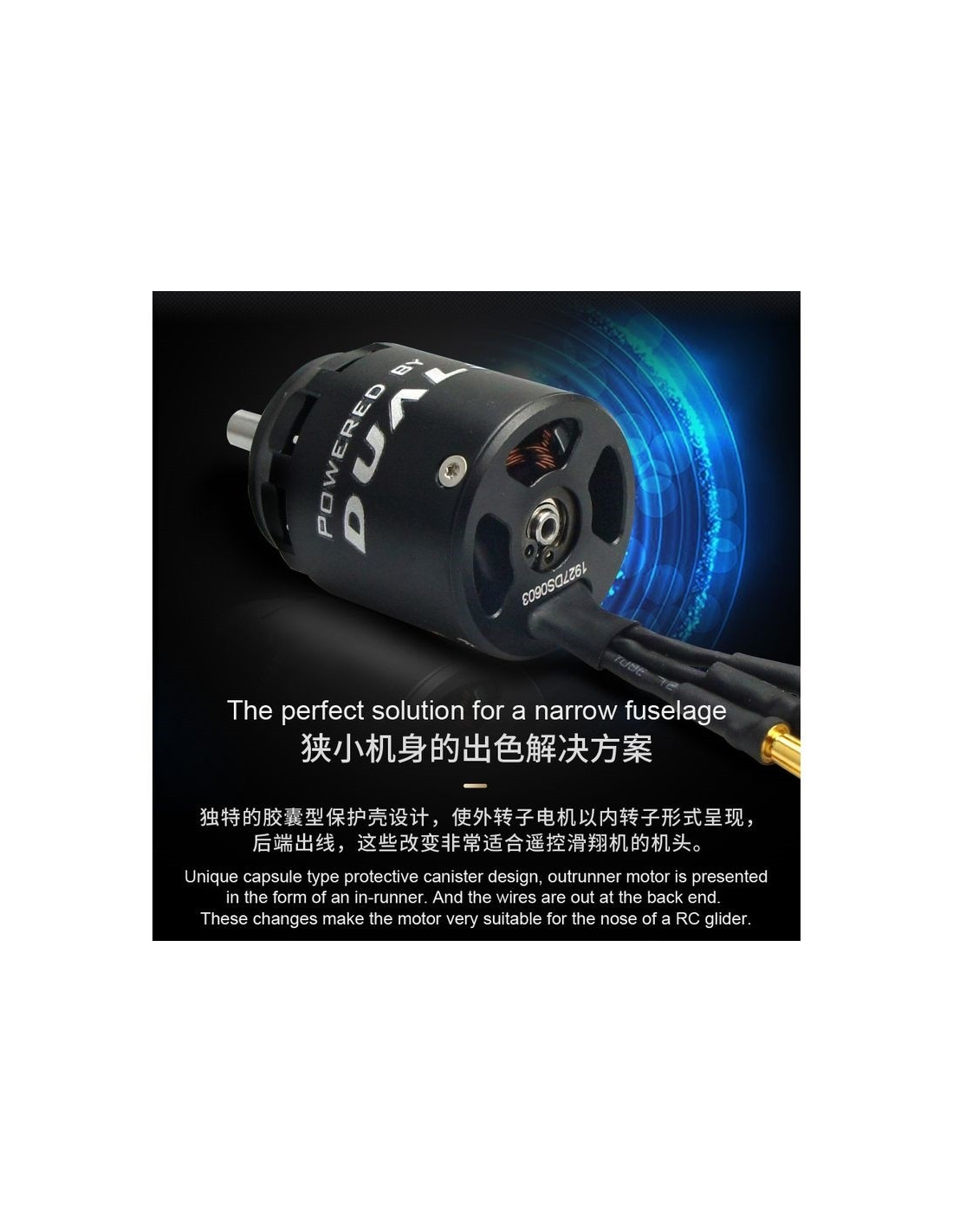

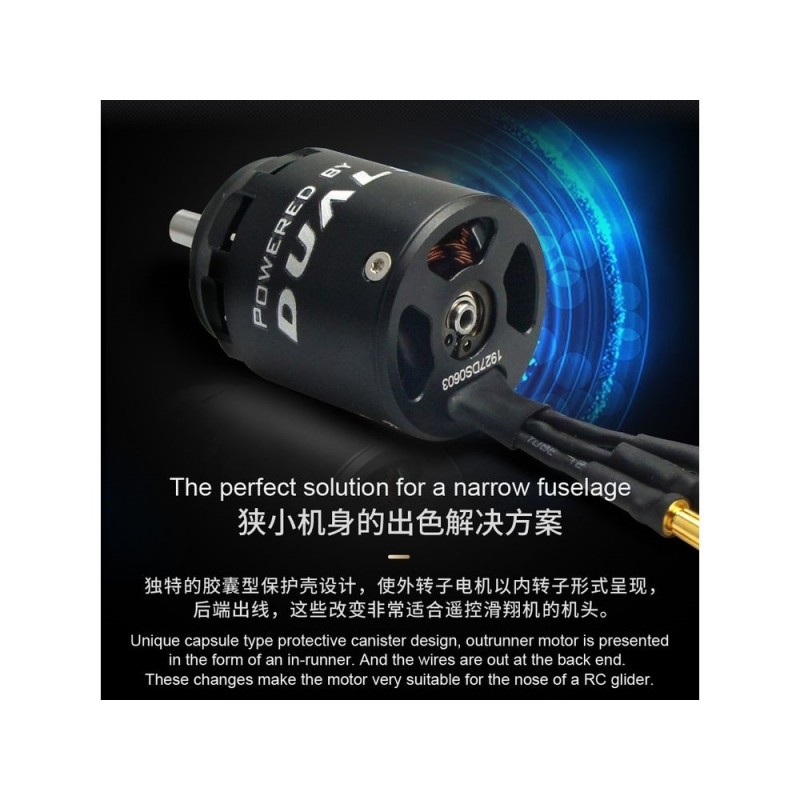

• Encapsulated design for easy integration into the thin nose of gliders

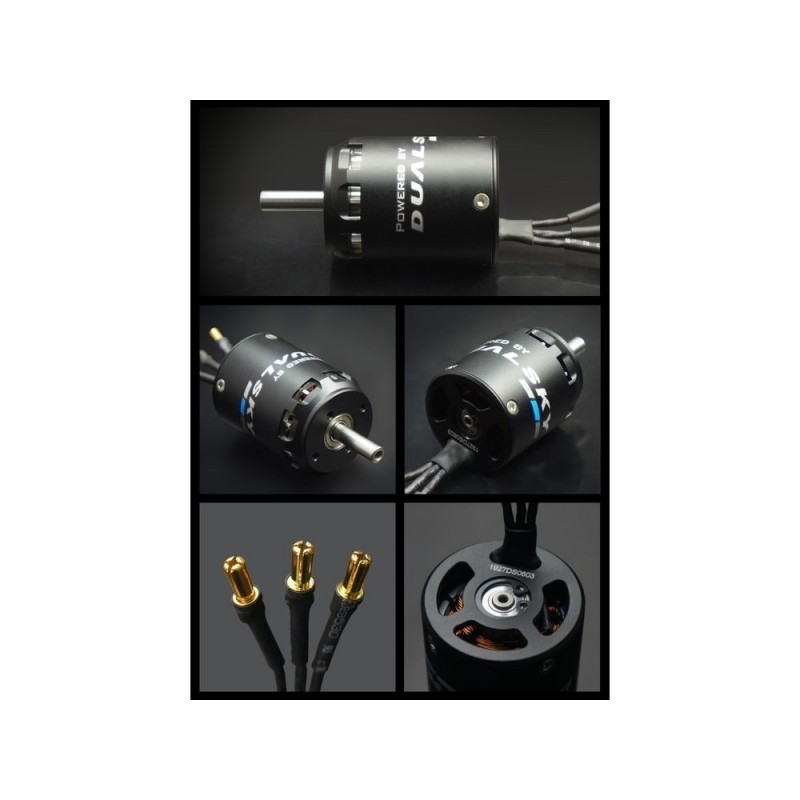

• Rear wire outlet

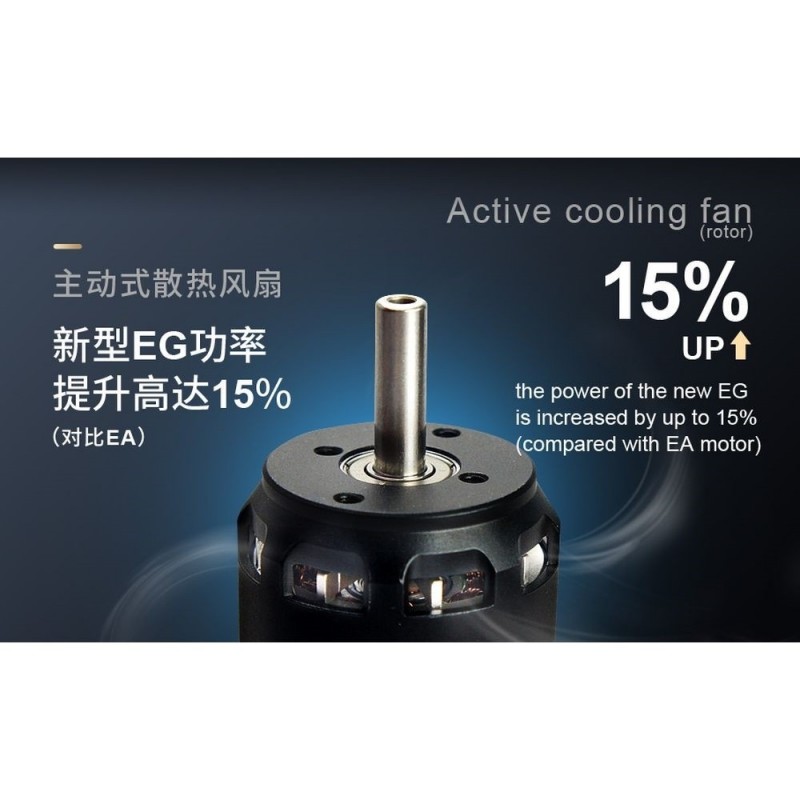

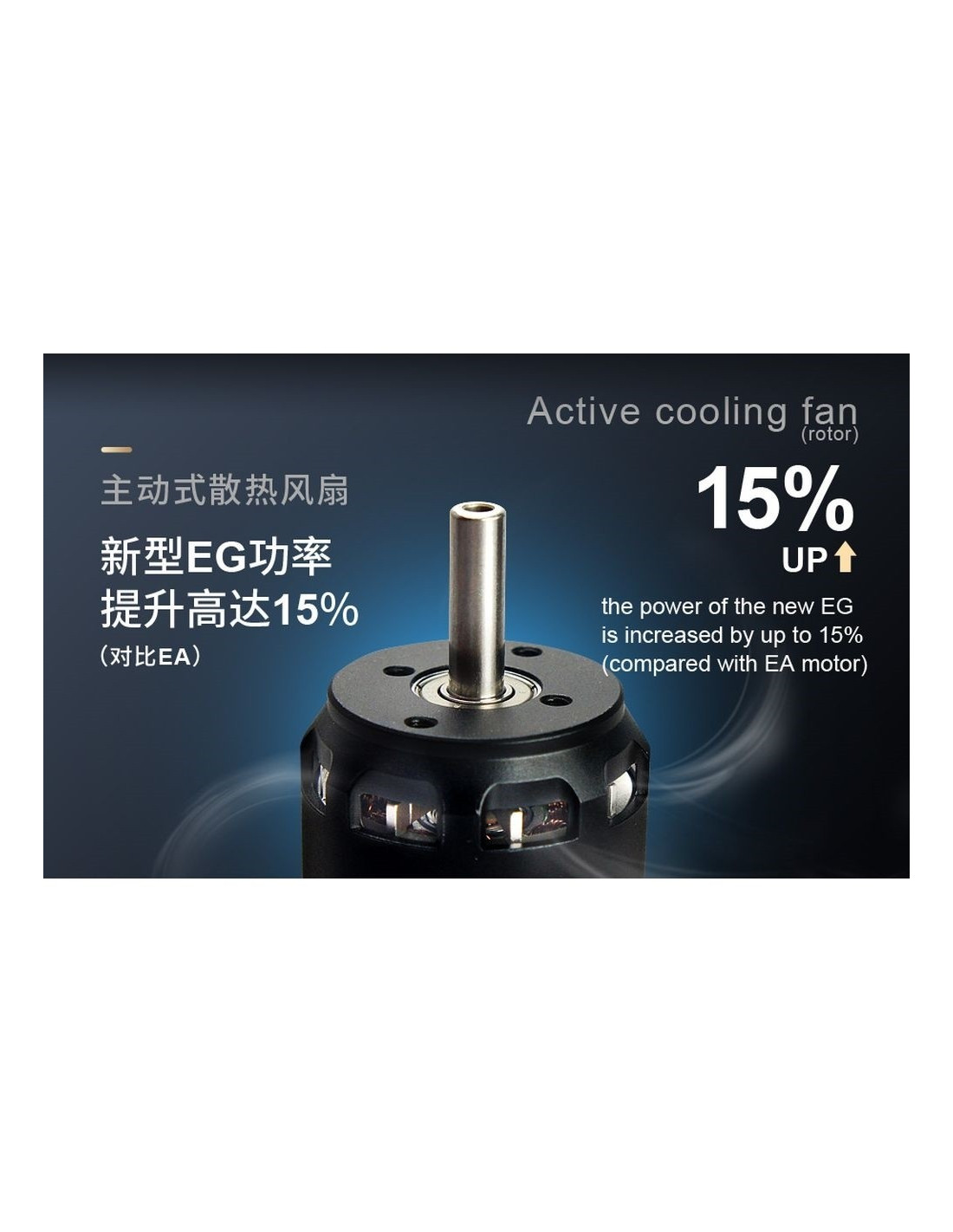

• Integrated fan for optimized performance

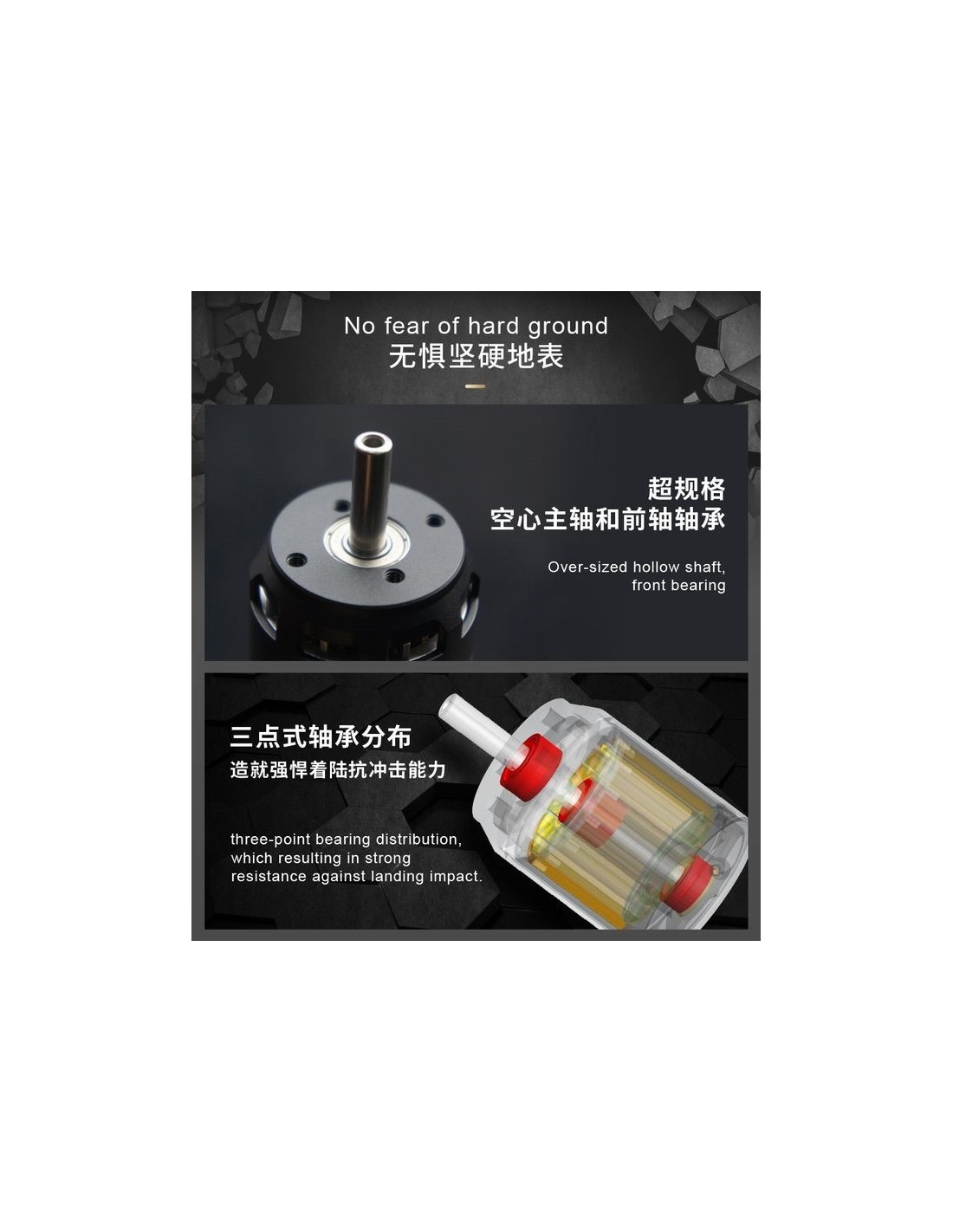

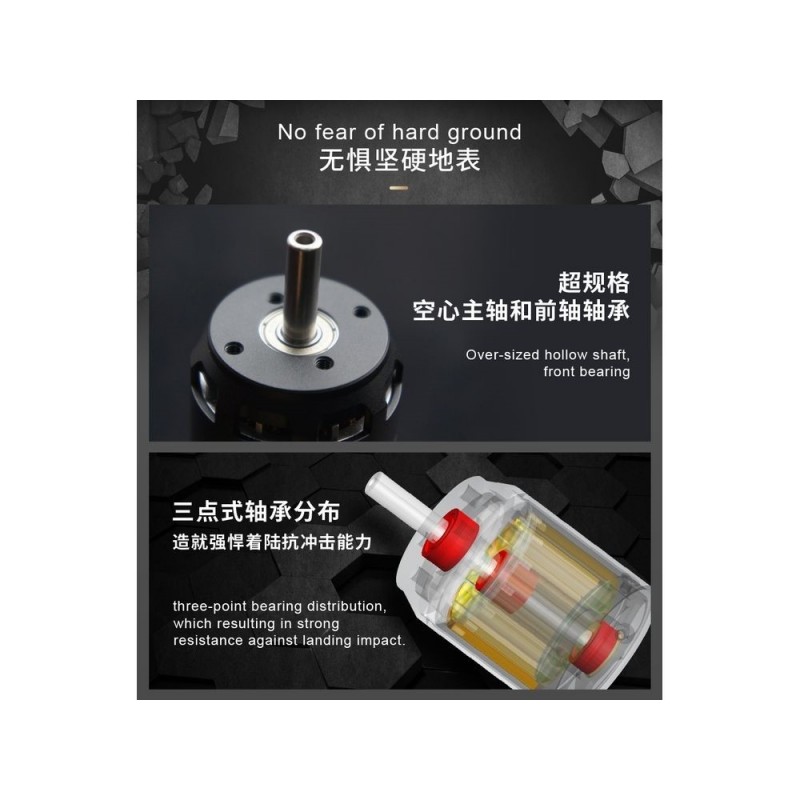

• Axis mounted on 3 bearings along the length for better resistance when landing.
• 14-pole rotor made of curved magnets, 0.20 mm Japanese silicon laminated steel, offering high direct drive torque.
• Uses 220 grade enameled wire and high temperature epoxy adhesive of the same level, with five-star quality overload resistance.

Technical Specifications:

• Recommended application: Glider up to 2kg

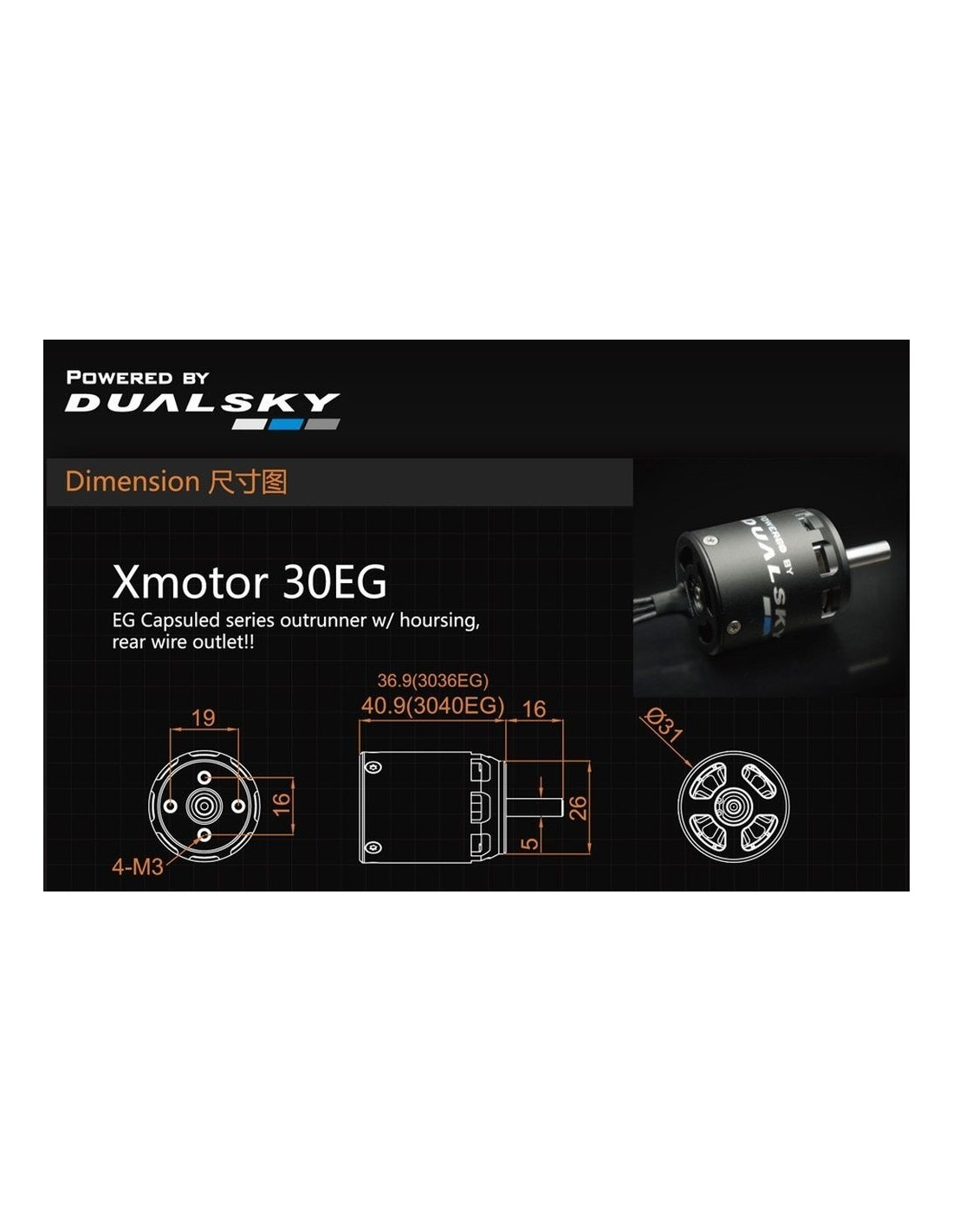

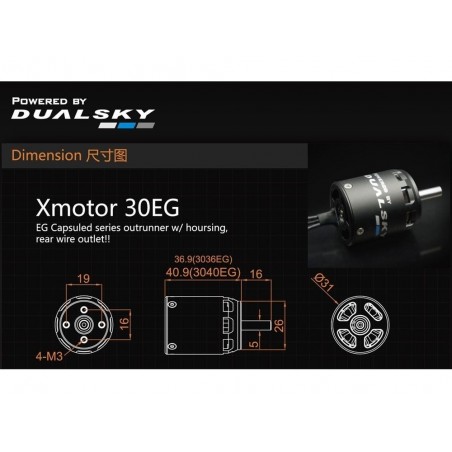

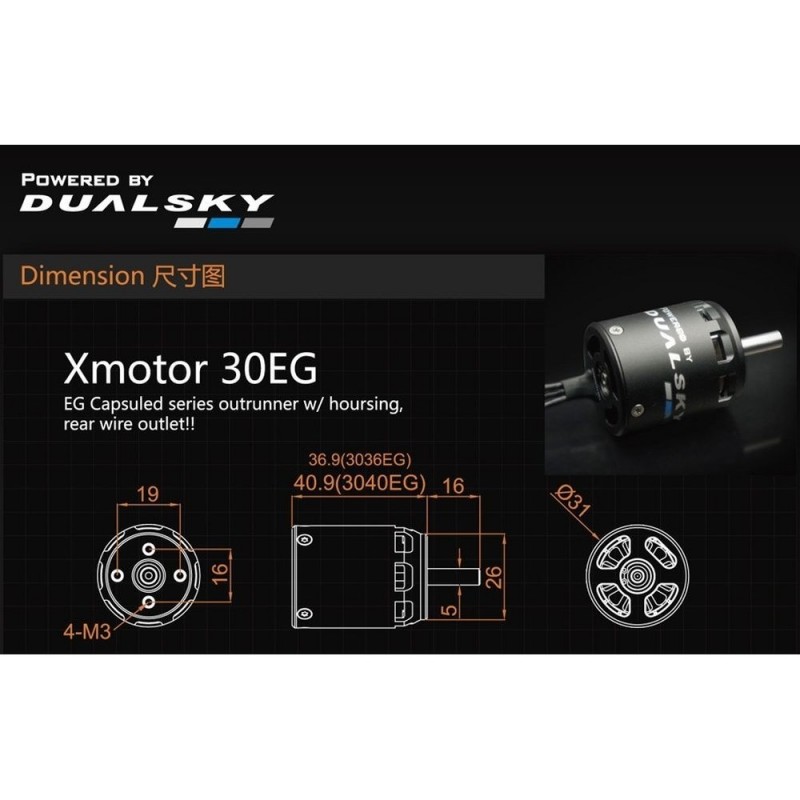

• Diameter: Front 26mm, Body 31mm
• Length: 40.9m
• Weight : 104g
• kV: 1000 rpm/V
• Shaft diameter : 5,00mm
• Connectors: DB3.5 (3 pairs)
• Recommended voltage: 3S to 4S LiPo
• Max current (15s) : 35A
• Max power (15s) : 560W
• Recommended propeller(s) : 3S 12x6 to 13x6.5
• Recommended propeller(s) : 4S 10x6 to 11x7

Contents of the box :

• (1) XM3040EG-12 motor
• (3) Pair of DB3.5 connectors

Additional product(s) needed

• Brushless controller 35A or more
