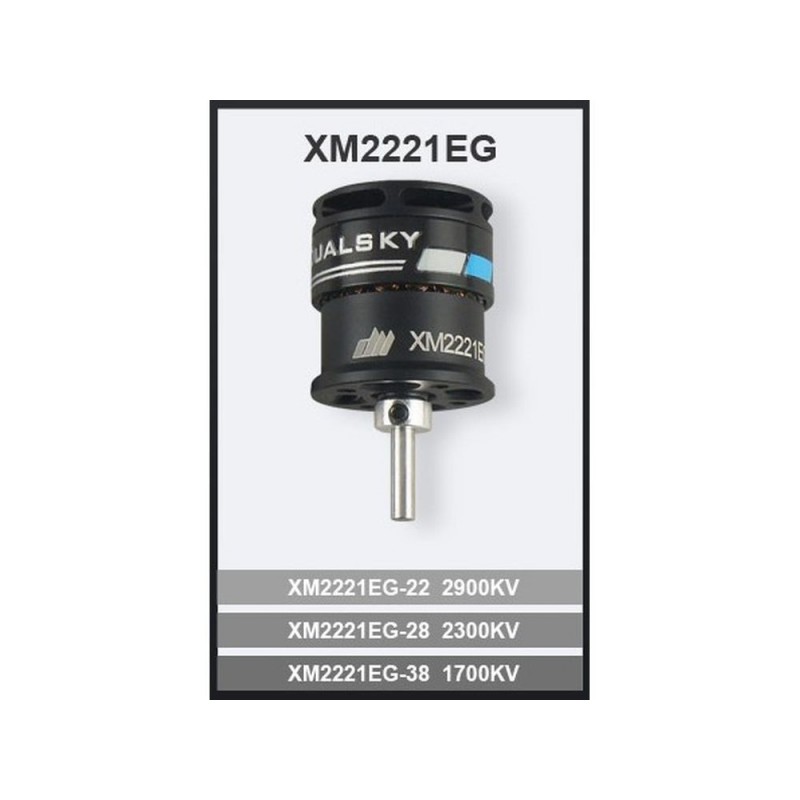

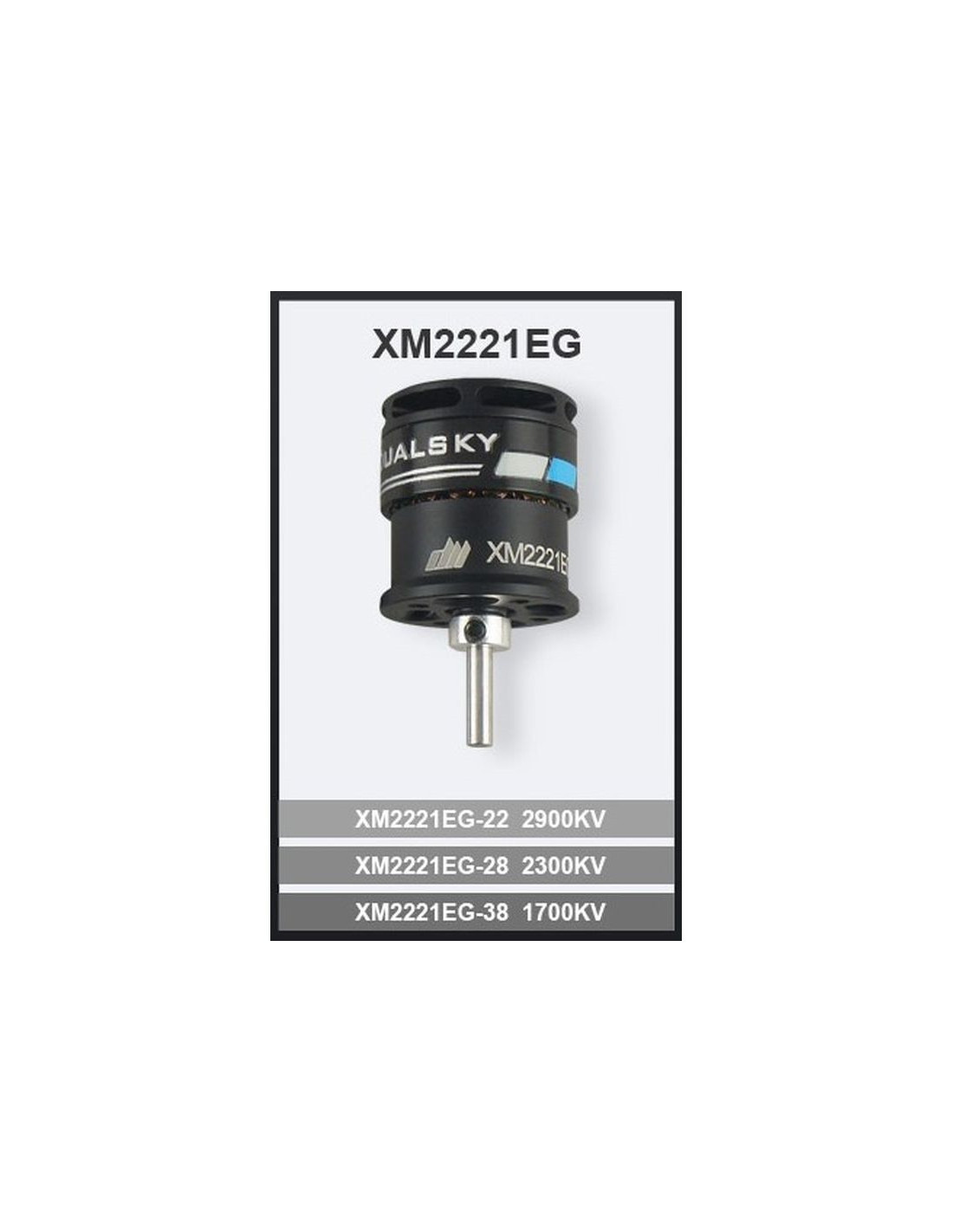

Dualsky XM2221EG-28 motor (23g, 2300kV, 104W)

Dualsky was founded in early 2004.
Dualsky produces Xmotor brushless motors, Xcontroller brushless ESCs, Xpower high-speed Lipo batteries and other accessories.

Some details:

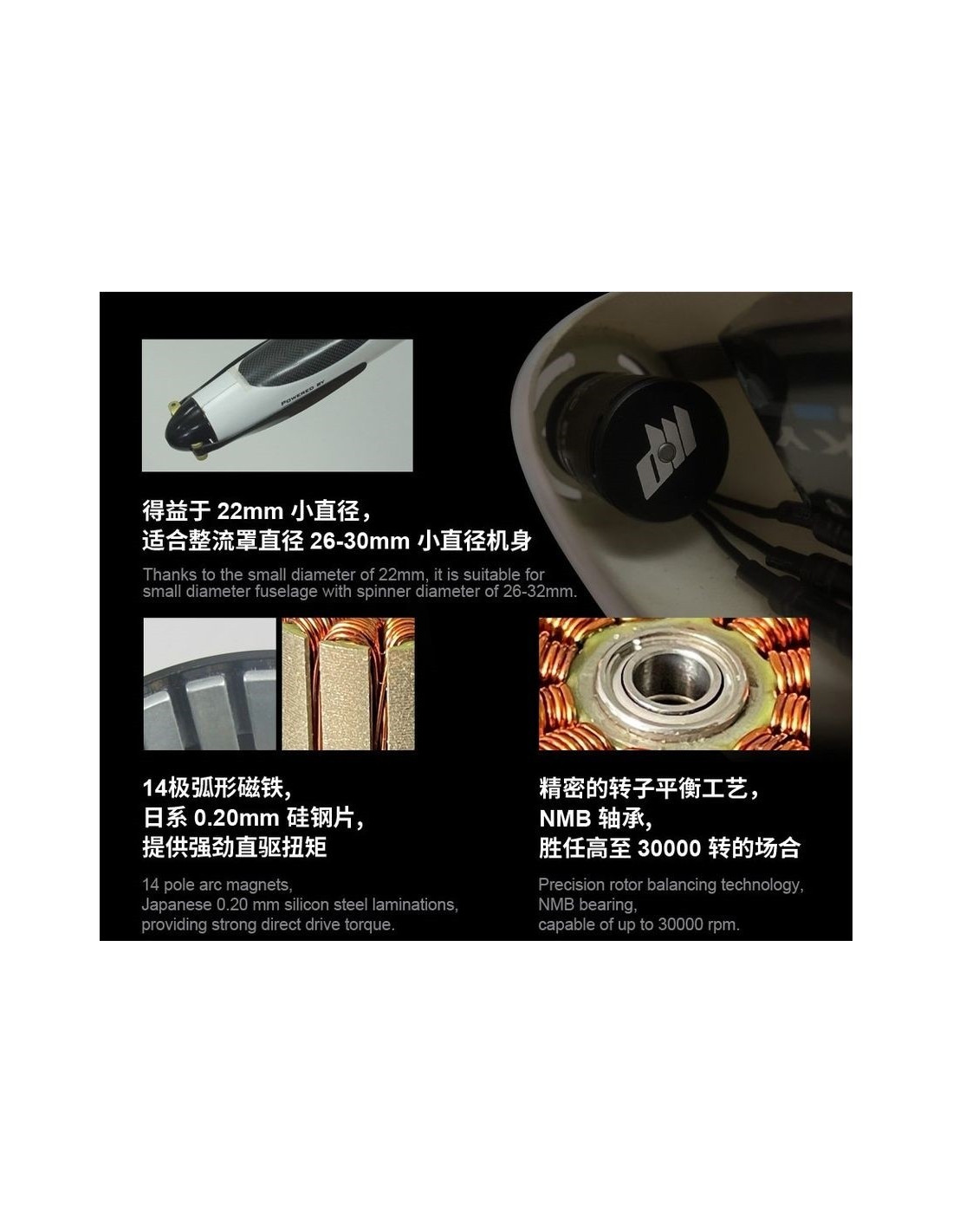

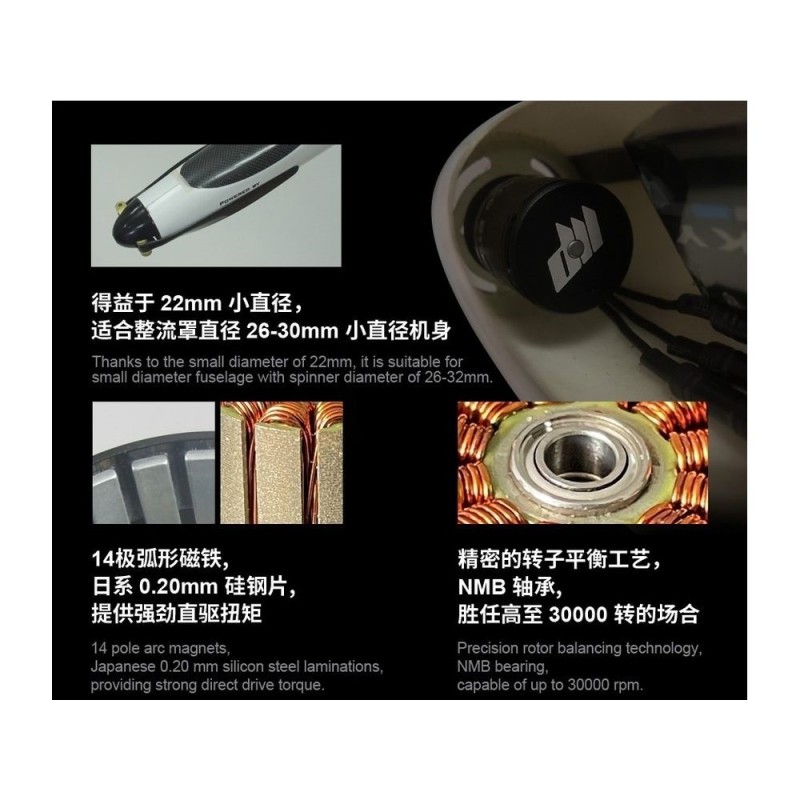

• 14 poles composed of curved magnets, Japanese 0.20mm silicon laminated steel, offering high direct drive torque.
• Precision rotor balancing technology, NMB bearing, up to 30000 rpm

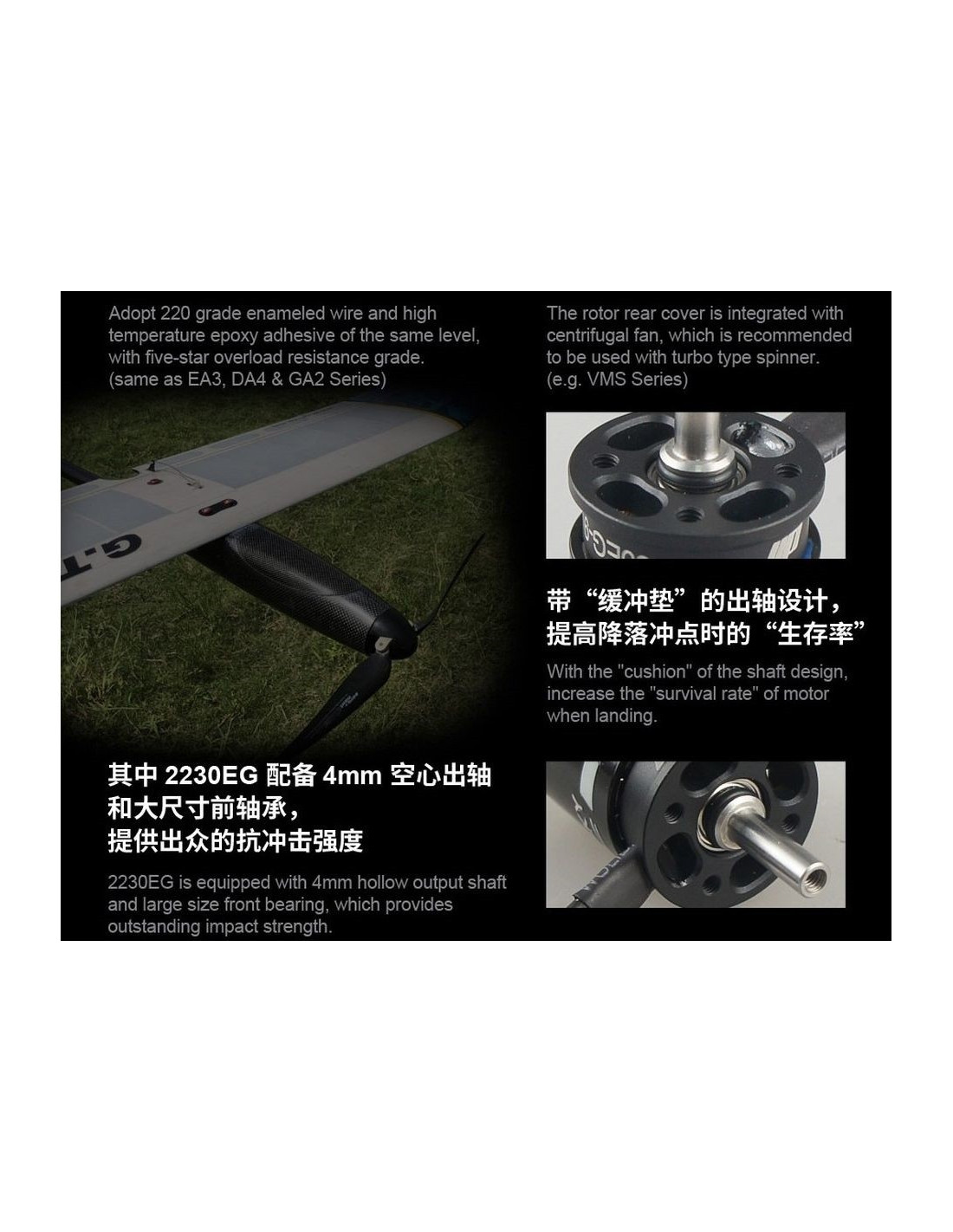

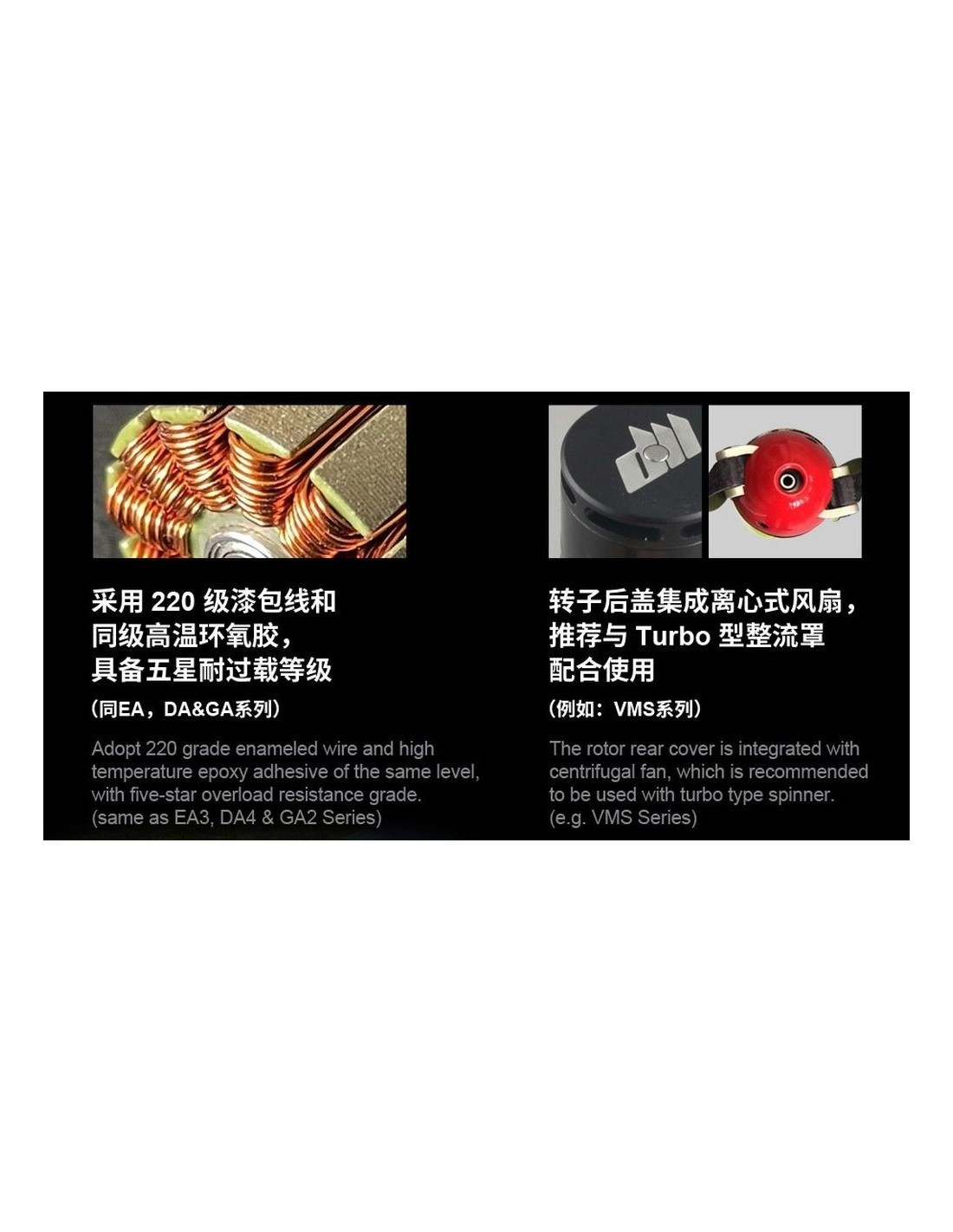

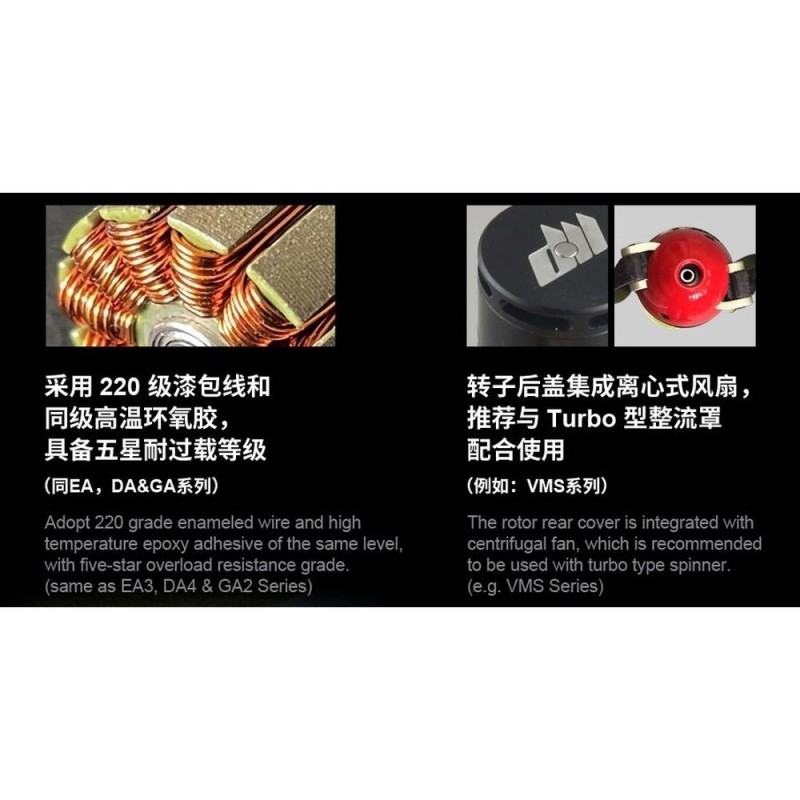

• Uses 220 grade enameled wire and the same level of high temperature epoxy adhesive, with five-star quality overload resistance
• The rear rotor flange incorporates a centrifugal fan, which is recommended for use with a vented cone propeller (Aeronaut for example)

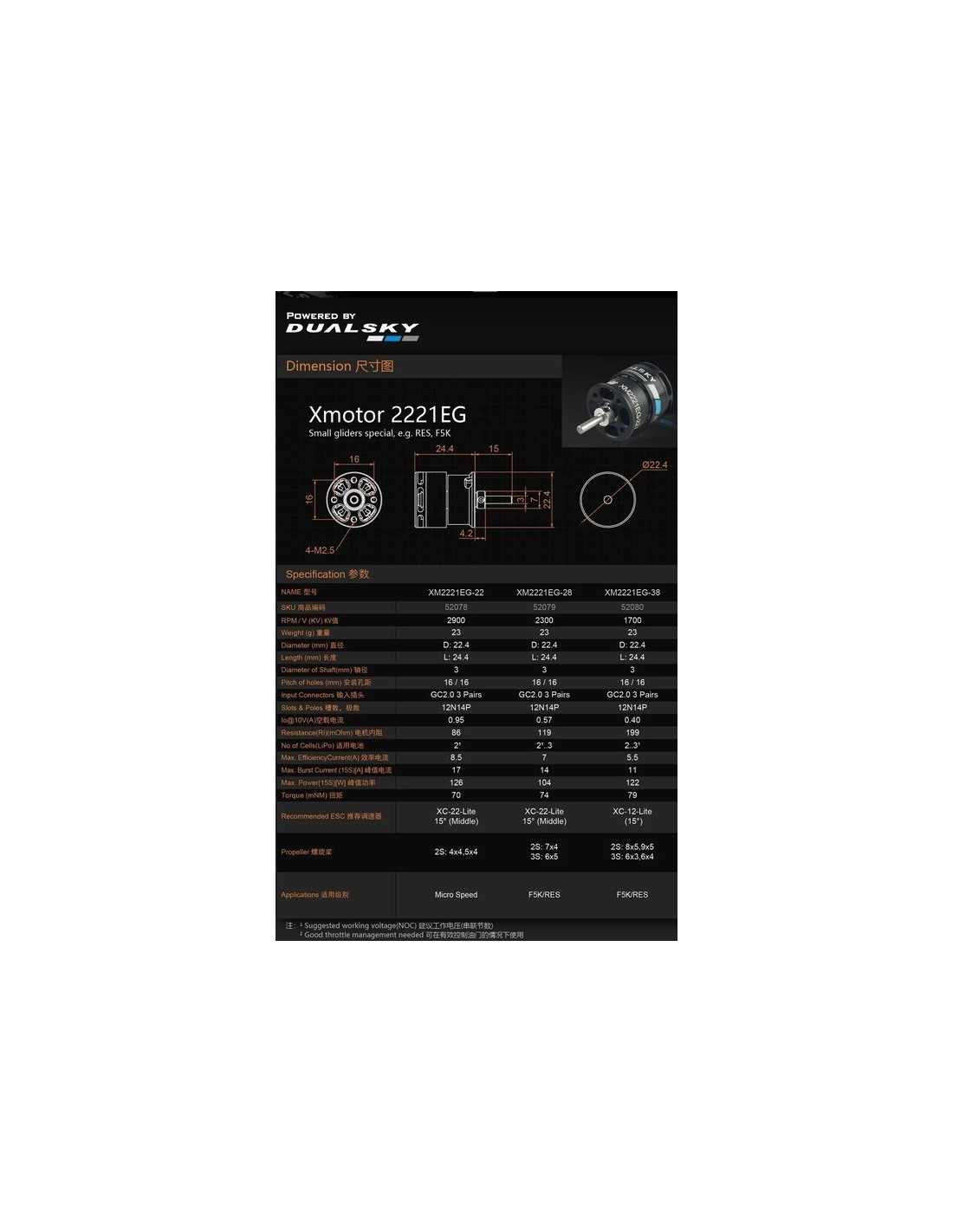

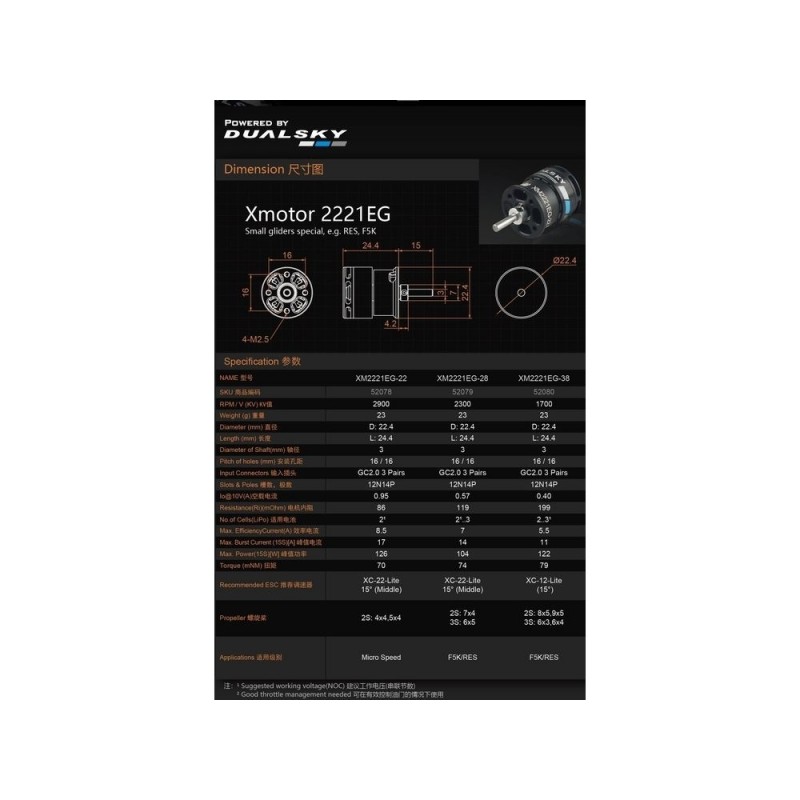

Technical data :

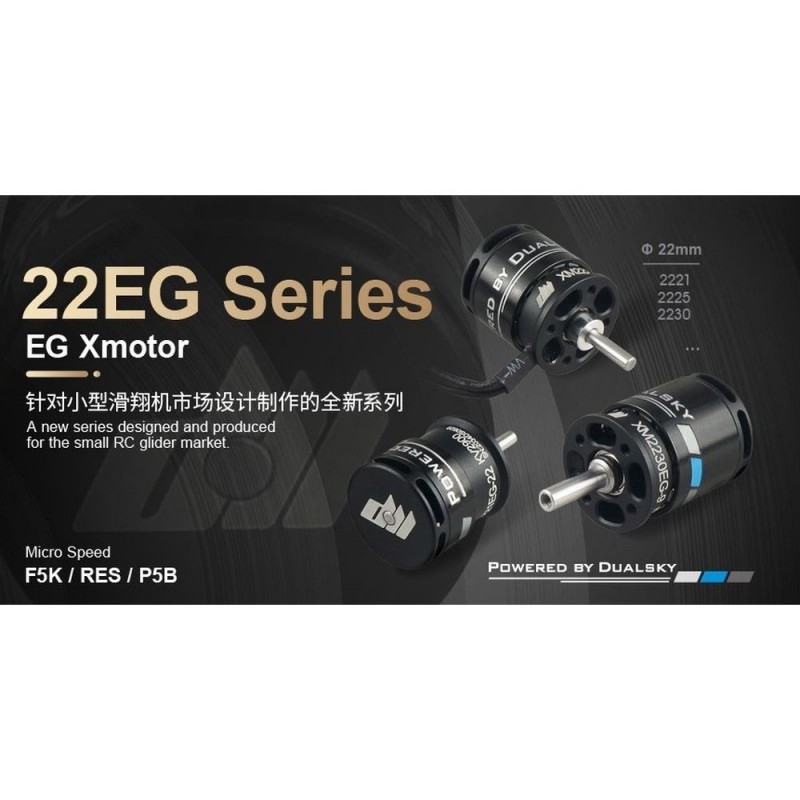

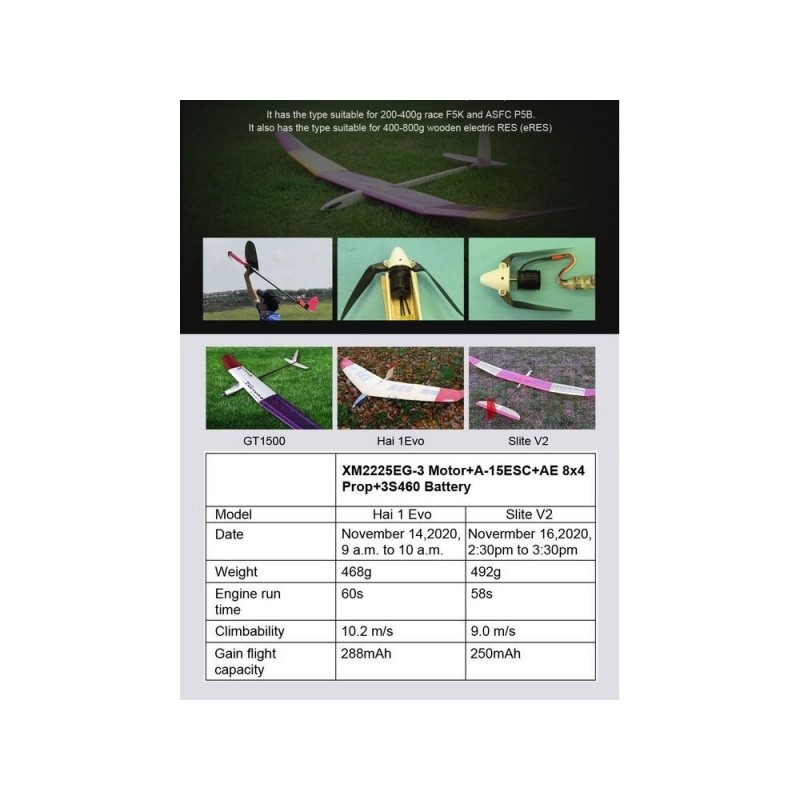

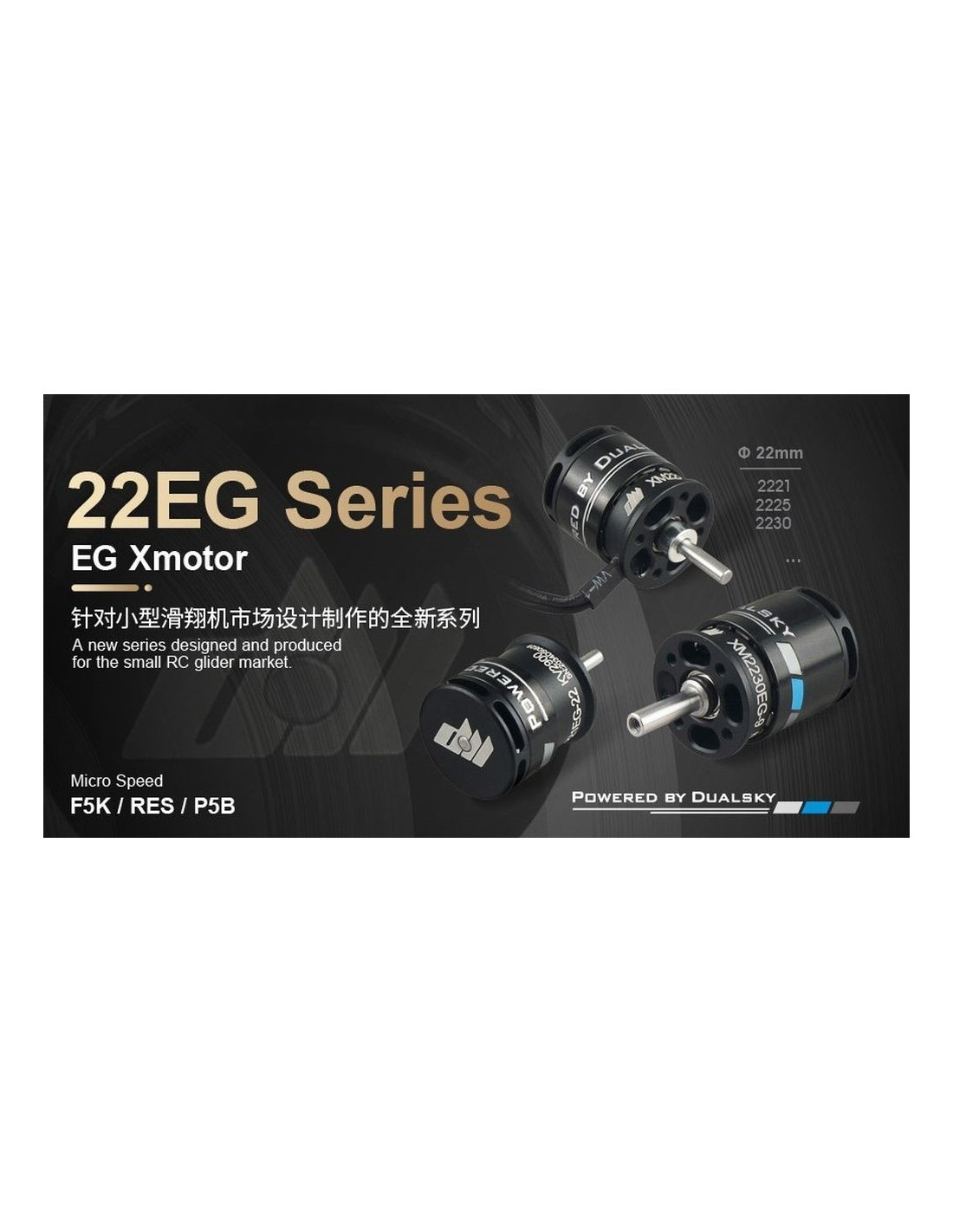

• Recommended application: F5K / RES
• Diameter: 22.4mm
• Length: 24.4mm
• Weight: 23g
• kV : 2300 rpm/V
• Shaft diameter : 3,00mm
• Connectors: GC2.0 (3 pairs)
• Recommended voltage: 2S to 3S LiPo
• Max current (15s) : 14A
• Max power (15s) : 104W
• Recommended propeller: 2S 7x4, 3S 6x5

Contents of the box:

• (1) Motor XM2221EG-28
• (3) Pair of GC2.0 connectors

Additional product(s) needed

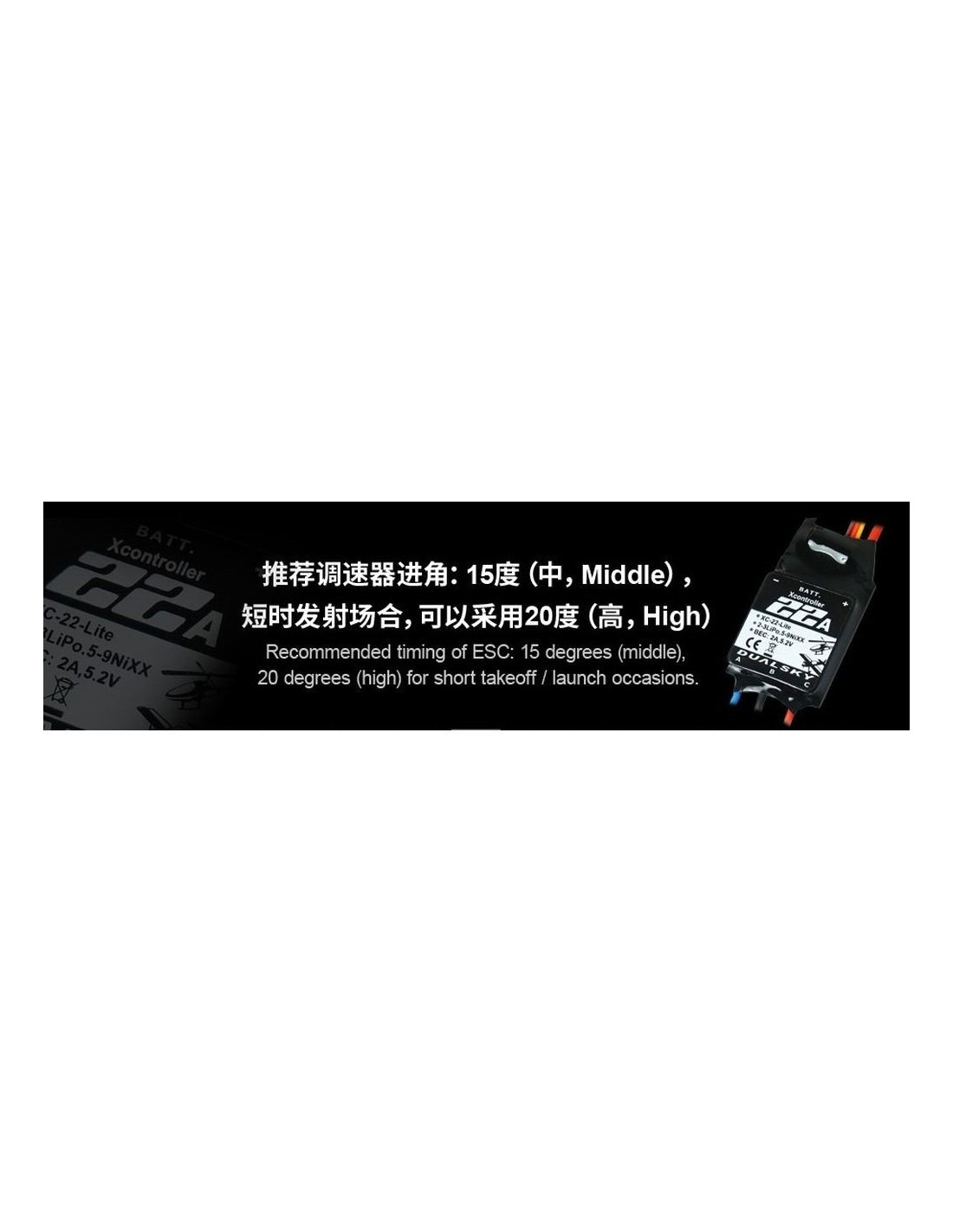

• Brushless controller 14A or more
