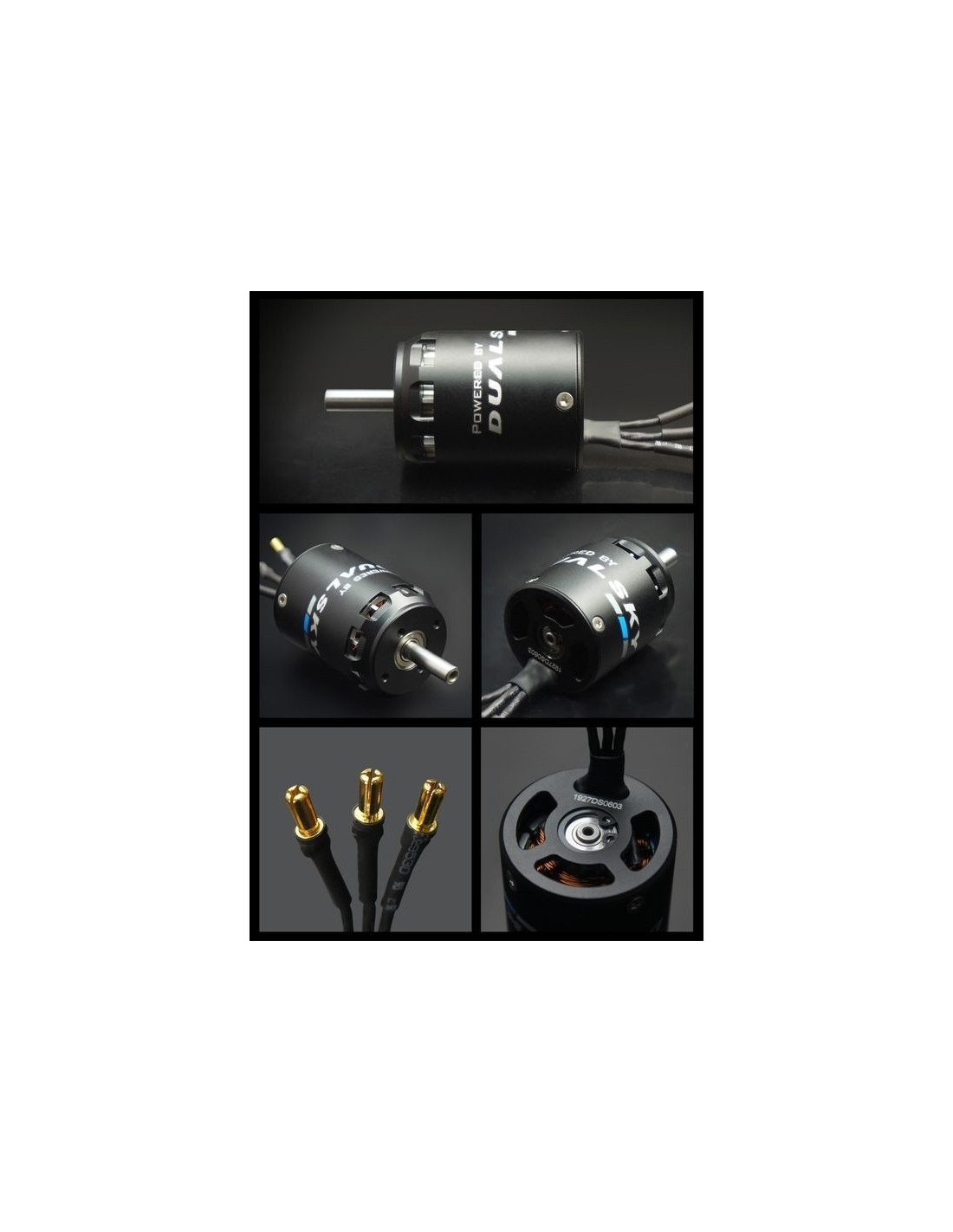

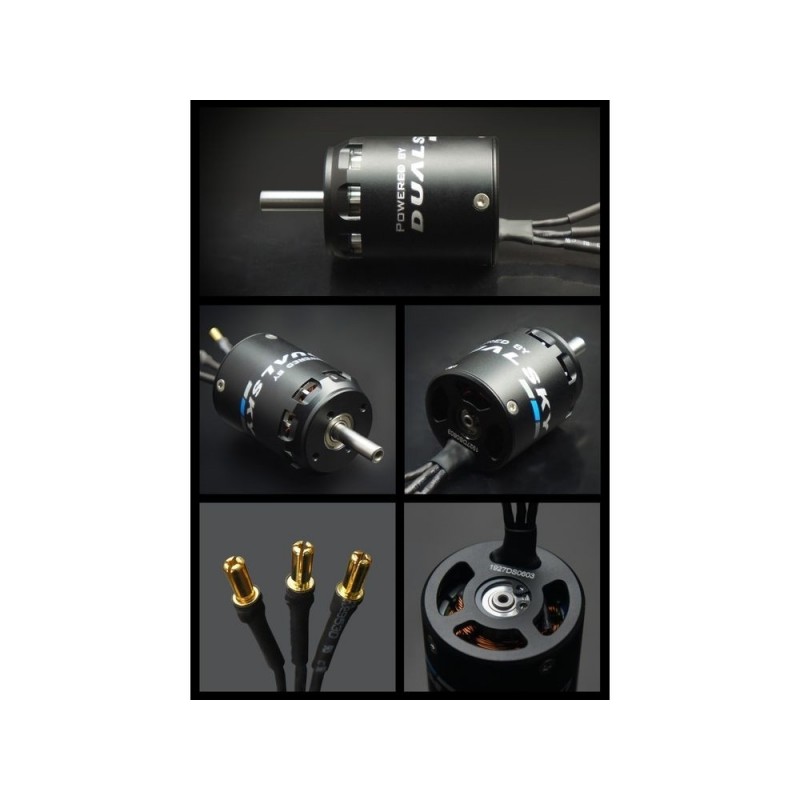

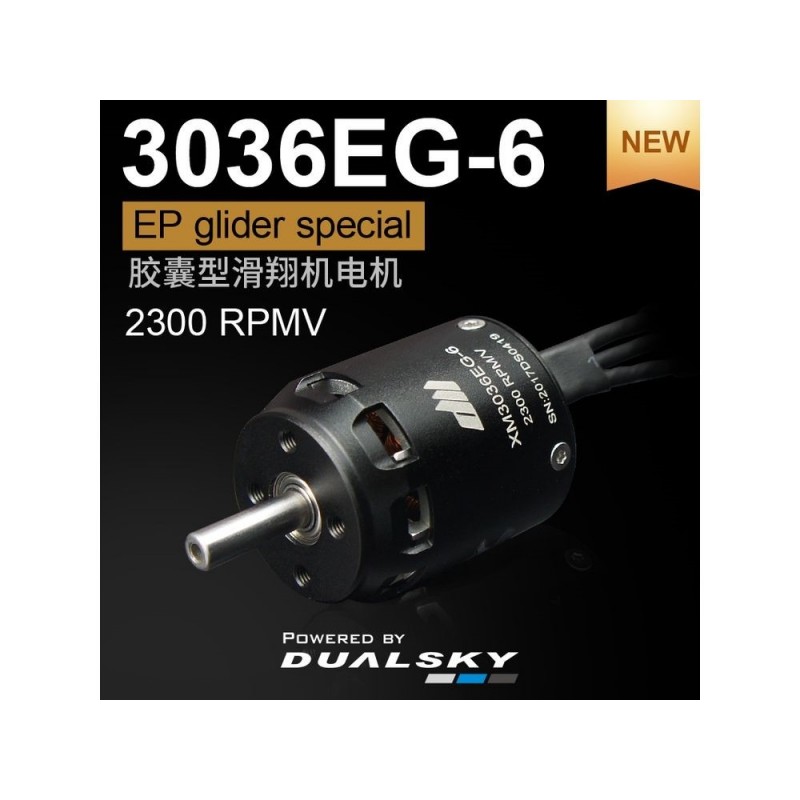

Dualsky XM3036EG-6 SE motor (89g, 2300kV, 400W)

Dualsky was founded in early 2004.
Dualsky produces Xmotor brushless motors, Xcontroller brushless ESCs, Xpower high-speed Lipo batteries and other accessories.

Some details:

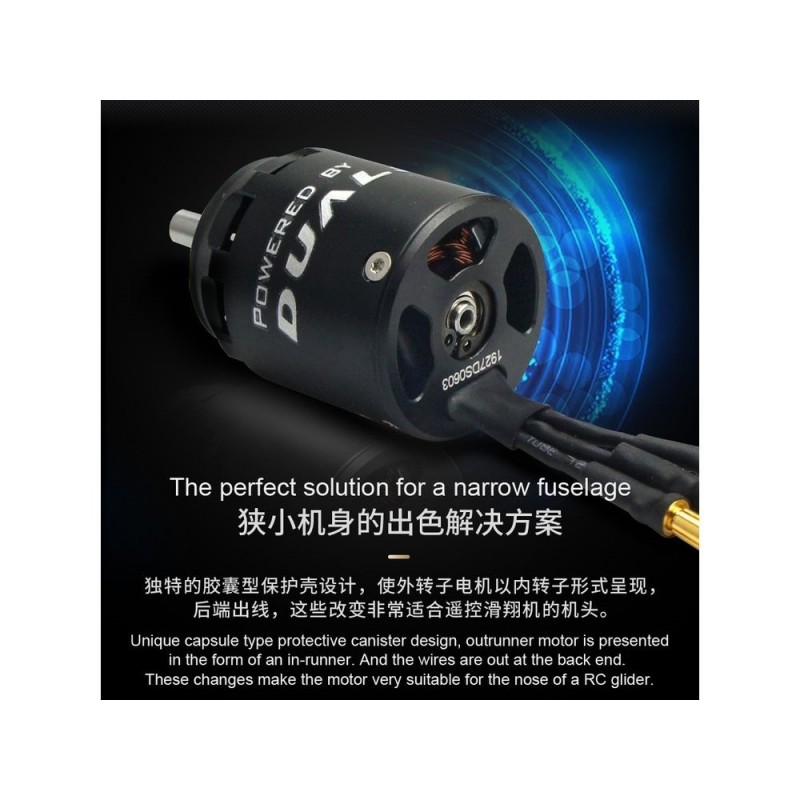

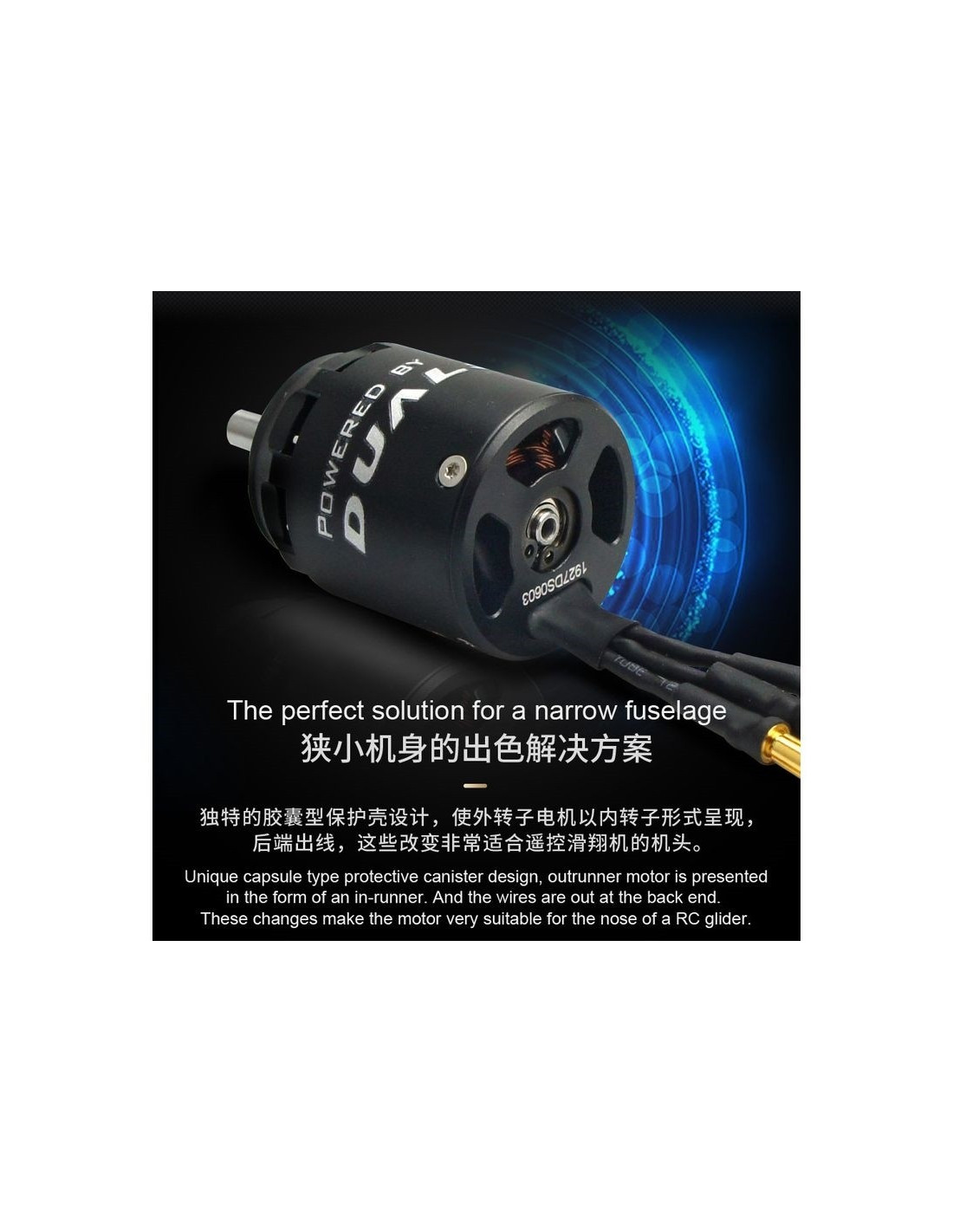

• Encapsulated design for easy integration into the thin nose of gliders
• Rear wire outlet

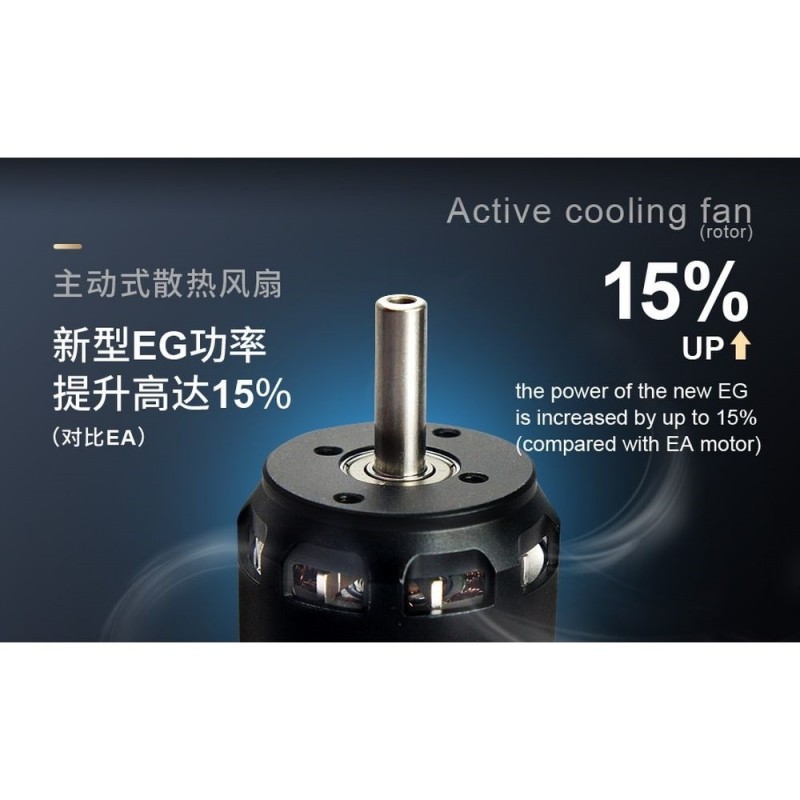

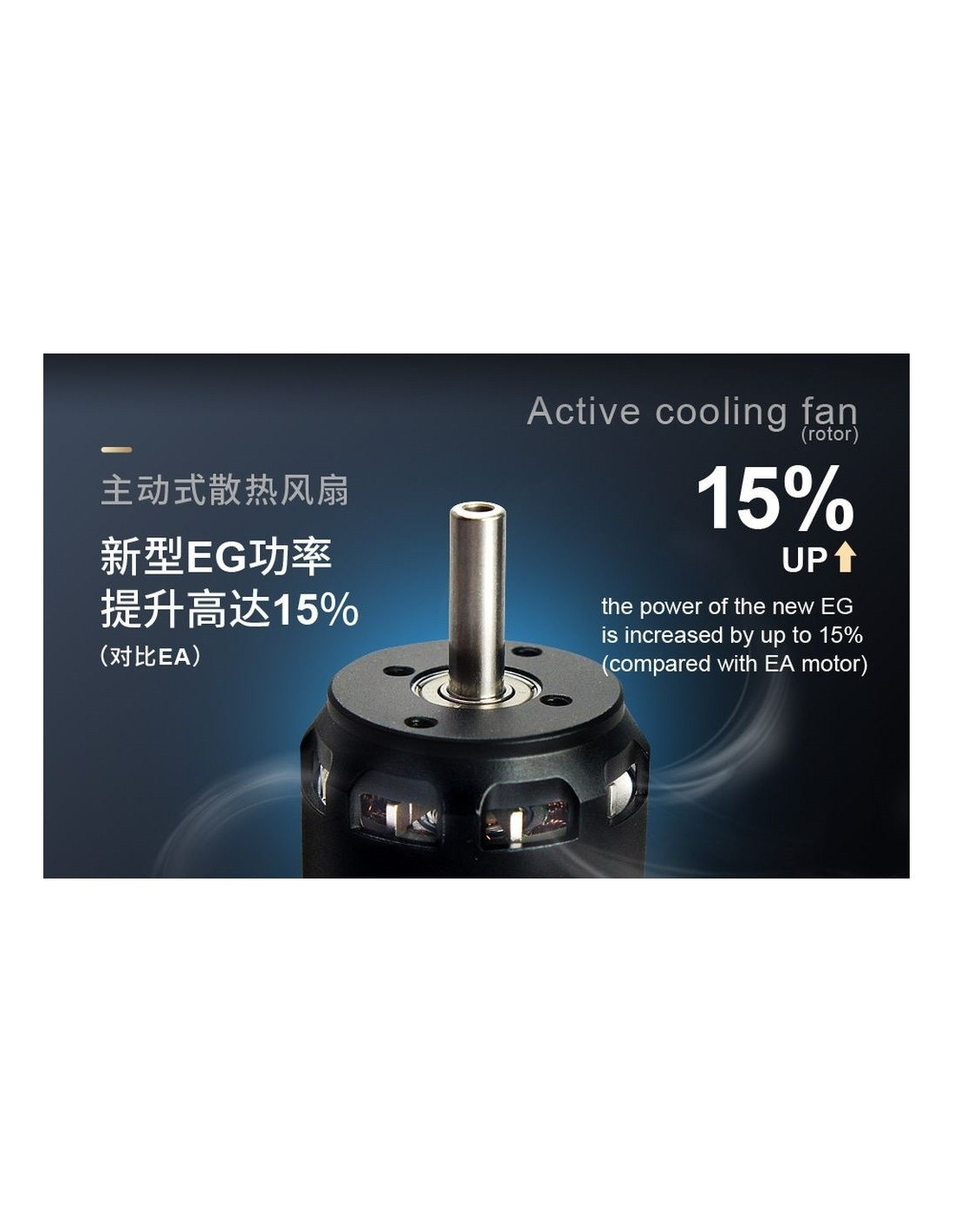

• Integrated fan for optimized performance

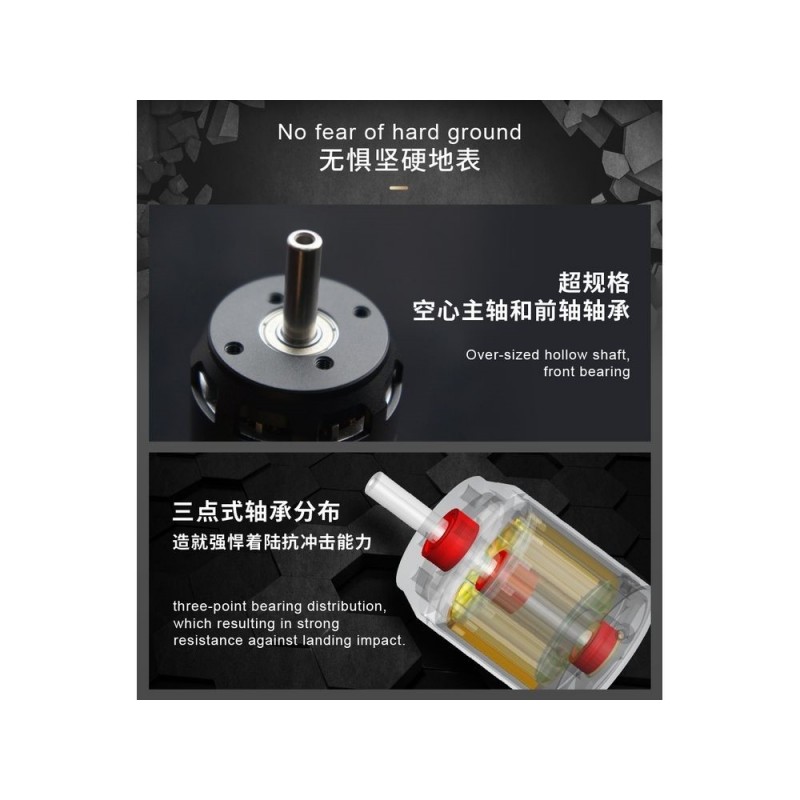

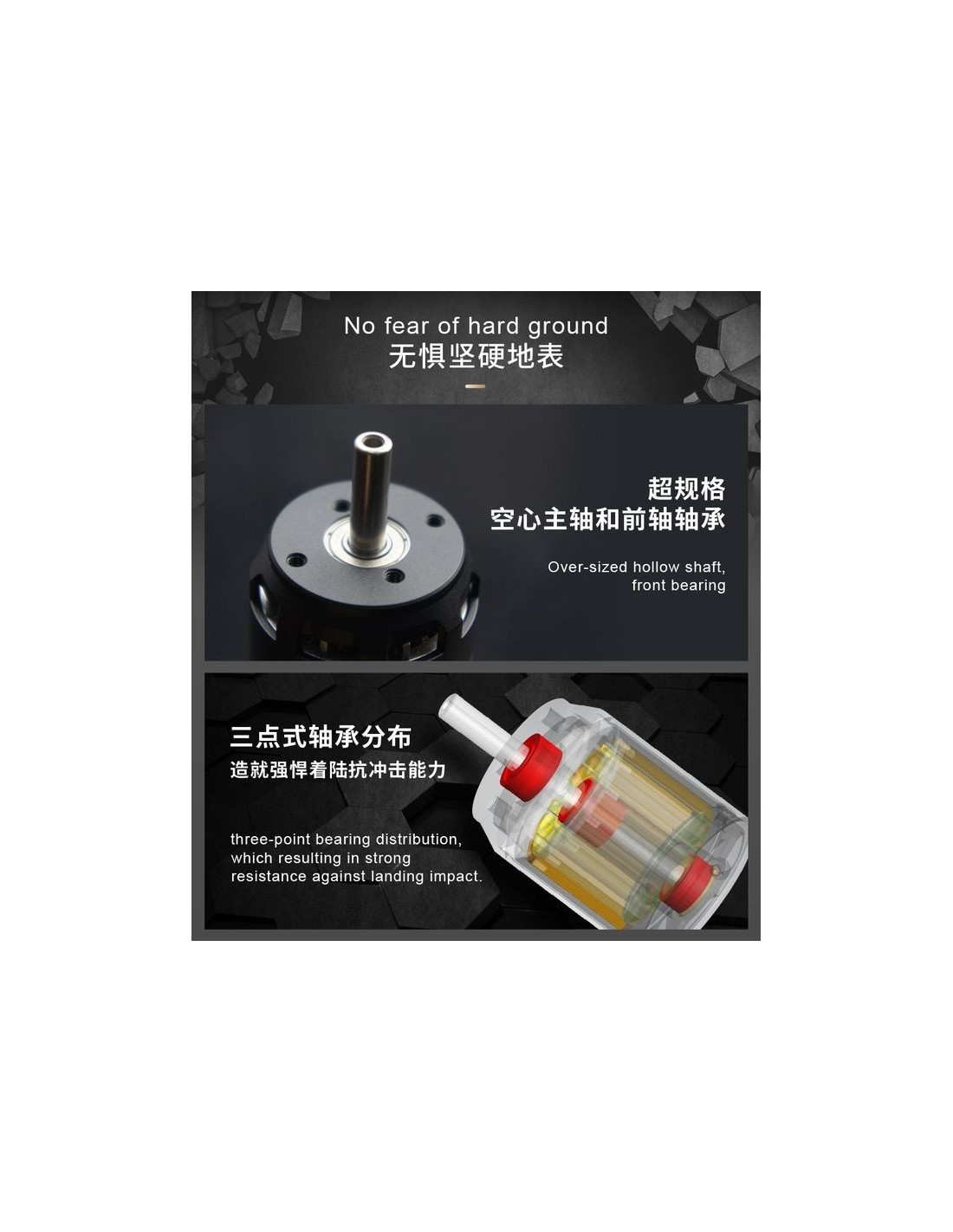

• Axis mounted on 3 bearings along the length for better resistance when landing.
• 14-pole rotor made of curved magnets, 0.20 mm Japanese silicon laminated steel, offering high direct drive torque.
• Uses 220 grade enameled wire and high temperature epoxy adhesive of the same level, with five-star quality overload resistance.

Technical specifications:

• Recommended application: P5B type glider

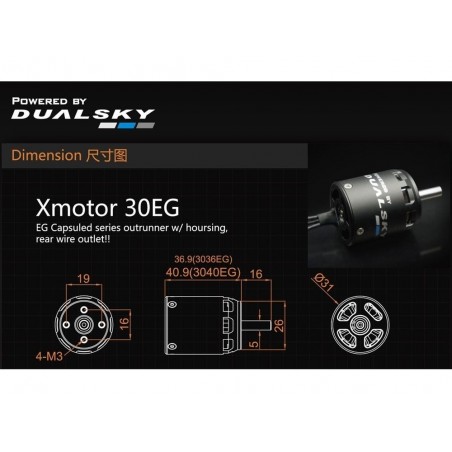

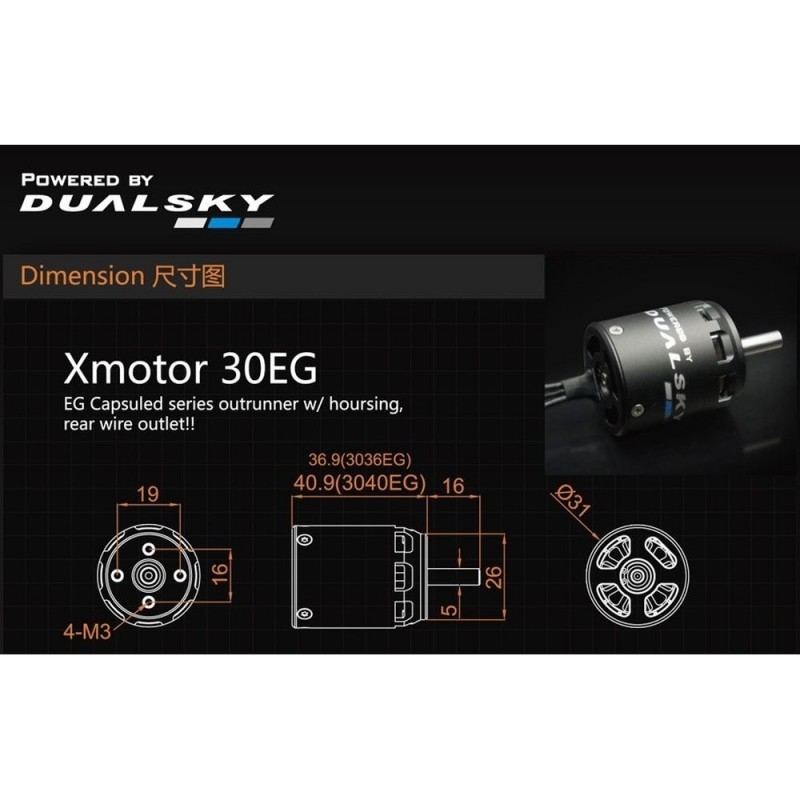

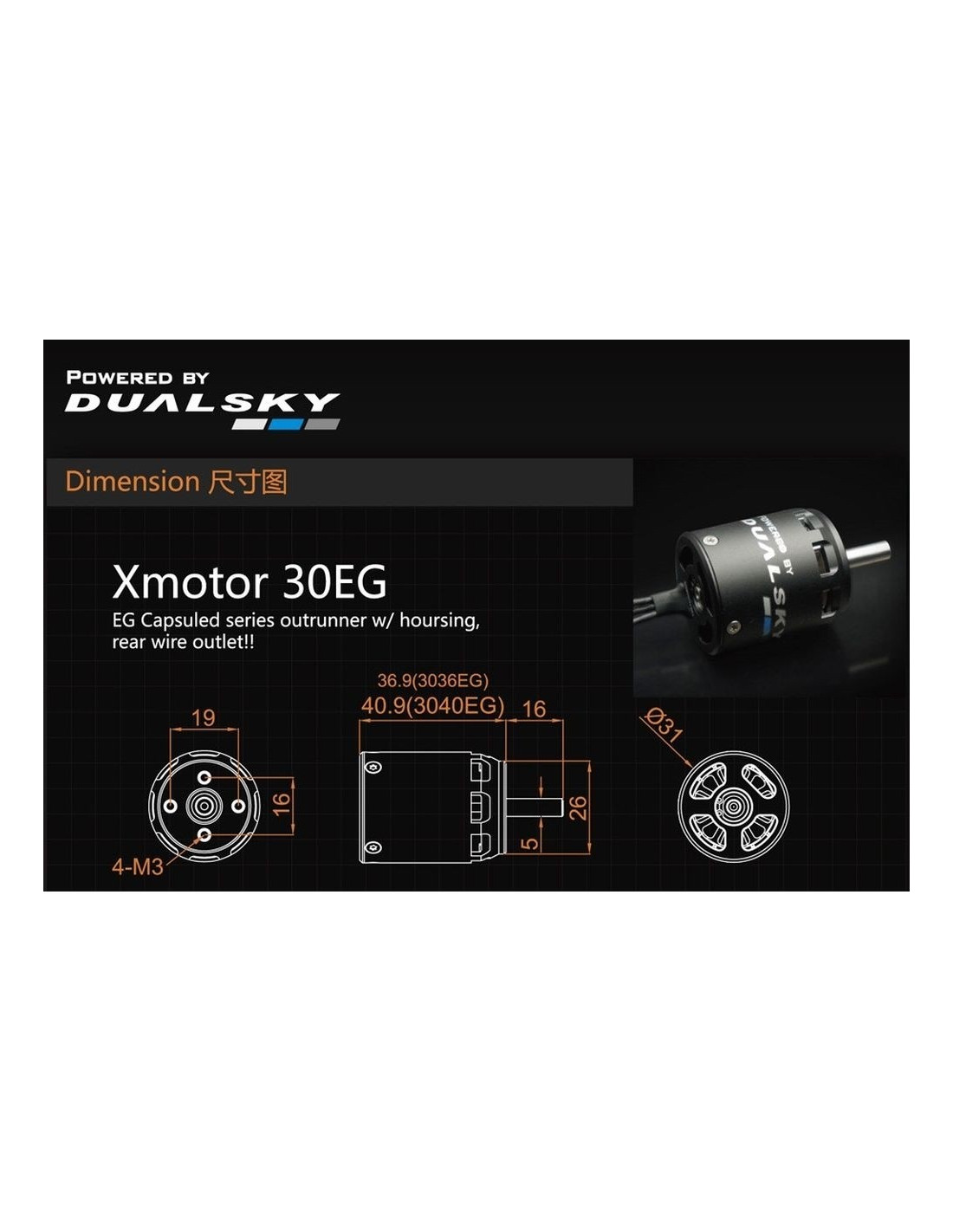

• Diameter: Front 26mm, Body 31mm
• Length: 36.9m
• Weight : 89g
• kV: 2300 rpm/V
• Shaft diameter : 5,00mm
• Connectors: DB3.5 (3 pairs)
• Recommended voltage: 2S LiPo
• Max current (15s) : 50A
• Max power (15s) : 400W
• Recommended propeller(s) : 2S 9x6 to 10x8

Contents of the box :

• (1) XM6036EG-6 SE motor
• (3) Pair of DB3.5 connectors

Additional product(s) needed

• Brushless controller 50A or more
