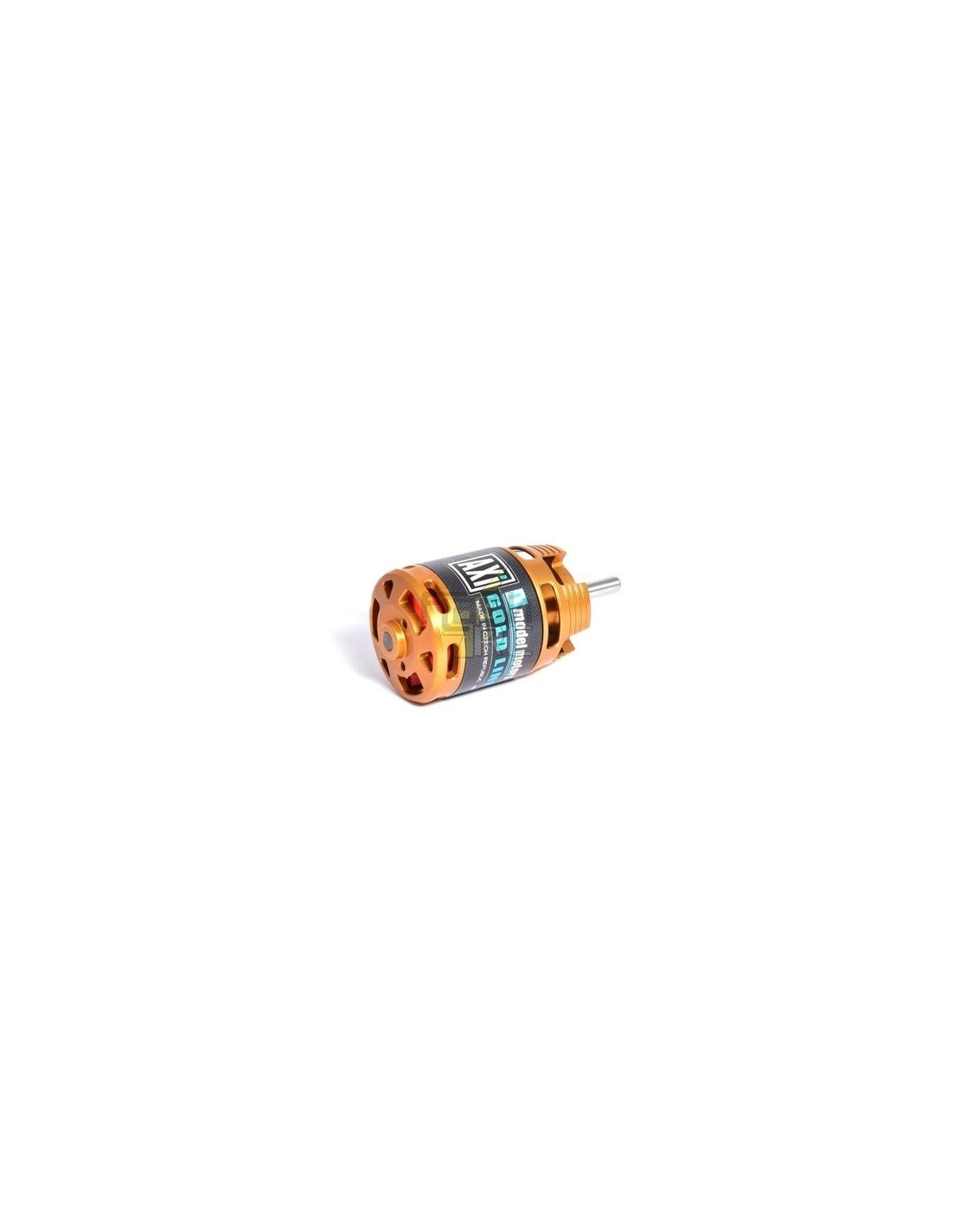

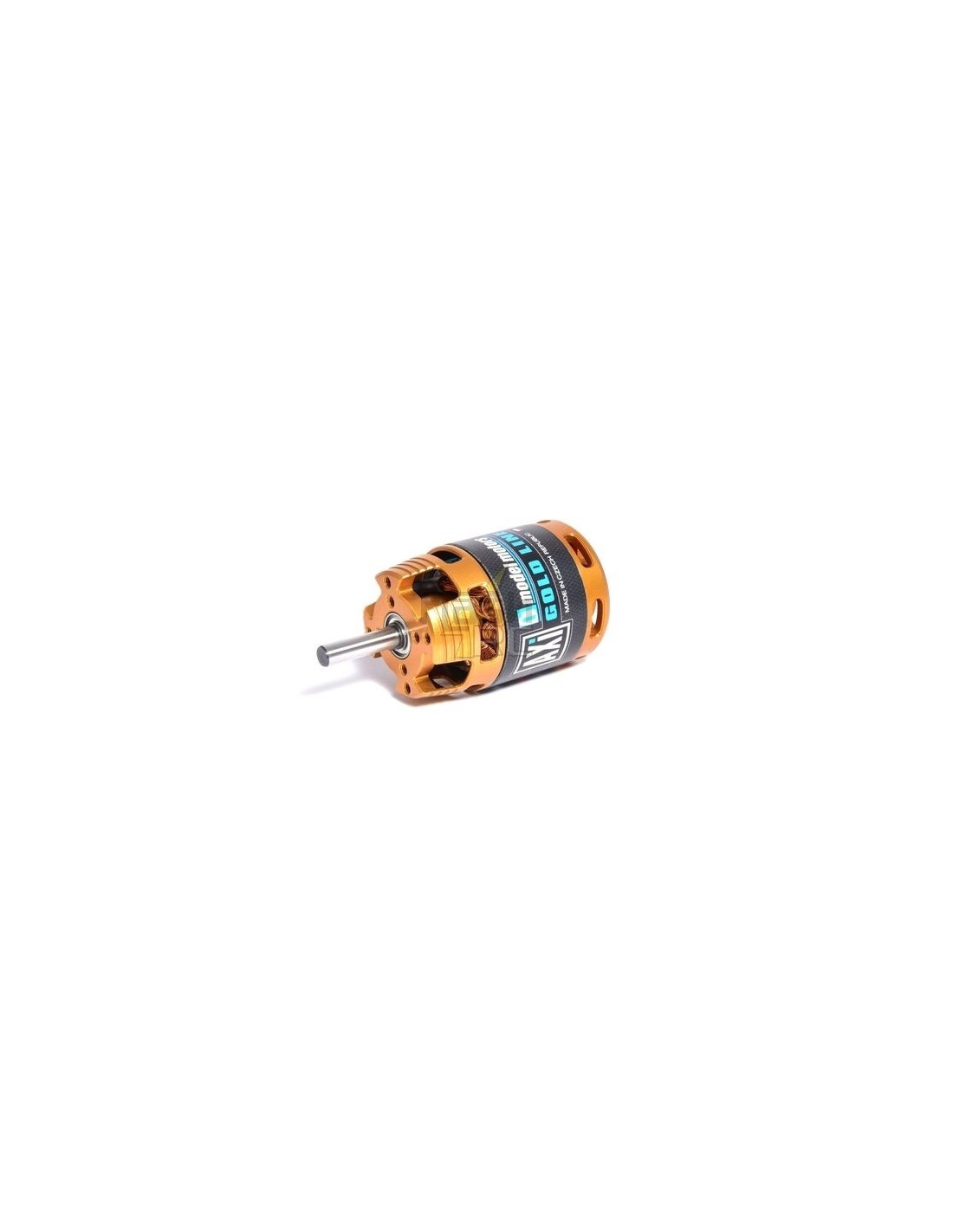

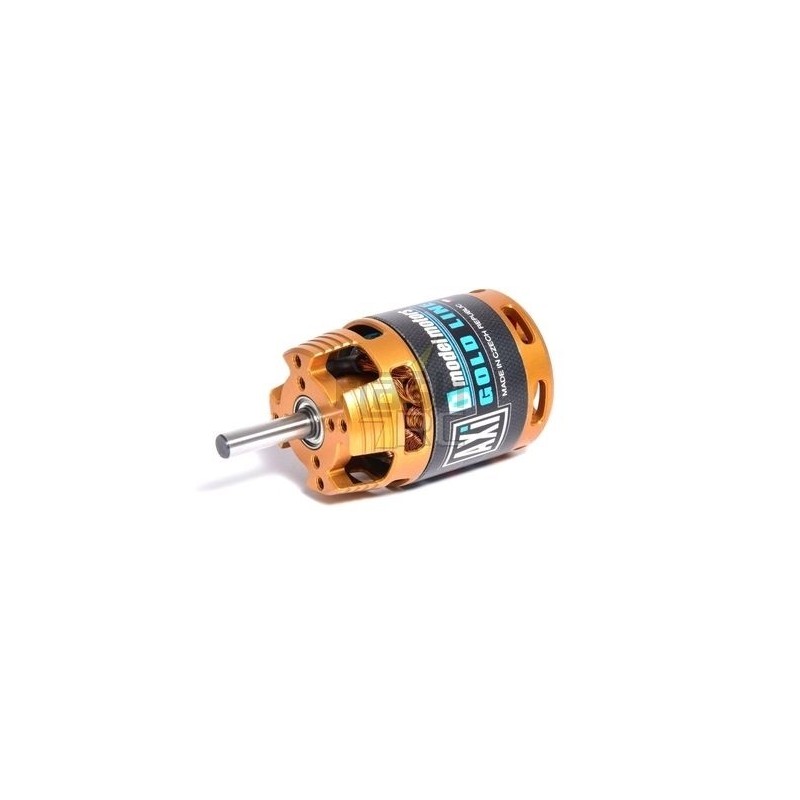

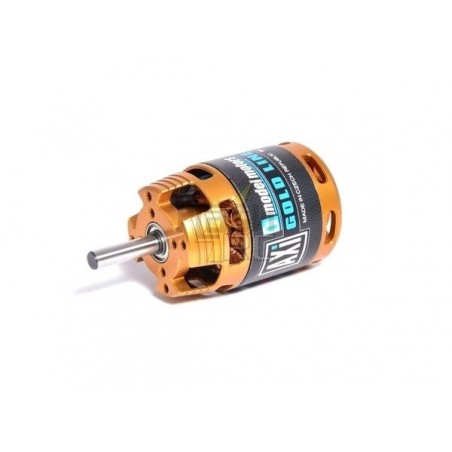

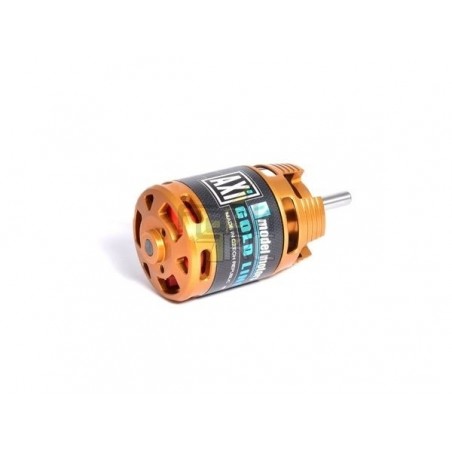

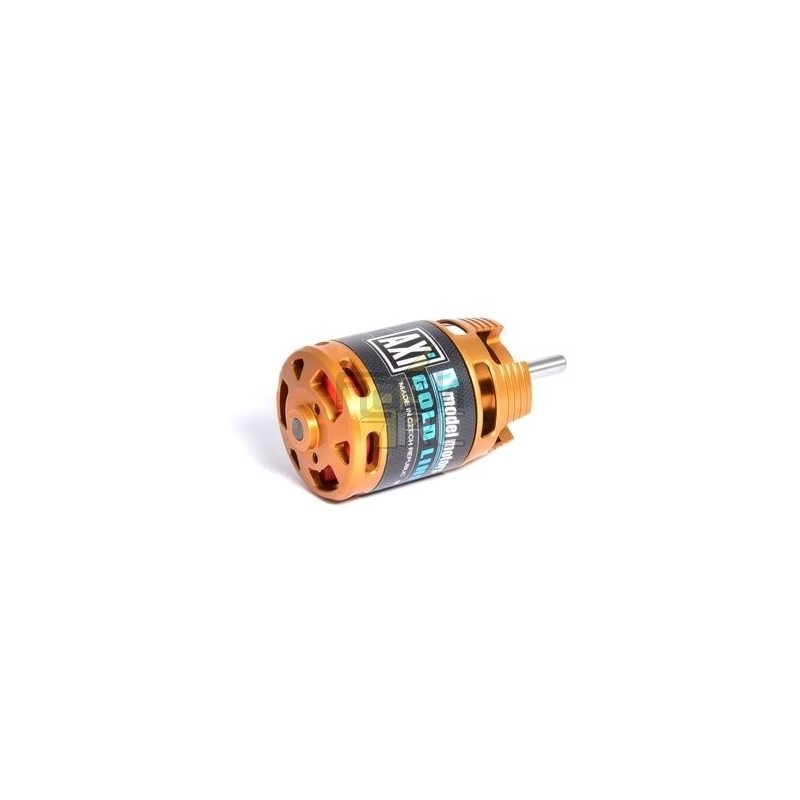

AXI 2212/20 V3 GOLD LINE Long Axis Motor (60g, 1150kv, 180W)

Out-of-Stock
€59.96
Tax included

The AXI 2212/20 V3 GOLD LINE long shaft is recommended to be powered by 2S and 3S LiPo batteries for hotliner models up to 650g and gliders up to 800g at takeoff.this highly efficient brushless motor with neodymium magnets and rotating cage is manufactured using the latest technology of the finest quality materials.The 5mm hardened steel shaft is supported by three ball bearings, and the overall rugged construction ensures a long service life.Due to its high torque characteristics, this motor is capable of turning large propellers with a high level of efficiency, and without the need for a gearbox.The quiet operation makes these motors particularly suitable for model aircraft.


custom html
you can configure this block in iqithtmlbanners module. It is hooked in displayRightColumnProduct hook.

To disable entire area go to iqitthemeeditor module > Content/Pages > Product page and set hidden for Right sidebar option


Dimensions

Technical specifications:

  • Recommended number of cells: 2-3 LiPo
  • RPM per Volt: 1150 RPM/V
  • Max. efficiency: 84%.
  • Max. power consumption: 6-12A
  • No load current: 0,7A
  • Max current: 18A/60S
  • Internal resistance: 135mOhm
  • Dimensions: Ø27,7x39,4mm
  • Motor axis diameter: 3,17mm
  • Weight: 60g
  • Max power: 180W
  • Recommended propellers: 10x5" in 2S, 9x5" in 3S
Engine weight
from 100g to 599g
Motor power in Watts
180
Revs/ minute Kv
1150
Type of tree
Long
123-2212/20-LONG-V3
8595247302847
8595247302847
