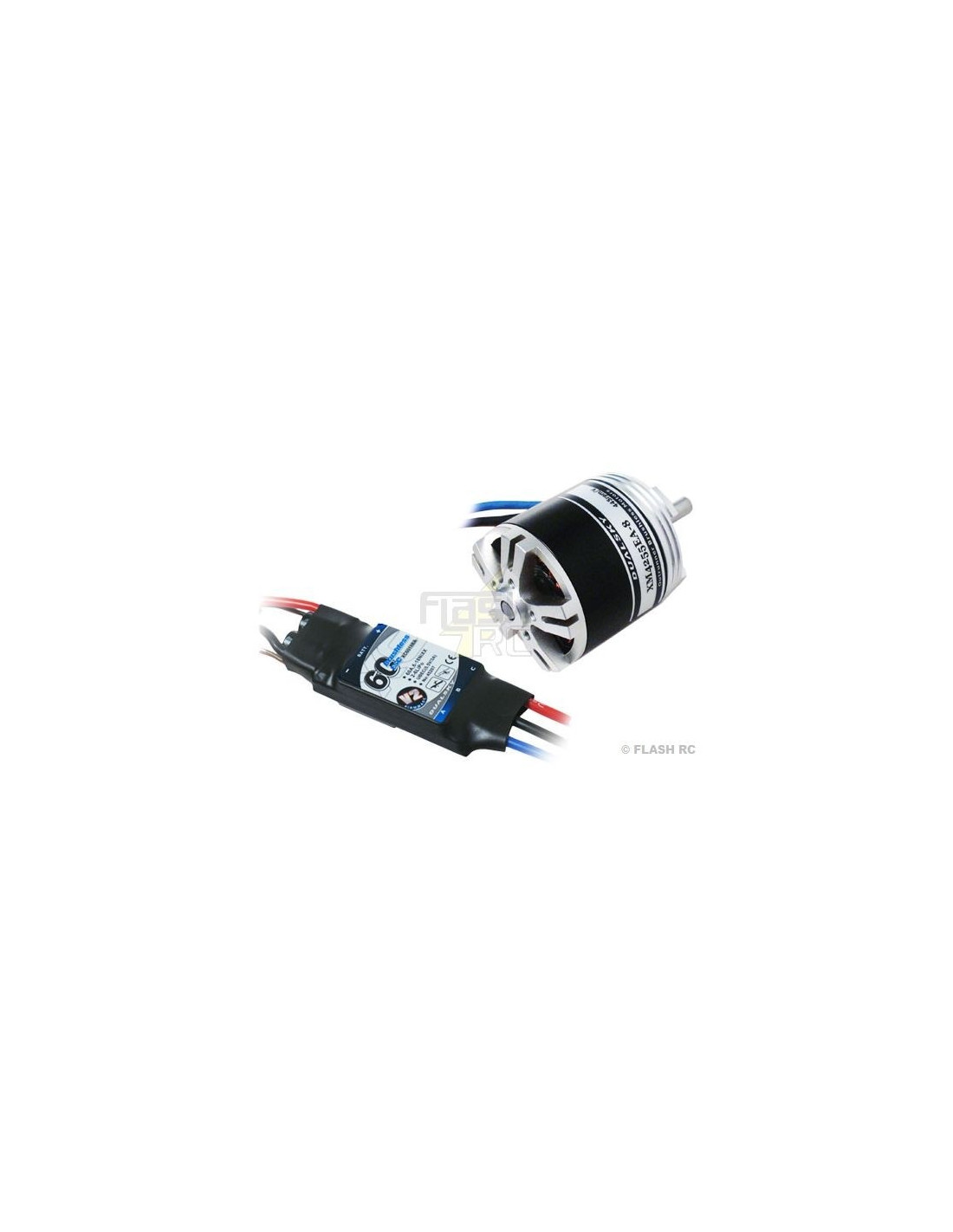

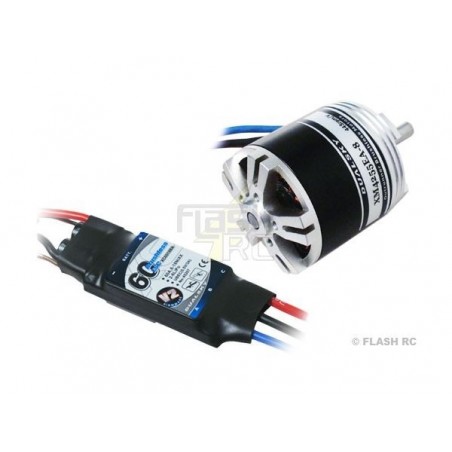

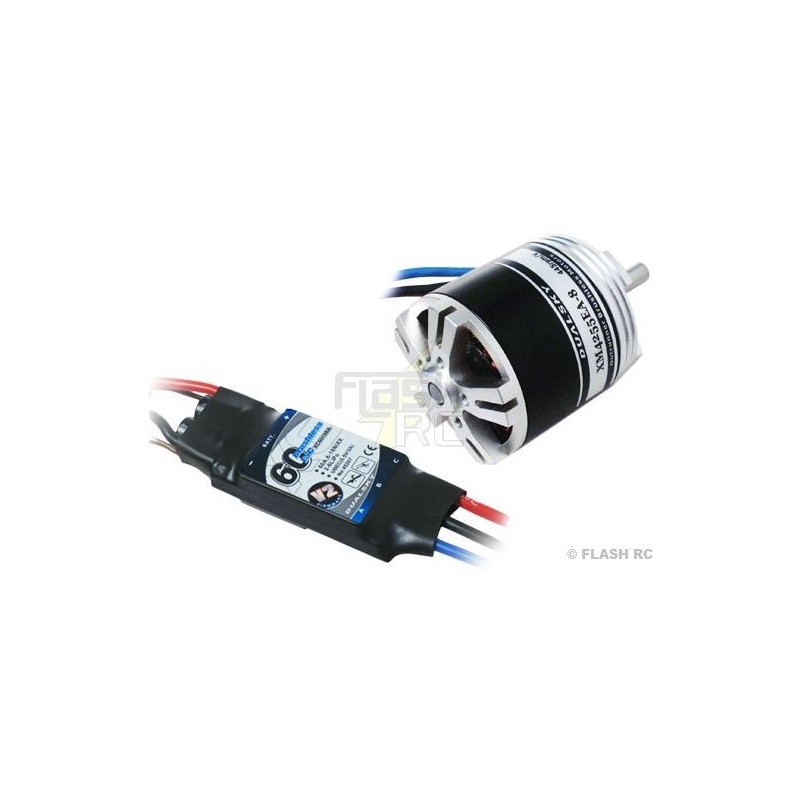

Combo ECO 4120C V2 560kv (280g, 1400W) + 80A Controller

Out-of-Stock
€116.66
Tax included
This motor+controller combo is suitable for aerobatic aircraft up to 2.9Kg and 3D models up to 1.9Kg.


custom html
you can configure this block in iqithtmlbanners module. It is hooked in displayRightColumnProduct hook.

To disable entire area go to iqitthemeeditor module > Content/Pages > Product page and set hidden for Right sidebar option


Technical data of the motor

  • KV: 560RPM/V
  • Weight: 280g
  • Diameter: 45mm
  • Length: 49mm
  • Shaft diameter: 6.0mm
  • No load current (Io) @10V: 2A
  • Internal resistance (Ri): 32mOhm
  • Peak power consumption [15s]: 47A
  • Peak power [15s]: 1400W
  • Recommended propeller: 5S LiPo, 15x6 - 6S LiPo, 14x7

Technical data of the controller

  • Dimensions: 75x 30x 14mm
  • Weight: 63g
  • Supply voltage: NiXX 6-18, 7.2-21.6V, LiPo 2-6, 7.4-22.2V
  • Internal resistance (Ri)(Ohm): 0.0022
  • Max. current & Max. power 80A, 1260W
  • Max. peak current & max. peak power: 100A, 1632W
  • BEC: 5.5V/3A
  • Programmable: with the motor handle or with the ProgCARD V2
  • Input cables: 150mm, 12AWG, DC3 male plug
  • Output cables: 90mm, 14AWG, 3 DB4 plugs
  • Receiver wire: 300MM JR
Motor power in Watts
1400
Revs/ minute Kv
560
016-TC.5A.50E
6941047191112
6941047191112
