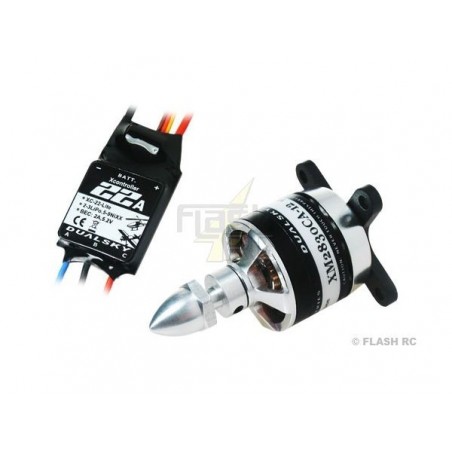

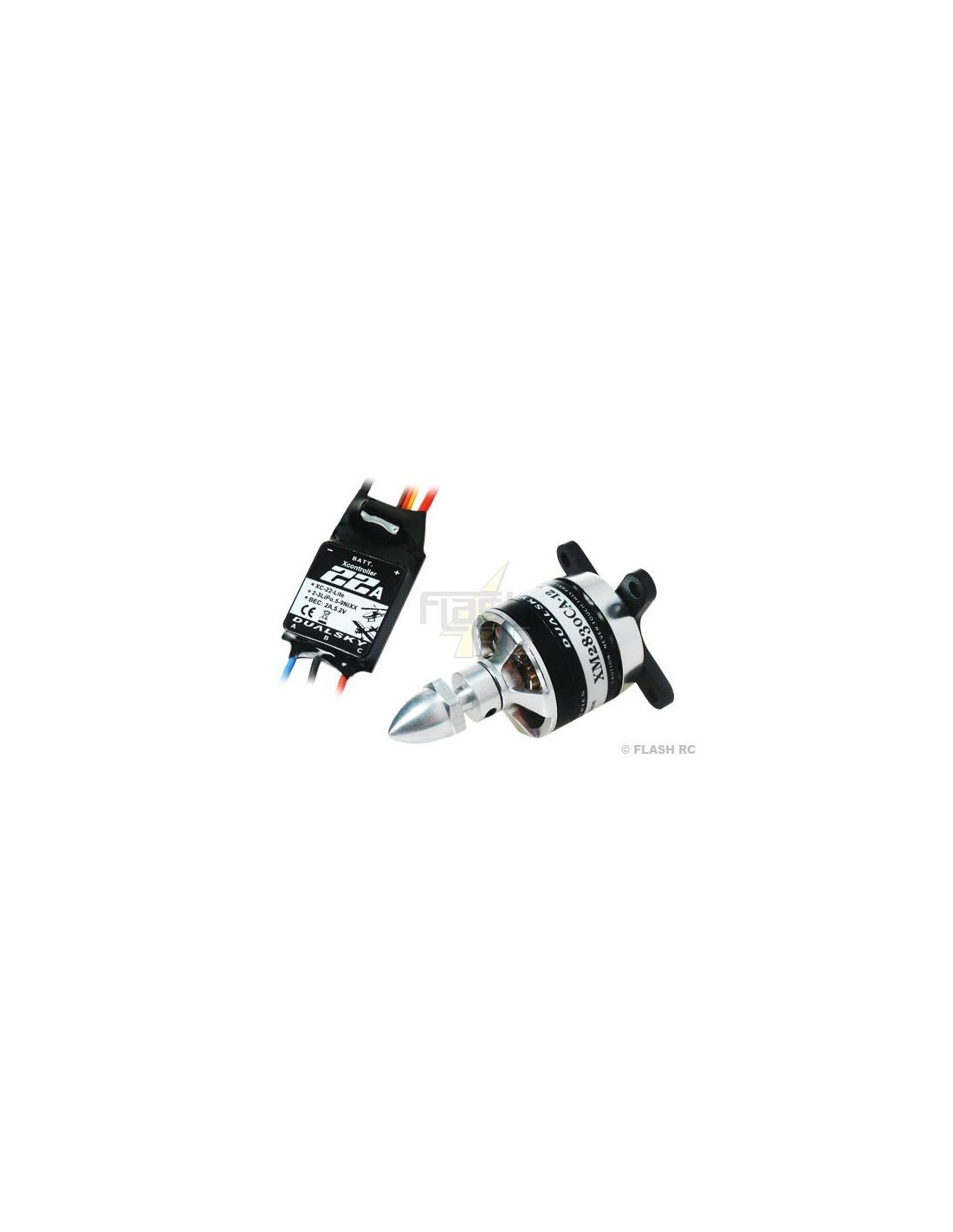

Combo ECO 2312C V2 960kv (58g, 258W) + 22A Lite Controller

Last items in stock
€33.33
Tax included
This motor+controller combo is suitable for aerobatic aircraft up to 0.48Kg and 3D models up to 0.32Kg.

custom html
you can configure this block in iqithtmlbanners module. It is hooked in displayRightColumnProduct hook.

To disable entire area go to iqitthemeeditor module > Content/Pages > Product page and set hidden for Right sidebar option


Technical data of the motor

  • KV: 960RPM/V
  • Weight: 58g
  • Diameter: 27.5mm
  • Length: 28mm
  • Shaft diameter: 3.2mm
  • No load current (Io) @10V: 0.77A
  • Internal resistance (Ri): 132mOhm
  • Peak current consumption [15s]: 17A
  • Peak power [15s]: 258W
  • Recommended propeller: 2S LiPo, 10x5 - 3S LiPo, 9x4.7

Technical data of the controller

  • Dimensions: 47x 26x 7mm
  • Weight: 22g
  • Supply voltage: NiXX 5-9, 6-10.8V, LiPo 2-3, 7.4-11.1V
  • Internal resistance (Ri)(Ohm): 0.0082
  • Max. current & Max. power 22A, 244W
  • Max. peak current & max. peak power: 30A, 333W
  • BEC (linear): 5.2V/2A
  • Programmable: with the motor handle or with the ProgCARD V2
  • Receiver wire: 180MM JR


Motor power in Watts
258
Revs/ minute Kv
960
016-TC.3A.400
6941047191044
6941047191044
