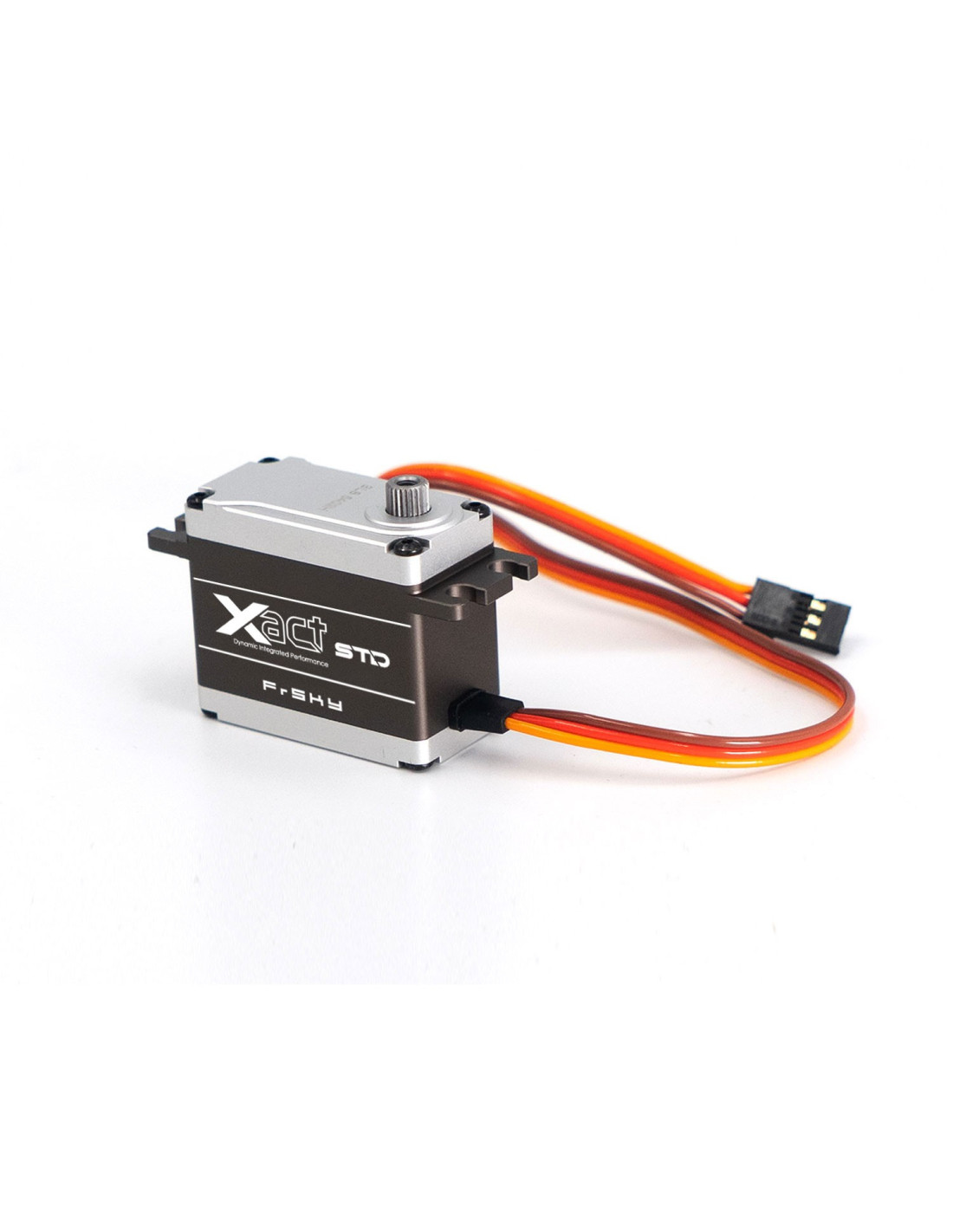

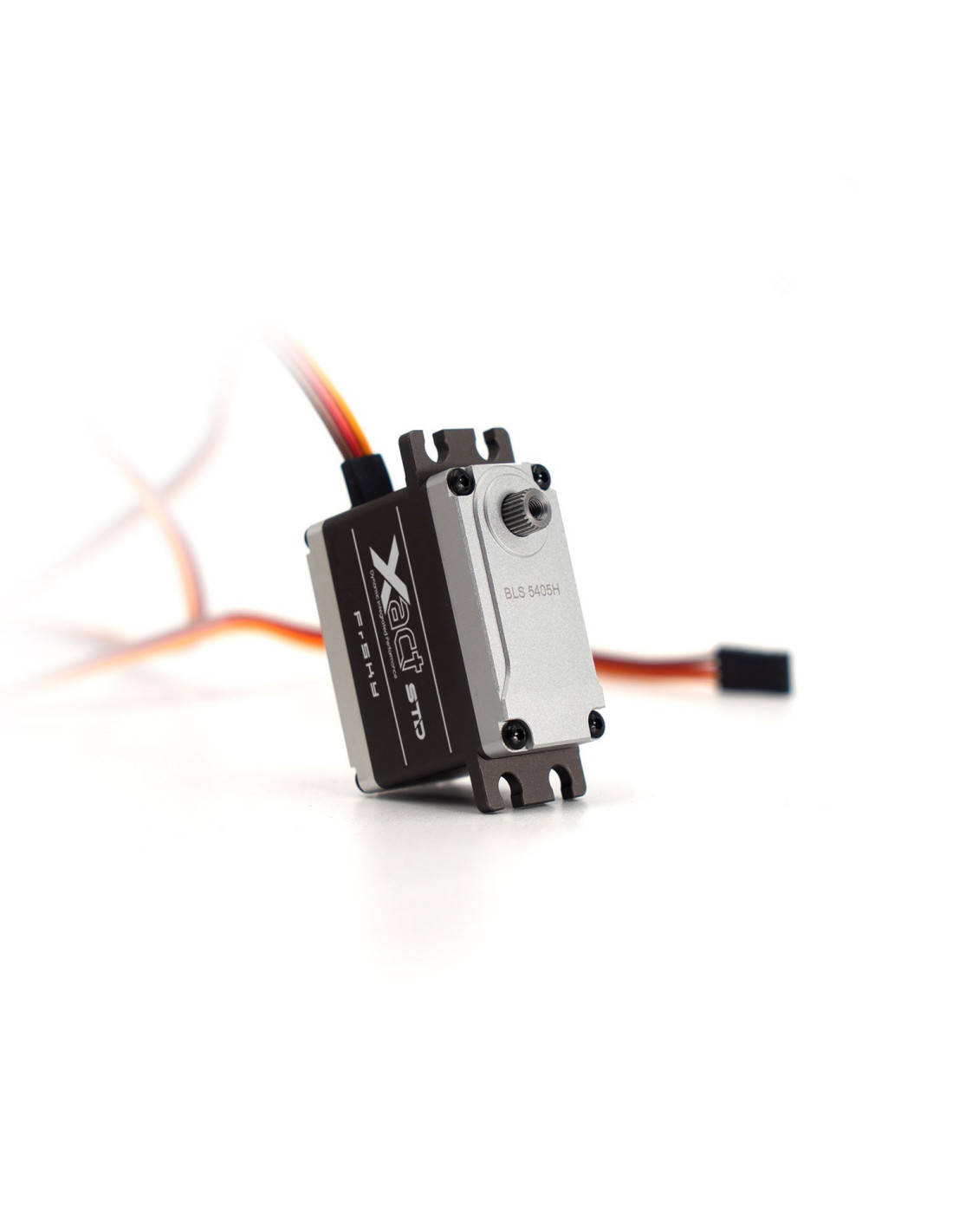

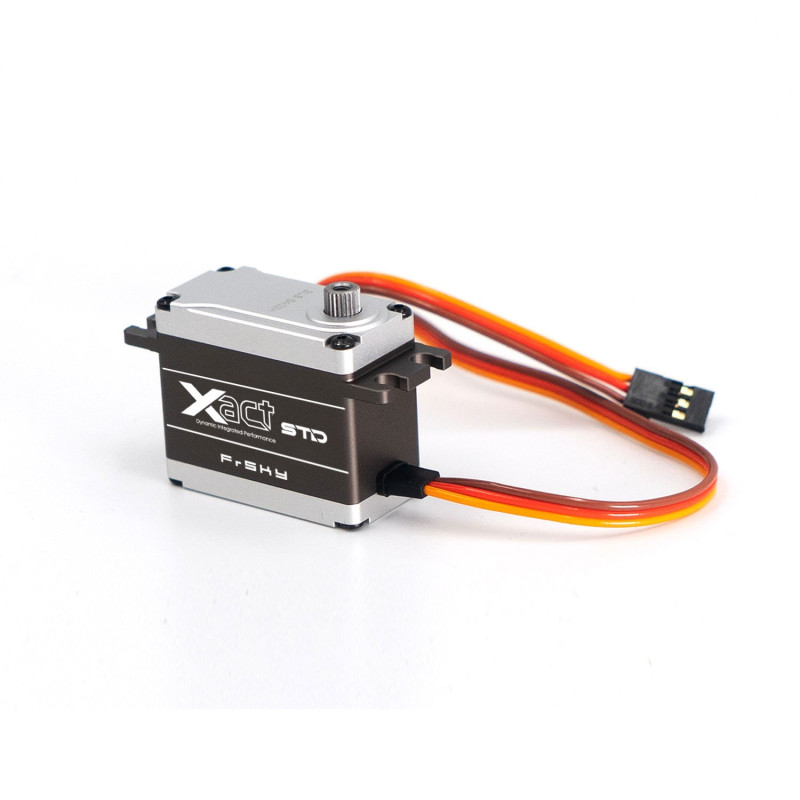

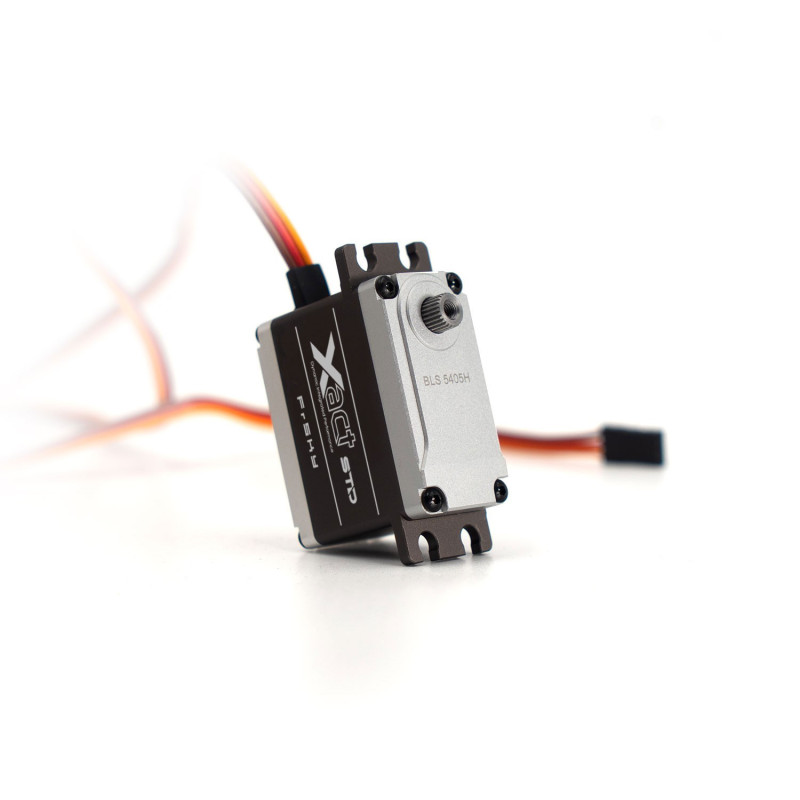

BLS5402H Xact STD 8.4V 38.3kg Coreless Servo

Out-of-Stock
€72.49
Tax included

The Xact Series coreless servos use a fully CNC machined aluminum protective housing and benefit from metal gears. These high voltage servos are capable of handling up to 8.4V and offer high performance in terms of speed and torque. The Xact series servos fit many different types of models, especially when power, reliability and accuracy are required.

These high-quality servos support the FBUS protocol, which allows telemetry data (such as real-time current, voltage, temperature, etc.) from Xact servos to be transmitted to the radio by connecting an FBUS-compatible receiver or flight controller. The Xact servos offer a configurable travel (90° / 120° / 180°). Servo travel and other options are now available for adjustment via the ETHOS Xact configuration tool or the Freelink application.


custom html
you can configure this block in iqithtmlbanners module. It is hooked in displayRightColumnProduct hook.

To disable entire area go to iqitthemeeditor module > Content/Pages > Product page and set hidden for Right sidebar option

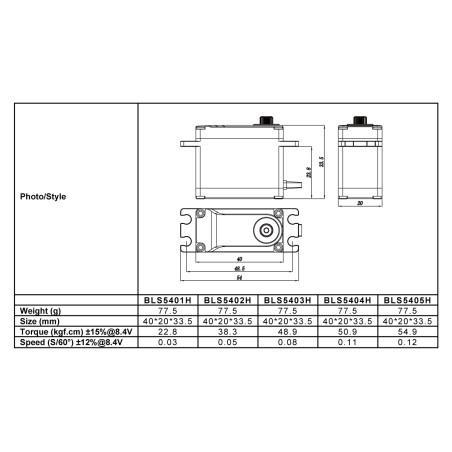

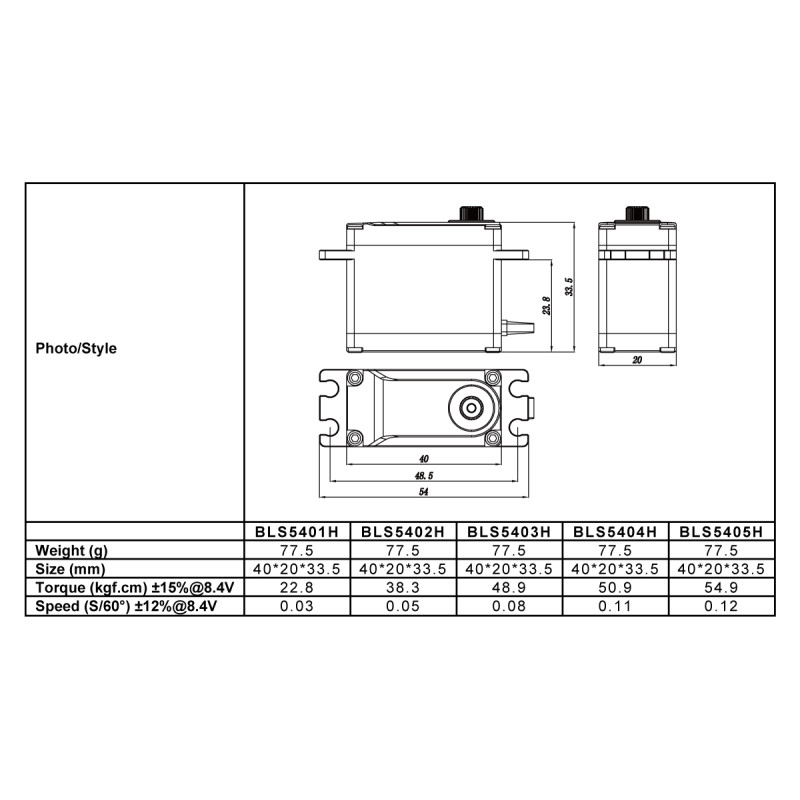

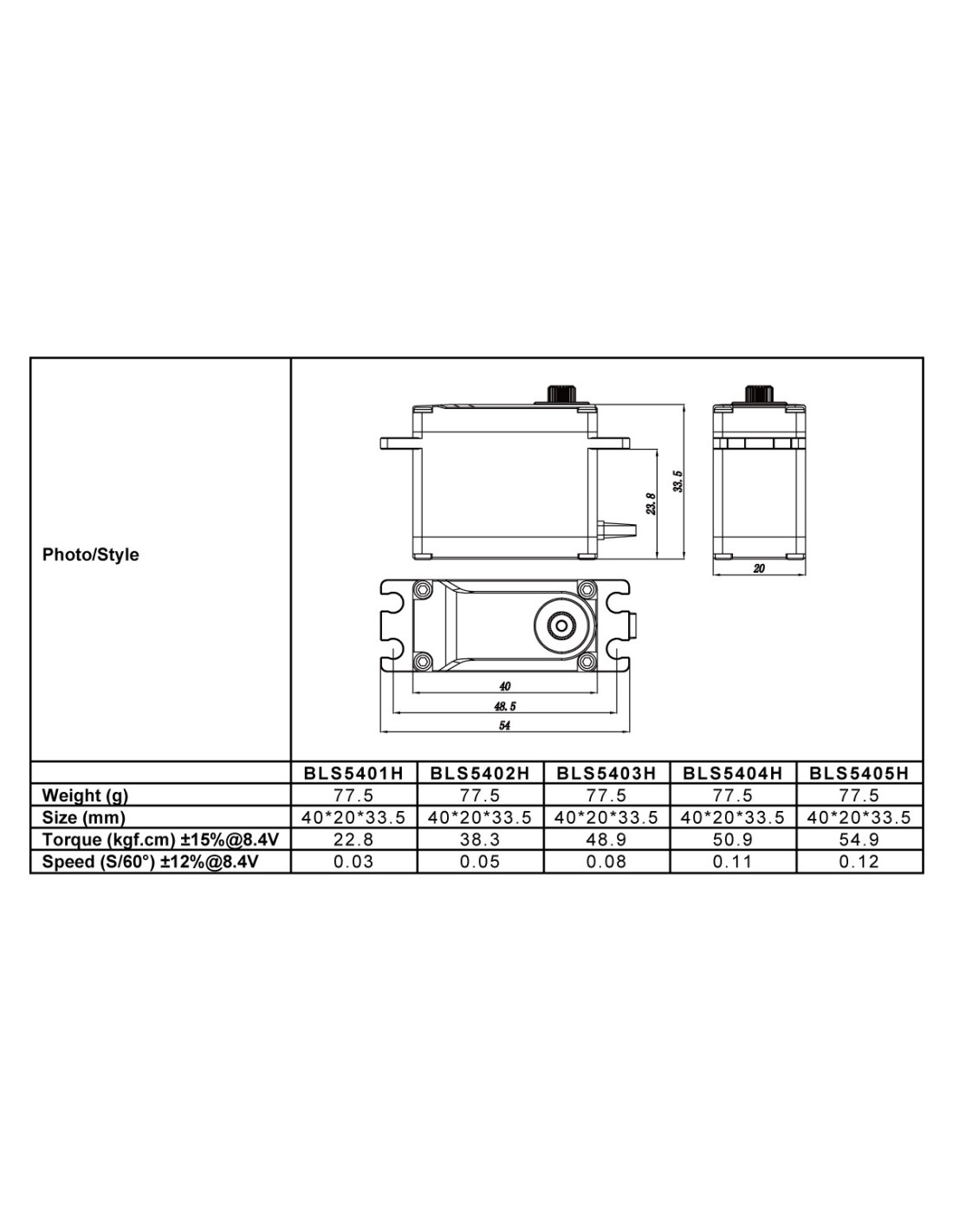

Dimension: 40*20*33.5mm (L*W*H)

Weight: 77.5g

Dentition: 25T

Power supply voltage: 4.8-8.4V

Frequency: 333Hz

Torque: 28Kg at 6.0V 34.4Kg at 7.0V 38.3Kg at 8.4V

Speed: 0.07s/60° under 6.0V 0.06s/60° under 7.0V 0.05s/60° under 8.4V

Sprockets: metal

Thickness in mm (Servos)
20
Torque in kg.cm (servos)
38
Speed sec / 60° (servos)
0.05
Pinions (servos)
Metal
Technology (sevos)
Digital
HV (servos)
yes
Weight in g (servos)
78
