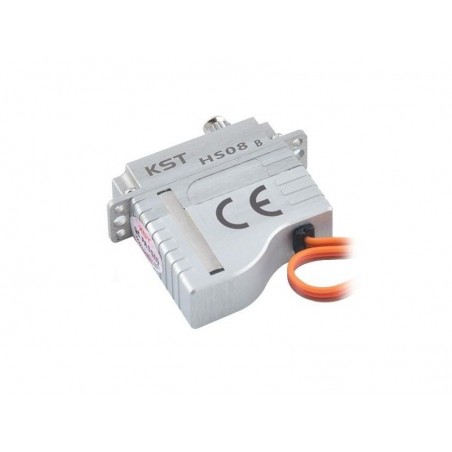

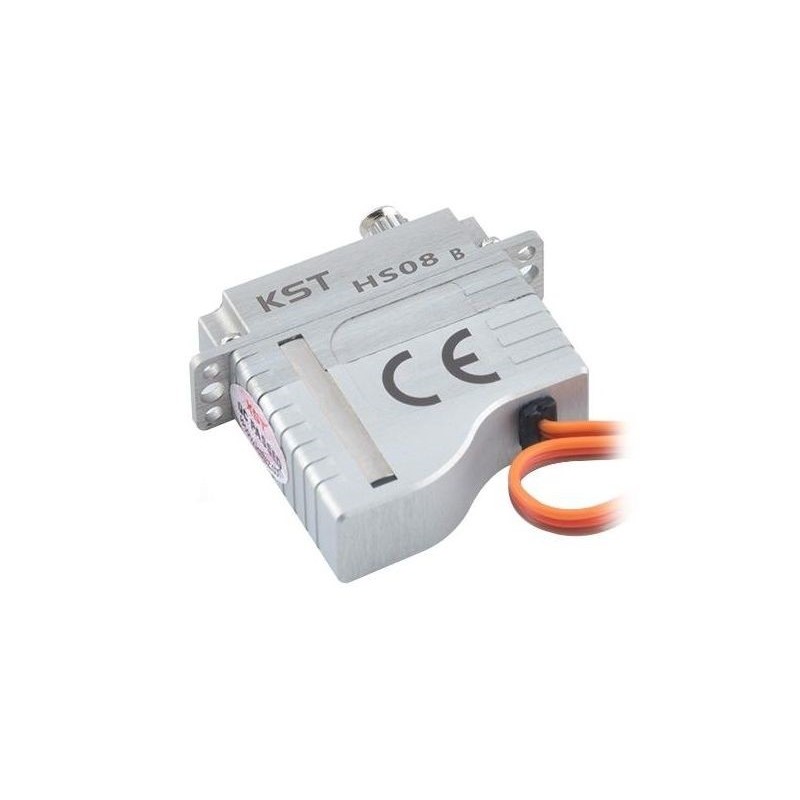

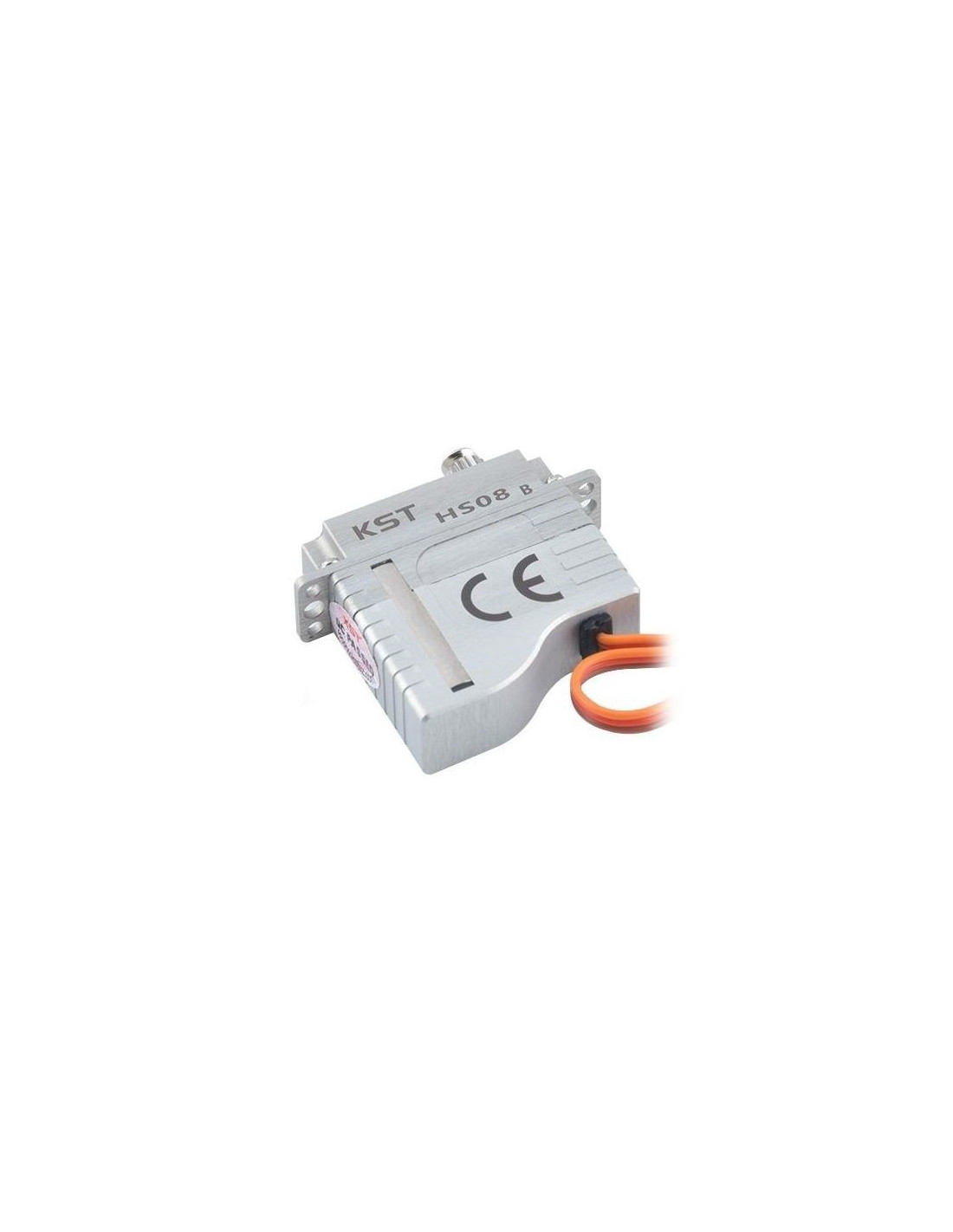

KST HS08B MG HV Micro Servo (8g, 5.2kg.cm, 0.11s/60°)

KST HS08B Features

Compact and lightweight design
Excellent torque and speed
Wide voltage range 1S to 2S
Designed for high performance RC gliders
Excellent heat dissipation
Ultra thin 8mm body
Alloy 7075 housing
Hardened steel gears

Specifications KST HS08B

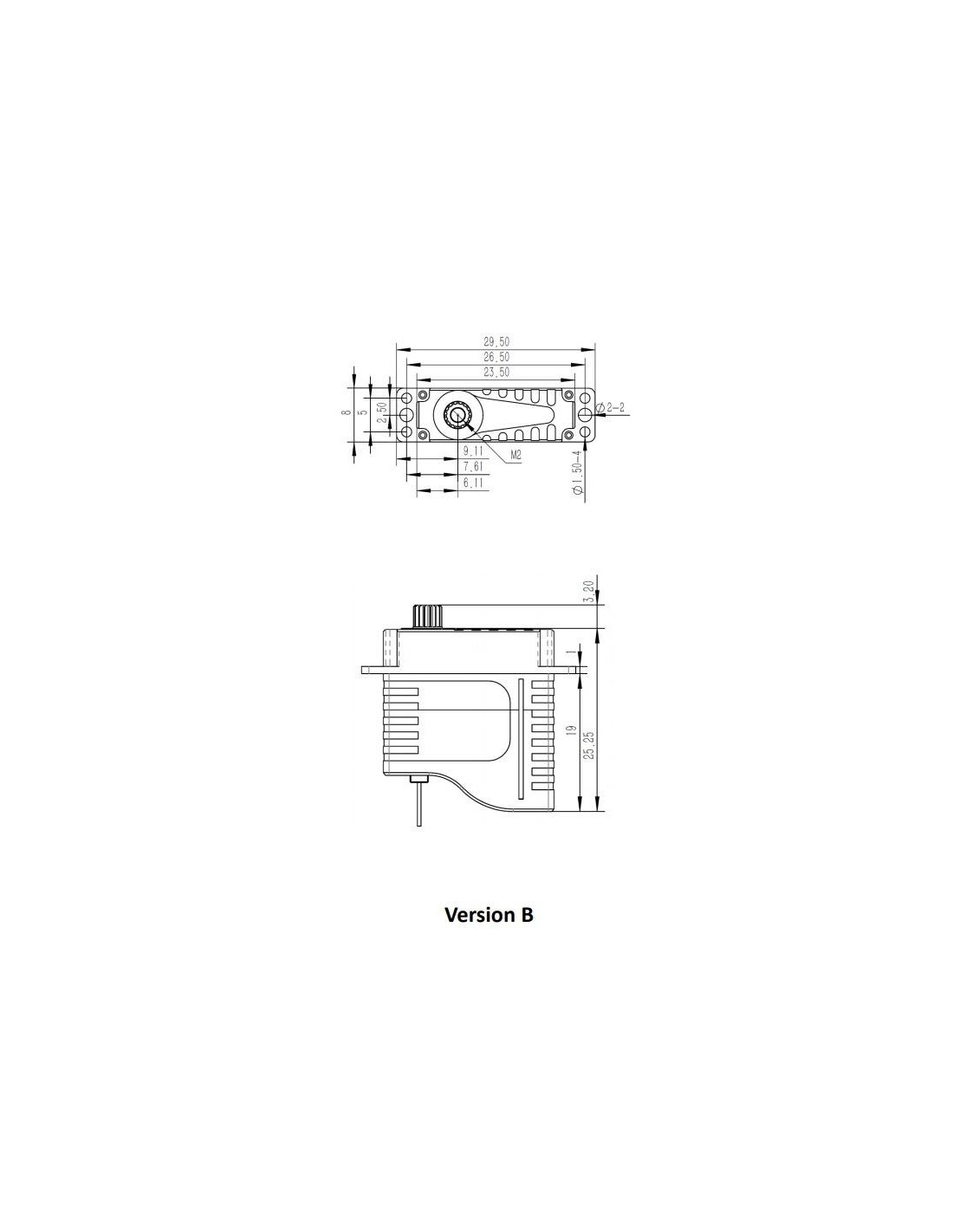

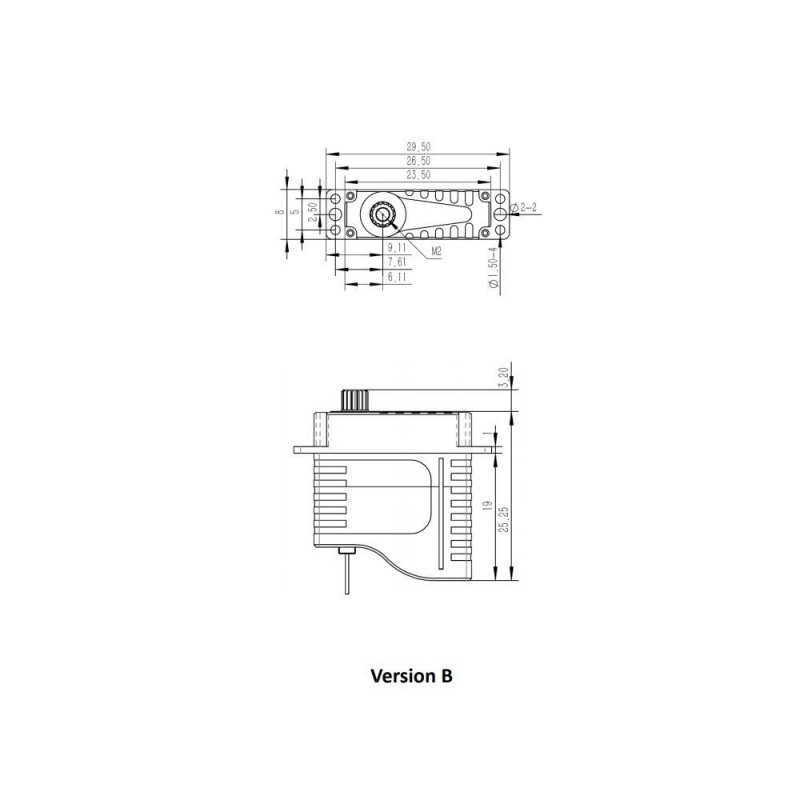

Body dimensions: 23.5 mm wide x 8.0 mm thick x 25.3 mm high
Maximum dimensions: 29.5 mm wide x 8.0 mm thick x 29.0 mm high
Stall torque (3.8 V): 2.8 Kg.cm
Stall torque (6V): 4.5 Kg.cm
Stall torque (7.4 V): 5.2 Kg.cm
Weight : 11 g
Cable length : 15 cm
Operating speed (3,8 V) : 0,21 sec / 60 °
Operating speed (6V) : 0,13 sec / 60 °
Operating speed (7,4 V) : 0,11 sec / 60 °
Operating voltage : 3,8 V to 8,4 V
Operating temperature -20 to +65 ° C
Bearings : 2 ball bearings
Gear material: Hardened steel
Housing material: Aluminum alloy 7075
Motor type: Coreless motor
Pulse width for ± 60º 1000 - 2000 µs
Digital: Yes

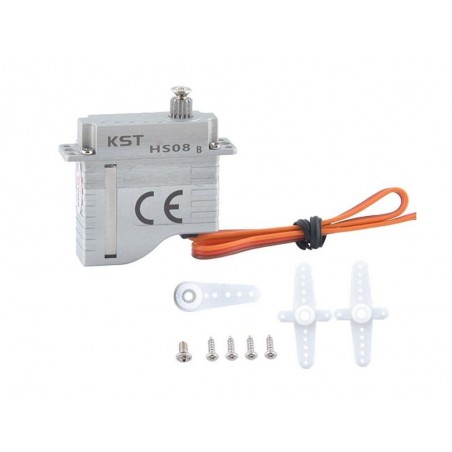

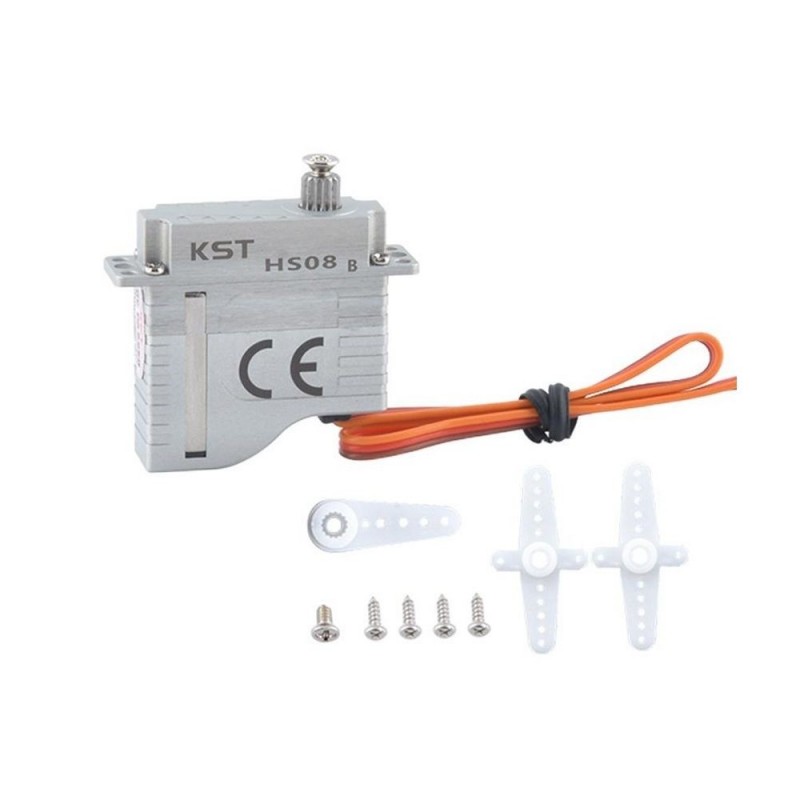

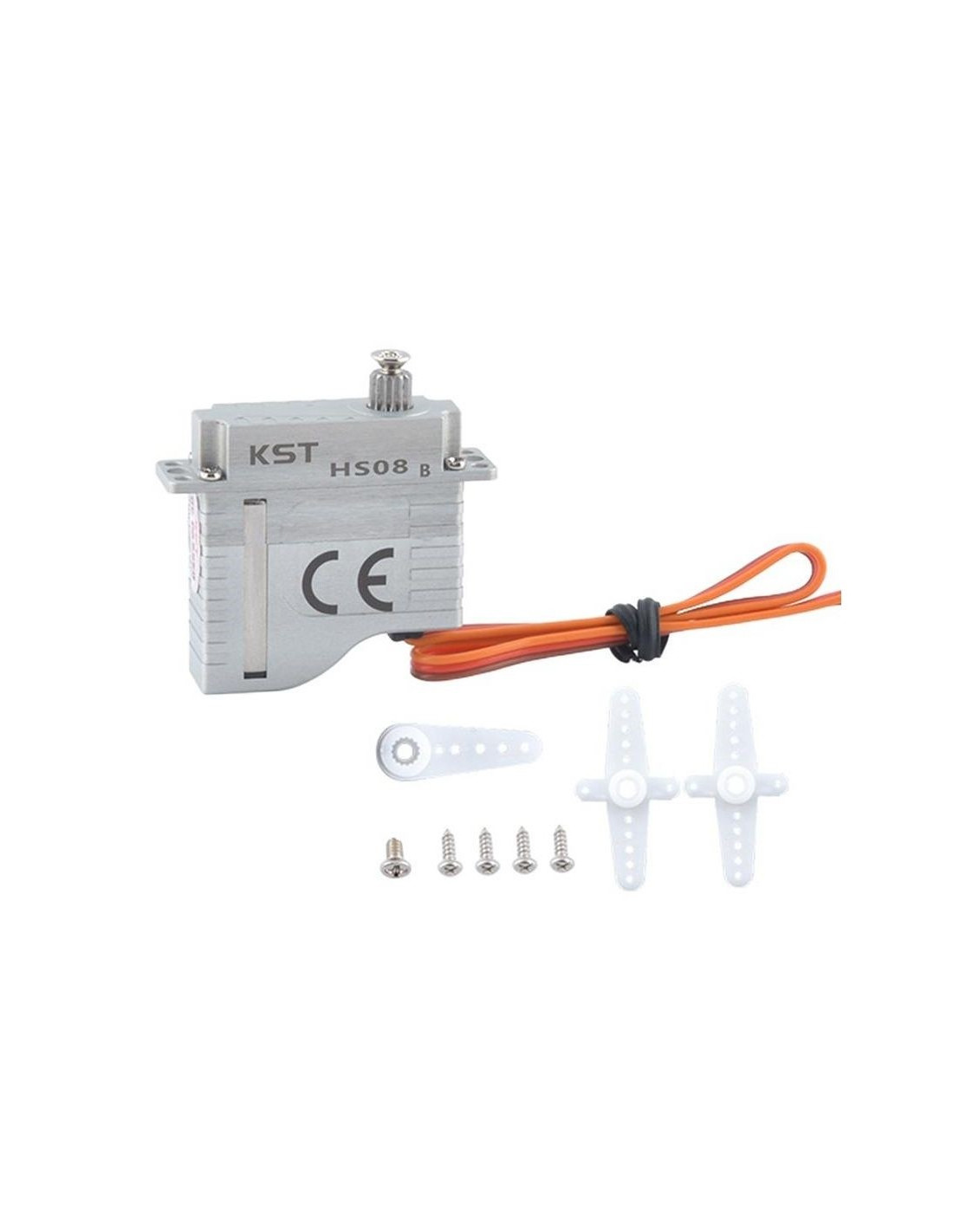

Supplied accessories: 3 output arms, 1 arm fixing screw, 4 mounting screws
