Priority for 3D Airplane, Large Jet & 1/8th Buggy, Truggy, Crawler, Monster & Helicopter. (EP / Gas / Nitro)
Specifications :
Torque At 6.0V 27.3 kg-cm / 379.2 oz-in
Torque At 7.4V 33.7 kg-cm / 468.1 oz-in
Torque At 8.4V 38.4 kg-cm / 533.4 oz-in
Speed At 6.0V 0.11 sec / 60°
Speed At 7.4V 0.09 sec / 60°
Speed At 8.4V 0.08 sec / 60°
Protection Mechanism :
-Soft Start Protection Soft start to a neutral position.
-Over Voltage Protection Over 9.0V drive the protection mode and 8.4V return to normal mode.
-Low Voltage Protection Lower than 4.0V, drive the protection mode and 4.5V return to normal mode.
-Locked Rotor Protection Stall in 5 sec, output torque goes down.
-Temperature Protection Overheat 85 degrees C (185 degrees F), drive the protection mode and down 75 degrees C (167 degrees F) return to normal mode.
-Lose Control Protection When losing the transmitter signal, that servo will be back to the neutral position immediately and lock.
Power Supply :
Operating Voltage Range 4.5V ~ 8.5V ( 4 ~ 6 Cell Ni-MH or 2S Li-Poly / 2S Li-Fe)
Control Specification :
Control System Digital Controller / AD 12-Bits Resolution ( 4096 Steps )
Frequency：Up to 333Hz / Neutral：1500us or 1520us
Dead Band Width 0.001ms ( Default：1us)
Mechanical Specifications :
Ball Bearing Dual
Gear All Steel Alloy Metal Gears
Motor High Premium Coreless Motor
Horn / Gear Spline 25 Teeth ( Same as F-Type )
Physical Specifications :

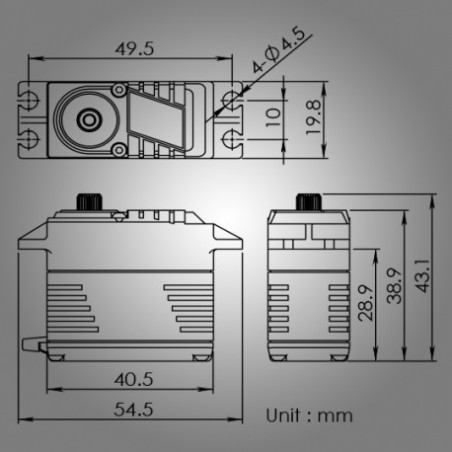

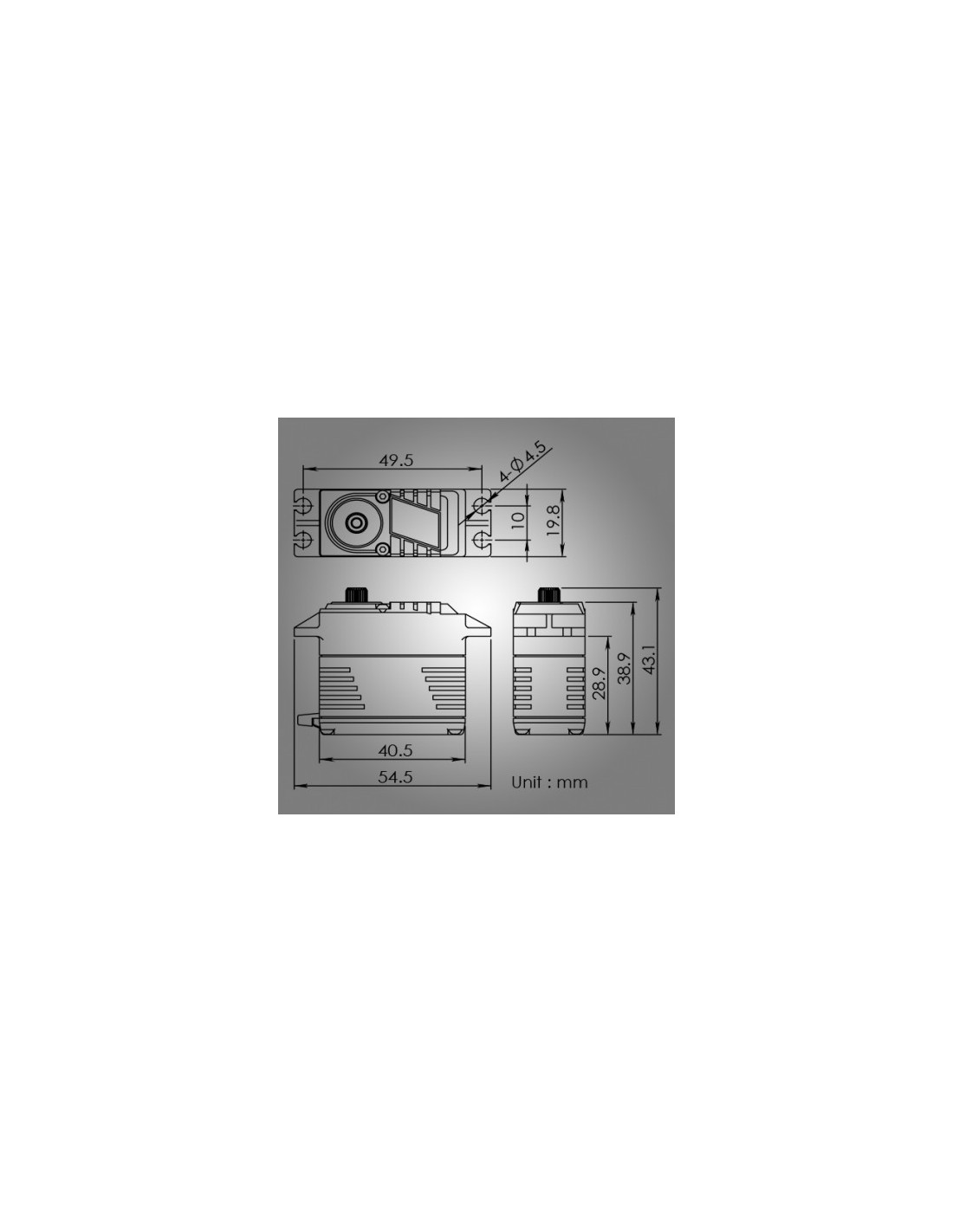

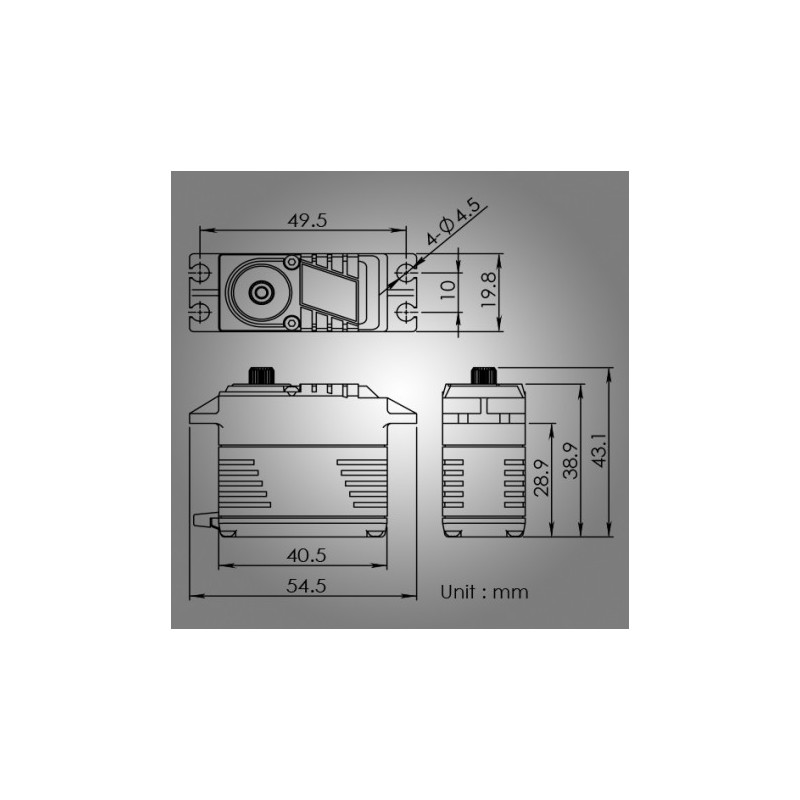

Dimension (mm) 40.5 x 20 x 39 mm / 1.59 x 0.79 x 1.54 in
Weight (gram) 66.0 ± 1 grams / 2.33 oz
