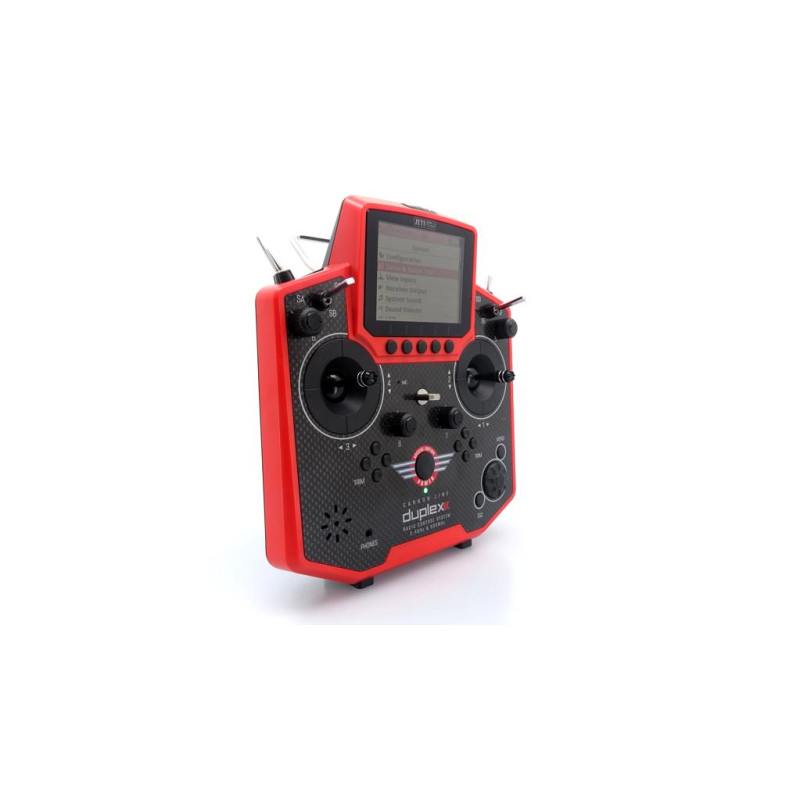

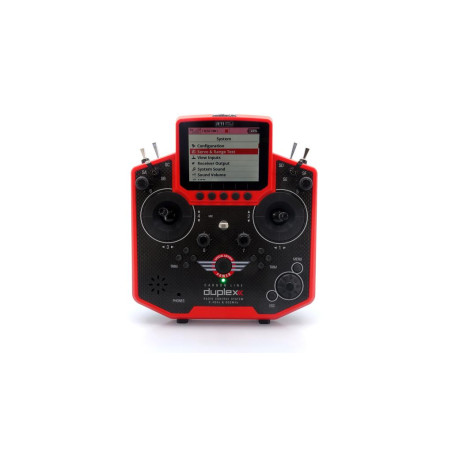

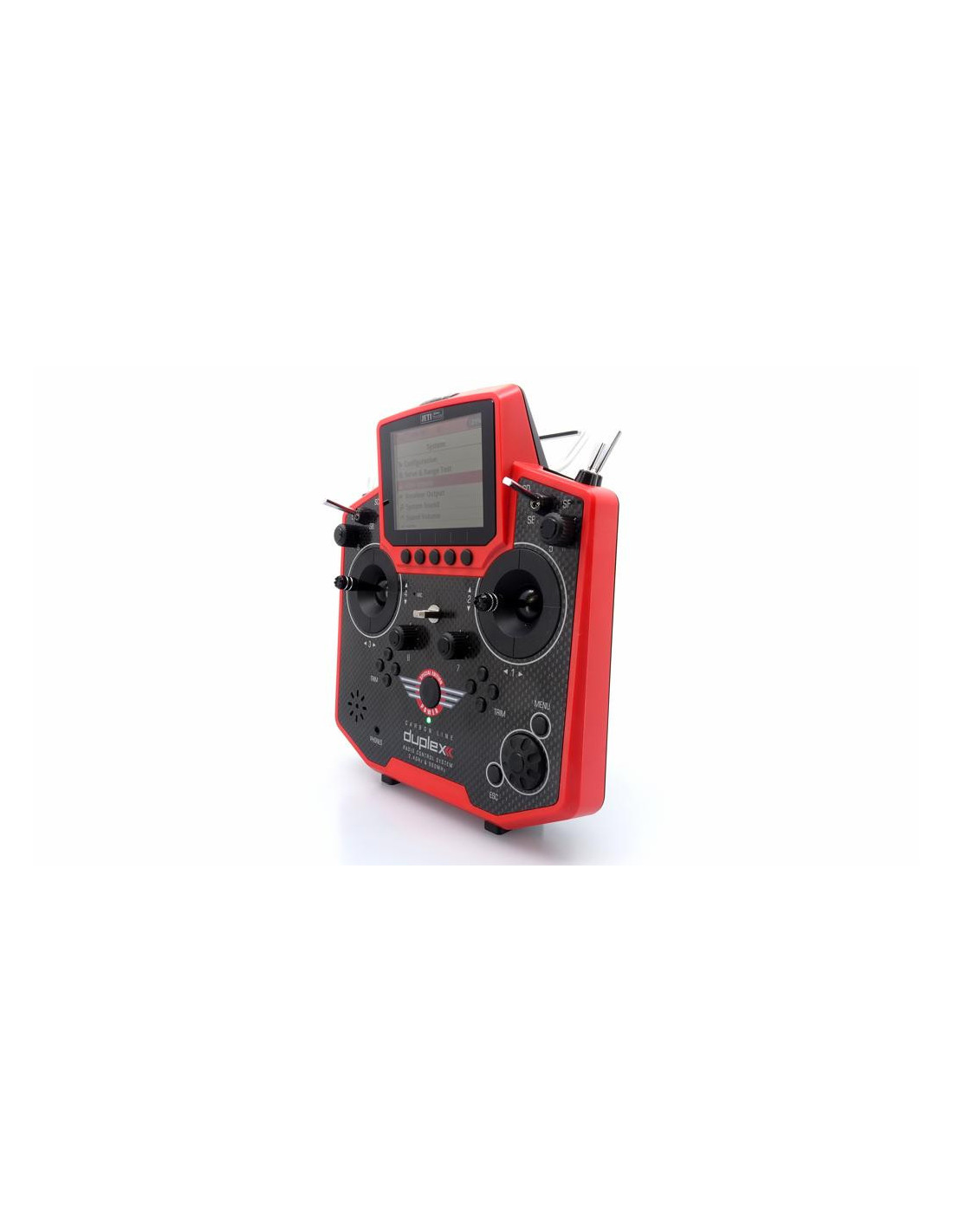

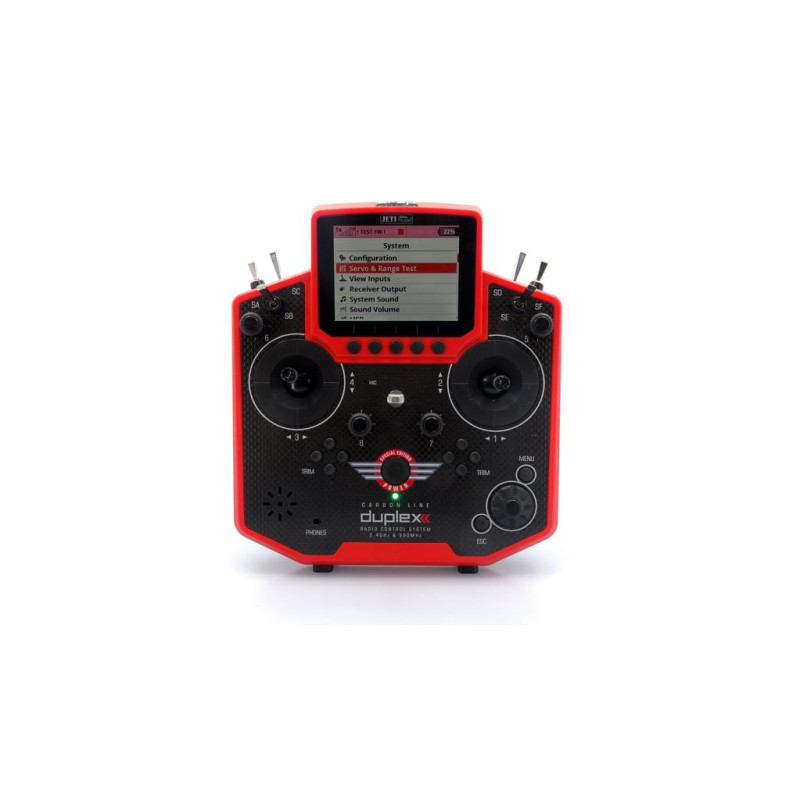

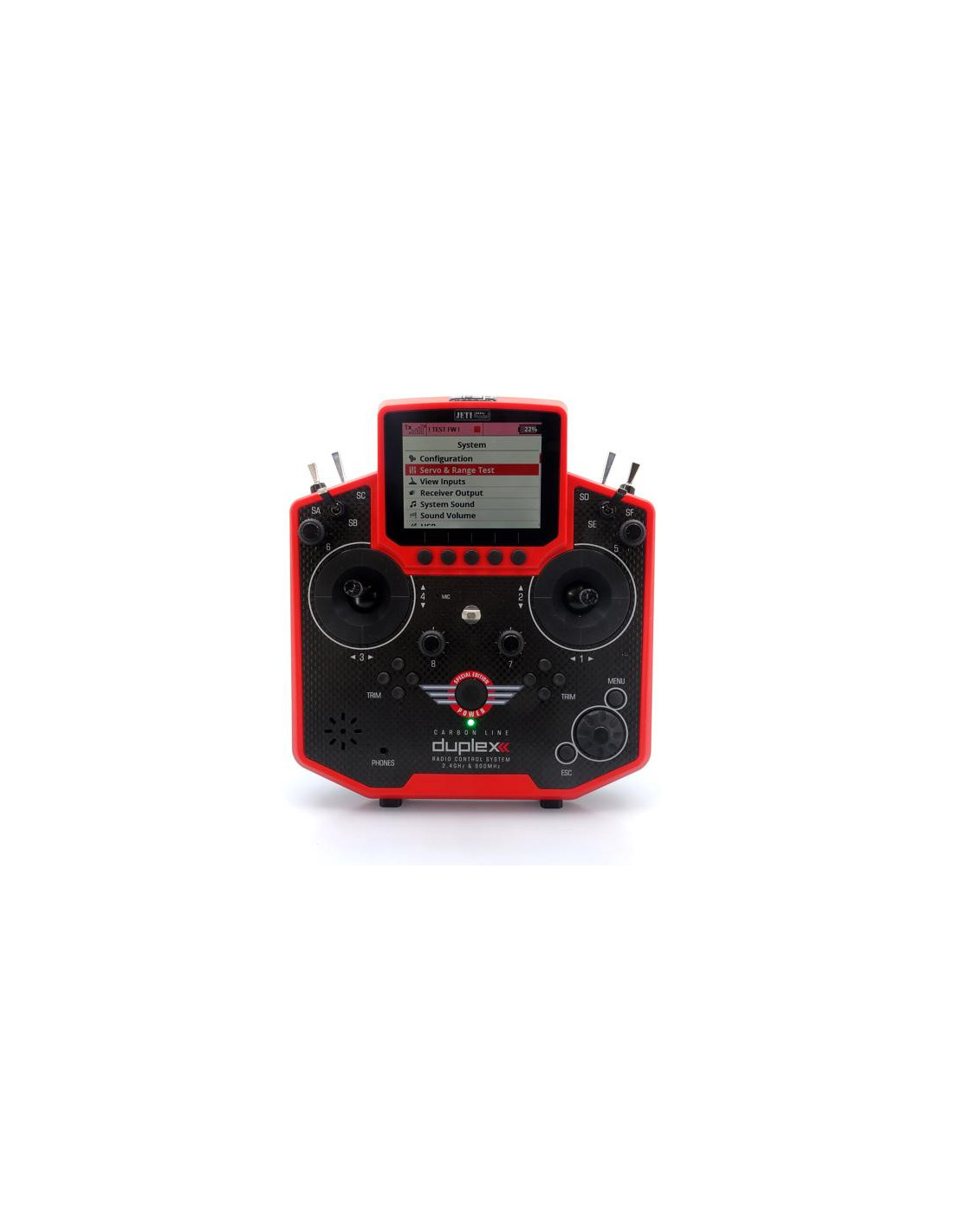

New DS12 Carbon Rouge Special Edition 2023 !

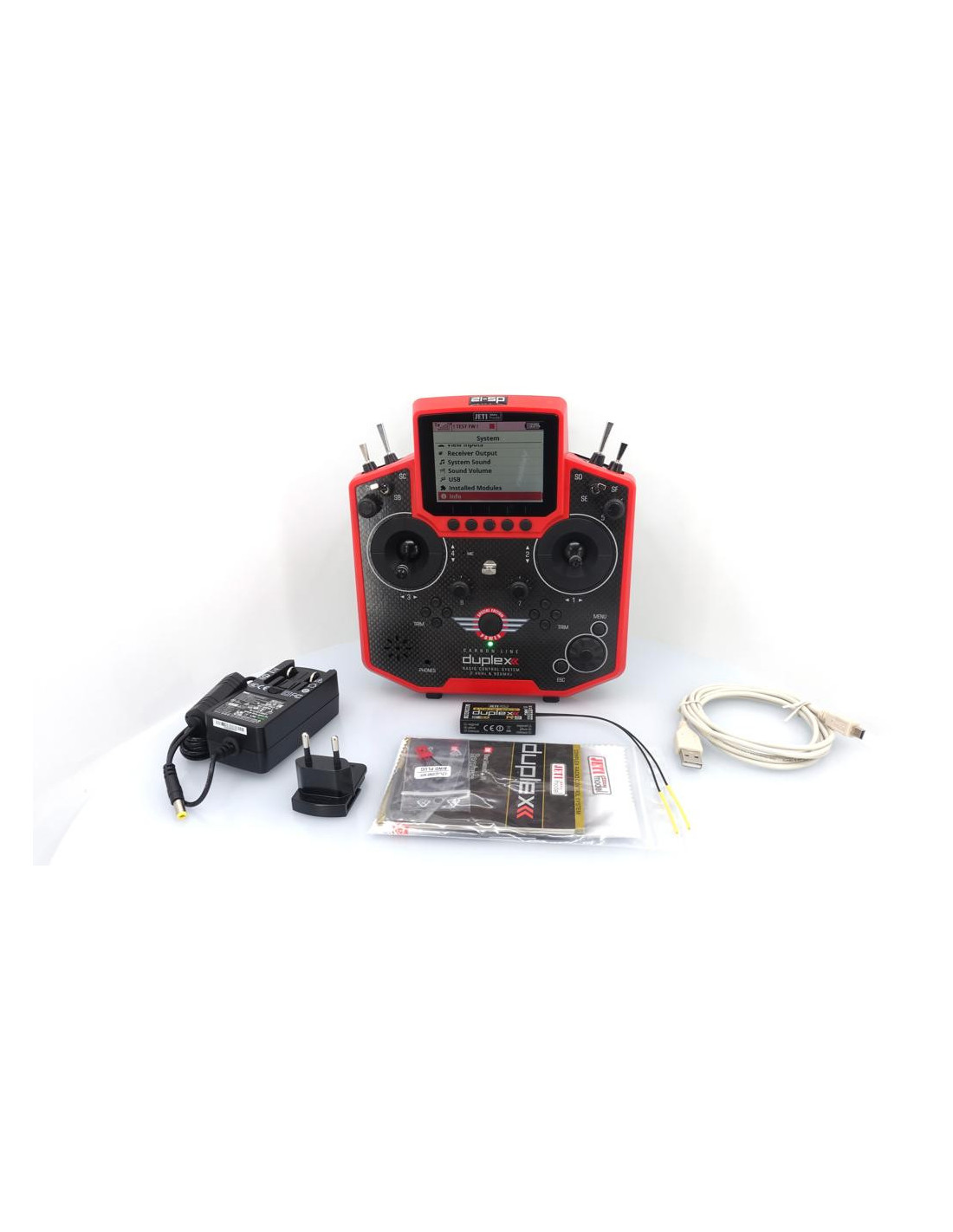

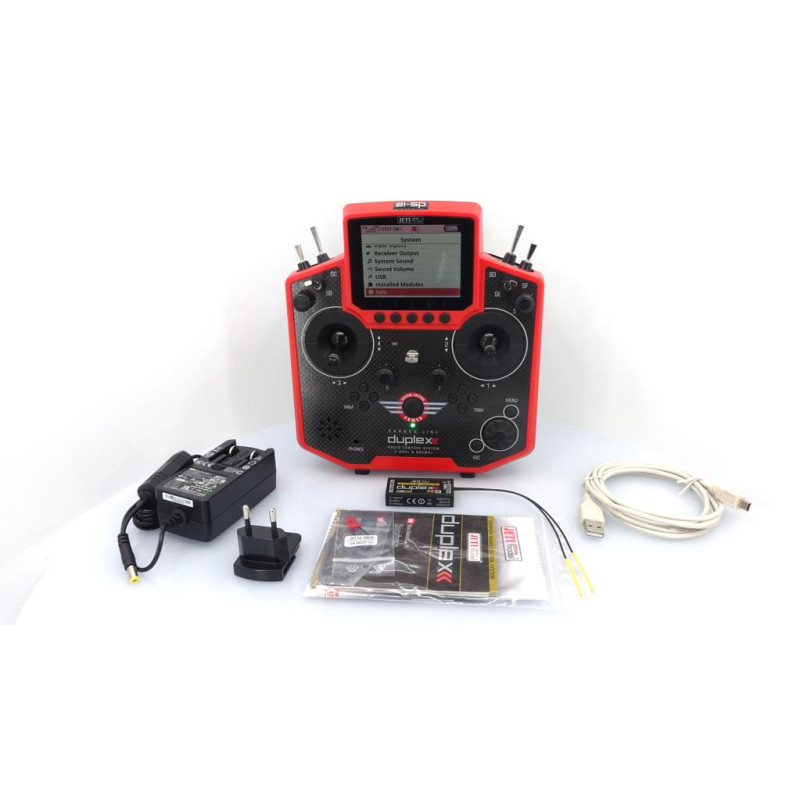

Carbon front panel, new limited Red color, delivered from factory with R9 receiver and aluminium case !
The DS-12 has 8 functional channels, but it is upgradeable to 16 channels. Other points of the original software can be updated to extend the functionality of the radio according to your needs.

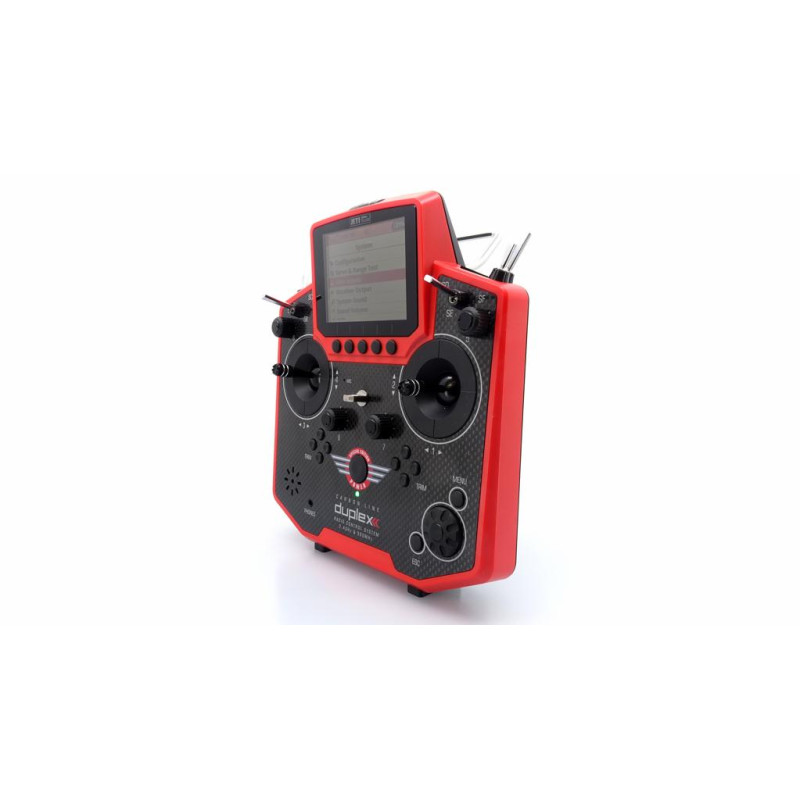

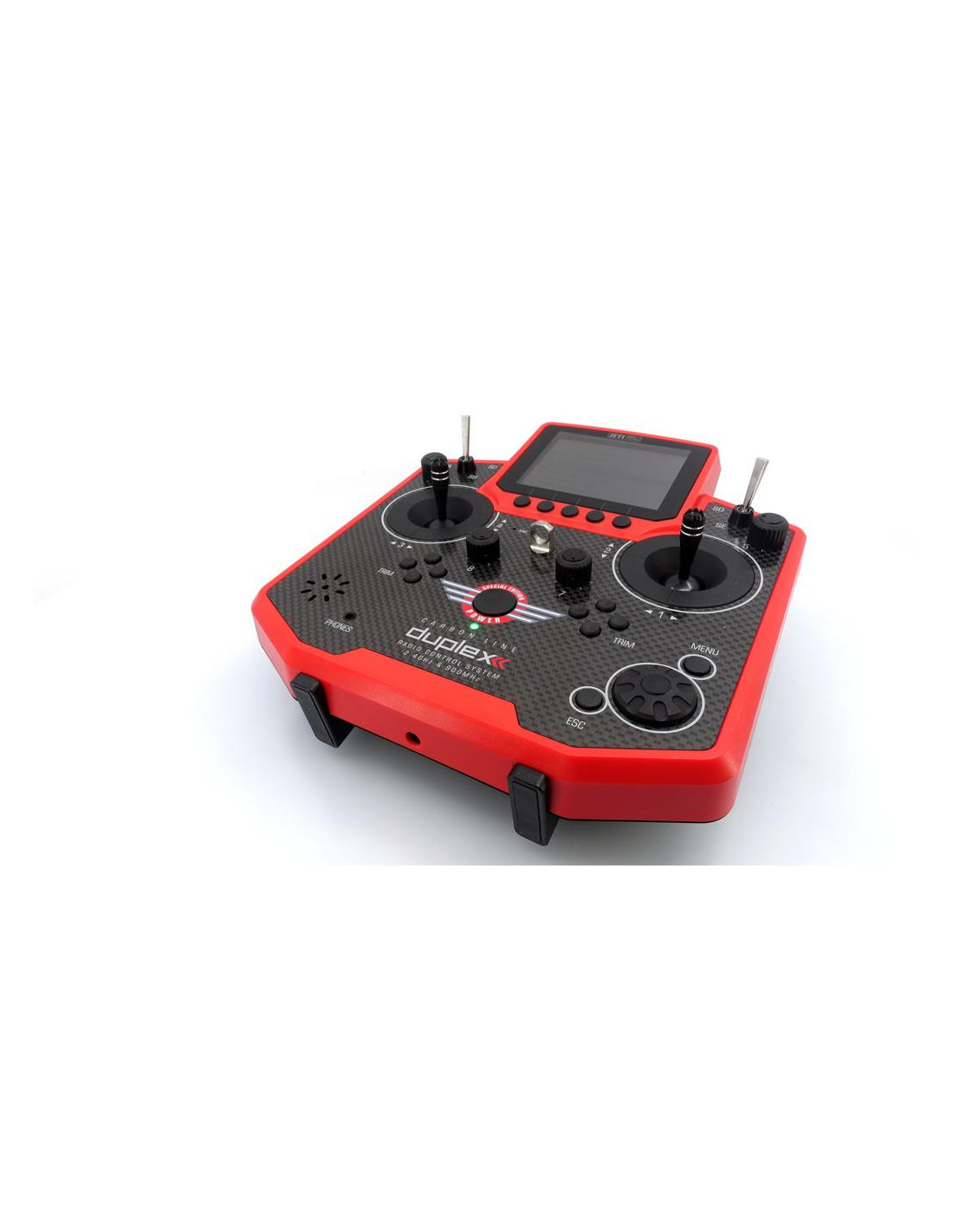

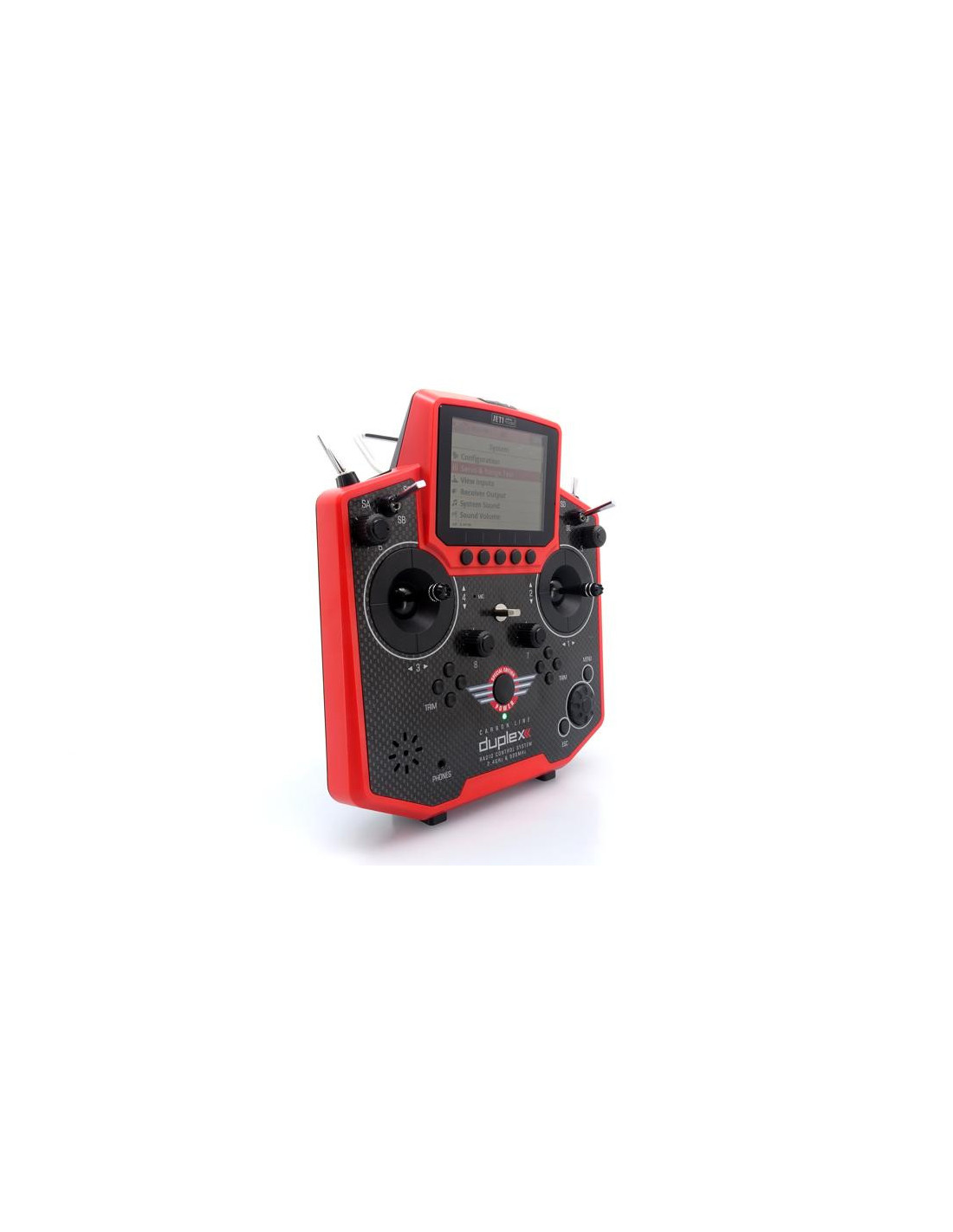

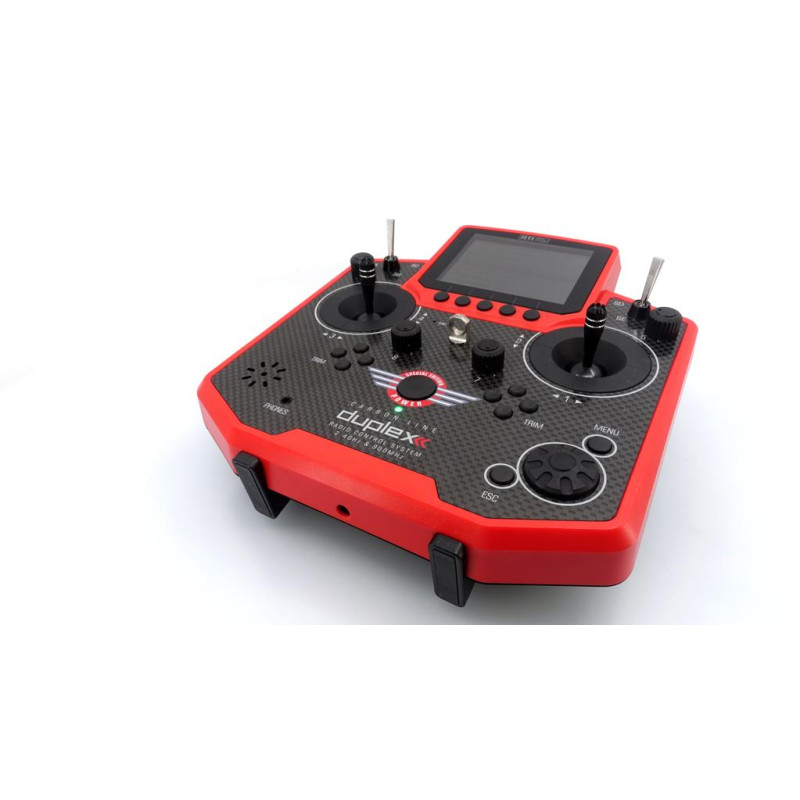

The special edition DS-12 transmitter has a carbon front panel. This transmitter is RED in color and will come standard in a DUPLEX aluminum housing and with an R9 receiver.
Special Edition Modifications:
- DS-12 transmitter in RED color

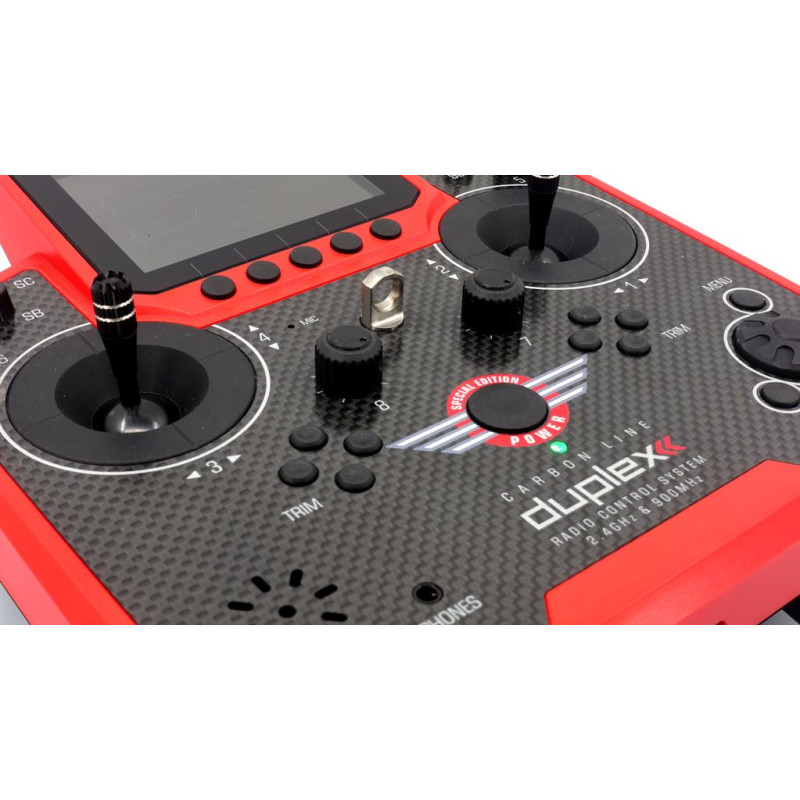

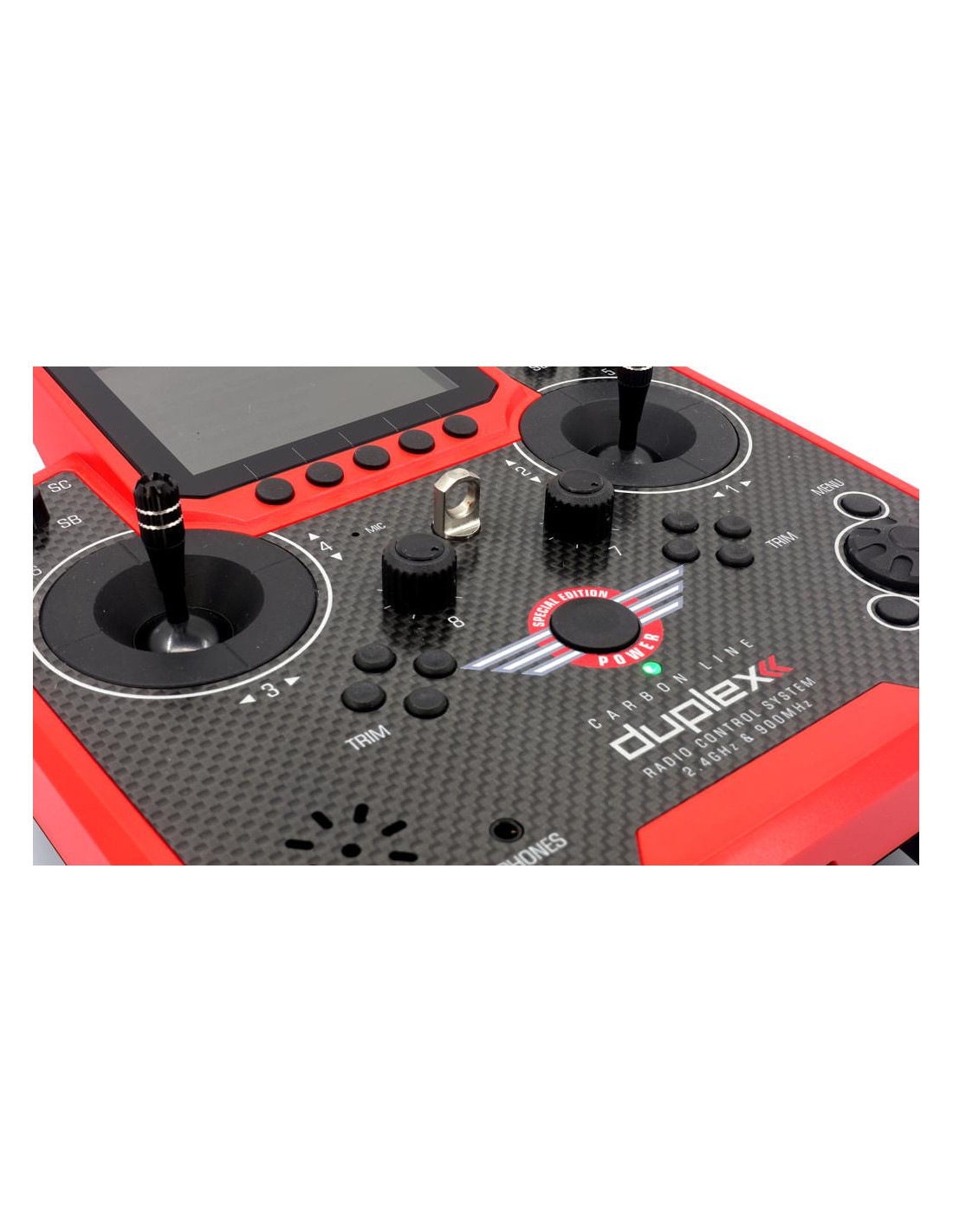

- Carbon faceplate

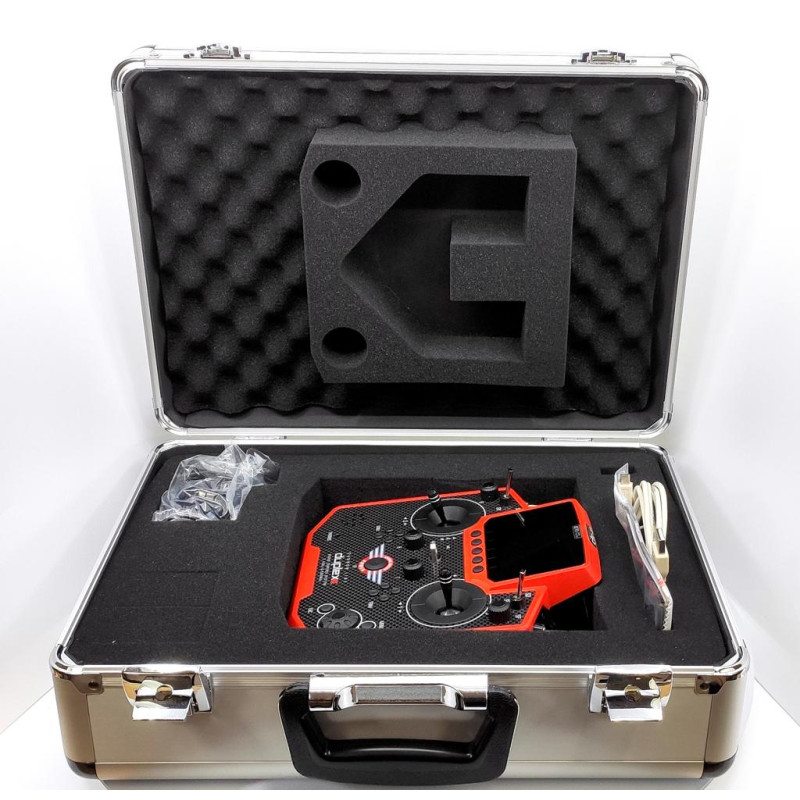

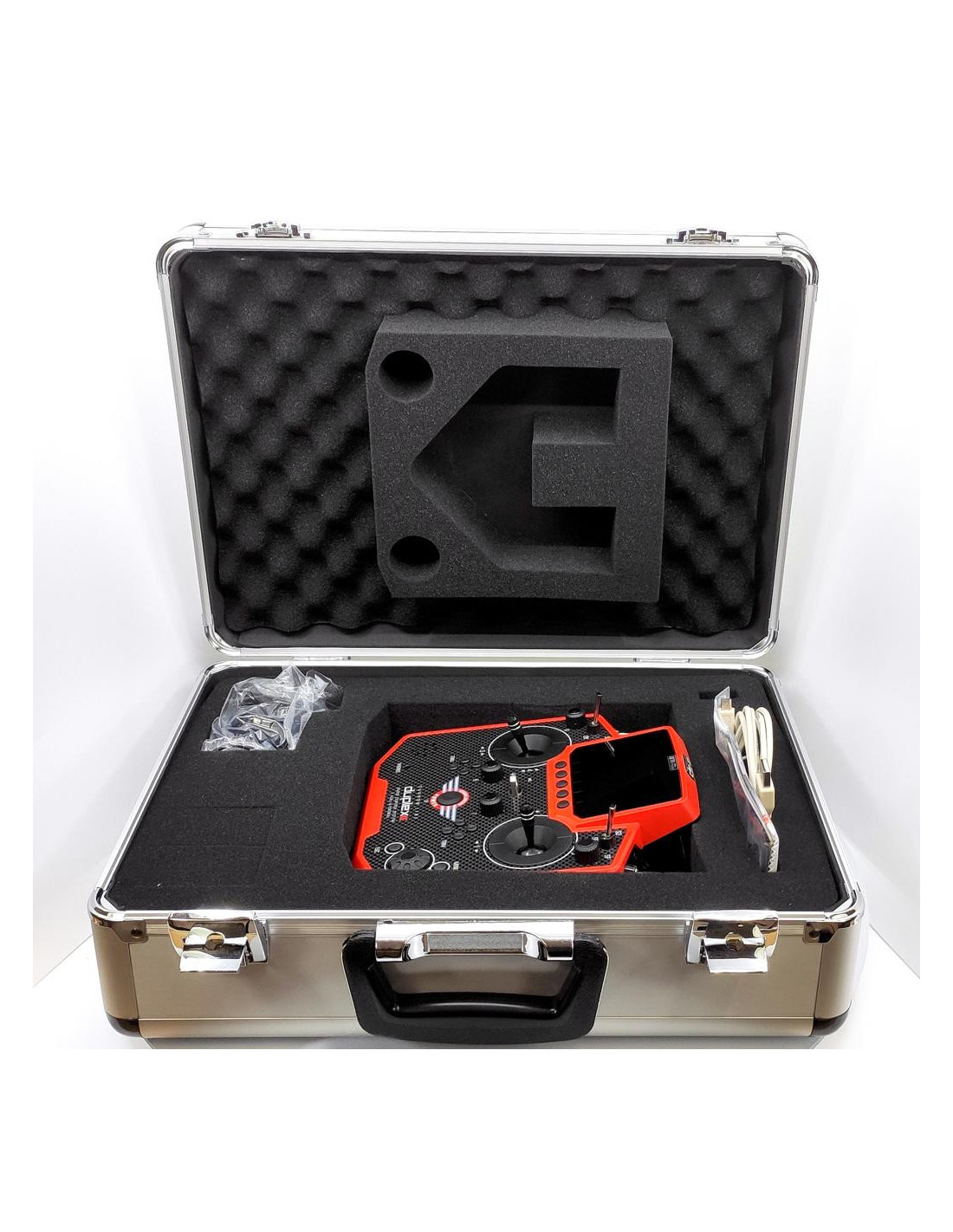

- DUPLEX aluminum housing
- R9 receiver
| Weight [g] | 700 |
|---|---|
| Transmitter aluminum housing | Yes |
| Transmitter battery (mAh) | 6200 |
| Backlit LCD | 3.5 |
| Memory, SD card | 8 GB |
| Gimbal/Vibration Hall Sensors | Yes / Yes (not included with joystick) |
| Stick resolution | 4096 |
| Transmitter frame | Plastic/carbon front panel |
| Gimbals and buttons | Plastic |
| Number of antennas 2.4GHz/900MHz | 2 / 1 |
| RF modules 2.4GHz/900MHz | 1 / 1 (new generation) 863 - 870 MHz (EU), 902 - 928 MHz (US) |
| Control inputs (stick/switch/button) | 14 |
| Dimensions [mm] | 194 × 215 × 55 |
| Output power - 2.4 GHz [mW] | 100 |
| Operating temperature [°C] | -10 à +60 |
| Channels | 8 (up to 16) |
| Control inputs (stick/switch/button) | 14 |
| 900 MHz backup module | (upgradeable) |
| Flight modes | 3 (up to 6) |
| Free mixes | 5 (up to 20) |
| Data graphs | (upgradeable) |
| Audio player | (upgradeable) |
| Logic switches | 0 (up to 16) |
| Number of remote controls | 0 (up to 16) |
| Servo sequencer | 0 (up to 6) |
| Timers | 3 (up to 10) |
| Displayed telemetry values | 10 (up to 40) |
| Sound on events | 5 (up to 20) |
| Alarms | 10 (up to 40) |
| Vibration alarms | (scalable) |
| Voice output | (upgradeable) |
| MP3 PLAYER | Active |
| Microphone | Active |
| Gyroscope settings | 1 (up to 3) |
| Servo balancer | (scalable) |
| Function curves | (scalable) |
| Gas limiter (heli) | (evolutionary) |
| Variometer | (evolutive) |
| Flight mode trim | Active |
| Data flow logging | 80 |
| Telemetry commands | 0 (up to 16) |
| Voice commands | 0 (up to 15) |
| Lua applications | ten |
| Servo Ditex telemetry | Active |
| Dual path | (scalable) |
| Accelerometer | (evolutive) |
