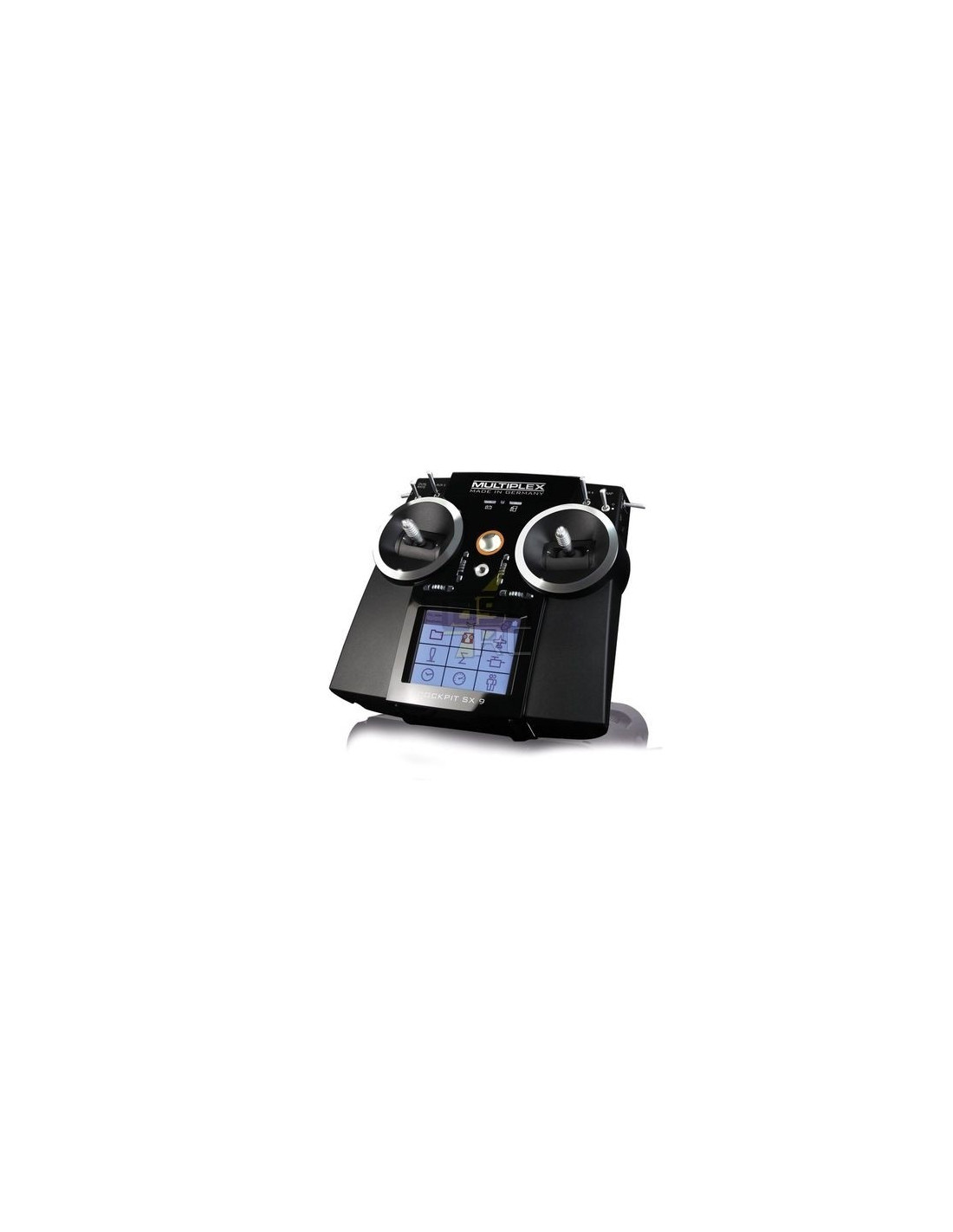

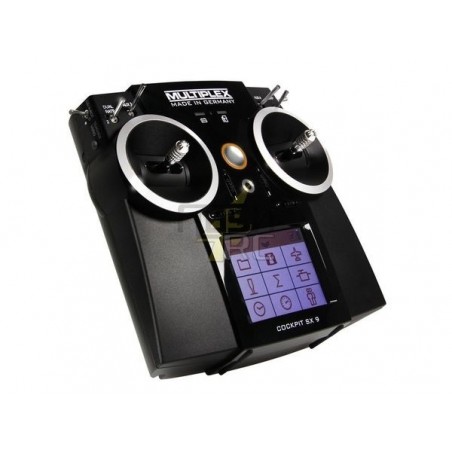

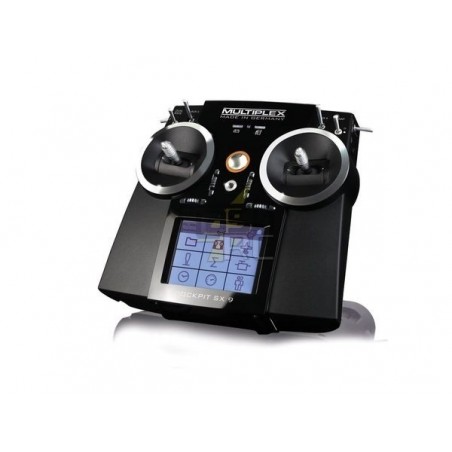

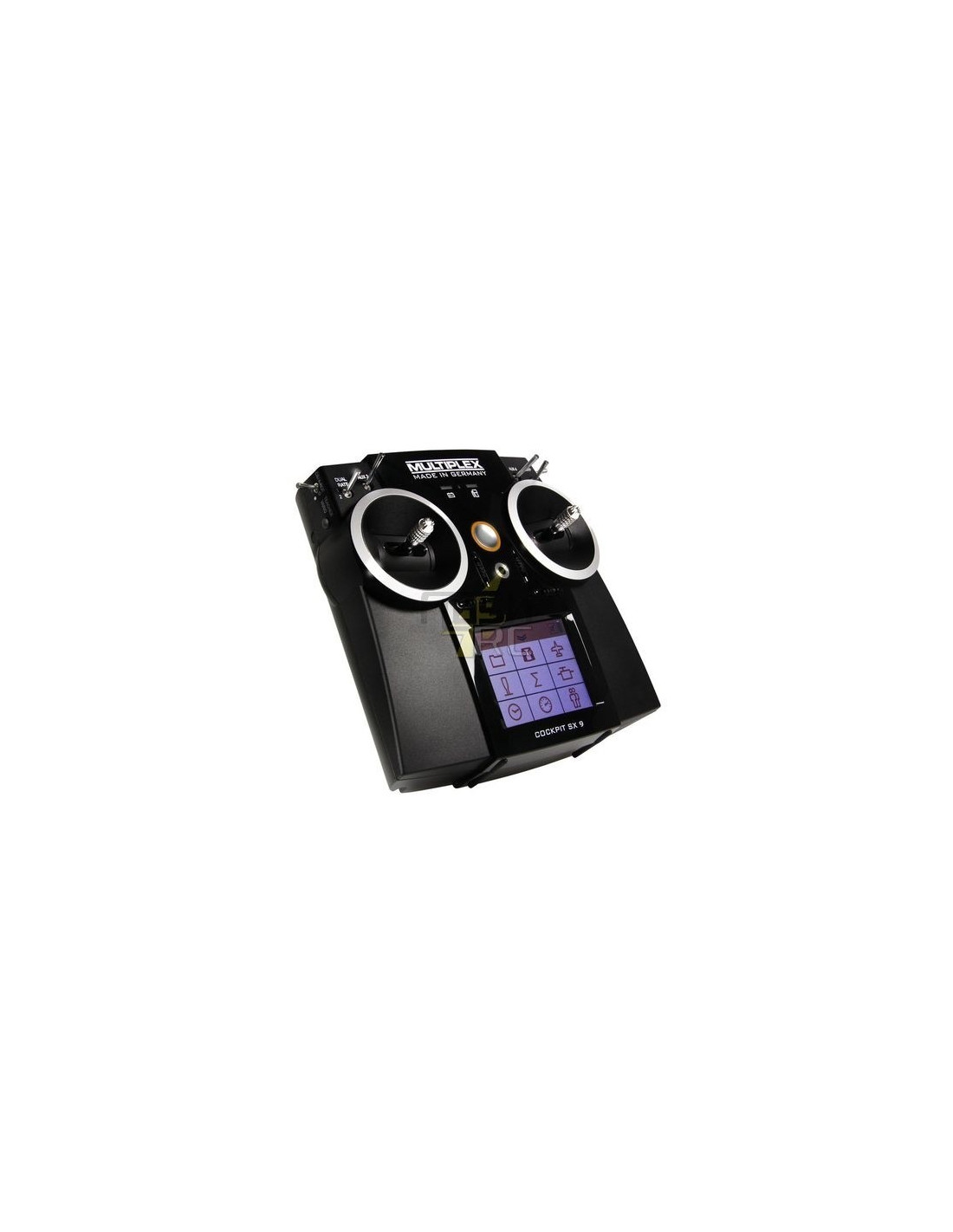

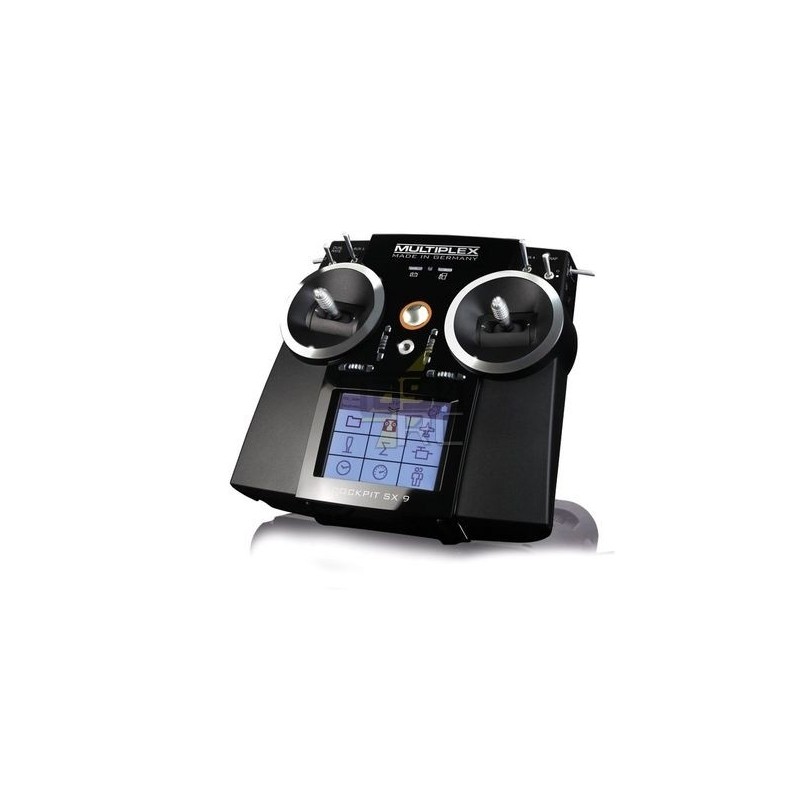

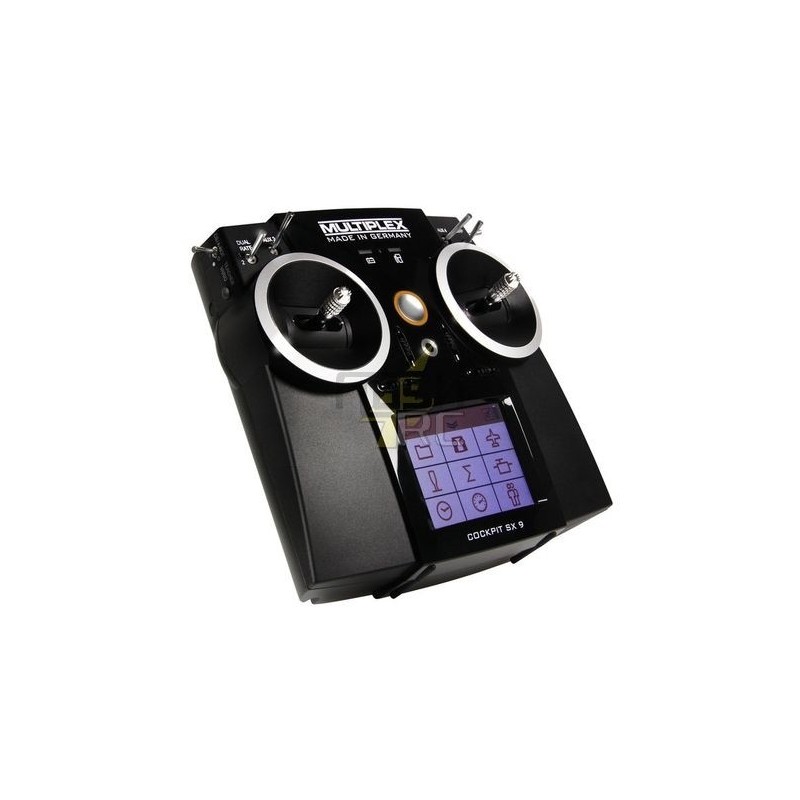

Multiplex Cockpit SX 9 transmitter only

Technical specifications

- Number of channels: 9
- Band: 2.4Ghz M-Link
- Frequencies: 2400...2483,5 MHz
- Processor 32 bit ARM7
- Antenna: IOAT
- Weight: 846g
- Dimensions: 190 x 210 x 60mm
- Operating temperature: -15...+55°C
- Battery: LiFe Accu 3,3V/4000mAh
- Battery life: Up to 24 hours

Overview of the TFT color display	Overview of the main menu

Rotating channels	Rotating channel and switch

Stylus for display	Settings with stylus via screen

General specifications

- 9 Channels
- Menus in French, English, German
- Mode 1, 2, 3 or 4
- Very ergonomic design: perfect grip
- Low weight (846g)
- Easy access to all switches without removing the handles
- Real time telemetry: Data display in Night or Day mode
- Voice announcements (English, French, German) with more than 450 words
- Possibility to connect an optional headset (jack plug)
- Vibrating, sound and light alarms
- Large backlit 3.5" TFT color display readable in sunlight thanks to the light detection system
- Assistant: Predefined examples for virtually all types of fixed wing models and helicopters
- 100% intuitive programming incredibly easy and fast thanks to large and clear icons
- Reliable and ultra fast digital signal transmission in 2.4Ghz M-Link
- IOAT antenna: Integrated antenna with radiation optimization technology and a very long range
- Extremely precise control handles from the PROFI TX, mounted on 4 bearings
- Digital trims
- MSB/SRXL technology for digital BUS integration of sensors and servos
- Very long autonomy (up to 24 hours) with its LiFe 3,3v 4000mAh battery
- Perennial as software update possible thanks to its mini USB plug
- Dual-Rate and exponentials on ailerons, elevator, and exponential on throttle
- 3 Chronometers with voice announcements
- SD card port
- 6 Interrupters (2 with automatic return)
- 2 rotary channels are directly accessible on the back of the box
- Has all the mixes for fixed wings and helicopters
- Free allocation of controls (ailerons, (aileron, elevator, rudder, throttle and spoiler)
- Free assignment of servo outputs
- 200 model memories
- Compatible with all M-Link Multiplex receivers
- Compatible with all Multiplex sensors and probes
- Has two internal expansion ports for modules, in the format of the PROFI TX. It is therefore very easy to plug the COPILOT module #45184 (optional) in one of them. Thus equipped, the COCKPIT SX radio becomes the ideal transmitter for wireless schooling and can receive information from an MPX student transmitter.

Contents of the box

• Cockpit SX 9 transmitter
• Life 3.3v / 4000mah battery
• USB charging cable
• Strap attachment
• Manual
