Technical specifications
- Dimensions: 202x189x96mm
- Weight : 613g (without battery)
- Number of channels : 16 in ACCST D16 / 24 in ACCESS
- Supply voltage : 6.5 to 8.4V
- Consumption : 160mAh at 7.2V
- LCD screen 128x64
- Smart Port, Micro SD Port, Mini USB Port and DSC Port
- 2 sticks with associated trim
- 2 potentiometers: S1 and S2
- 4 switches 3 positions (SA-SD)
- 1 switch 2 positions (SF)
- 1 momentary switch (SH)
Other features
- Backlit LCD screen 70x35 mm
- All handles, sliders, potentiometers and switches can be freely assigned
- 60 model memories
- Internal HF module with telemetry capable of transmitting up to 16 channels with a refresh rate of 9ms
- 3 customizable telemetry displays, data log (requires micro SD card)
- 64 mixes
- 9 flight modes
- Multimode transmitter (1-4)
- Smart Port" telemetry compatible
- 16 customizable curves from 3 to 17 points
- JR standard jack capable of receiving up to 8 channels and sending up to 16 channels.
- Audio jack to connect a headset (telemetry voice announcement)
- Mini USB socket to connect the transmitter to the PC
- Multi language : the transmitter is originally in English but you can reflash it with the language of your choice
- Open source firmware : http://open-tx.org
Radio in mode 2
The transmitter is delivered in Mode 2, FlashRC offers you the option to switch to Mode 1 (see below "OPTION mode").
Power supply of the transmitter
The transmitter is delivered without battery but with a block allowing to use two 18650 Li-Ion batteries.
Scope of delivery

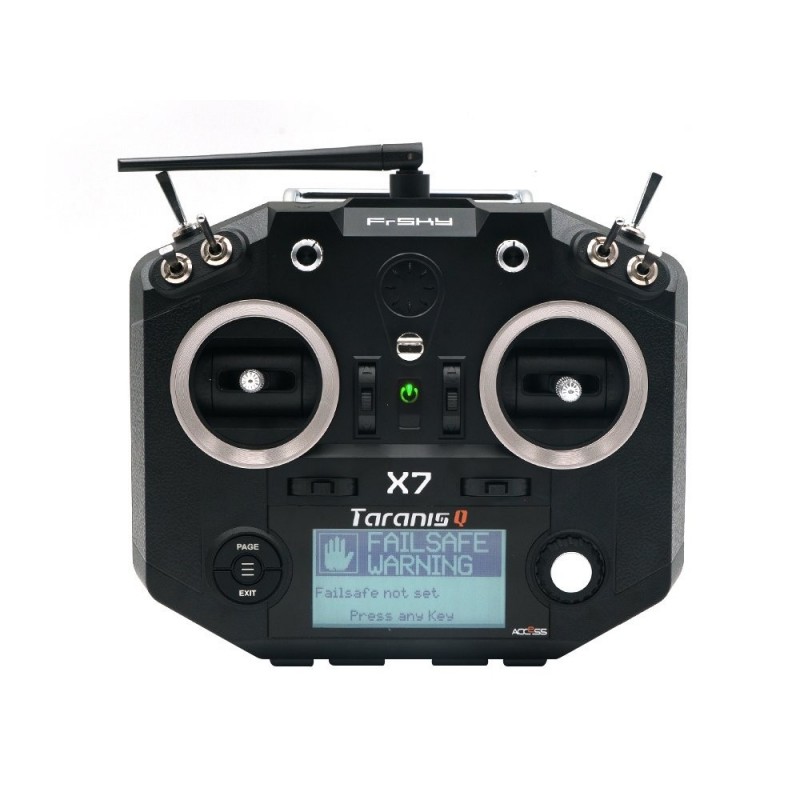

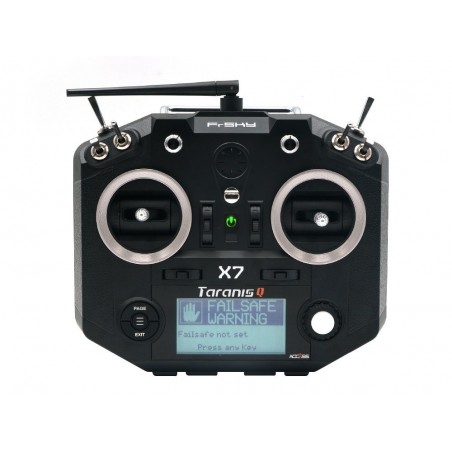

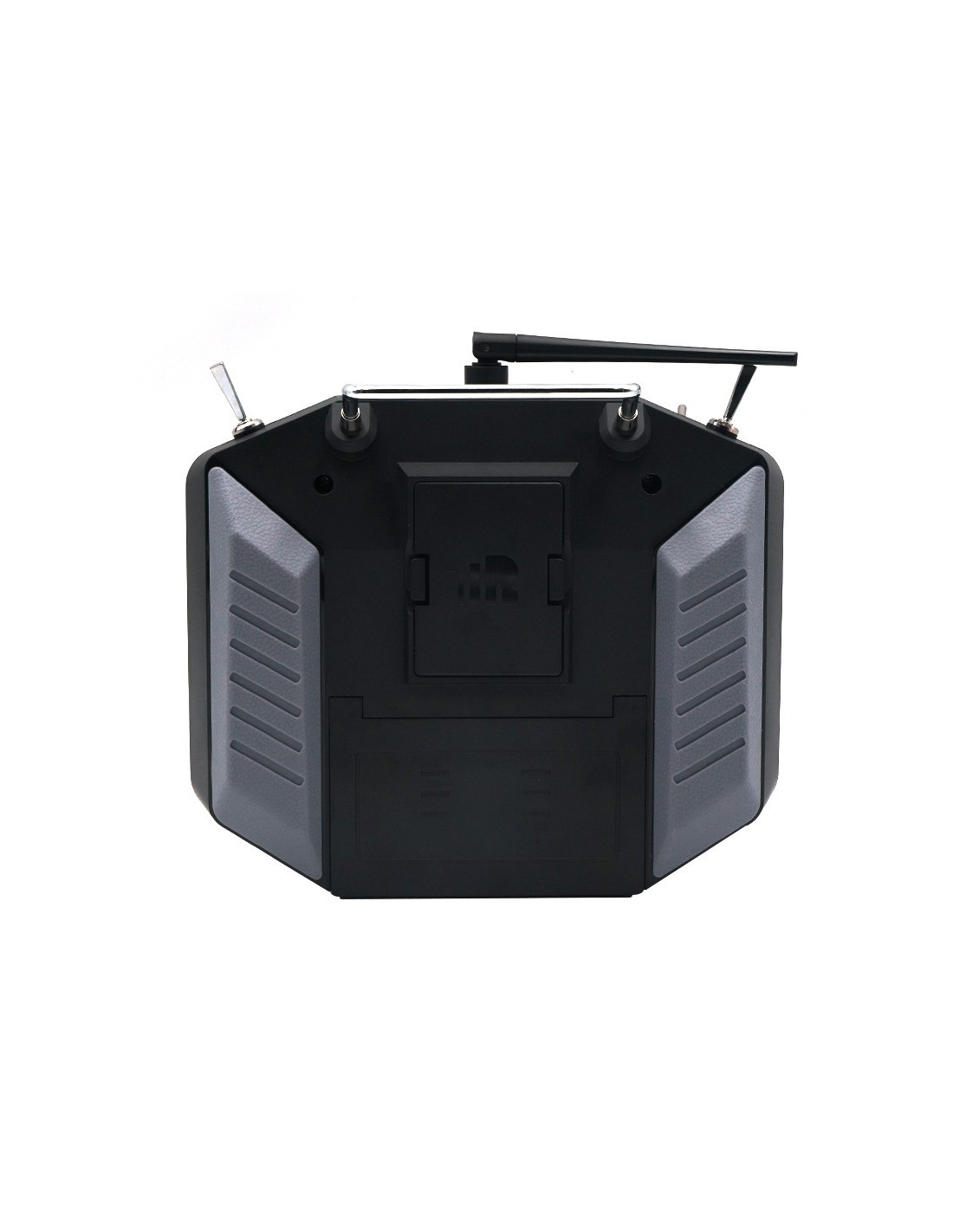

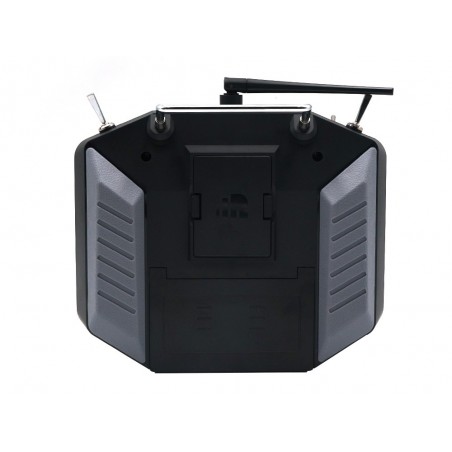

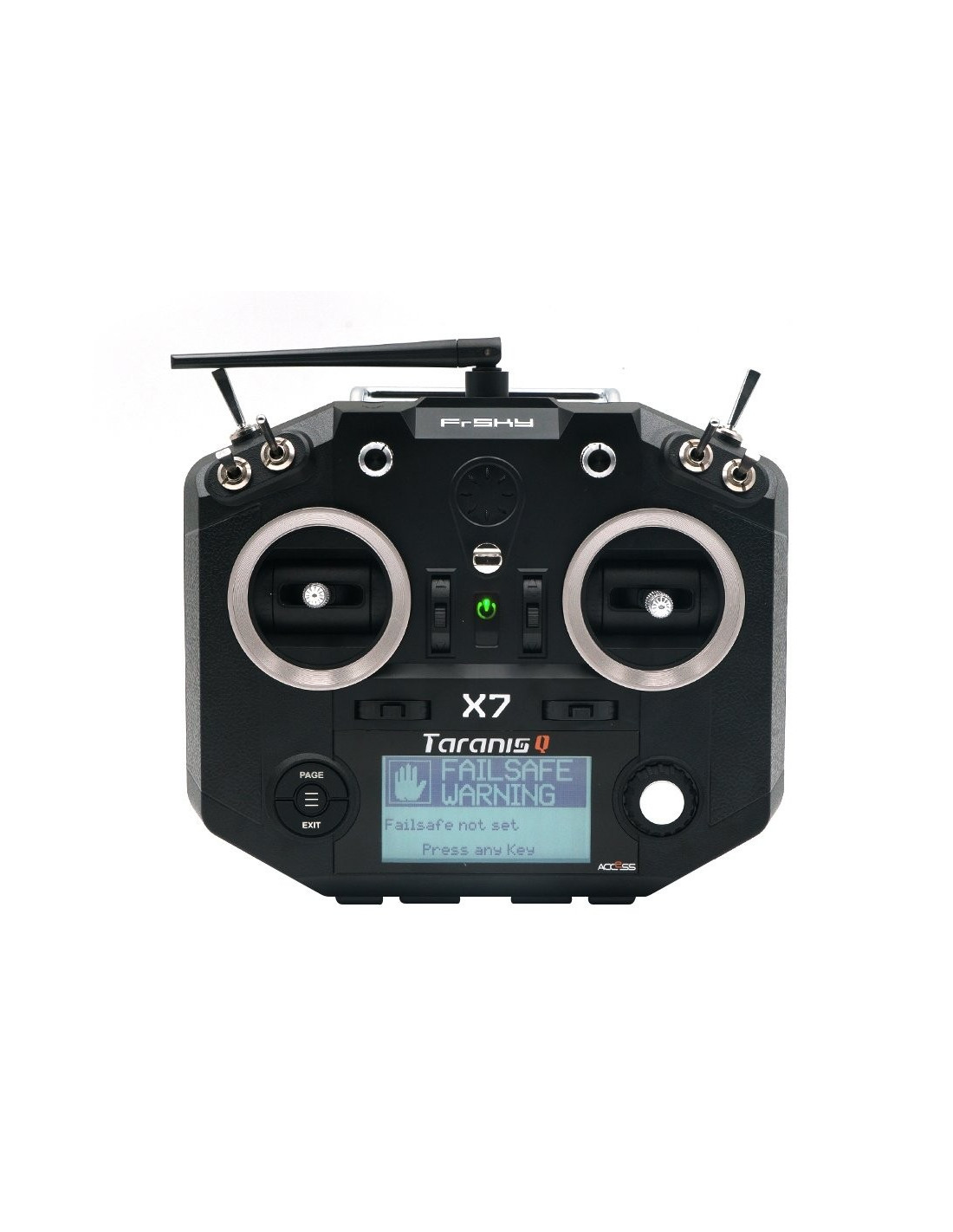

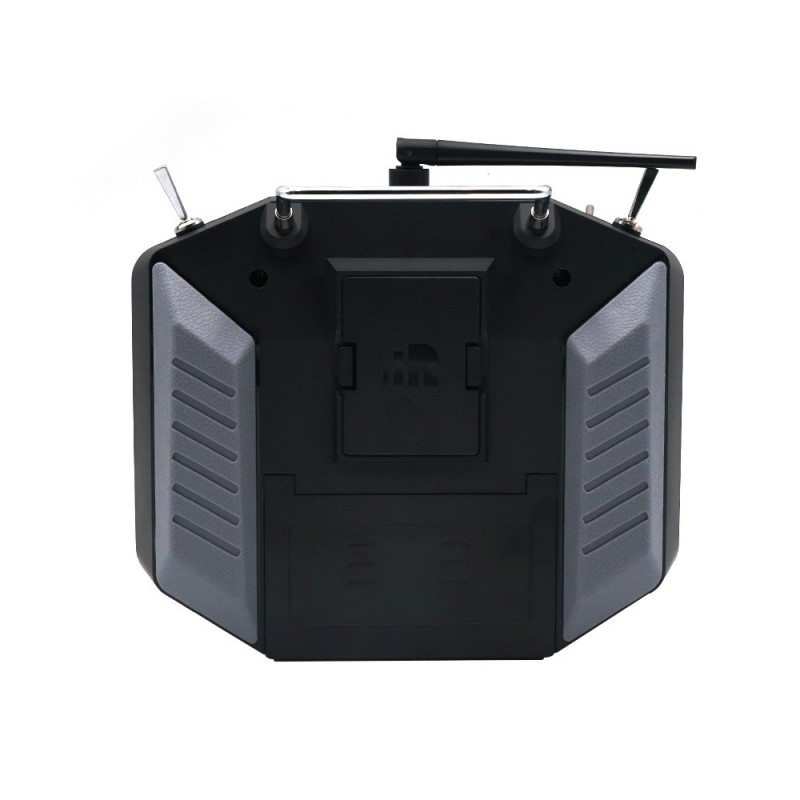

- Transmitter Taranis Q X7 ACCESS Black
- 1x neck strap
