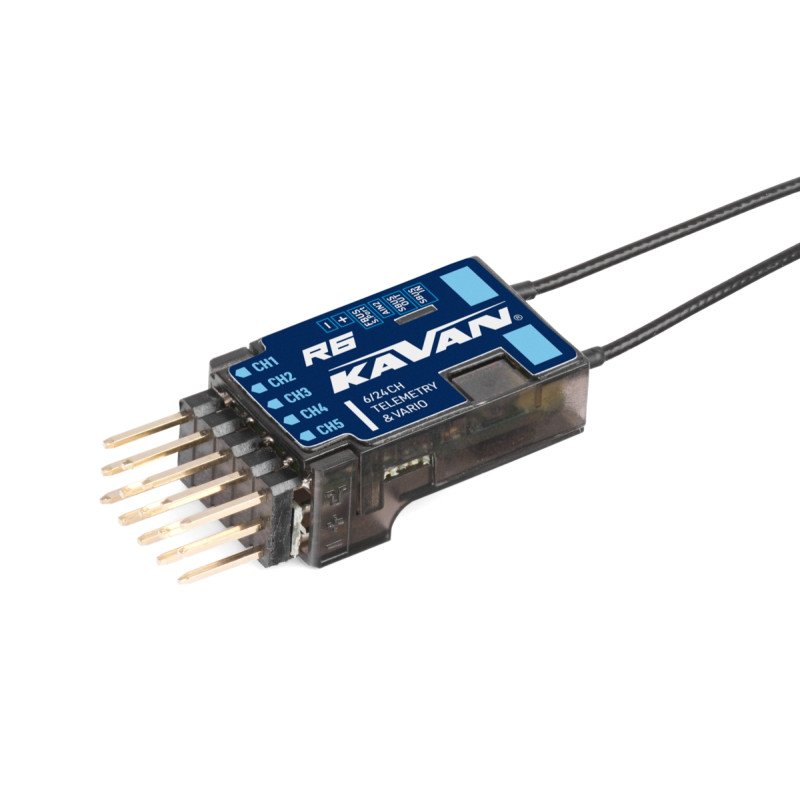

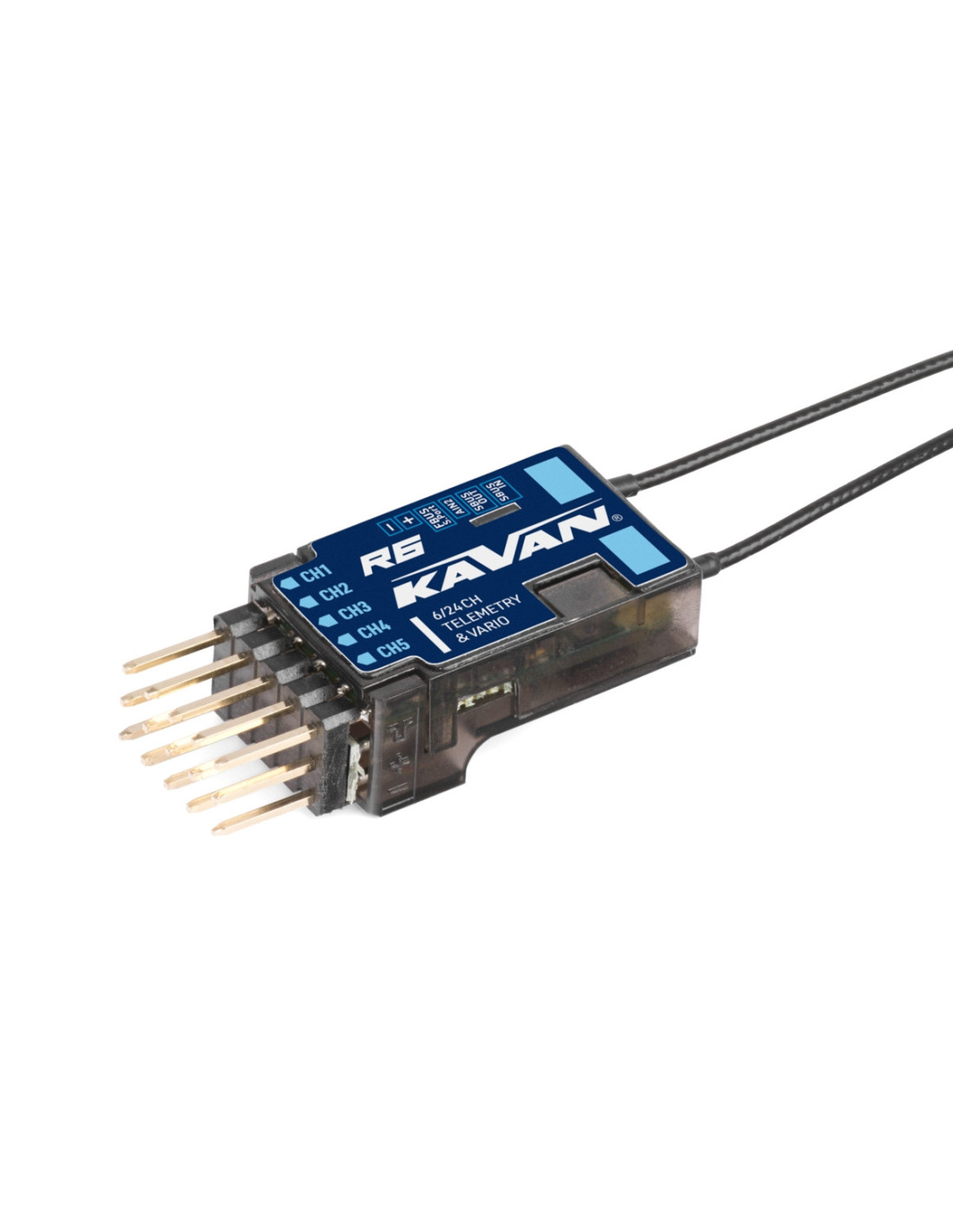

KAVAN R6 Vario receiver

Thanks to its size and low weight, it is also suitable for smaller models. With redundancy support, it can be connected as the main receiver via S.BUS. With the F.BUS connection option, you can also pair it quickly and easily with several different telemetry devices.

It features advanced anti-interference protection for reliable, stable signal transmission over the whole range. Smart-match system speeds up pairing. The black box function preserves basic flight data. LED indicates receiver operating status. Smart-match function enables wireless firmware updates.

Features a variometer for faster, more accurate measurement and transmission of altitude and vertical speed data. It also enables fast audio feedback from the variometer to ACCESS transmitters.

Features:

Enhanced RF interference protection and more stable RF transmission
ACCESS and ACCST D16 RC protocols with intelligent pairing
Support for basic black box function
6 high-precision PWM channels
S. BUS output port.BUS output port (with 16/24 channel mode)
S.BUS input port (with support for redundant connection of 2 receivers)
Full telemetry (S.Port or F.BUS)
Wireless firmware updates (OTA)
Battery/external device voltage detection


Technical specifications:

Dimensions: 33×15×9.7 mm (L×W×H)
Weight: 4.2 g
Number of channels: 6 PWM channels + 16/24-channel mode via S.BUS
Operating voltage range: 3.5 to 10 V
Operating current: <65 mA at 5 V
Operating range: > 2 km (full range, may vary according to actual ambient conditions)
External voltage measurement range via AIN2: 0-35 V (battery voltage division ratio: 1:10)
Antenna connector: IPEX4
Compatibility: ACCESS / ACCST D16 2.4 GHz transmitters
