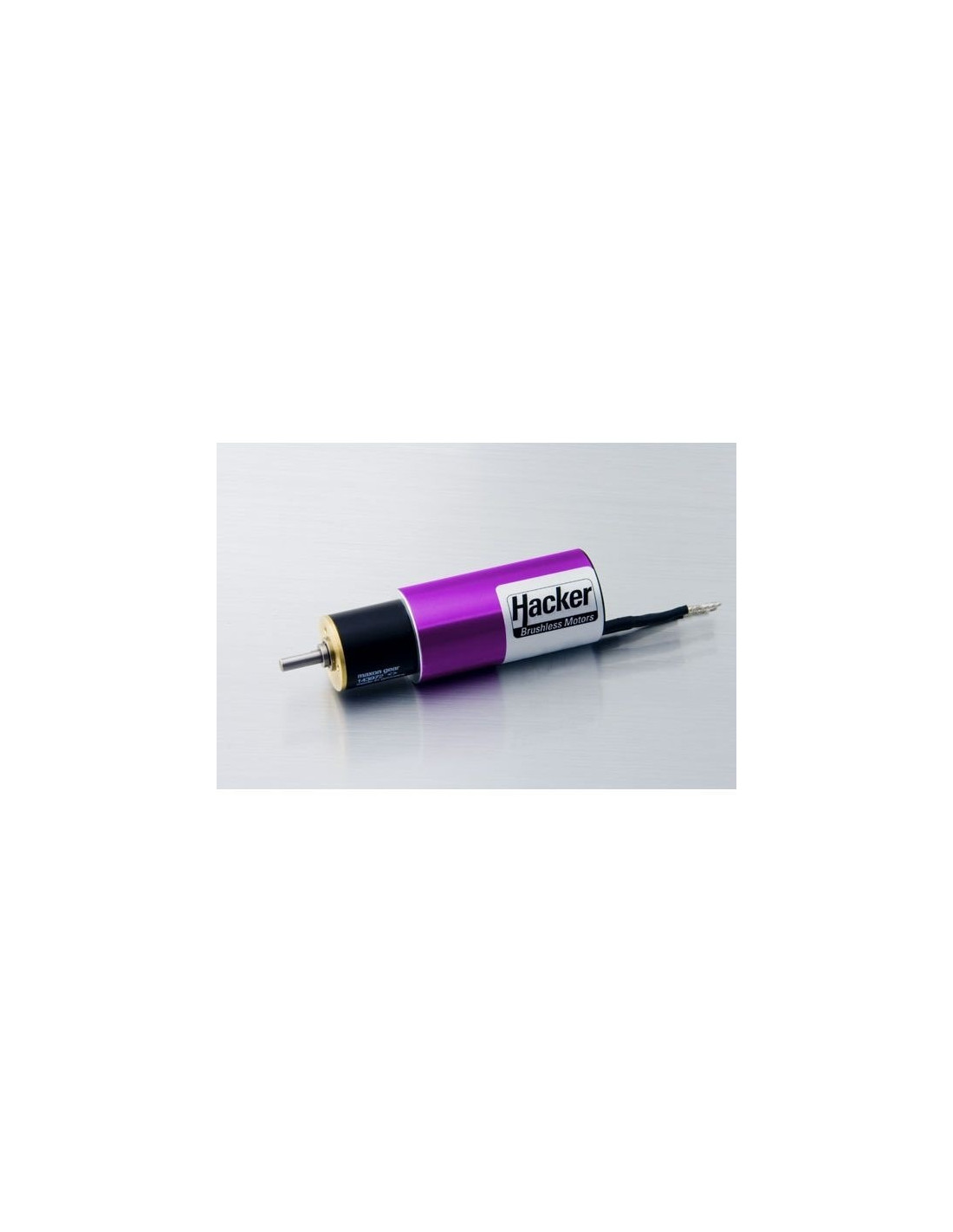

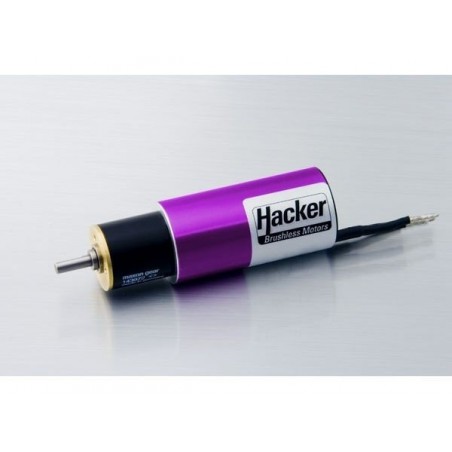

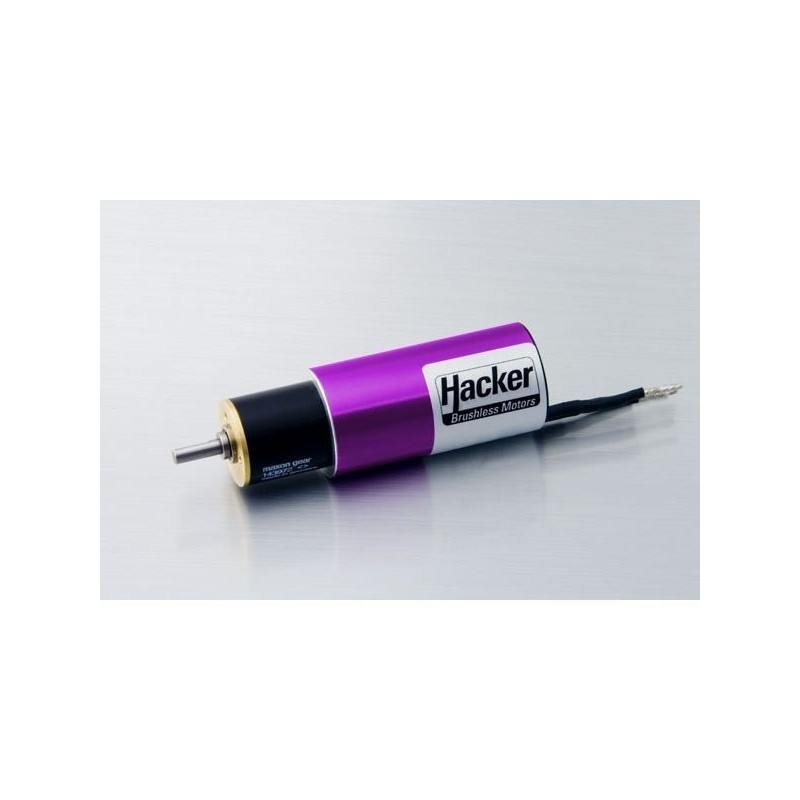

B40 10L Hacker + reduced MAXON 4,4:1 ceramic

Last items in stock

€208.25

Tax included

High quality brushless motor HACKER associated with a MAXXOM 4,4:1 ceramic gearbox, perfectly suitable for narrow fuselages and able to carry large propellers.

Characteristics

Max. power. 700W (15 sec.)
No-load current at 8,4V : 1,32A
Internal resistance : 0,0181 Ohm
kV : 3000 U/min-1 (i.e. 682kV with gearbox)
Weight : 205g
External diameter of motor : 27,6 mm
External diameter of gearbox : 22mm
Total length: 78.15 mm
No. of poles: 2
Recommended controller: 40A to 70A Brushless
Timing: 0° - 5°
Output shaft: 4 mm
Reduction ratio: 4.4:1

Engine weight: from 100g to 599g
Motor power in Watts: 700
Revs/ minute Kv: 3000

Reference 102-10005600

EAN13 4250320202493

MPN 4250320202493
