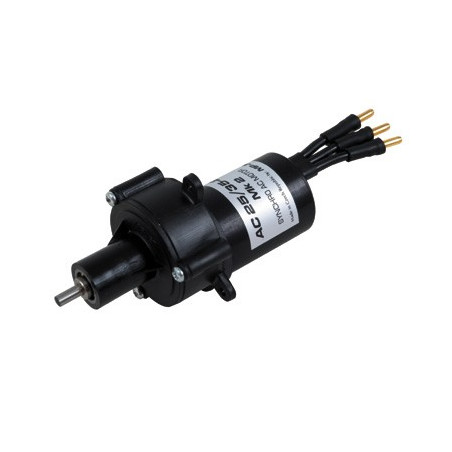

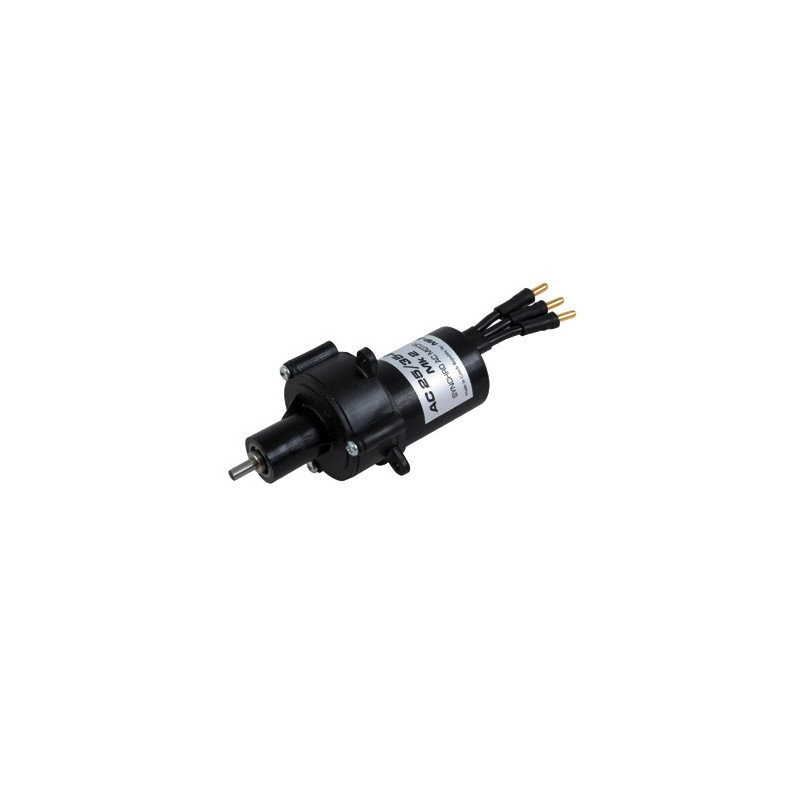

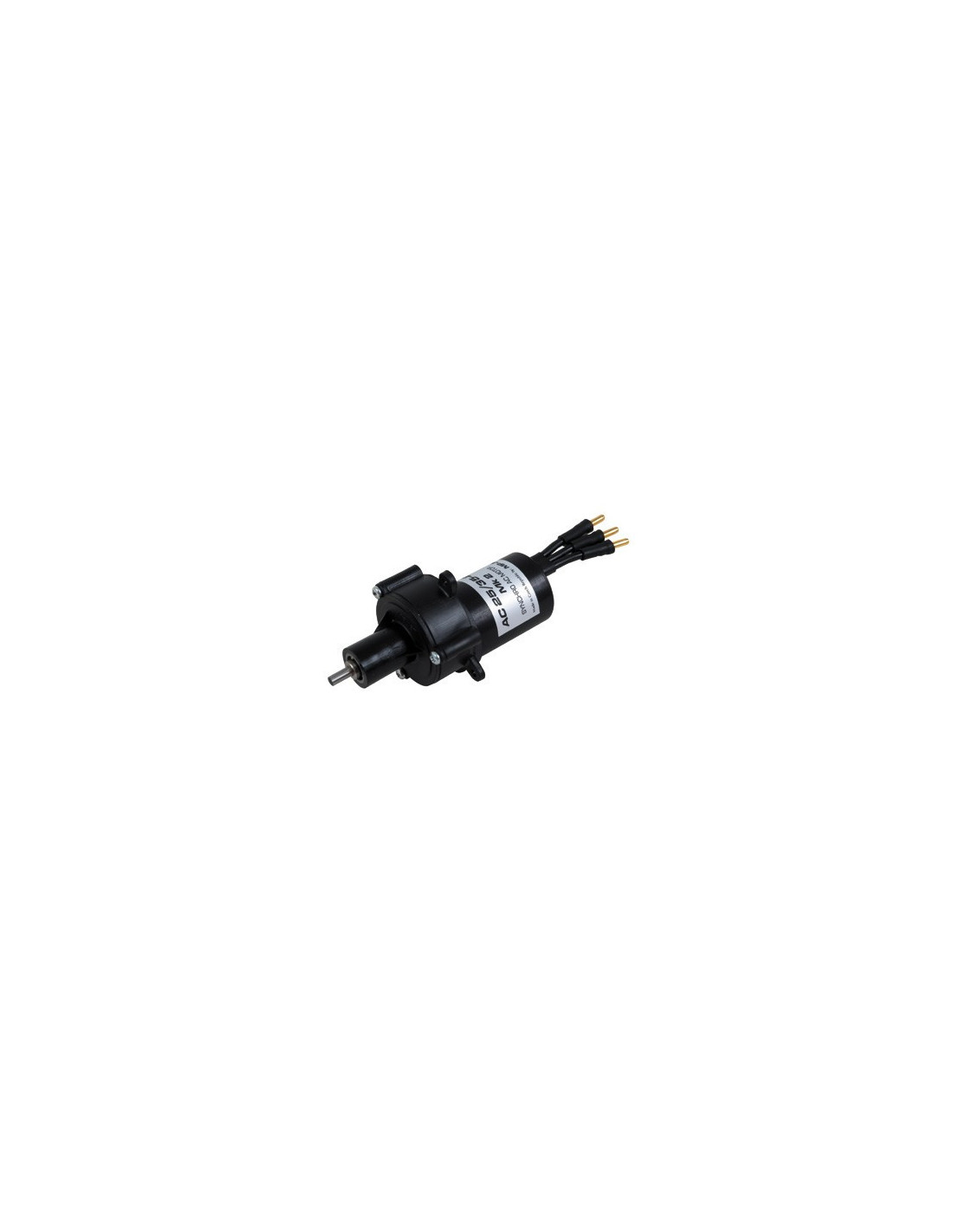

MP JET AC 25/35-20 Mk2 reduced 3:1

Last items in stock
€63.75
Tax included

MP JET AC 25/35-20 Mk2 reduced 3:1

custom html
you can configure this block in iqithtmlbanners module. It is hooked in displayRightColumnProduct hook.

To disable entire area go to iqitthemeeditor module > Content/Pages > Product page and set hidden for Right sidebar option


Technical data:

AC synchronous three-phase motor

2 pole Neodym magnets

toroidal windings directly under the aluminium housing for better cooling

double long life lubricated ball bearings

high speed bearings

hardened steel motor shaft

one-piece housing turned on CNC machine

Black anodized housing surface

High quality 2.5mm MPJ connectors

Delivered assembled with cables, connectors and MP JET 3:1 gearbox

Recommended controller: Xpower REG 18

Number of cells: 6-10 NiCd or NiMh, 2-3 LiPo

RPM per V: 2650

Recommended max. speed (min-1): 40000

Max. speed (min-1): 45000

Max. efficiency (%) approx.: 82

Max. output current (A): 7-15

Peak current (A): 25

Internal resistance Ri ( mOhm): 100

Dimensions

Diameter/length (mm): 37/76.7

Motor axis (mm): 3

Number of revolutions: 20

Weight (g): 91

Recommended propellers: 7x4-11x6

Tips: Max glider weight (g): 1000

Max weight of the aircraft (g): 750

Recommended propeller range: APC 7/4-11/6
