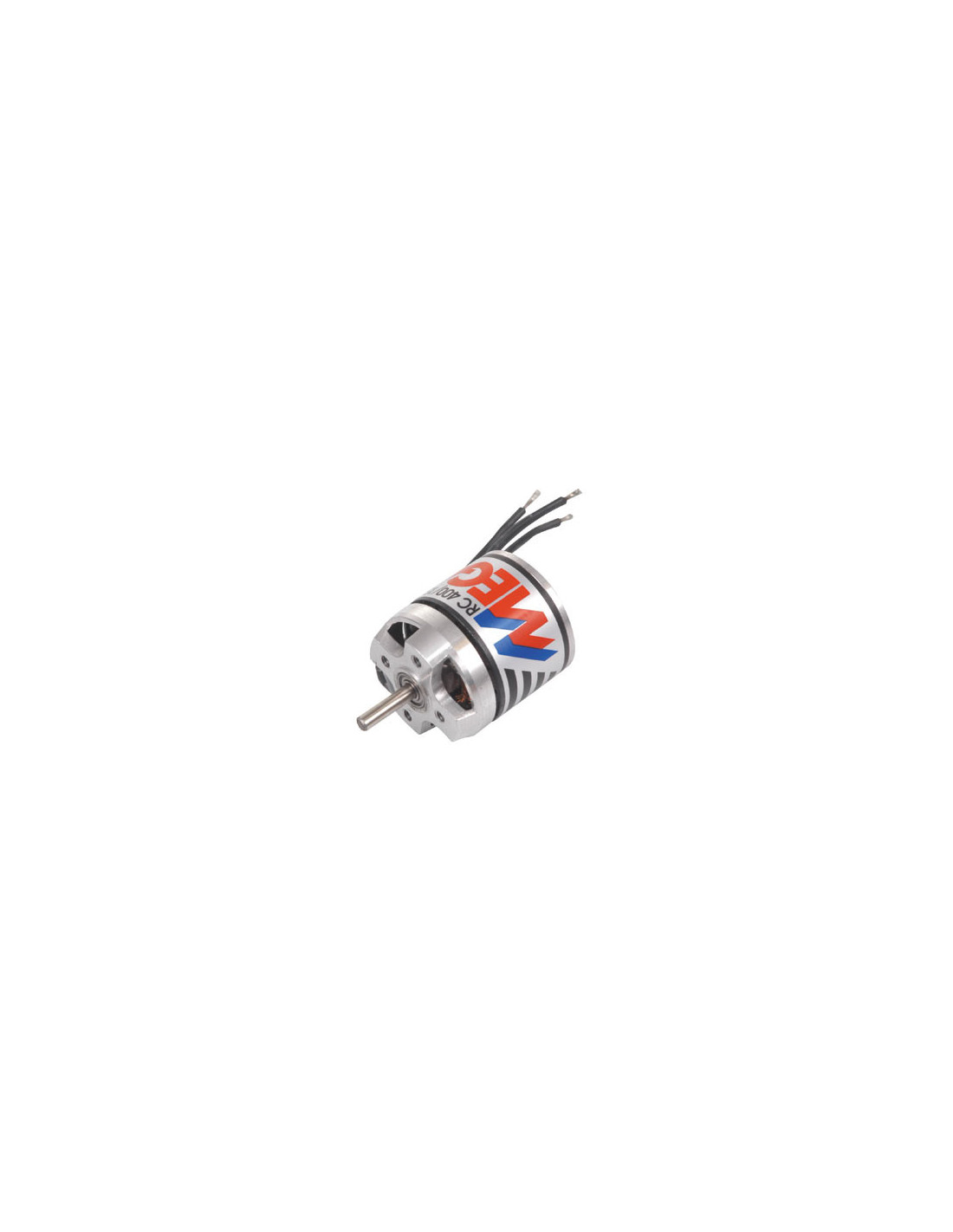

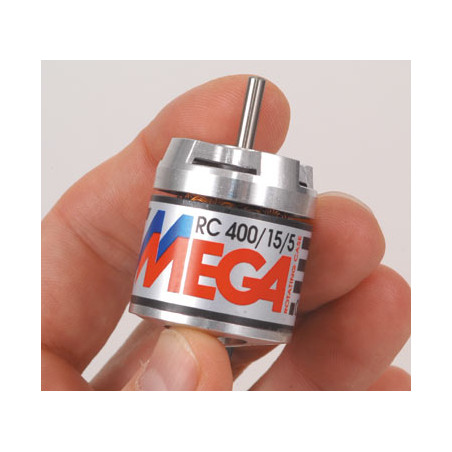

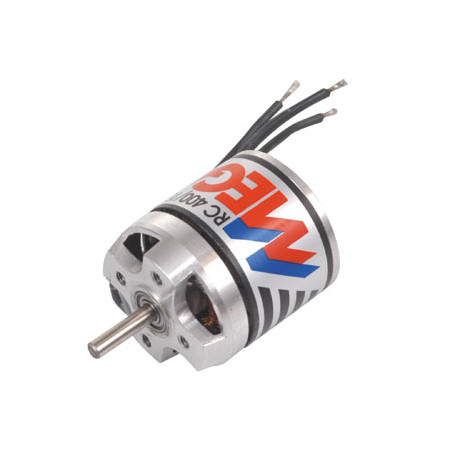

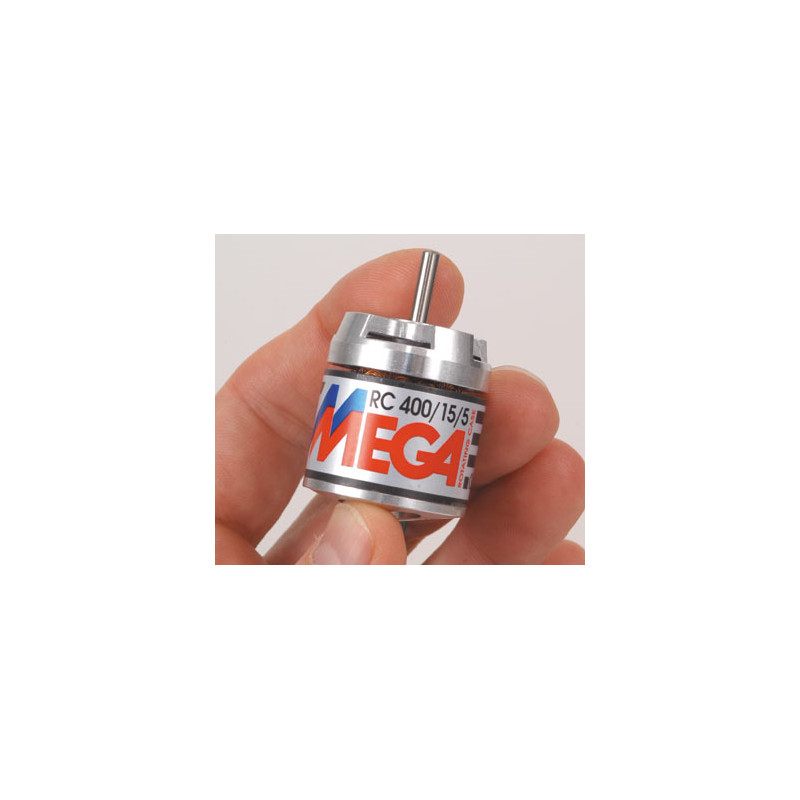

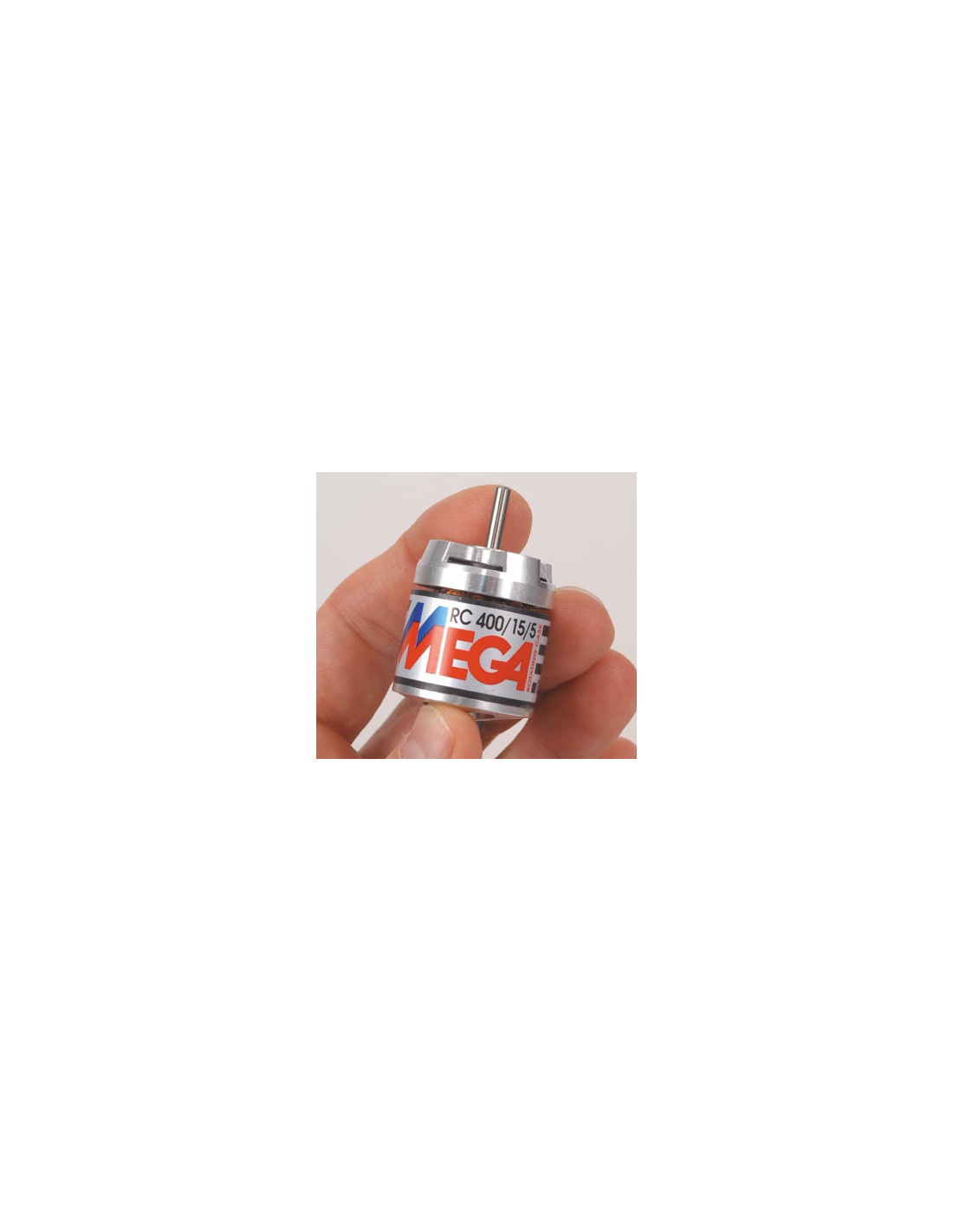

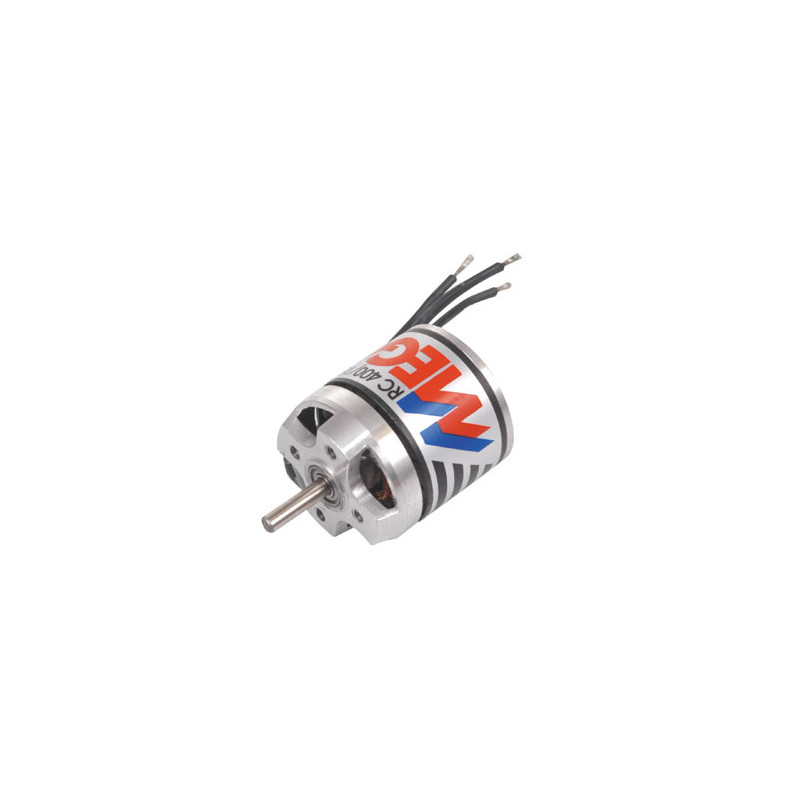

MEGA RC400 series: This series of motors is available in 2 different lengths. They are specially designed for direct drive applications. Brushless motors with Neodym magnets and rotating cage produce high torque, enabling large-diameter propellers to be "turned" at high pitches. The motor shaft is made of treated steel, and is supported by 2 ball bearings. These motors can be powered by NiCd, NiMh or LiPo batteries. RC 400/7/... motor applications -Aircraft up to 0.5kg takeoff weight -Gliders up to 0.7kg takeoff weight -All types of ParkFlyers -3D aircraft up to 0.35kg takeoff weight RC 400/15/... motors in use: Aircraft up to 0.8kg take-off weight -Gliders up to 1.0kg take-off weight -Larger ParkFlyers -3D aircraft up to 0.5kg take-off weight MEGA RC 400/15/5: Recommended number of cells: 4 to 12 or 2 LiPo No. rpm per volt rpm x v: 1210 MAXI consumption A: 16 Resistance 1 phase mOhm: 41 Maximum Ø mm: 28.0 Maximum length mm: 36.5 Motor shaft Ø mm: 3.2 Weight g: 63 Recommended propeller Direct Drive: 7x5-10x5 Consumption up to 15A Recommended controller: XPower REG 18 Measurements: Propeller: APC E 10X5 Controller: Xpower REG 18 Battery: Hot Lips 1700 2S1P Speed: 7000 rpm Consumption: 15A Traction: Measures: Propeller: APC E 7X5 Controller: Xpower REG 18 Accu: Hot Lips 1300 3S1P Speed: 13000t/mn Consumption: 12A Traction:
