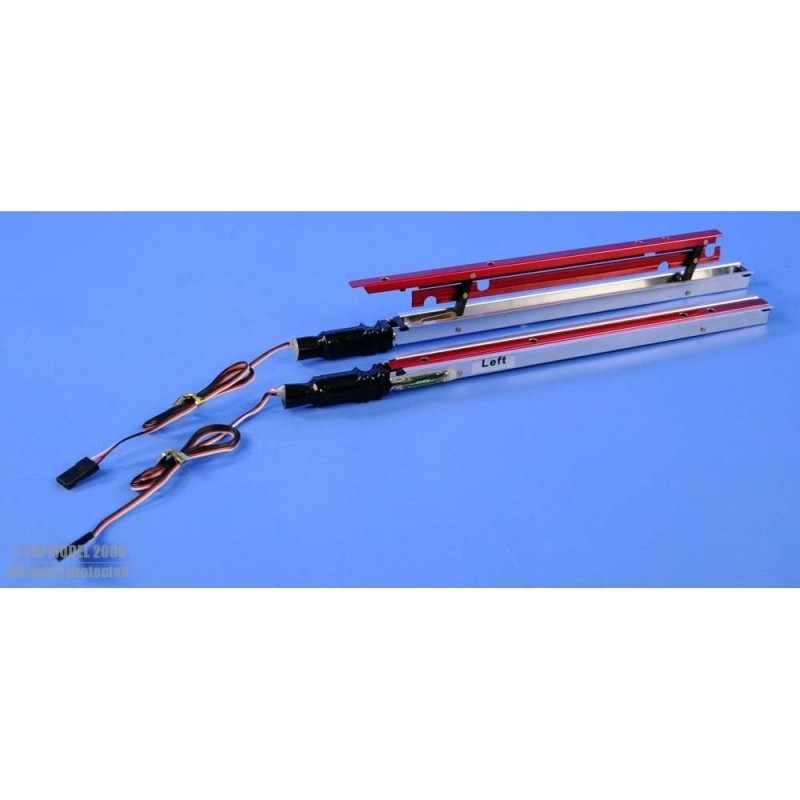

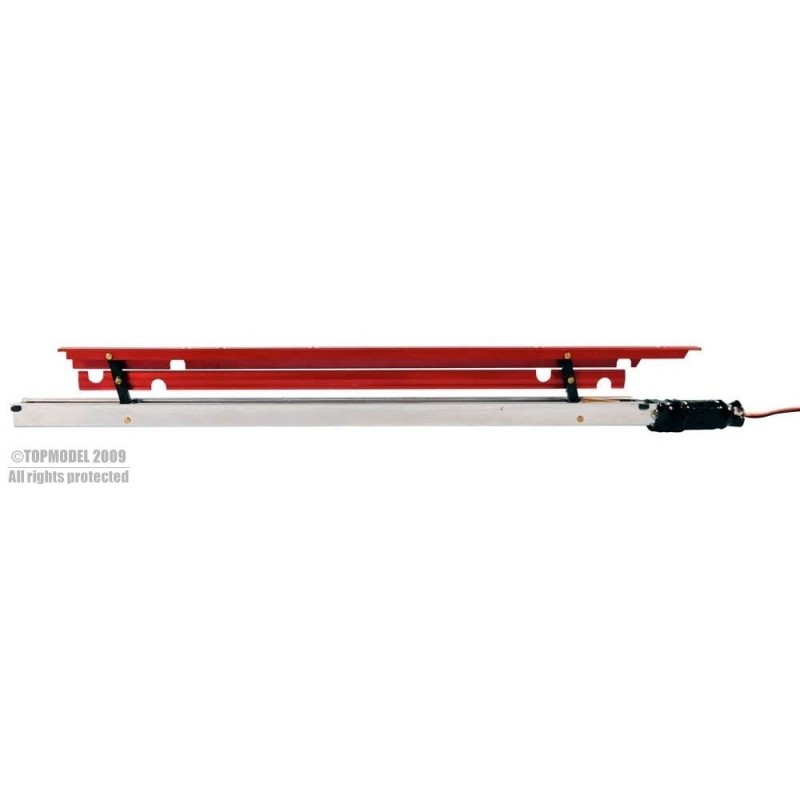

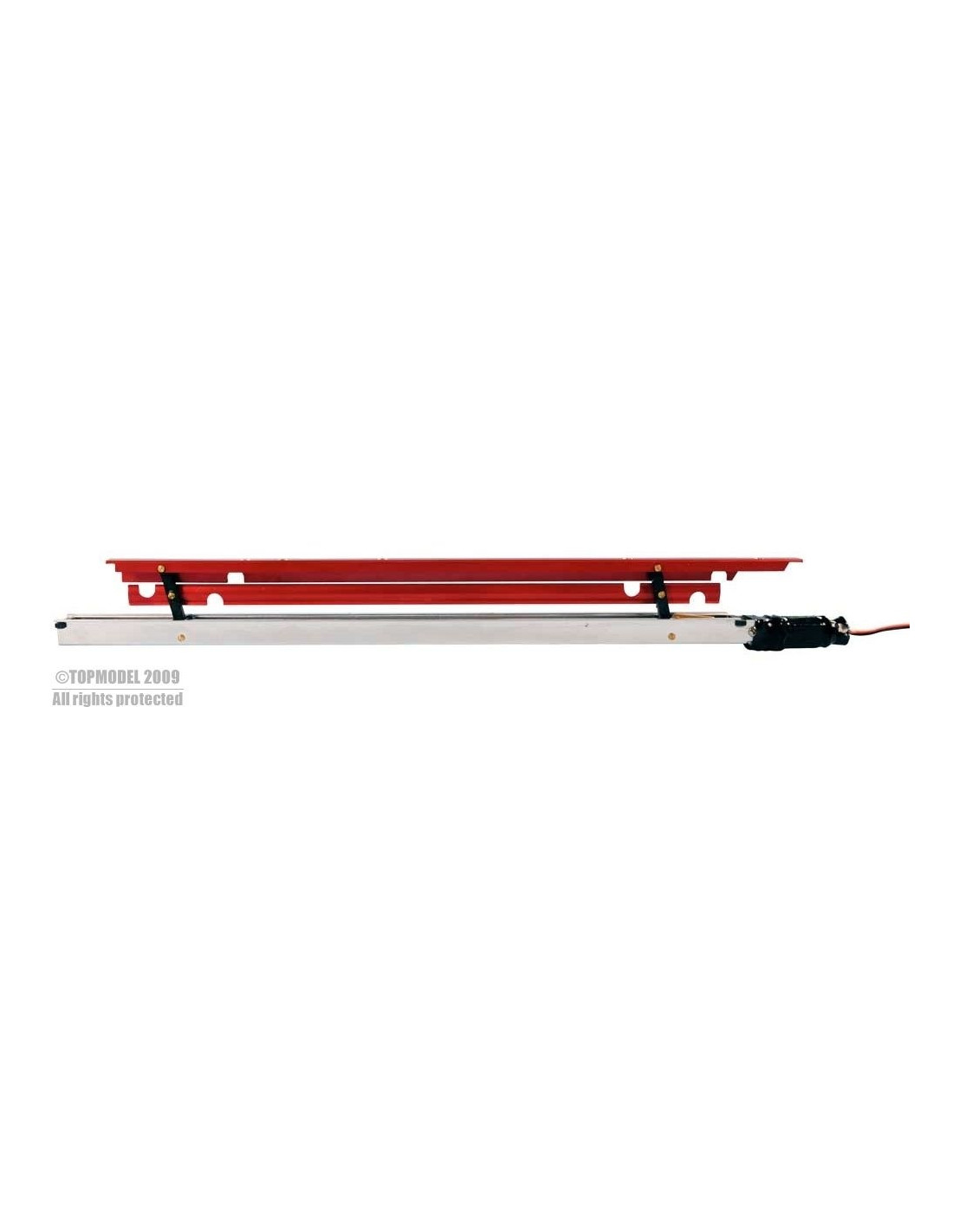

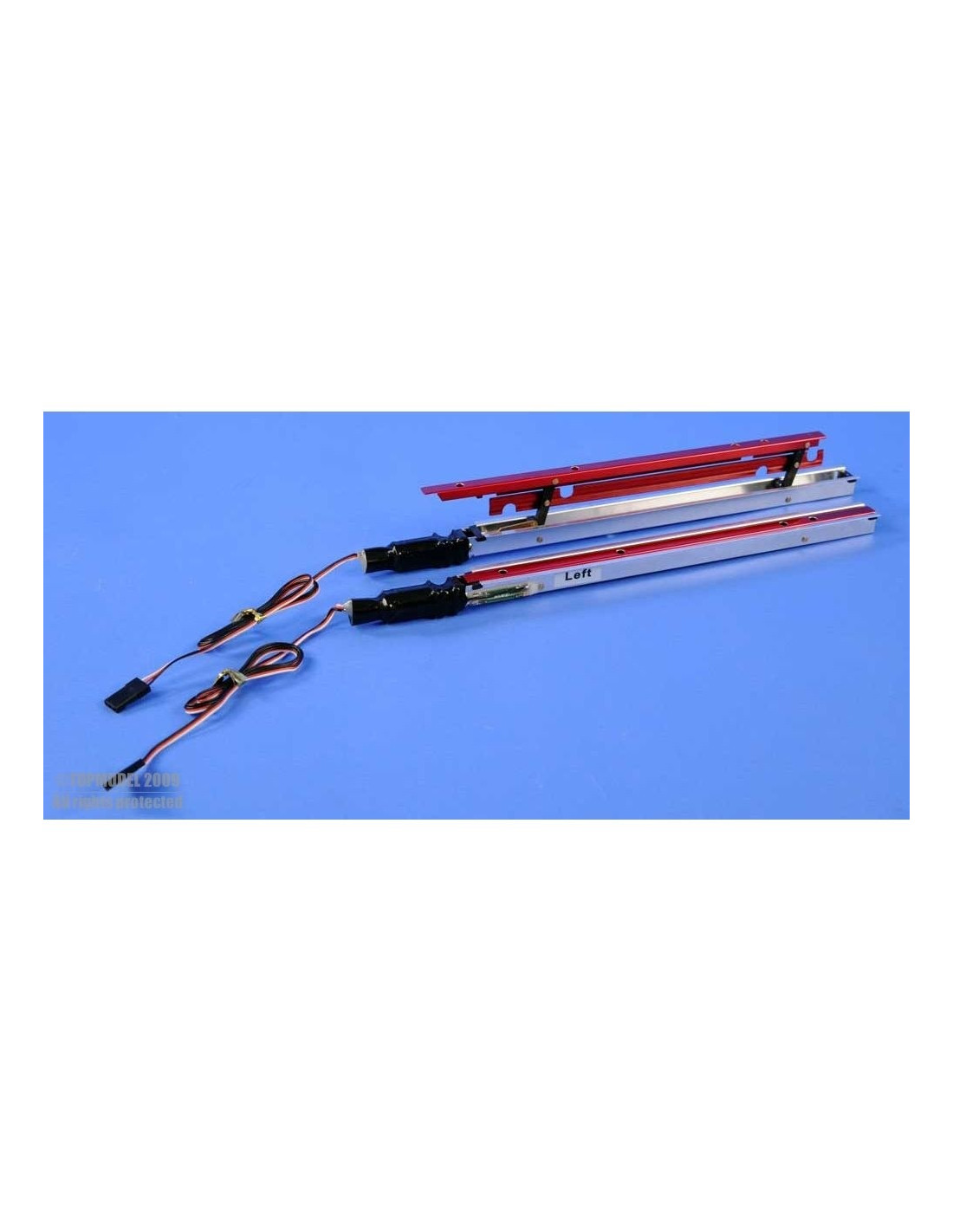

HV electric air brake 185mm the pair XPOWER

€52.42
Tax included

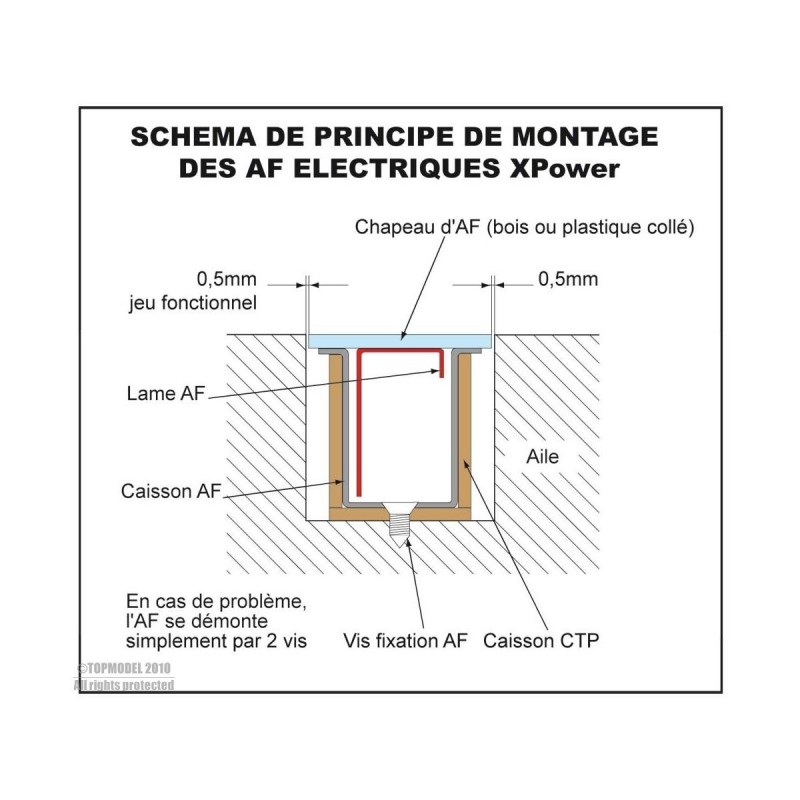

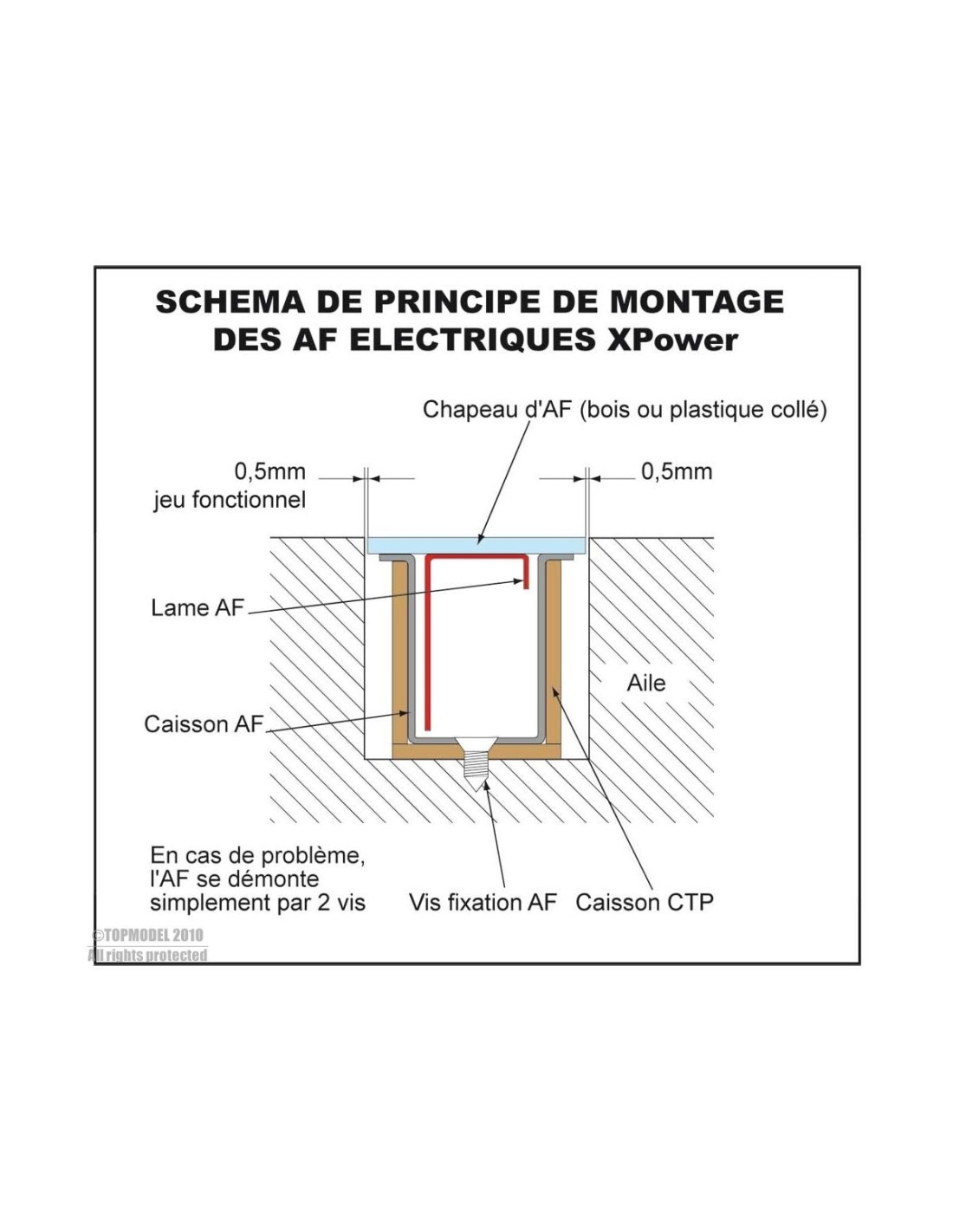

New HV version: works between 4.8V and 8.4V !Excellent ! electrically controlled airbrakes, connected directly to the receiver, they go out proportionally. much simpler to install (only two screws), these airbrakes are also more economical than the classic AF with the cost of the two servos.
Easy to adjust (adjusting the limit switches on your transmitter). red anodized AF for the outgoing part, sold by pair

custom html
you can configure this block in iqithtmlbanners module. It is hooked in displayRightColumnProduct hook.

To disable entire area go to iqitthemeeditor module > Content/Pages > Product page and set hidden for Right sidebar option


Electric airbrake combining efficiency of installation, use, and more economical than a complete system AF + servo.
Works with all common brands of radio (Futaba, Graupner, SPektrum, Multiplex, etc ...)

This airbrake has an integrated lock to avoid the consumption of the electric motor in closed position.

Double metallic blades (orange anodized) type Schempp-Hirth for an optimal braking effect.

Delivered in pairs (right and left).

Technical data:

  • Total length: 230mm approx.
  • Width: 9,5mm approx.
  • Height AF in: 10mm approx.
  • Height AF out: 31mm approx.
  • Weight: 30g approx (piece)
  • Blade length: 185mm
  • Height (protruding above the wing form): 21mm Max. approx.
  • Power supply voltage: 4.8-8.4V
  • Length of power cord: approx. 200cm (standard UNI plug)

Important note: Please set the limit switches on your transmitter so that the AF does not go beyond the limit stop, as this will cause the motor to burn out (not covered under warranty).

038-099ELAFHV18
