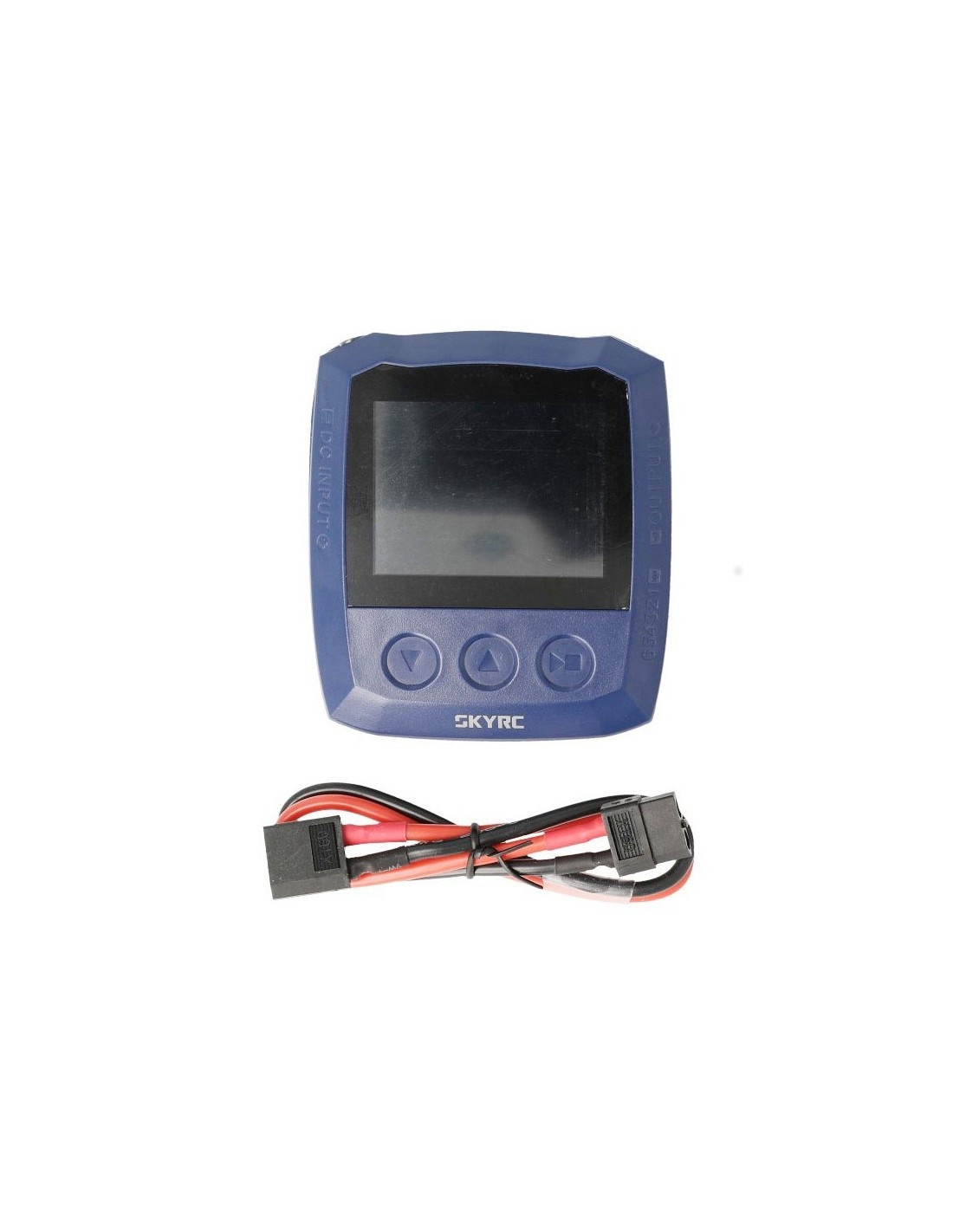

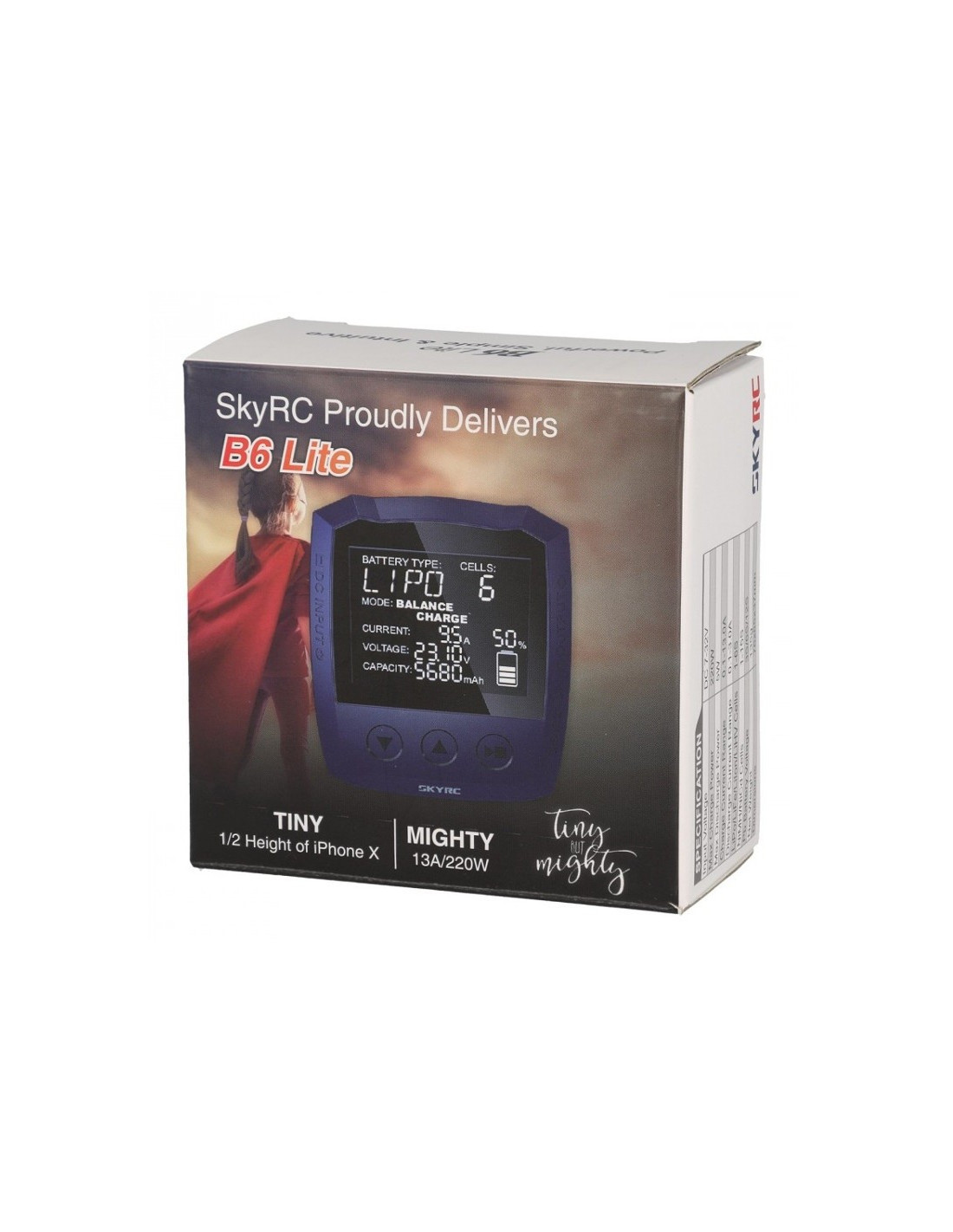

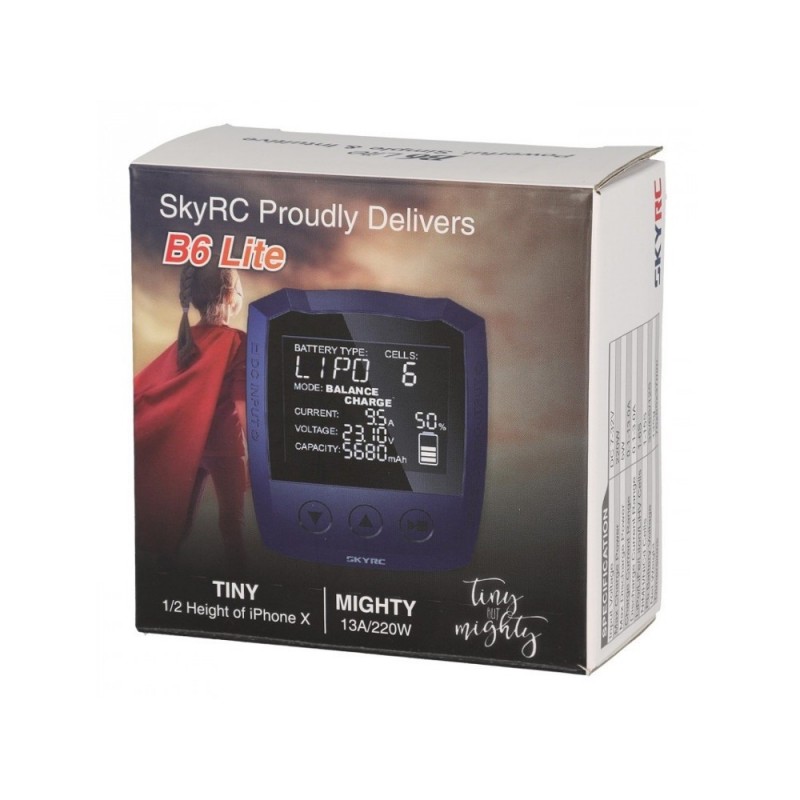

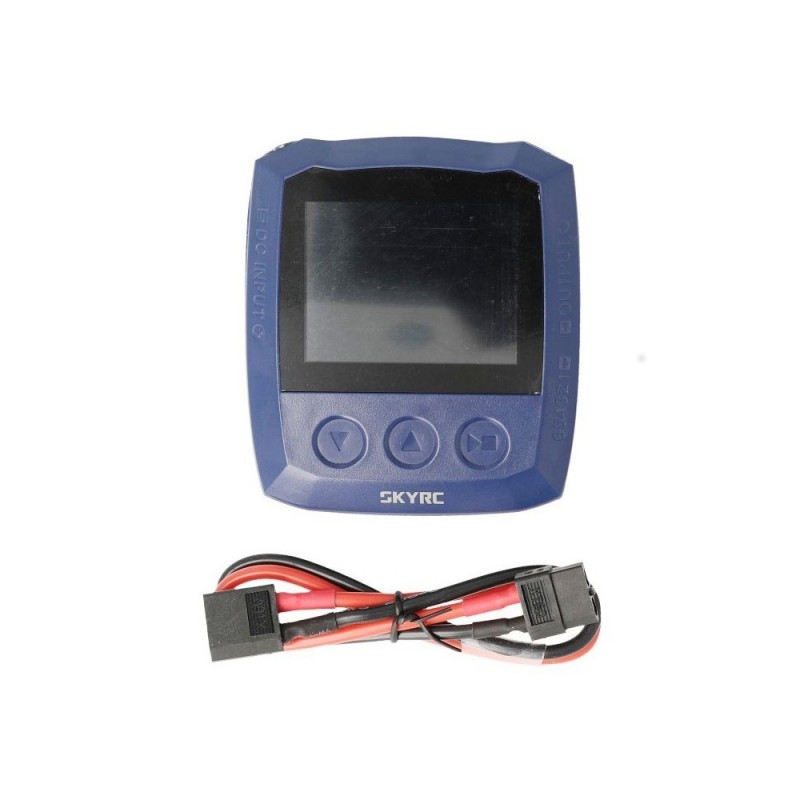

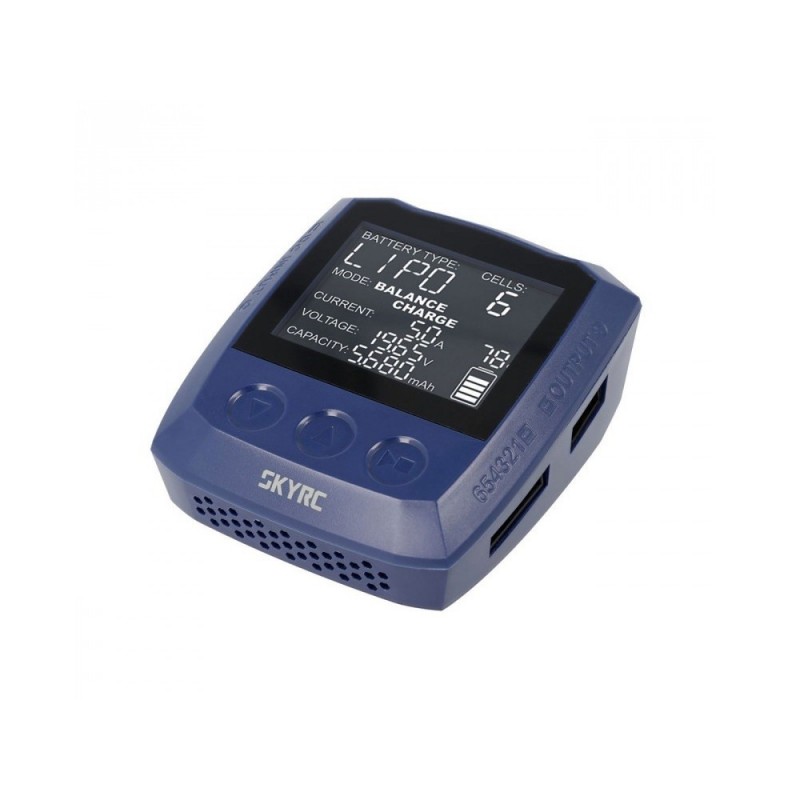

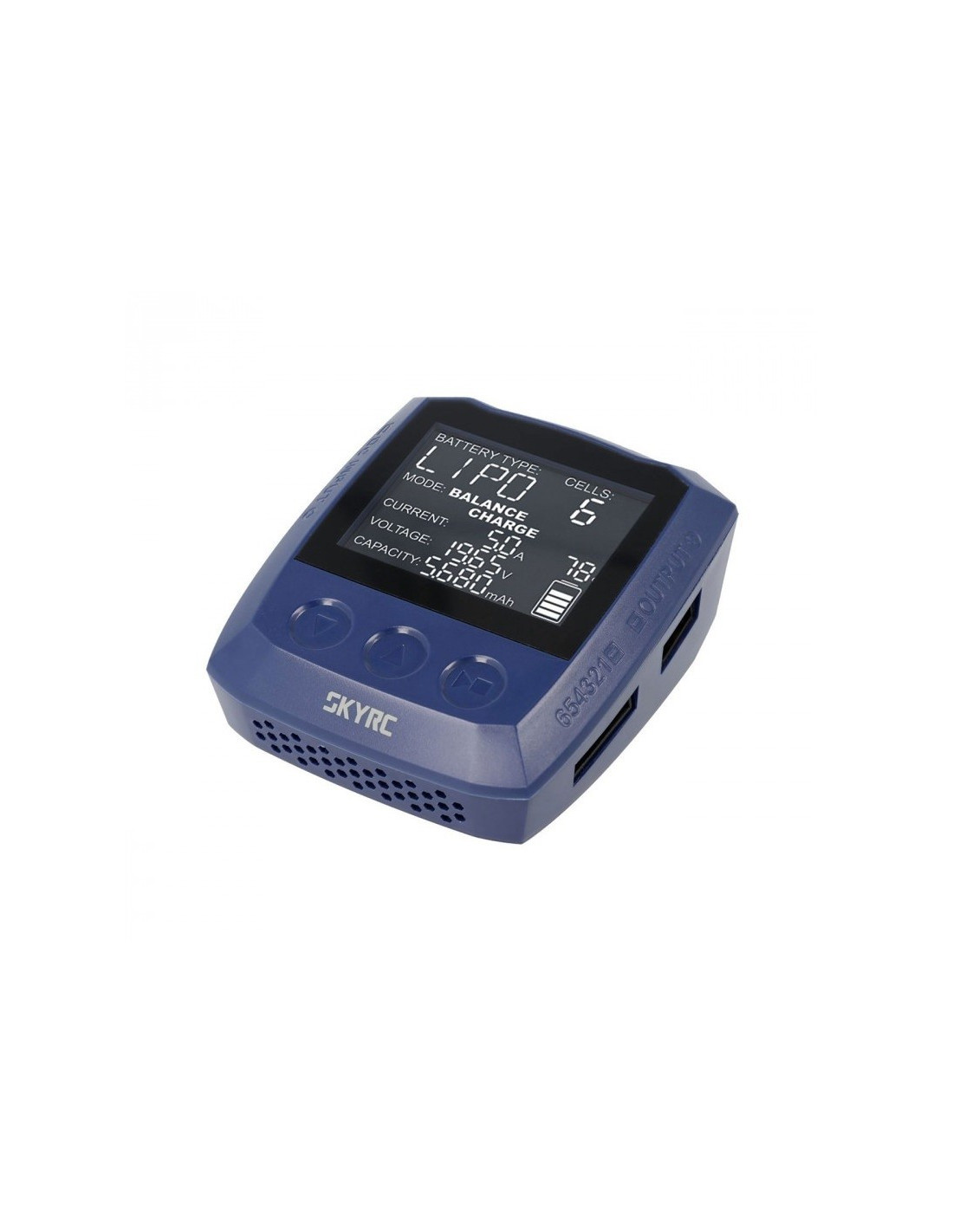

Charger B6 Nano lite 220W 12V Sky-Rc

Technical data

• DC power supply voltage: 7 to 32 V
• Display type: LCD
• Housing: Plastic
• Control: Three buttons
• Housing dimensions: 76 x 85 x 37mm
• Weight: 135g
• External sockets : XH balancing sockets for 1 to 6 cells, battery charging sockets, DC input.
• Delta-Peak detection for NiMH/NiCd : 3-15 mV/cell, fault 4 mV/cell.
• End of charge voltage : NiMH/NiCd : delta-peak detection
• LiPo: 4.18-4.25 V/cell LiIon: 4.08-4.2 V/cell
• LiFe: 3.58-3.7 V/cell LiHV: 4.25-4.35 V/cell
• Max. balancing current: 1000 mA/cell
• Voltage reading range : 0.1 to 26.1 V/cell
• Number of cells per battery type: LiPo/LiIon/LiFe/LiHV: 1 to 6 cells
• NiMH/NiCd: 1 to 15 cells
• Lead: 3S/6S/12S
• Battery capacity range: NiMH/NiCd: 100-50000 mAh
• LiPo/LiIon/LiFe/LiHV: 100-50000 mAh
• Lead acid: 100-50000 mAh
• Charging current: 0.1 to 13.0 A
• Safety timer: 1-720 minutes / OFF
• Charging power: 220 W
• Discharge current: 0.1 to 3.0 A
• End of discharge voltage: NiMH/NiCd: 0.1-1.1 V/cell
• LiPo: 3.0-3.3 V/cell LiIon: 2.9-3.2 V/cell
• LiFe: 2.6-2.9 V/cell LiHV: 3.1-3.4 V/cell
• Pb: 1.8 V
• Discharge power: 5 W
• Number of cells that can be balanced: 2 to 6 cells
• Charging methods: DC/DC for Lithium and Lead Acid batteries
• Delta-peak detection for NiMH and NiCd
