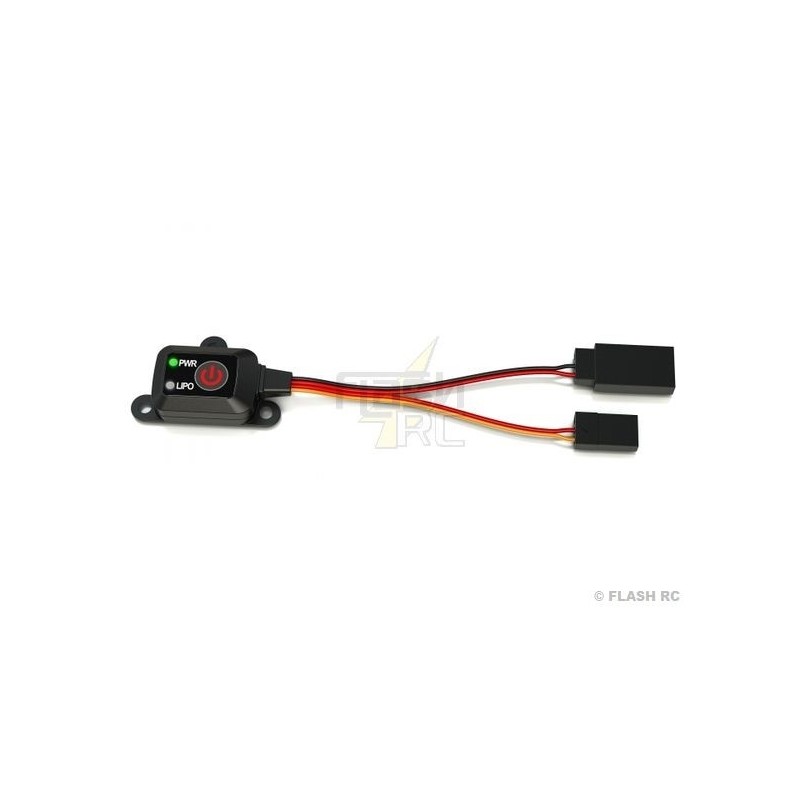

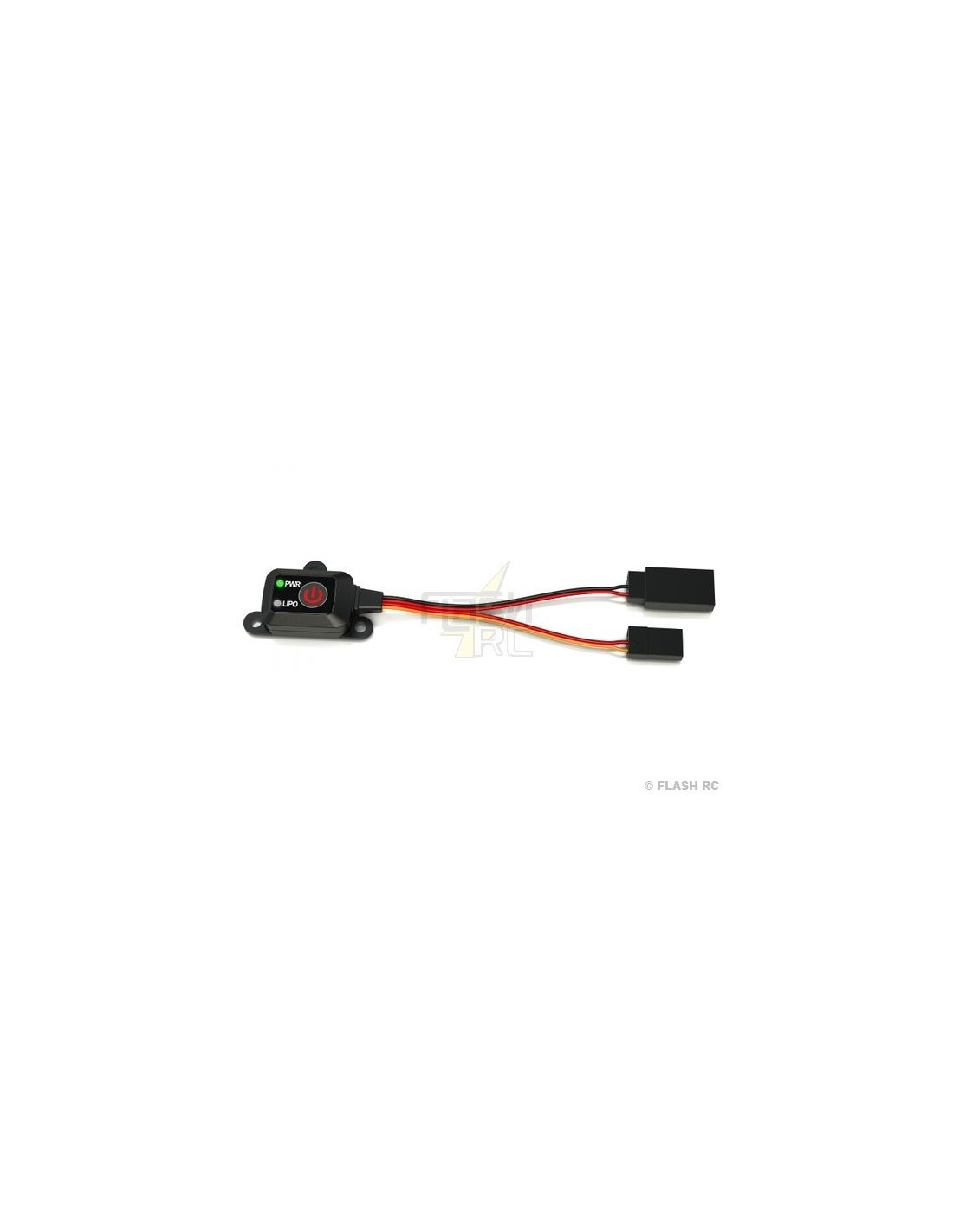

Electronic switch with touch-sensitive button to avoid any bad mechanical contact. A simple press on the button allows you to turn on or off your model. Its plastic case can easily be mounted on your model or anywhere else. In addition, this switch has a built-in battery monitor for NiMh/NiCd or LiPo batteries. You can check the remaining capacity of your battery. Works only with Lipo (polymer).
In NiCd/NiMh
To turn on press and hold the button for 1 second. The PWR LED will light up. To switch off, press and hold the button until the switch goes off. The PWR LED indicates the remaining capacity of the battery by a set of colors when the switch is turned on.
Color code -> percentage of capacity
Green: 80 - 100%
orange: 60-79%
red: 20-59%
flashing red: <20
In LiPo
To turn on press and hold the button for more than 3 seconds. The PWr and LiPo LEDs will light up. To switch off, press and hold the button until the switch goes off. The PWR LED indicates the remaining capacity of the battery by a set of colors when the switch is on.
Color code -> percentage of capacity
Green: 80 - 100%
orange: 60-79%
red: 20-59%
flashing red: <20
