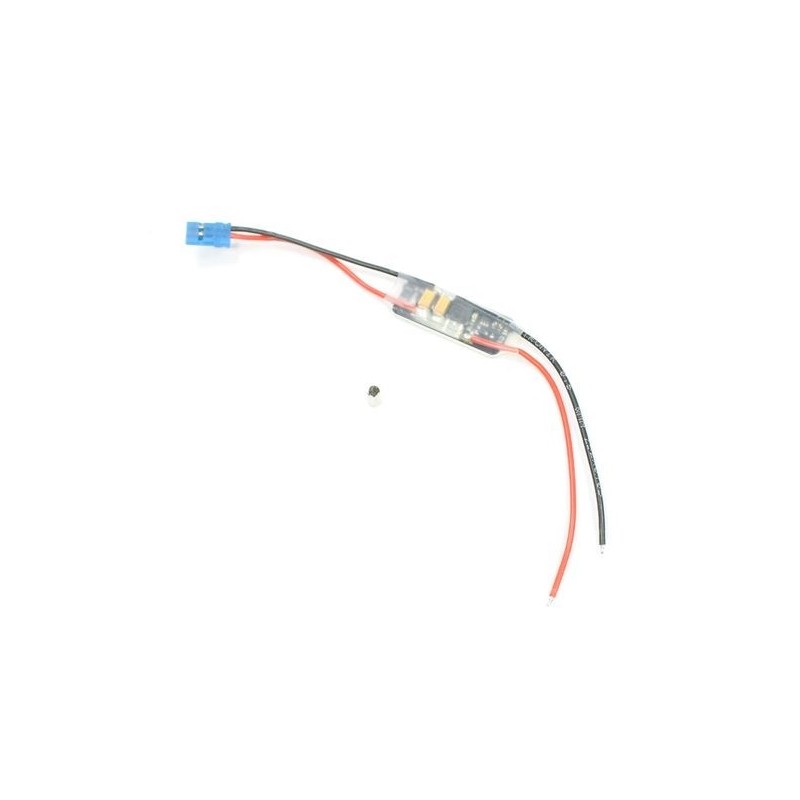

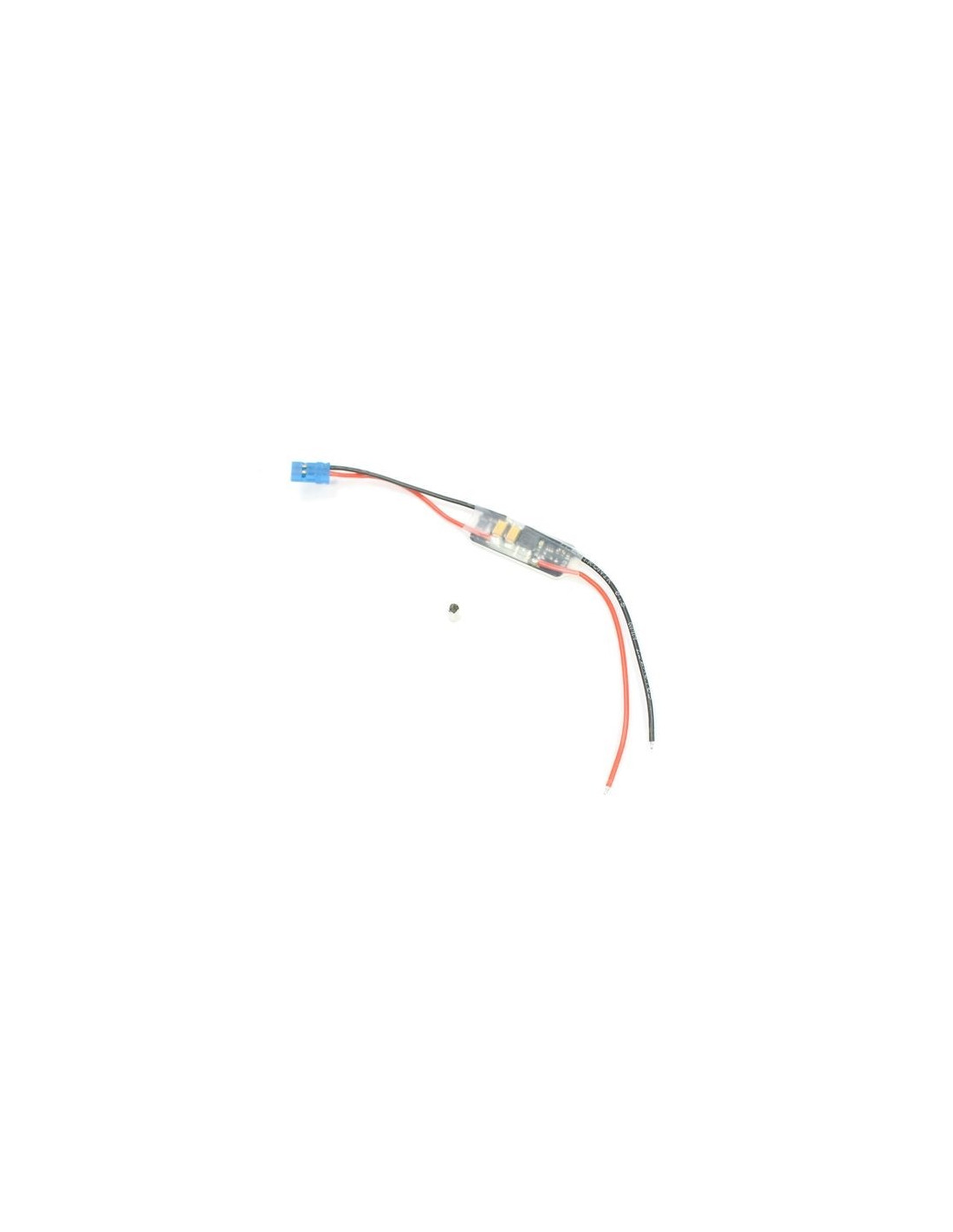

Magnetic switch 7A with BEC 5,7V Zepsus

ZEPSUS
€52.42
Tax included
The Zepsus 7A magnetic switch with 5.7V BEC is designed for F3F and F3B gliders. This ultra-compact and lightweight switch makes it easy to turn your model on or off, even if you don't have access to the electronics. Indeed, you just have to position the magnet in front of the switch, even through the fuselage. Its consumption is so low, that a 300mAh battery could be connected for years without discharging. The switch has a built-in fail-safe: it remembers its state for 10 sec. if the battery is disconnected. It integrates a linear BEC delivering 5,7V

custom html
you can configure this block in iqithtmlbanners module. It is hooked in displayRightColumnProduct hook.

To disable entire area go to iqitthemeeditor module > Content/Pages > Product page and set hidden for Right sidebar option


Technical specifications

  • Input voltage : 2S LiPo,LiFe,LiIo
  • Output voltage : 5,7V
  • Continuous output current : 7A under 25°C max (3W max)
    example : in 2S, continuous current supported of 3/(7-5,7) = 1,76A
  • Peak power : 20W
  • Switch consumption: 6 microA
  • Dimensions: 25x8x5 mm
  • Weight : 4.3g
  • Sockets: JR
  • Wires: AWG20 / 0.5mm² (0.5mm²)
  • Cord length: 18cm

Content of the delivery

interrupteur 7A zepsus

  • 1x 7A magnetic switch with 5.7V BEC
  • 1x magnet
  • Stickers
209-MBEC7A-5.7V
8800223387634
8800223387634
