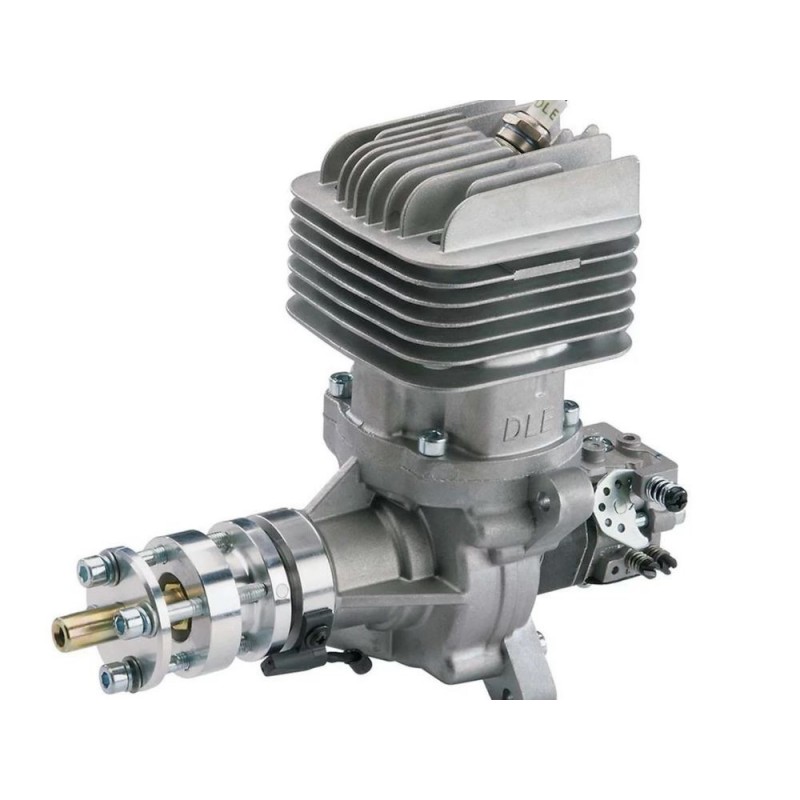

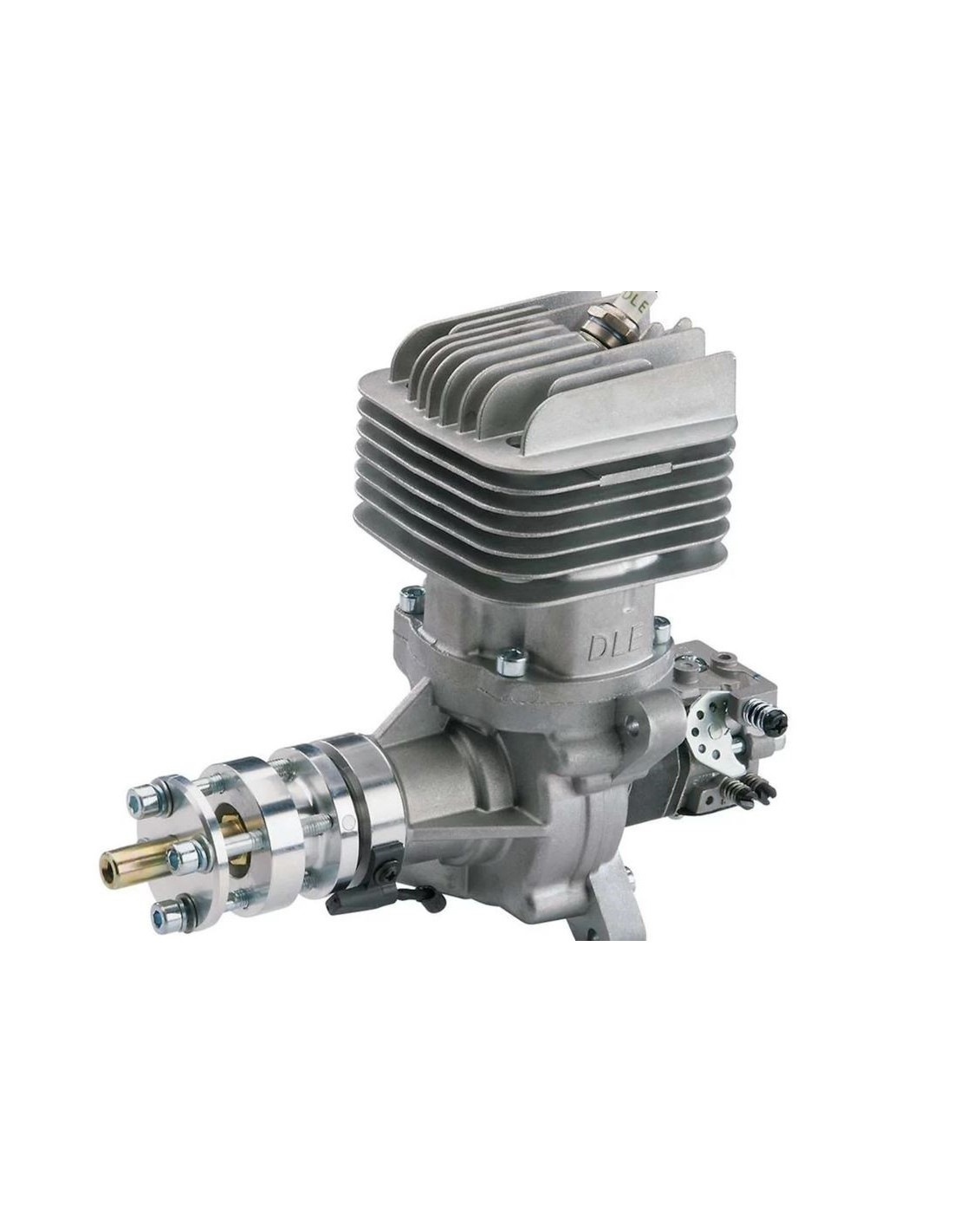

2-stroke gasoline engine DLE-55RA - Dle Engines

€390.79

Tax included

DLE-55RA two-stroke gasoline engine The DLE-55RA provides slightly more thrust than the DLE-50, which allows for better throttle response and easier in-flight maneuvering. The electronic ignition system provides the necessary spark to start the engine quickly! This "RA" version features a rear exhaust outlet, which is more aesthetically pleasing, especially for modelers desperate to see an exhaust elbow protruding from the hood!

General characteristics

Click on the pictures above to enlarge.

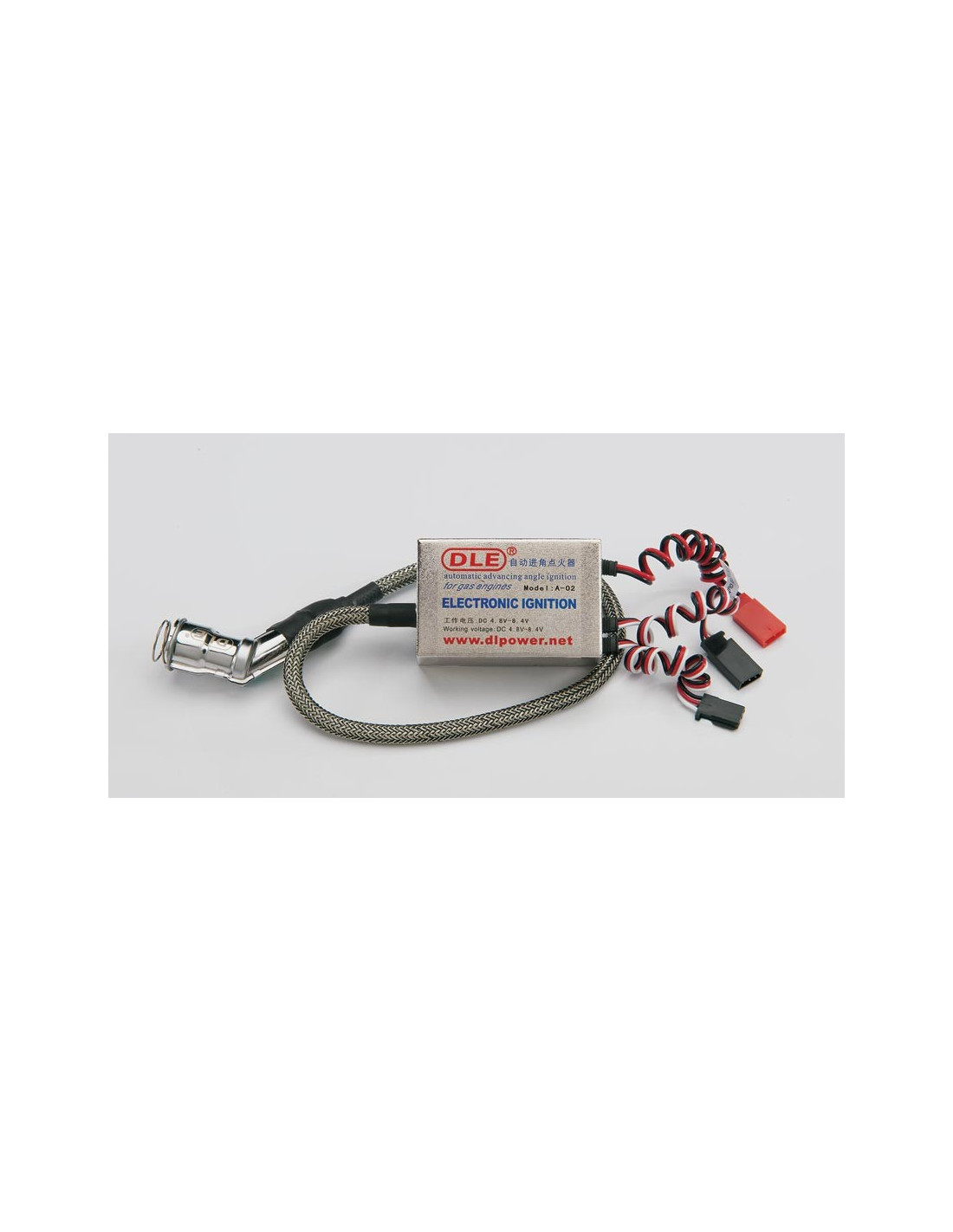

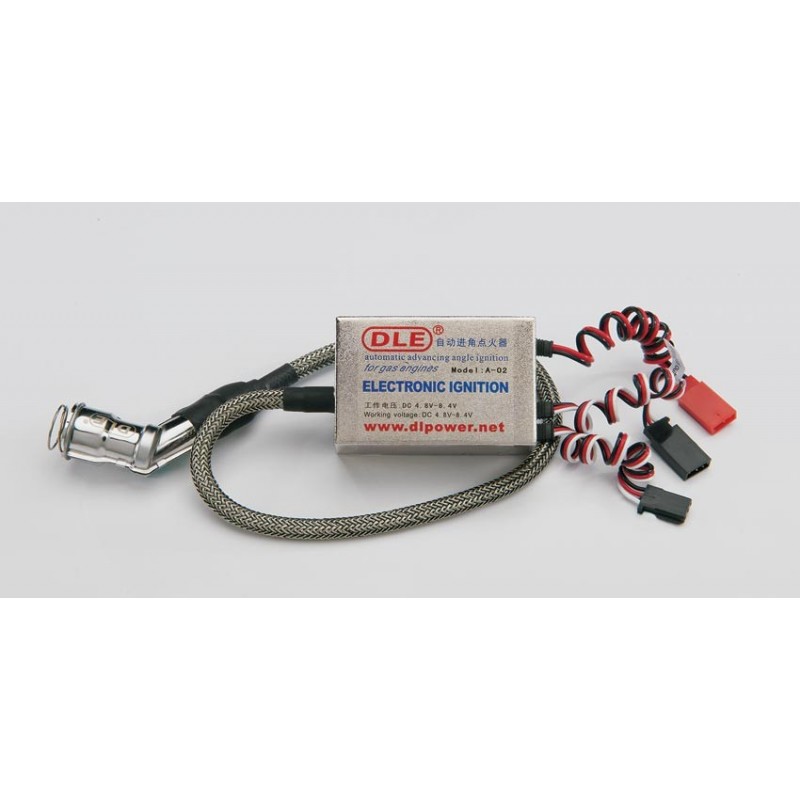

Ignition system	Contents of the box

Technical specifications

Displacement: 55.6 cc (3.392 cu in)
Weight: 1.77 kg
Speed range: 1,350-8,500 rpm
Power: 5.5 hp at 8,500 rpm
Fuel: 87-92 octane (95 unleaded + 2.5% 2-stroke engine oil)
Recommended propellers: 22x8, 22x10, 23x8 & 23x10
Recommended battery for ignition system: 4.8-6.0V NiCd or NiMH, 6.6V LiFe or 7.4V LiPo
Compression ratio: 7.6:1
Fuel/oil mixture: 30:1
Spark plug: NGK CM6 (DLEG5510) or equivalent
Weight: engine 1330 g, exhaust: 90 g, ignition system: 145g

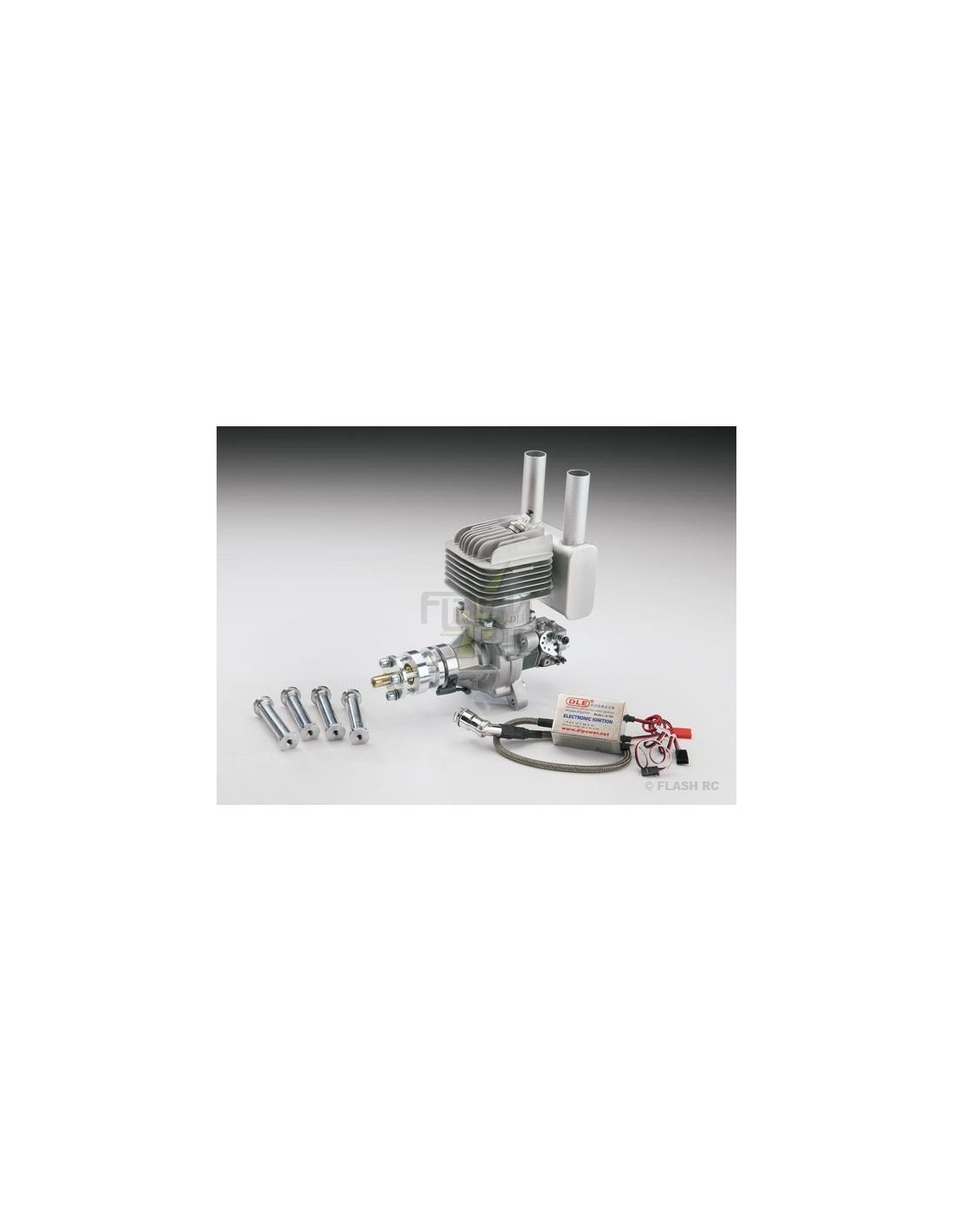

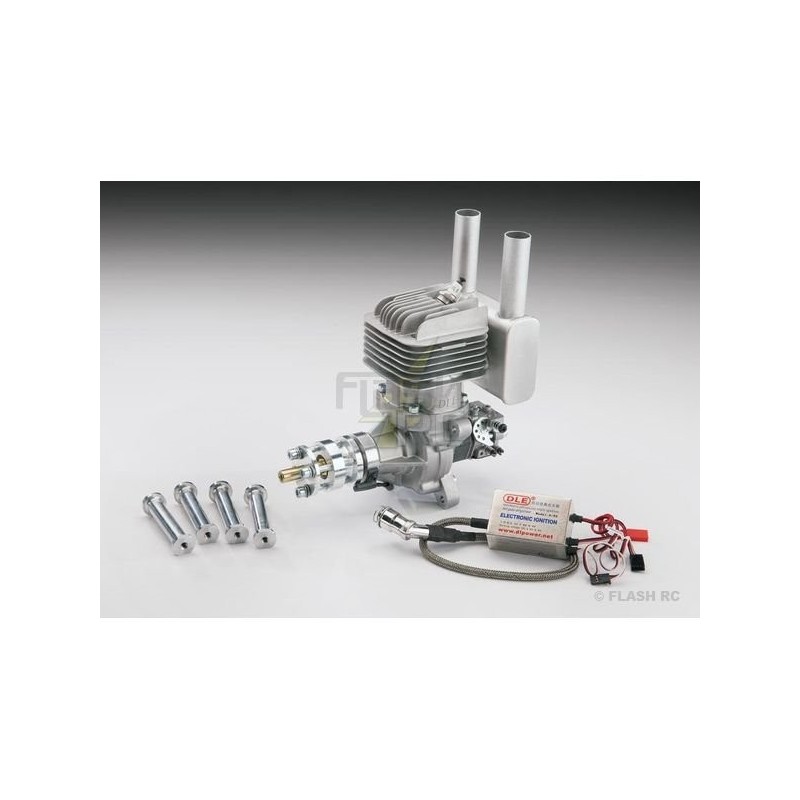

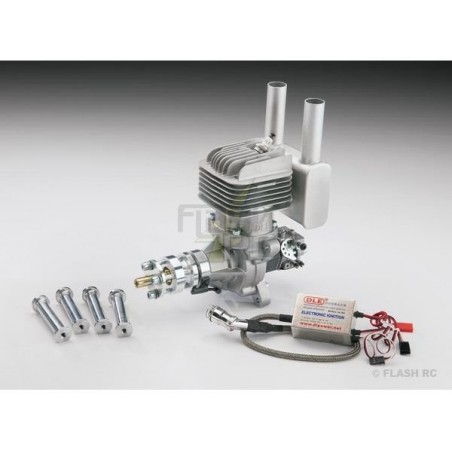

Contents of the kit

Engine DLE-55RA
Ignition system
Muffler
Spark plug
Gasket
Bolts
Machined aluminum spacers

Engine type: 2T
Engine weight: More than 1000g/1kg

Reference 177-DLE-55RA

EAN13 10010007

MPN 10010007
