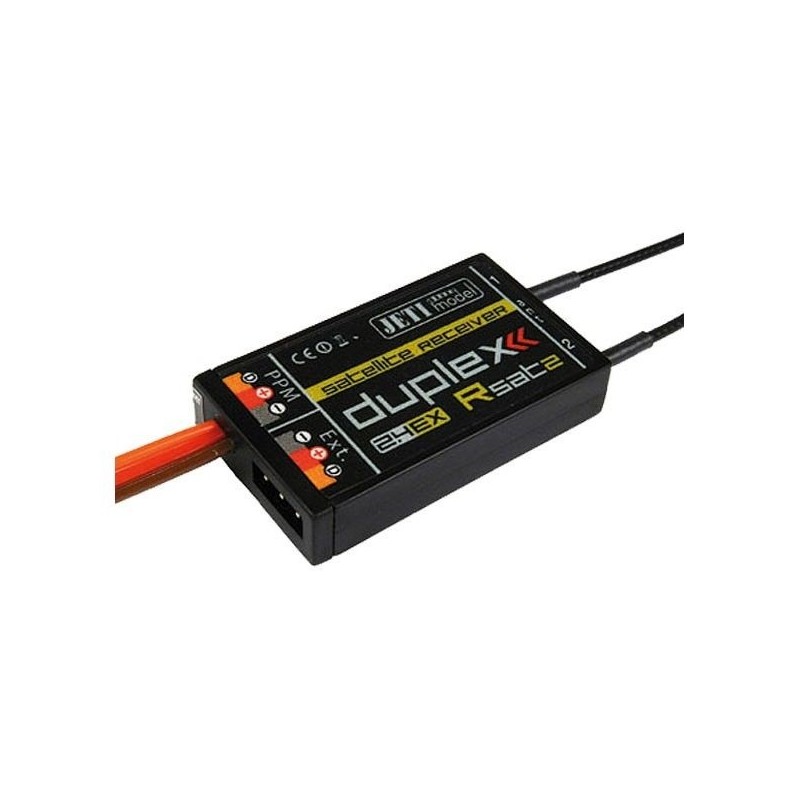

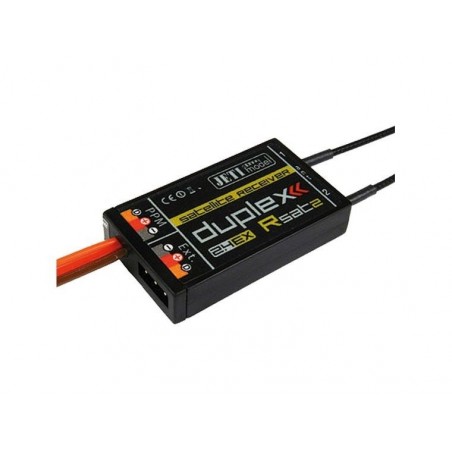

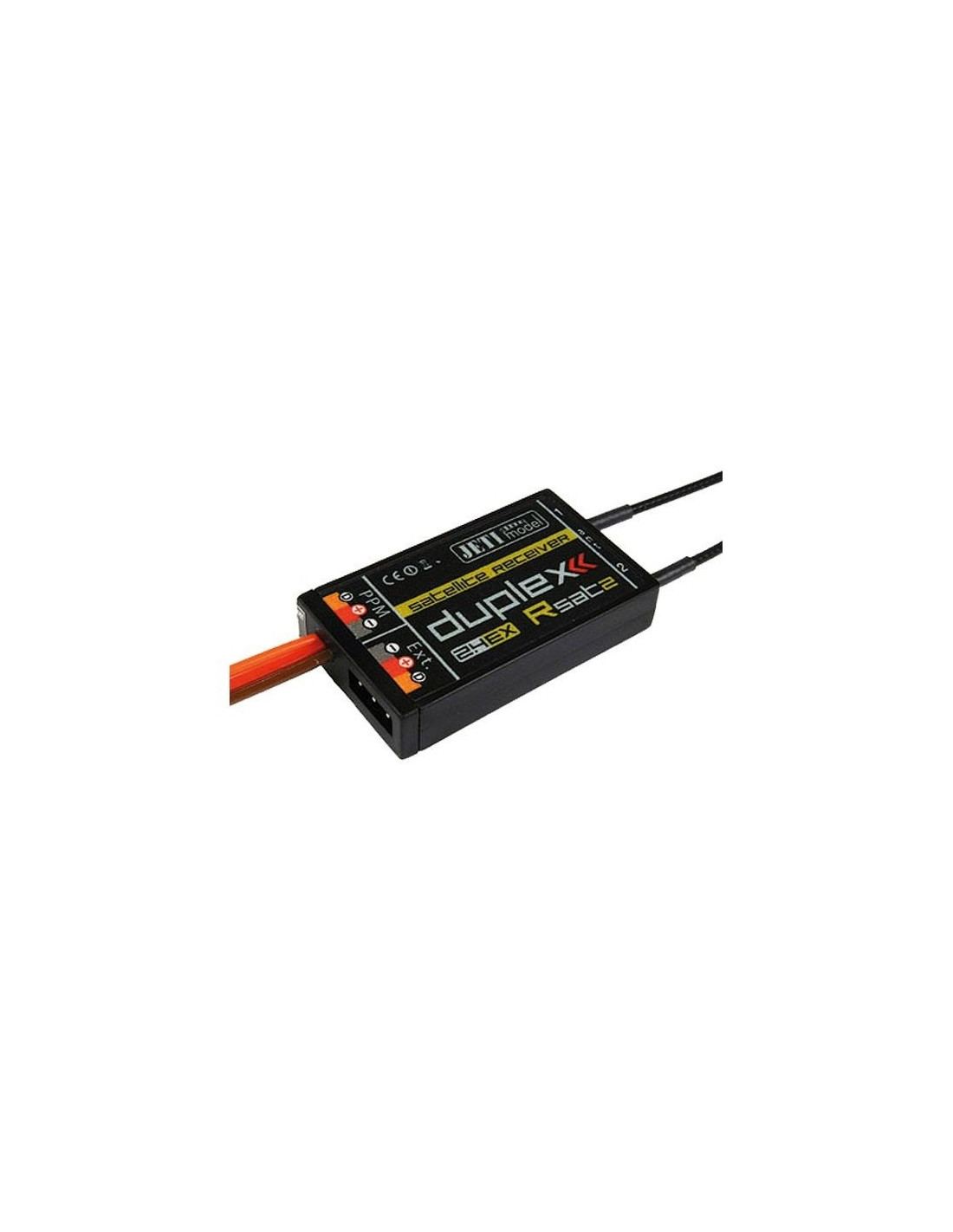

RSAT2 Duplex EX 2.4GHz Jeti receiver

€62.42
Tax included
The JETI DUPLEX Rsat2 satellite receiver can be connected to the "SAT1/SAT2" outputs of the DUPLEX R10, R12, R14 and R18 receivers.The typical use is to provide a redundant signal to your receiver from your transmitter, for which the configuration should be as follows:Perform the pairing procedure for all receivers and satellite receiversSet the satellite receiver to Clone mode.Set the PPM output of the satellite receiver to Direct modeConnect the satellite receiver to the SAT1/SAT2 socket of the main receiver.In the Output setup menu of the main receiver, choose SAT1 or SAT2 appropriatelySet the PPM Input modeThe PPM alarm code can be set to warn of the loss of signal from the satellite receiver by choosing any letter of the alphabet.

custom html
you can configure this block in iqithtmlbanners module. It is hooked in displayRightColumnProduct hook.

To disable entire area go to iqitthemeeditor module > Content/Pages > Product page and set hidden for Right sidebar option


Features

  • Number of channels: PPM 8/16
  • Dimensions: 35x23x6mm approx.
  • Weight: 12g approx.
  • Antenna length: 200mm x2
  • Supply voltage: 3.2-8.4V
  • Average current consumption: 30mA
  • Operating temperature range: -10 to +85°C
  • Sensitivity: -106dBm

French manual

To download

308-JDEX-Rs2
8595245908812
