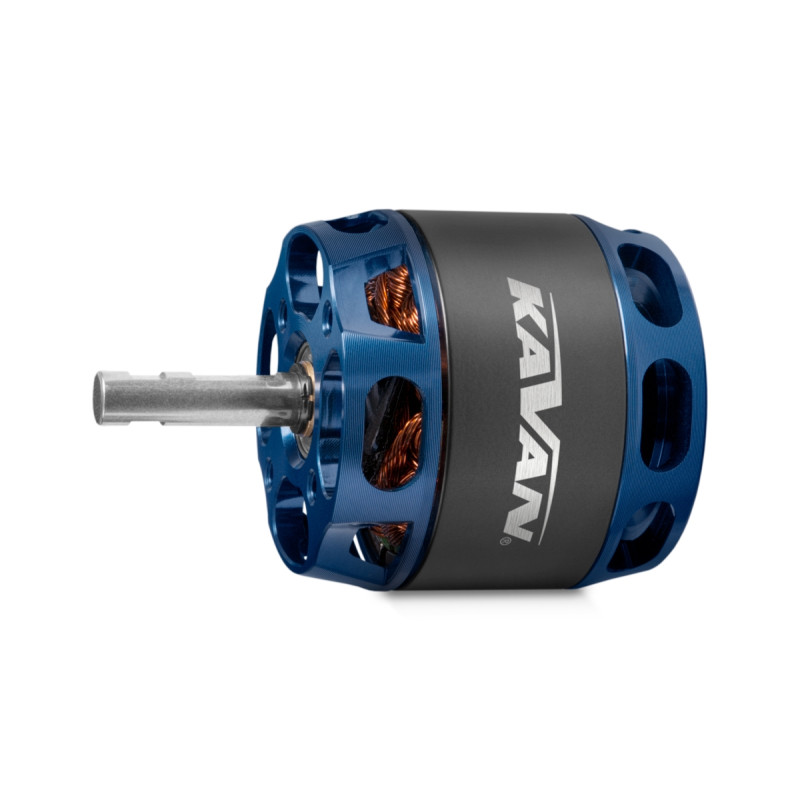

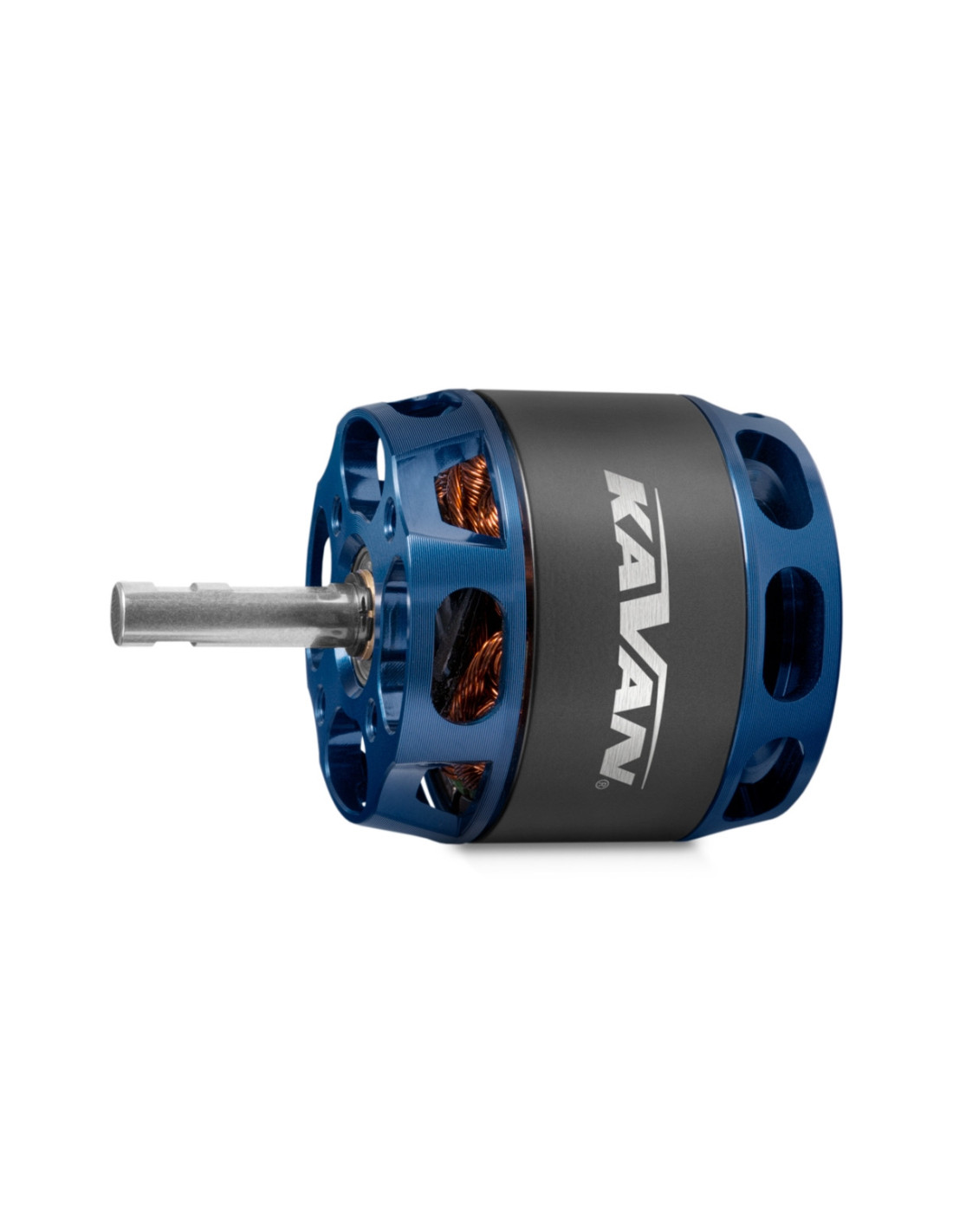

Brushless electric motor for model aircraft: 450g glider, 450g trainer, 400g acro, 330g 3D, KV1000 RPM/V, input voltage 2-4S Lixx. Shaft size 4.0 mm. Alternative designation based on stator size: 2208-1000.
Power supply for LiXX cells 2 - 4
RPM/V [ot./min/V] 1000
Maximum power (180 s) [W] 200
Internal resistance [mOhm] 163
Open circuit current (při 10 V) [mA] 550
Maximum peak current (180 s) [A] 14

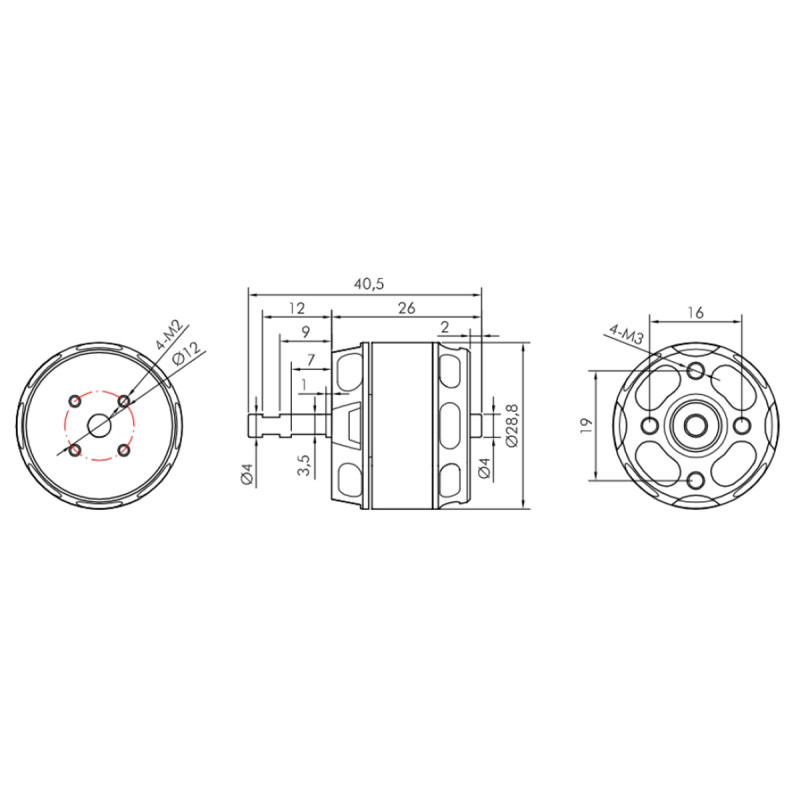

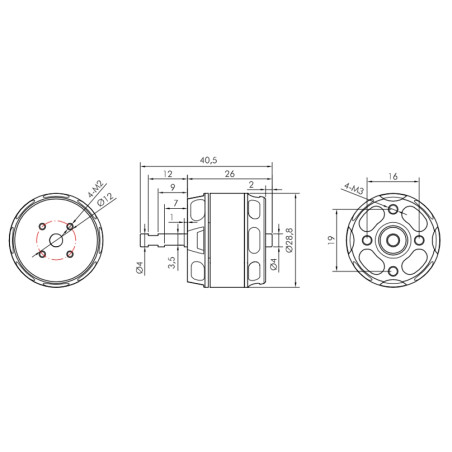

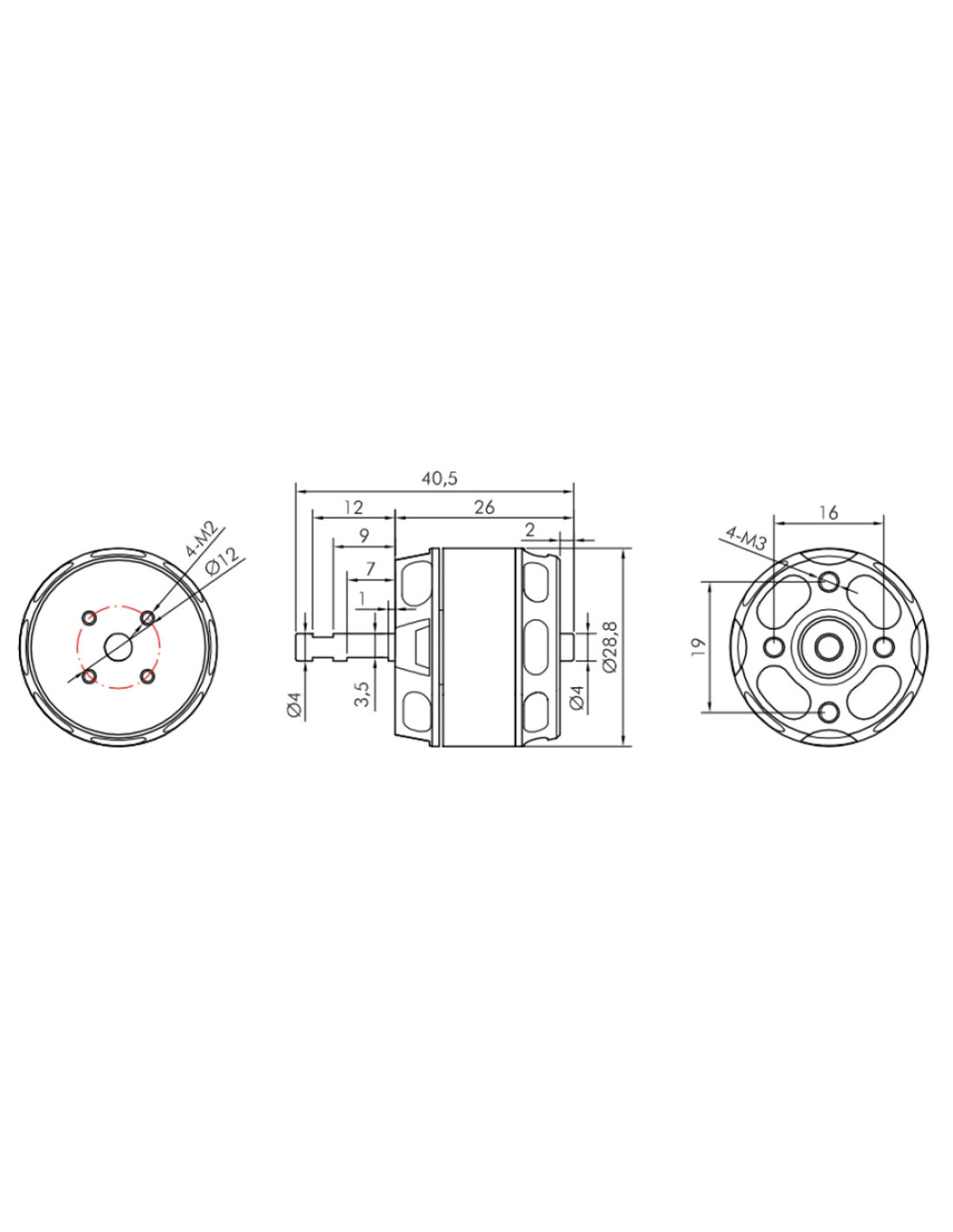

Diameter [mm] 28.8
Length [mm] 24
Celková length [mm] 40.5
Shaft diameter [mm] 4
Weight [g] 50
Number of poles 14
Time [°] 20 - 25
ESC [A] 15 - 20
Glider weight (up to) [g] 450
Trainer weight (up to) [g] 450
Weight of the acrobat (up to) [g] 400
3D weight (to) [g] 330
