KAVAN Brushless motor C2836-1120

Name: KAVAN Brushless motor C2836-1120
Brand: KAVAN
SKU: 210-KAV30.0240
Price: 21.66 EUR
Availability: InStock

Last items in stock

€21.66

Tax included

Brushless outrunner motor for model aircraft: 950g glider, 900g trainer, 800g acro, 600g 3D, KV1120 rpm per V, Lixx 2-4s power supply, 4 mm shaft

Power supply for LiXX cells 2 - 4

RPM/V [ot./min/V] 1120

Maximum power (30 s/4S LiPo) [W] 280

Open circuit current (2S) [mA] 800

Max. peak current (30 s) [A] 25

Diameter [mm] 27.8

Length [mm] 37

Shaft diameter [mm] 4

Weight [g] 67

Number of poles 14

Time [°] 15 - 25

ESC [A] 30 - 35

Glider weight (up to) [g] 950

Trainer weight (up to) [g] 900

Weight of the acrobat (up to) [g] 800

3D weight (to) [g] 600

Motor power in Watts: 330
Revs/ minute Kv: 1050

Reference 210-KAV30.0240

EAN13 8596450032149

No reviews

Comments (0)

No customer reviews for the moment.

16 other products in the same category:

Outrunner - AXI 5320/18 V2 GOLD LINE Motor (515g, 370kv, 1850W) - FLASH RC

Out-of-Stock

Outrunner

AXI 5320/18 V2 GOLD LINE motor (515g, 370kv, 1850W)

Model Motors AXI

123-5320/18-V2

€215.96

The AXI 5320/18 V2 GOLD LINE is recommended to be powered by LiPo 6S batteries for 3D models up to 4300g or Trainer up to 7000g.The AXI53xx V2 Rotating Cage Motors have been specially developed for large electric models and are 14-pole motors with a low number of revolutions per Volt capable of turning, in direct drive, large propellers with an excellent...

View

Outrunner

Hacker A40-10L V4 14-Pole brushless motor (246g, 500kv, 1500W)

HACKER

102-33726614

€122.49

Hacker A40-10L V4 14-Pole brushless motor. The V4 version provides even more power, thanks to a reworked design of the front and rear panels that ensure better cooling, and therefore a higher continuous power allowance.

Hacke A30-12 L-LN V4 brushless motor (159g, 1000kv,500W)

Outrunner

Hacke A30-12 L-LN V4 brushless motor (159g, 1000kv,500W)

HACKER

102-10109252

€78.33

The A30-LN series has been specially developed for glider models with a narrow fuselage. Since the fuselage becomes significantly thicker a few centimeters beyond the motor frame, a compact, high-torque outrunner can be used in direct drive. Thanks to the high efficiency and the integrated fan, the motor remains cool for a long time, even in narrow,...

Outrunner

KAVAN Brushless Motor PRO 3542-950

KAVAN

210-KAV30.2023

€41.66

Brushless electric motor for model aircraft: glider 2400g, trainer 2300g, acro 2000g, 3D 1500g, KV950 RPM/V, input voltage 3-4S Lixx. Shaft of 5.0 mm. Alternative designation based on stator size: 2820-950.

Outrunner

Roxxy brushless C35-48 short shaft motor (173g, 990kv, 490W)

ROXXY

064-1-01106

€51.08

ROXXY BL Outrunner C35-48-990kV motor, used in the Acromaster ProMotor delivered without accessorieskV: 990 rpm/Vdiam. shaft: 5mm (short axis)length: 45mmdiameter: 35mmweights: 172gr.recommended voltage: 3S LipoMaximum power: 490W

Outrunner

KAVAN Brushless motor C3542-1250

KAVAN

210-KAV30.0264

€28.33

Brushless outrunner motor for model aircraft: glider 2200g, trainer 2100g, acro 1800g, 3D 1200g, KV1250 rpm per V, Lixx 3-4s power supply, shaft 4.0 mm.

Outrunner

Brushless motor DM2610 (81g, 1000kv, 230W) Pro-Tronik

A2PRO

272-S03872612

€43.29

Pro-Tronik DM2610 Kv1000 brushless motorFor aircraft up to 1.6kg / motorgliders up to 1.9kg

Outrunner

Robbe XC4226/12 LS 280g KV660 special glider

ROBBE

232-5834

€99.99

Special brushless motor with long shaft (LS Long Shaft) for thin nose gliders.

Outrunner

XPower XC5030/14 LS 450g KV410 special glider

Xpower

038-099C503014LS

€112.42

Special brushless motor with long shaft (LS Long Shaft) for thin-nose gliders up to 9kg.

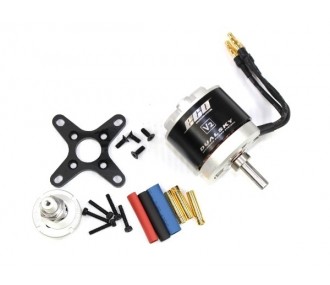

Outrunner - Dualsky Eco 3520C V2 Motor (210g, 1020kv, 960W) - FLASH RC
