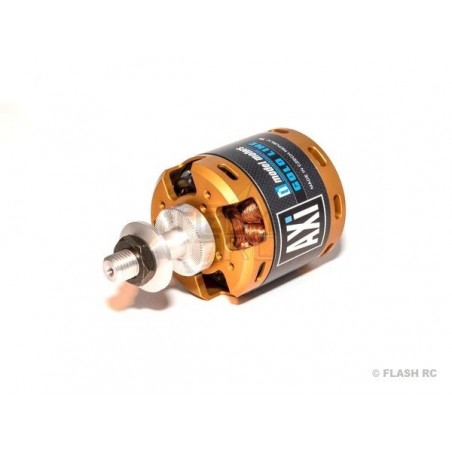

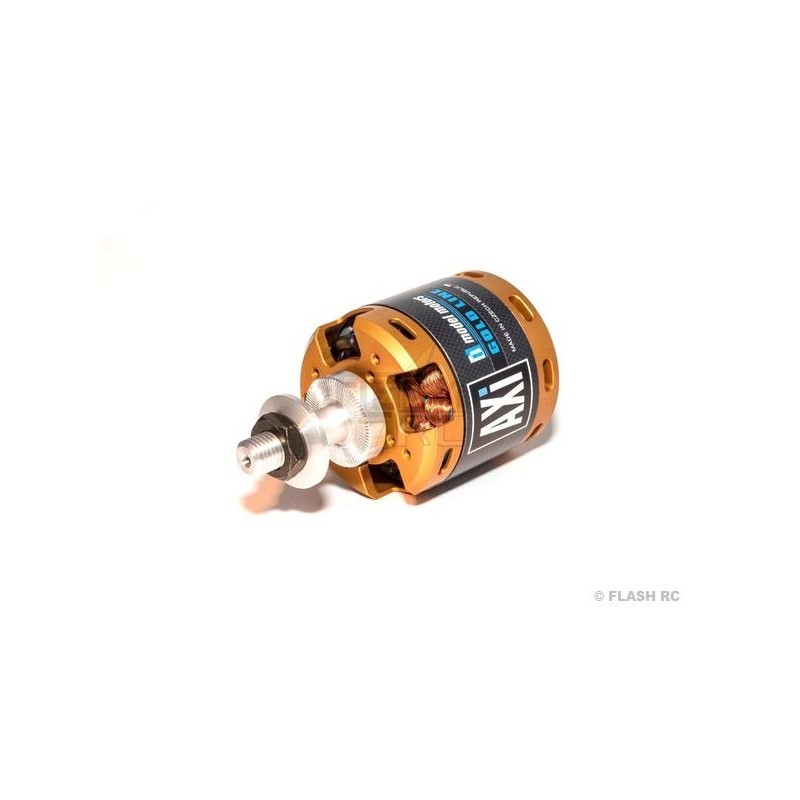

AXI 5330/24 V2 GOLD LINE motor (672g, 197kv, 2220W)

Out-of-Stock

€115.83

Tax included

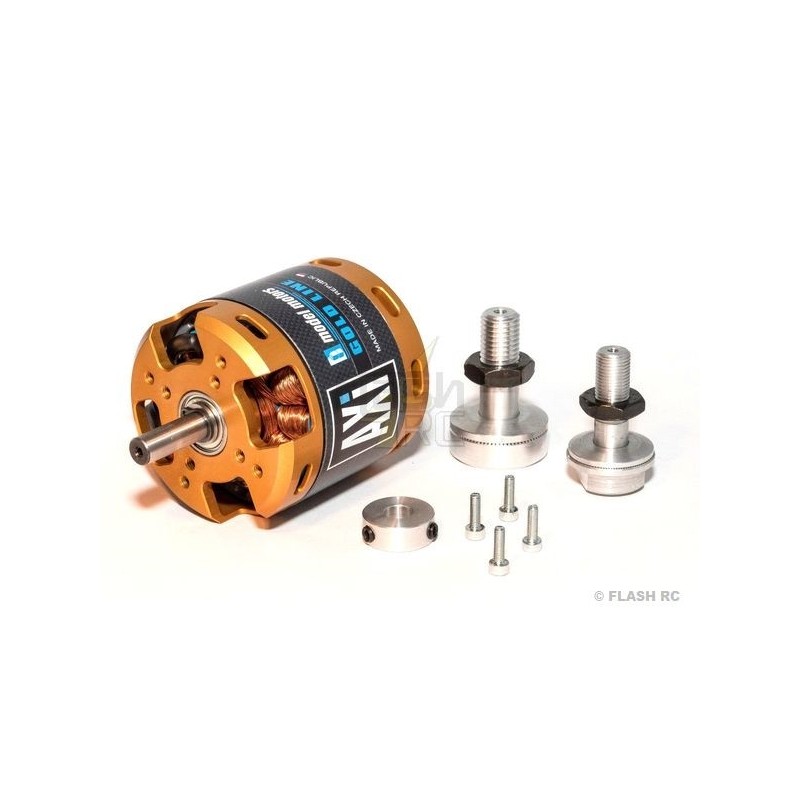

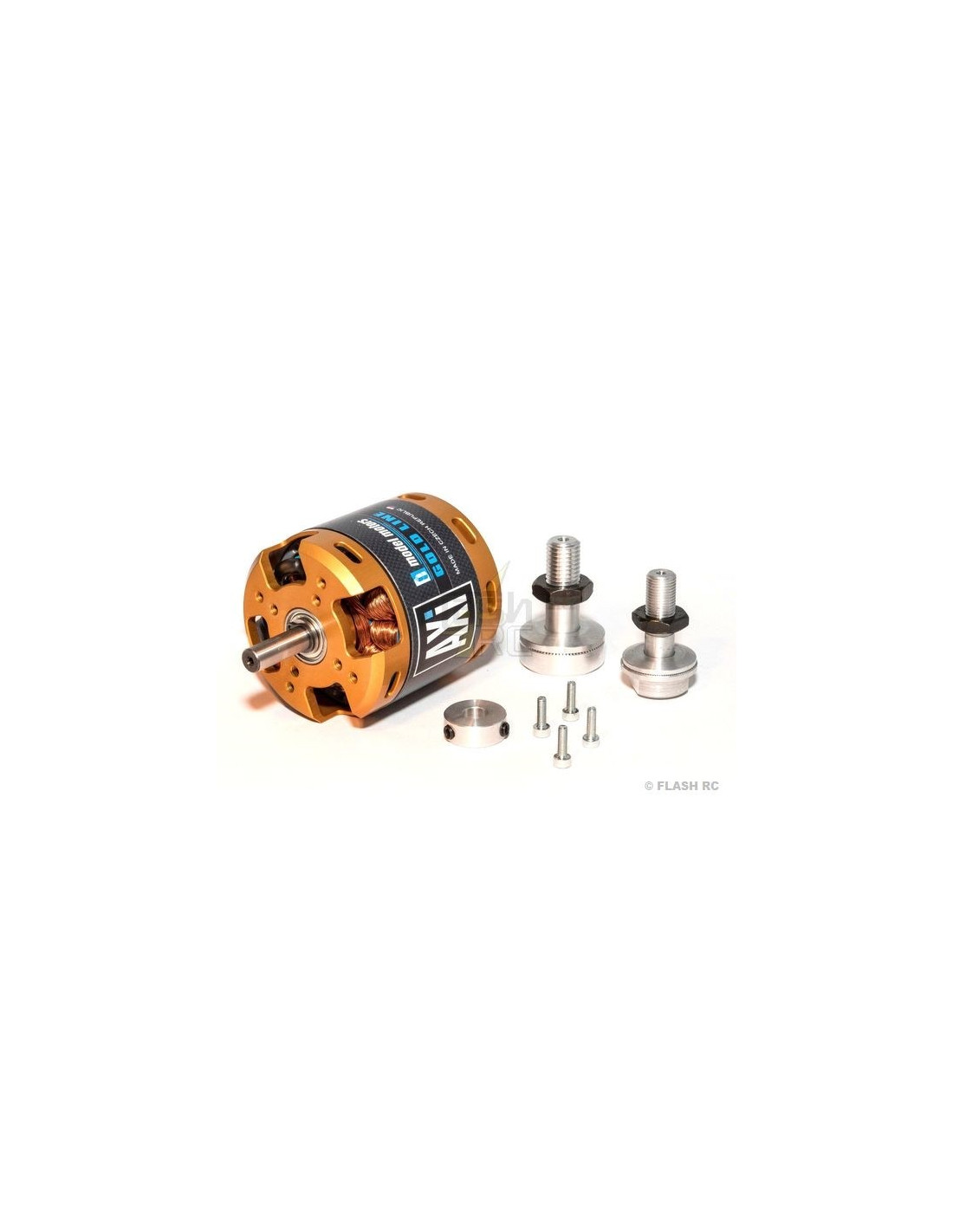

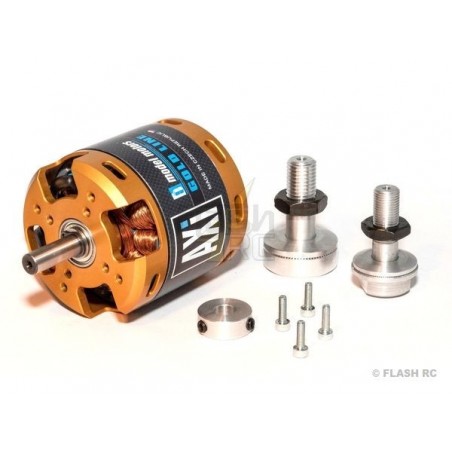

The AXI 5330/24 V2 GOLD LINE is recommended to be powered by 10S batteries for F3A models up to 5000g and gliders up to 16000g at take-off.this highly efficient brushless motor with neodymium magnets and rotating cage is manufactured using the latest technology of the finest quality materials. The 5mm hardened steel shaft is supported by three ball bearings, and the overall robust construction ensures a long service life.Due to its high torque characteristics, this motor is capable of turning large propellers with a high level of efficiency, and without the need for a gearbox.The quiet operation makes these motors particularly suitable for model aircraft.axi 5330/xx V2 motors are supplied for front and rear mounting, with two ad'hoc propeller adapters as standard.

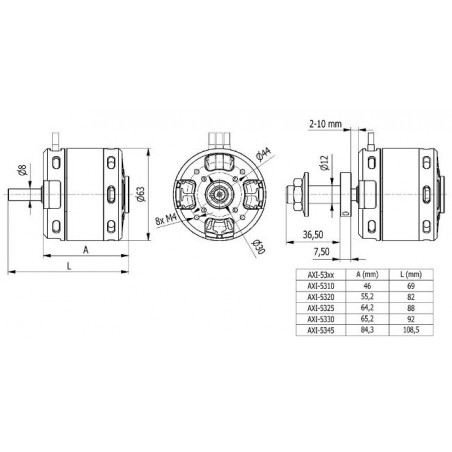

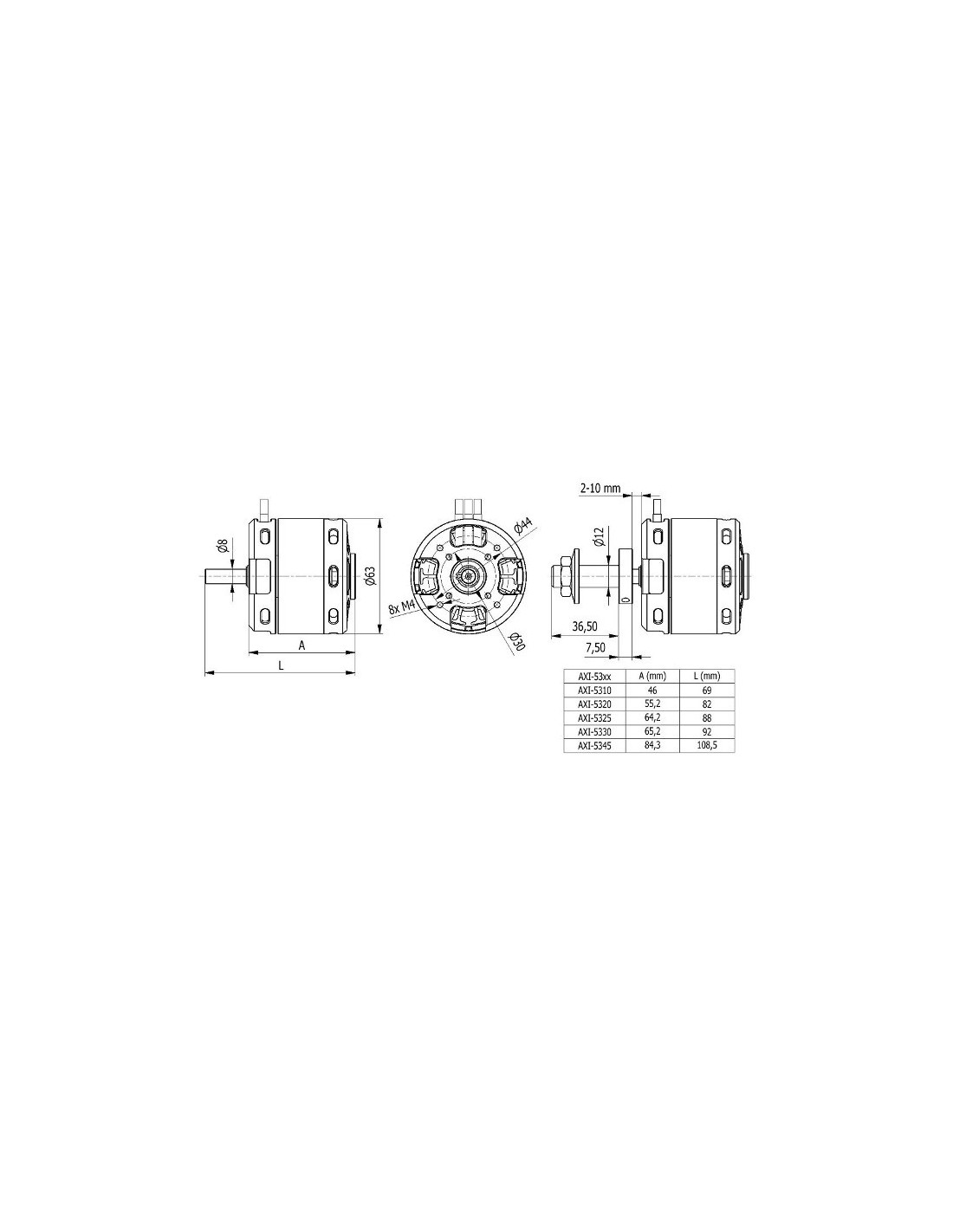

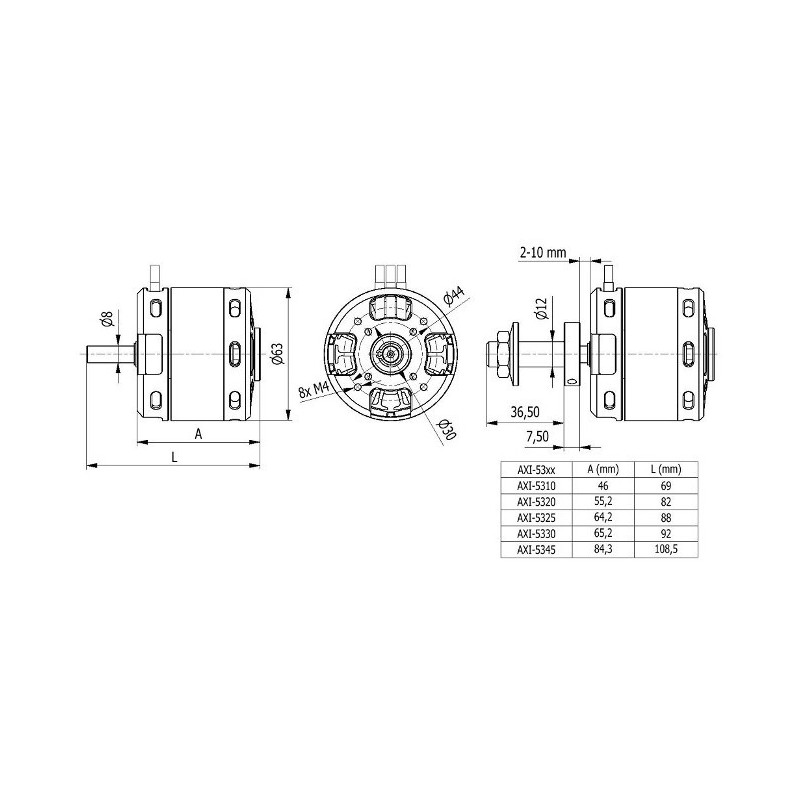

Dimensions

Technical specifications:

Recommended number of cells: 10S LiPo
RPM per Volt: 197 RPM/V
Max. efficiency: 92%.
Max efficiency consumption: 15-38A (>85%)
No load current: 1,4A
Max current: 59A/60S
Internal resistance: 57mOhm
Dimensions: Ø63x65.5mm
Motor shaft diameter: 8mm
Weight: 672g
Max power: 2220W
Recommended propellers: 22 "x10 "to 23 "x12

Engine weight: from 600g to 999g
Motor power in Watts: 2220
Revs/ minute Kv: 197
Type of tree: standard

Reference 123-5330/24-V3

EAN13 8595247302076

MPN 8595247302076
