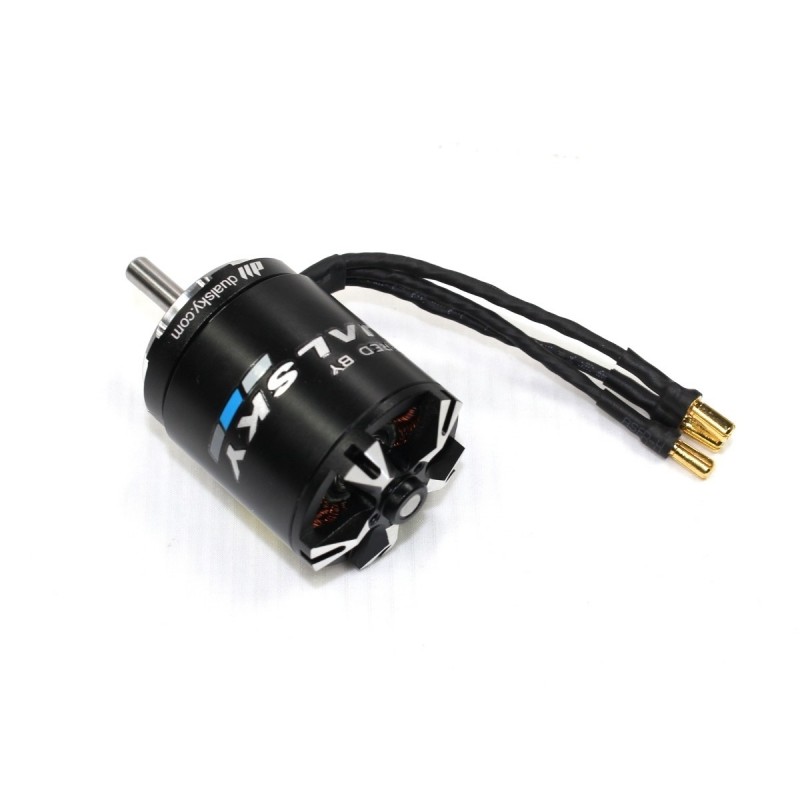

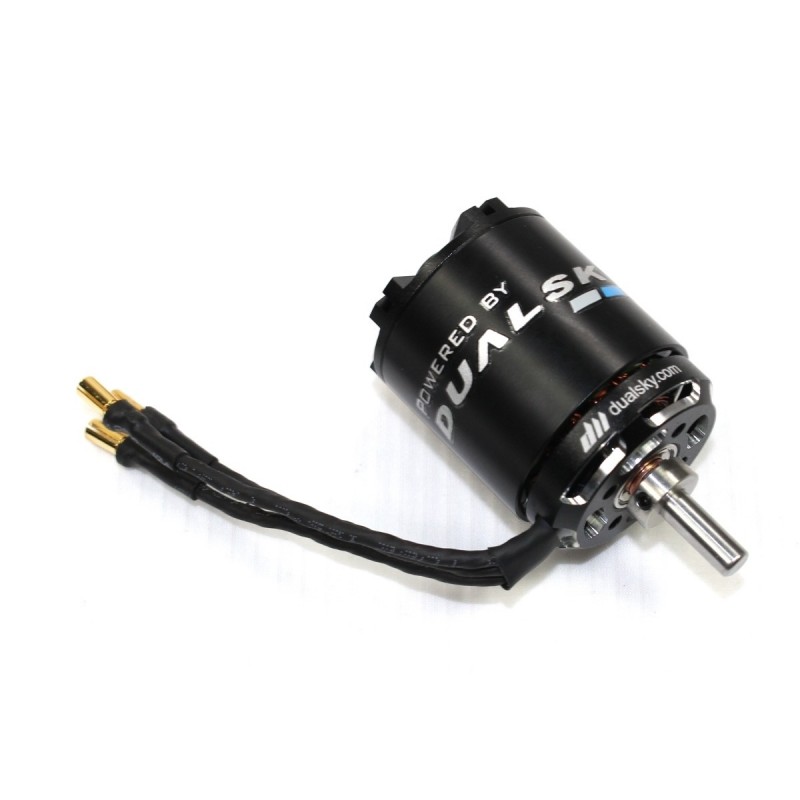

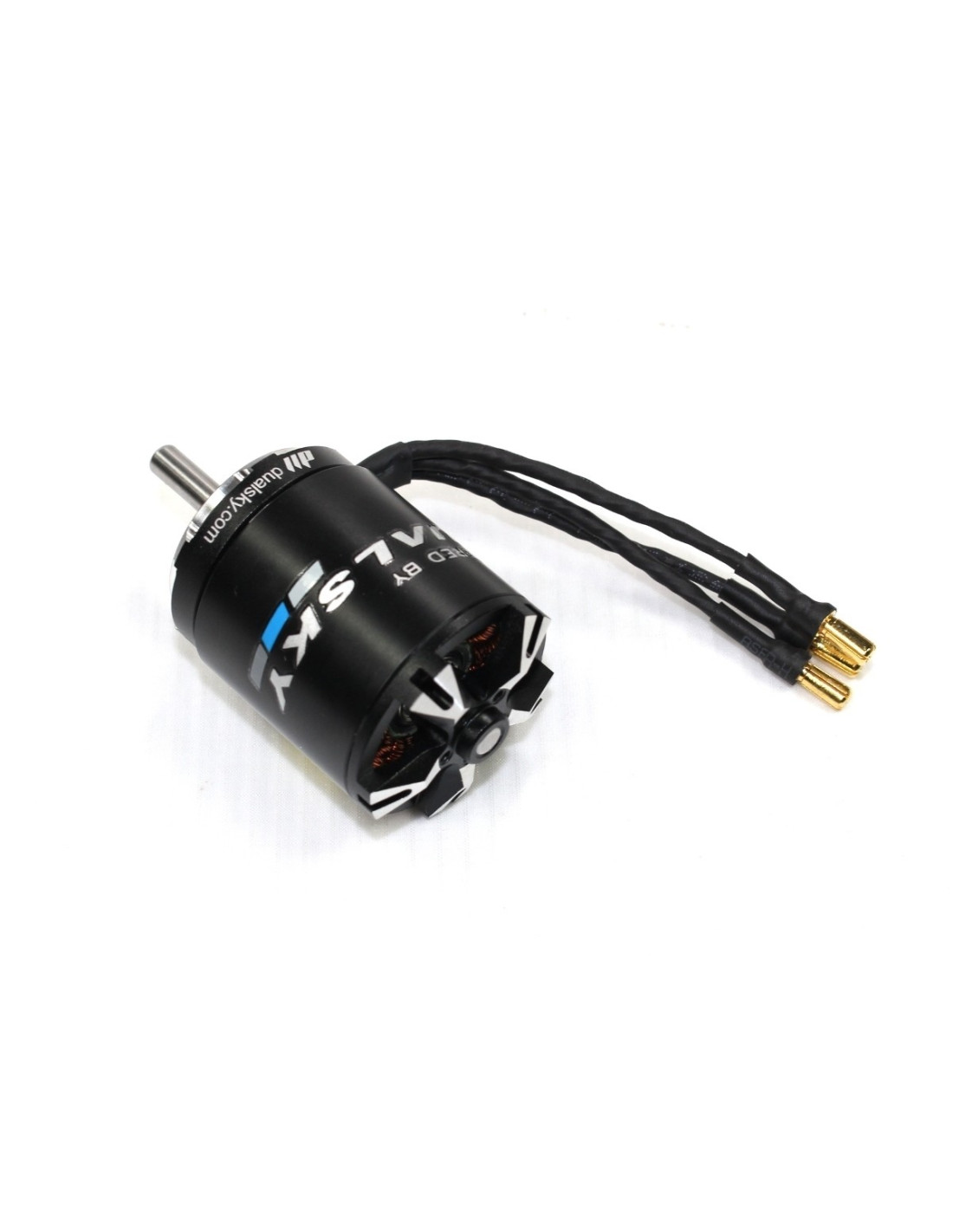

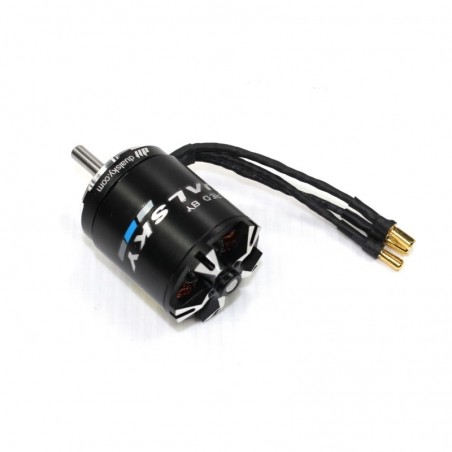

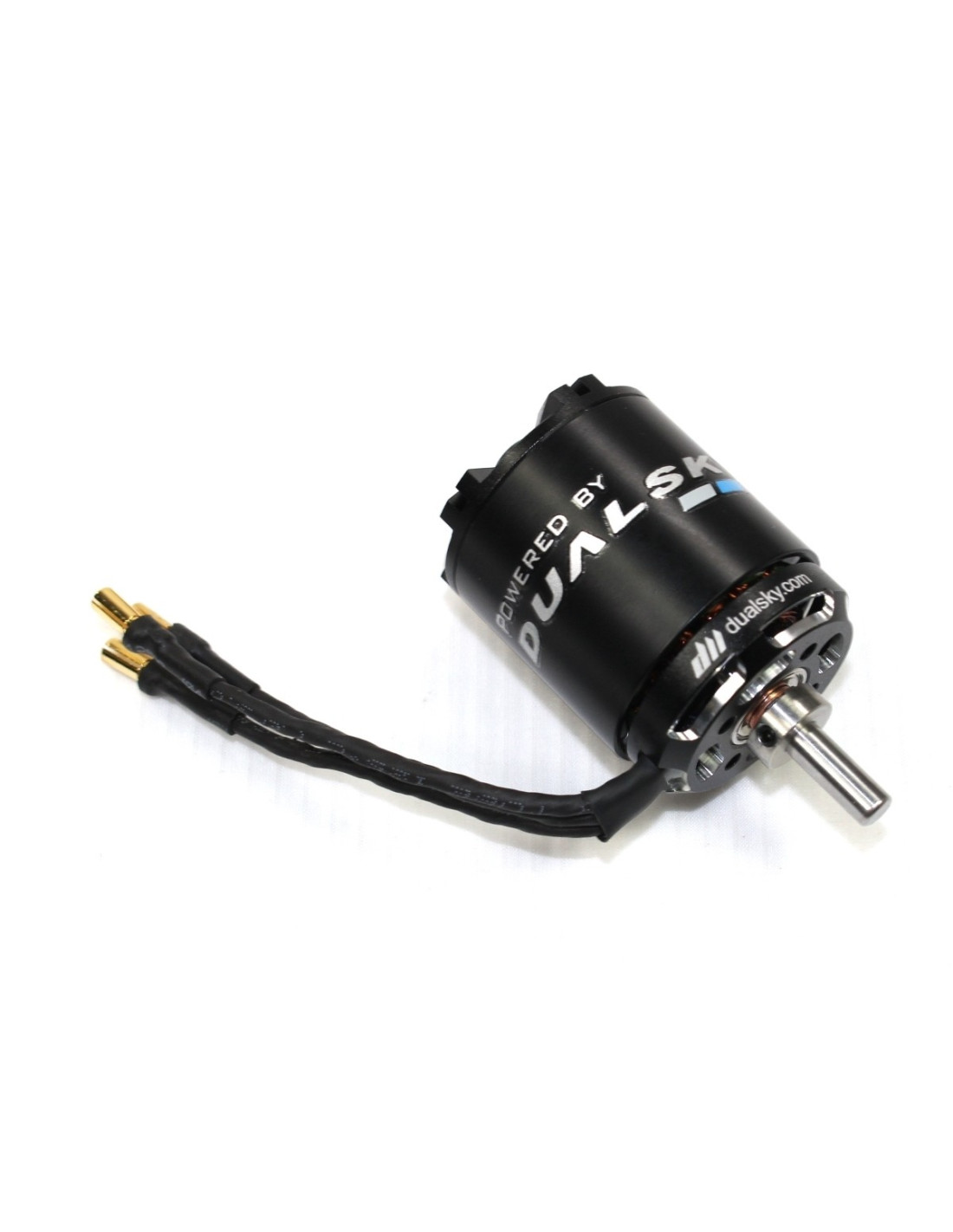

Dualsky XM3548EA-14 V3 motor (177g, 530kv, 840W)

Last items in stock

€58.25

Tax included

Evolution of DUALSKY motors in XM V3 range, with more torque and efficiency.DualSky shows all its know-how in the realization of these quality brushless motors:- long life bearings- aluminium machining- regular winding- original soldered male PK connectors- delivered with the fixing system for the propeller on the cage side- excellent quality/price ratio- compatible with most brushless controllers- excellent weight/power ratio- efficiency at the standard of current quality motors (type AXI, Mega Motor, ...)

Product advantages

High performance engine
Quality and reliable motor
original accessories included
spare motor shaft available
spare bearing available
compatible with all types of brushless controllers

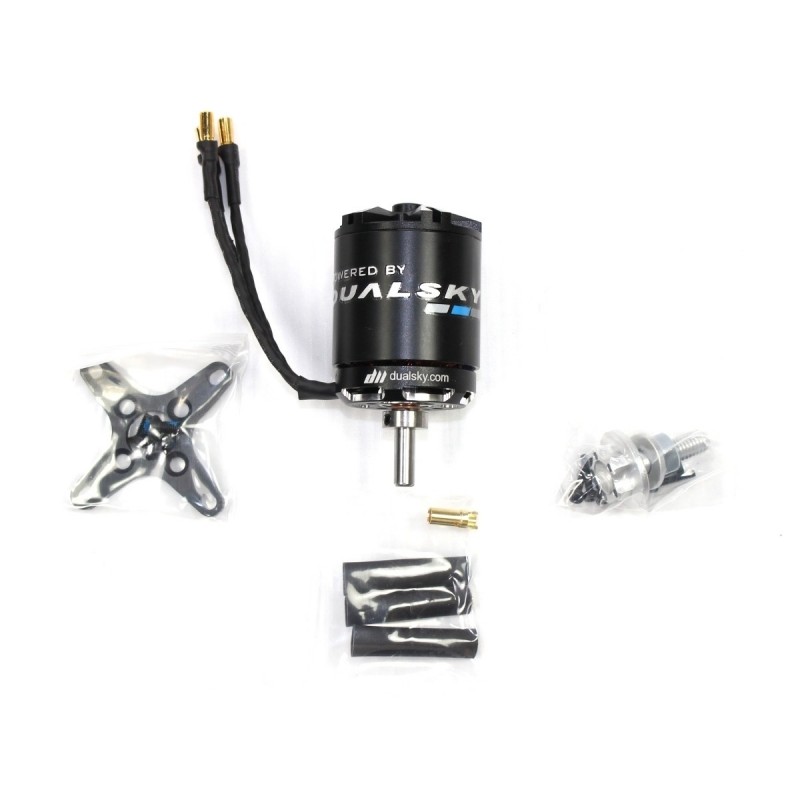

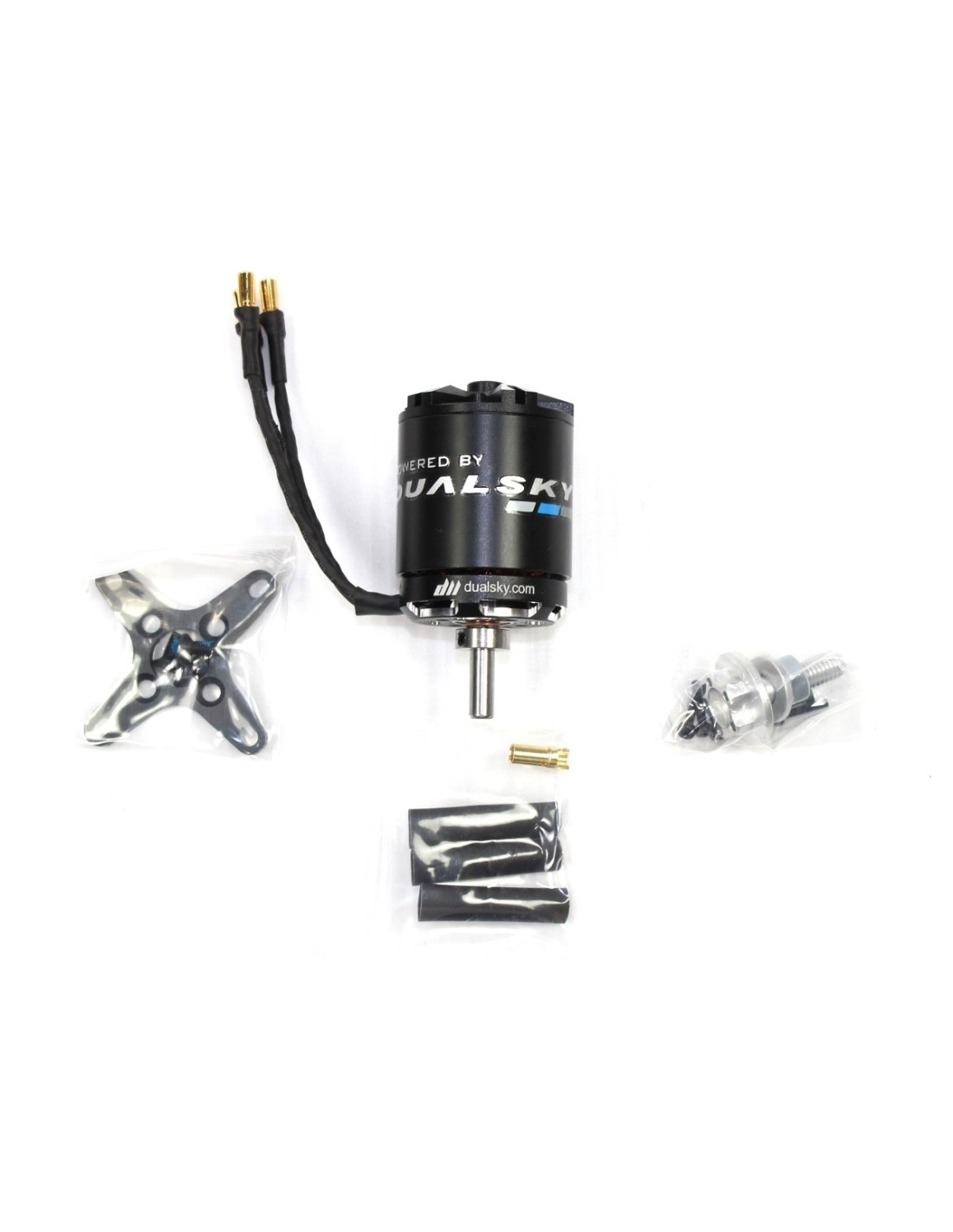

Contents of the kit

brushless motor with PK 3.0mm gold soldered plugs
Propeller holder on the rotor side with its fixing screws

Technical specifications

Brand :Dualsky

Range :Xmmotors series V3

Type :Outrunner

Weight :177g

Dimensions :Ø35.2 x 48.2mm

Motor axis diameter :5mm

Max current :35A

Max power :840W

KV:530Tr/V/m

Recommended ESC amperage :XC4018BA

Reversible mounting :No

Recommended propeller size: 14x7 in 5S / 13x6.5 in 6S

Engine weight: from 100g to 599g
Motor power in Watts: 840
Revs/ minute Kv: 530
Type of tree: standard

Reference 016-XM3548EA-14_V3

EAN13 6941047118607

MPN 6941047118607
