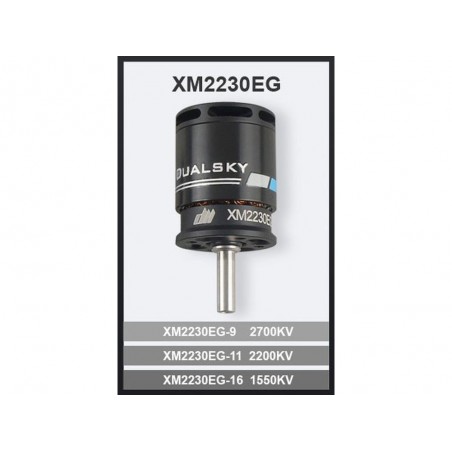

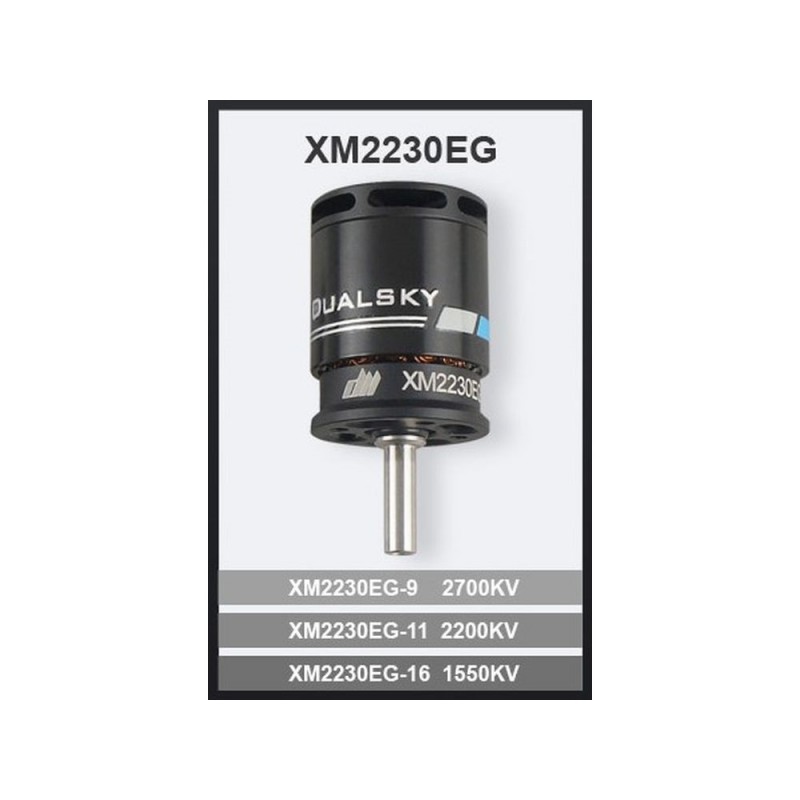

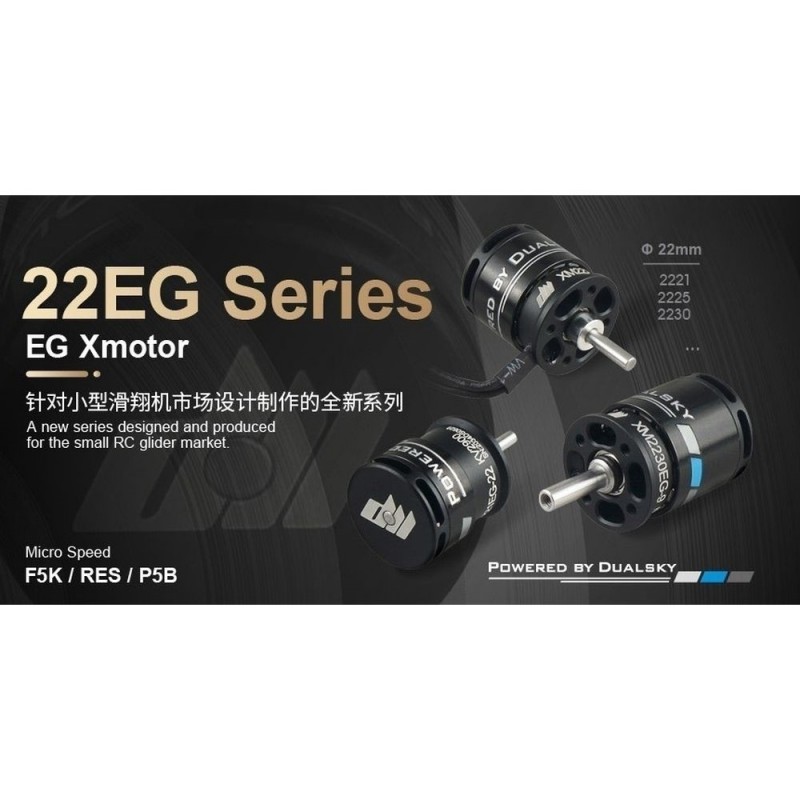

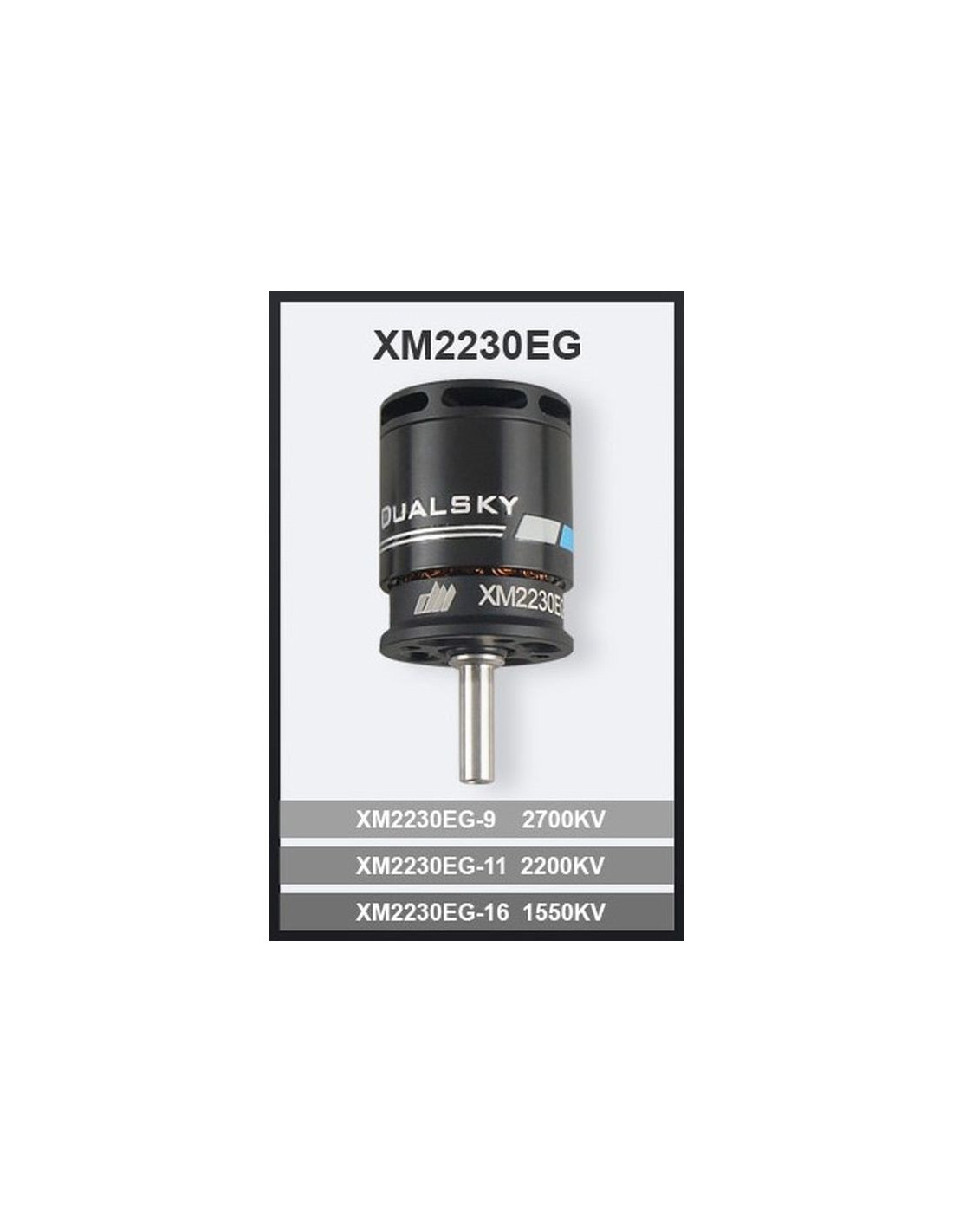

Dualsky XM2230EG-9 motor (42g, 2700kV, 296W)

Dualsky was founded in early 2004.
Dualsky produces Xmotor brushless motors, Xcontroller brushless ESCs, Xpower high-speed Lipo batteries and other accessories.

Some details:

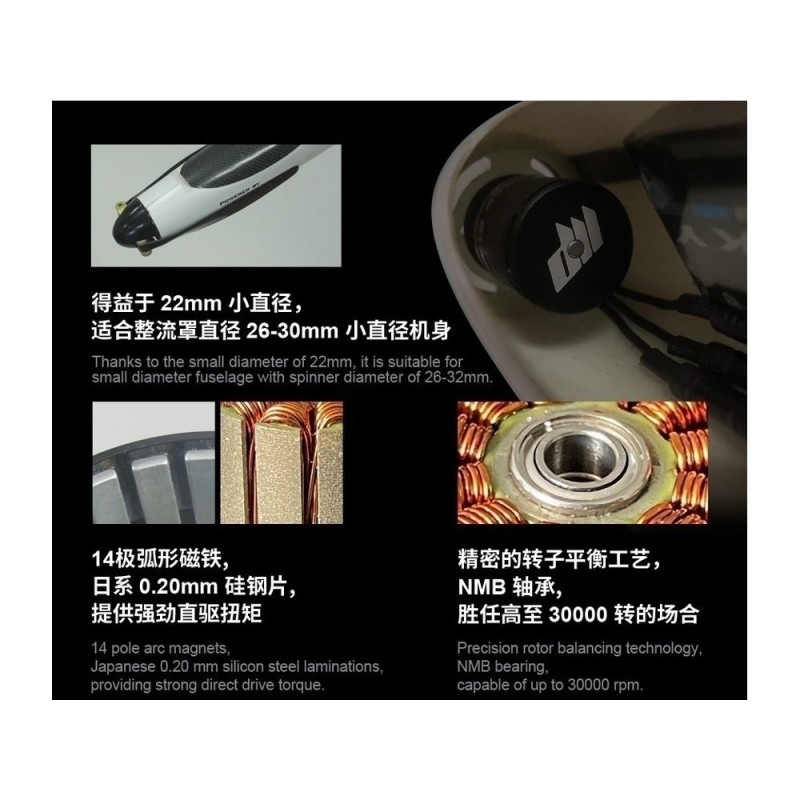

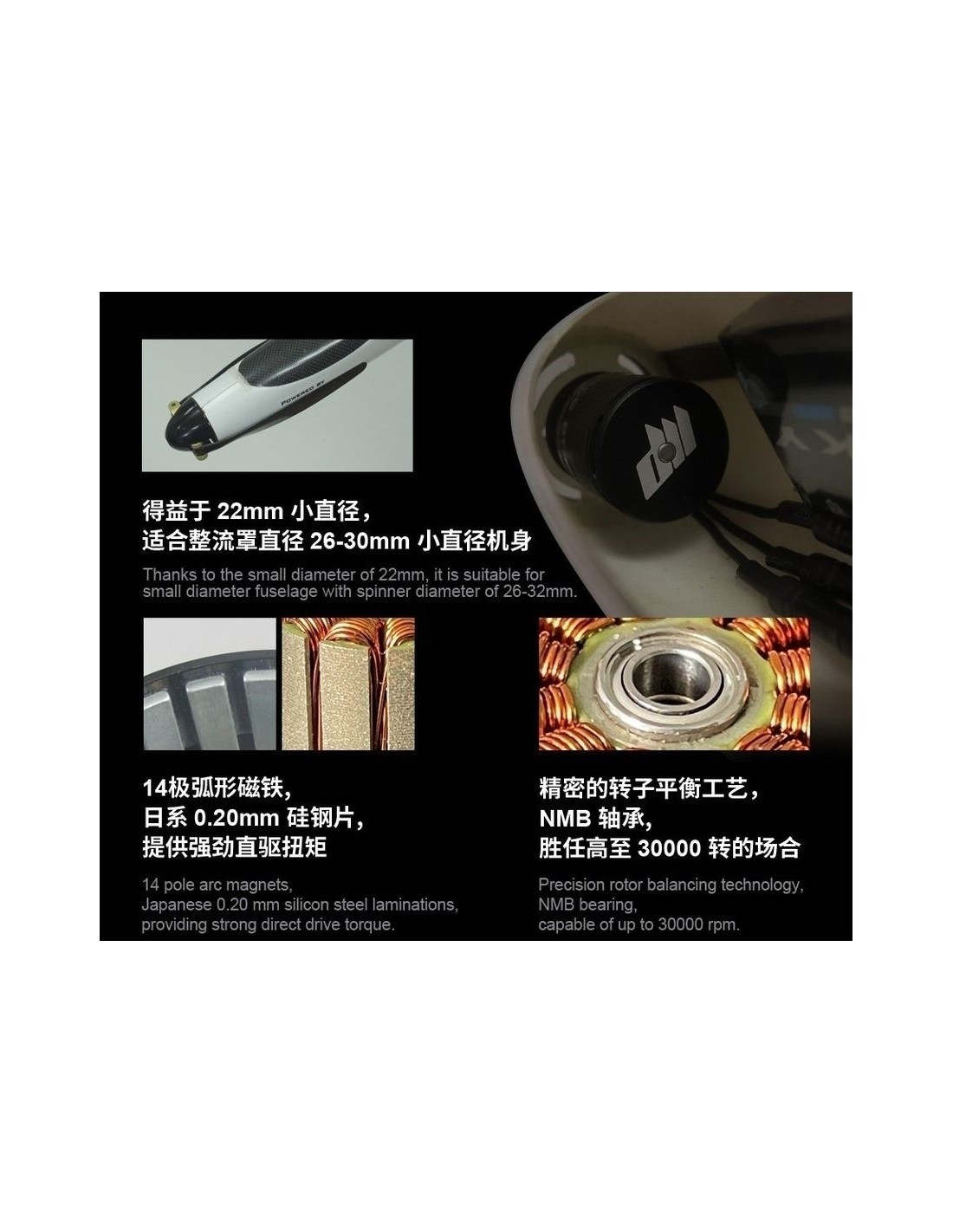

• 14 poles composed of curved magnets, Japanese 0.20mm silicon laminated steel, offering high direct drive torque.
• Precision rotor balancing technology, NMB bearing, up to 30000 rpm

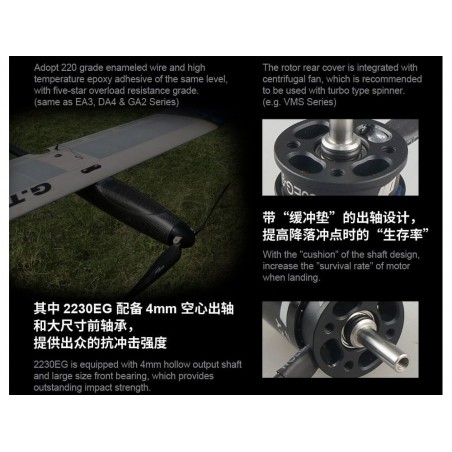

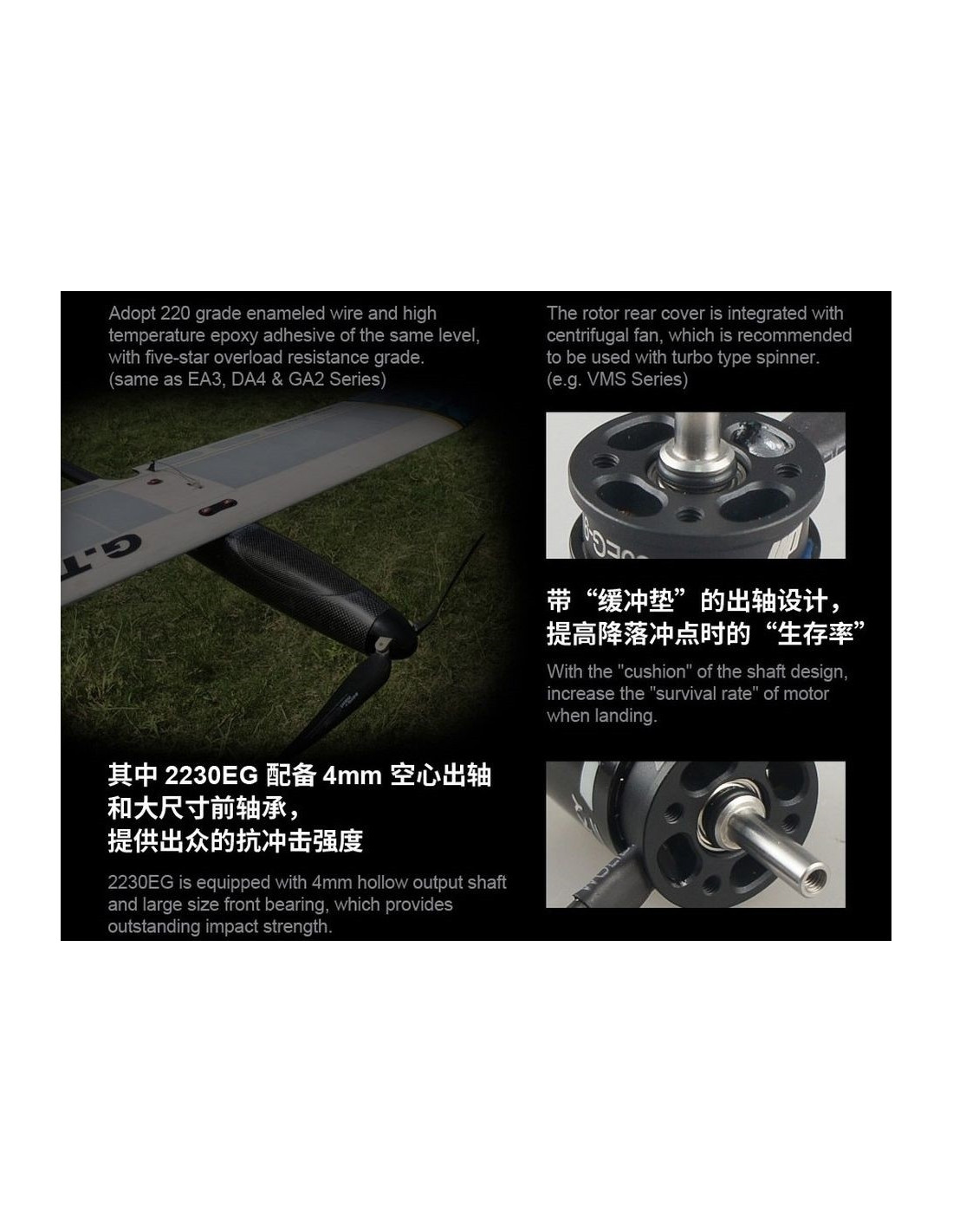

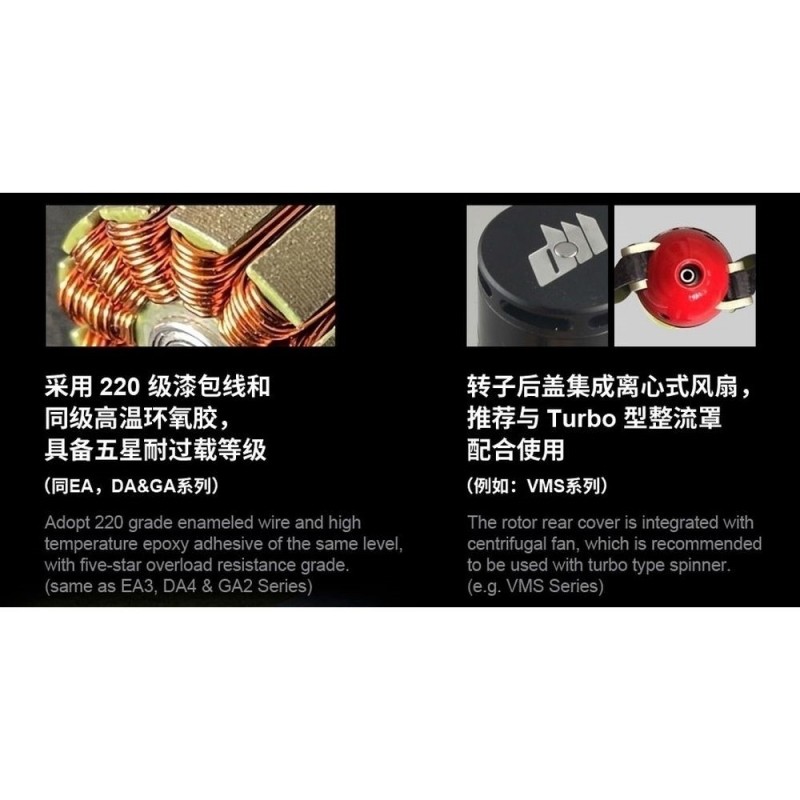

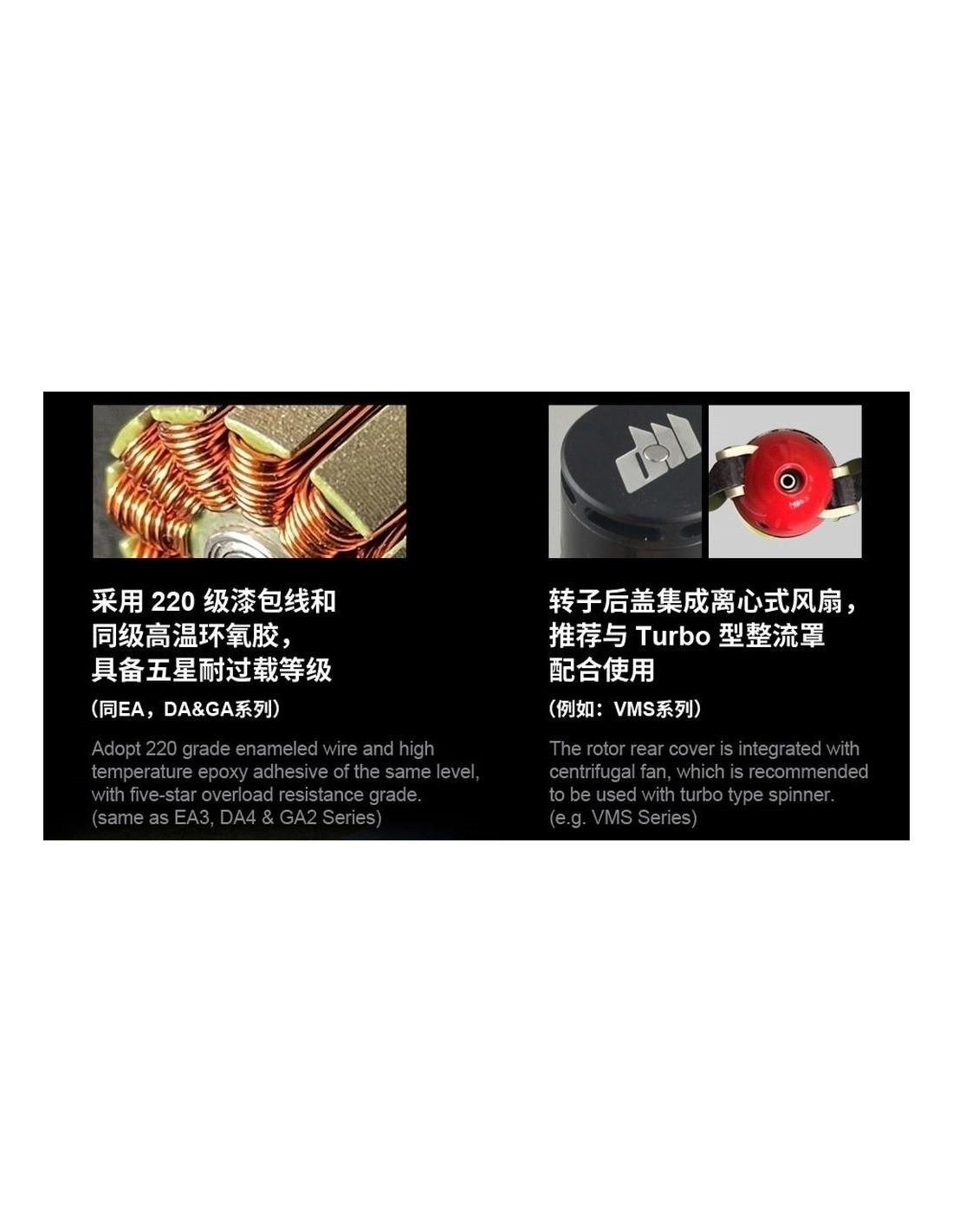

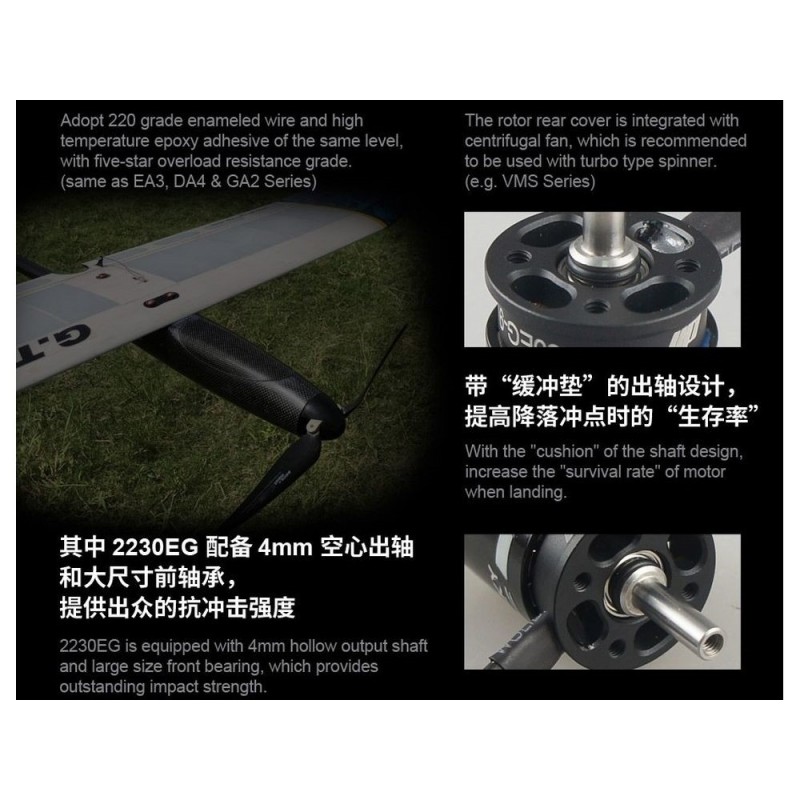

• Uses 220 grade enameled wire and the same level of high temperature epoxy adhesive, with five-star quality overload resistance
• The rear rotor flange incorporates a centrifugal fan, which is recommended for use with a vented cone propeller (Aeronaut for example)

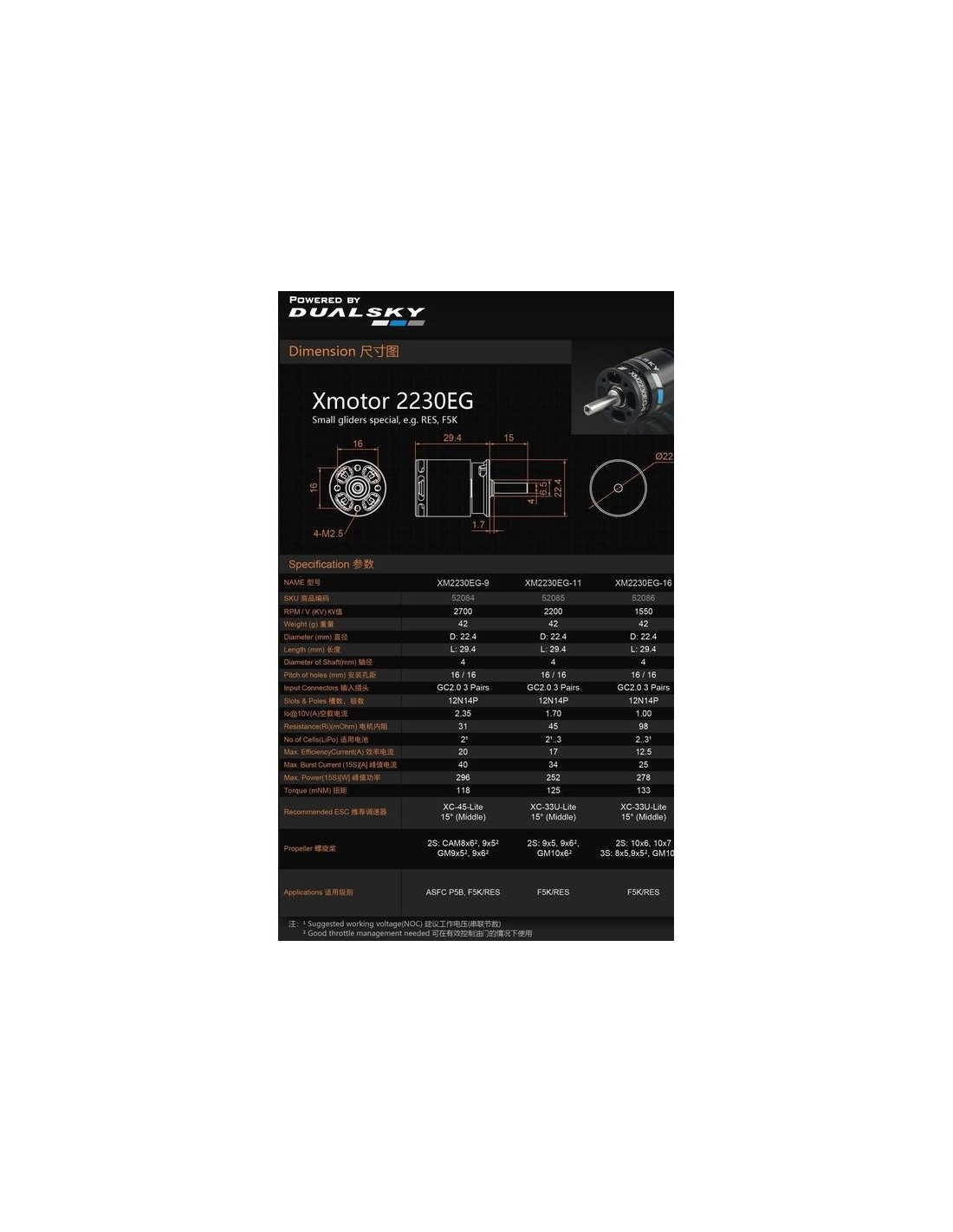

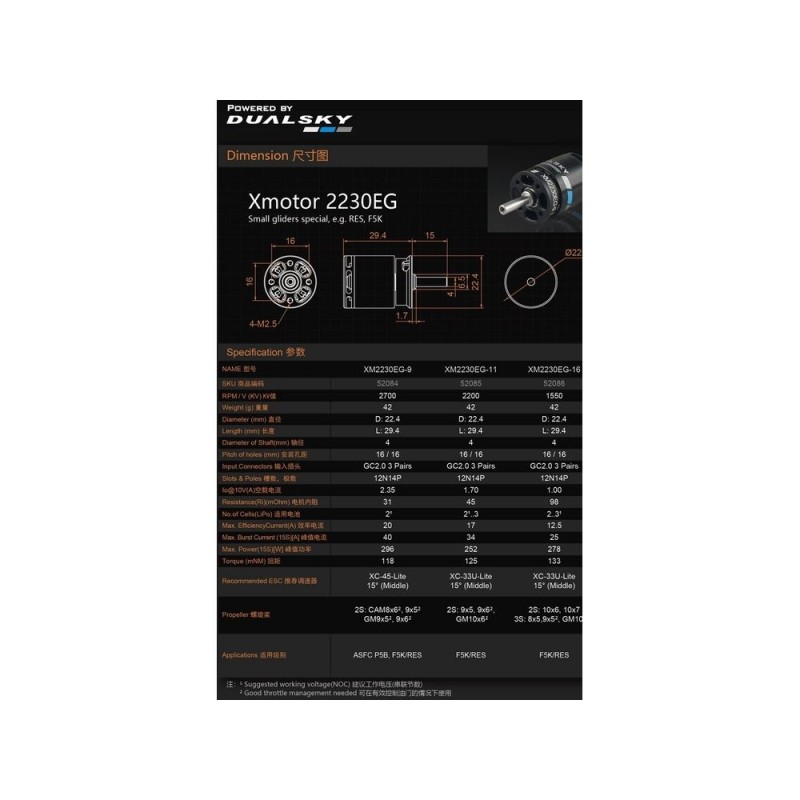

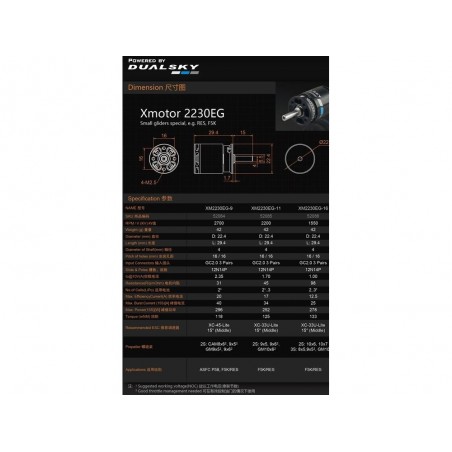

Technical data :

• Recommended application: F5K / RES
• Diameter: 22.4mm
• Length: 29.4mm
• Weight: 42g
• kV: 2700 rpm/V
• Shaft diameter: 4,00mm
• Connectors: GC2.0 (3 pairs)
• Recommended voltage: 2S to LiPo
• Max current (15s) : 40A
• Max power (15s) : 296W
• Recommended propeller: 2S 8x6, 9x6

Contents of the box:

• (1) XM2230EG-9 motor
• (3) Pair of GC2.0 connectors

Additional product(s) needed

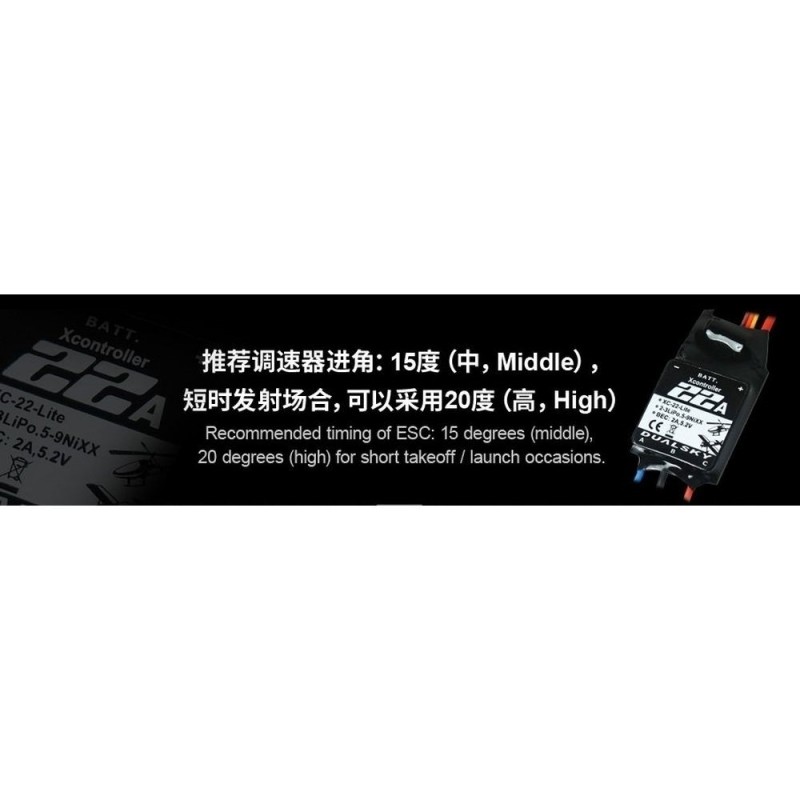

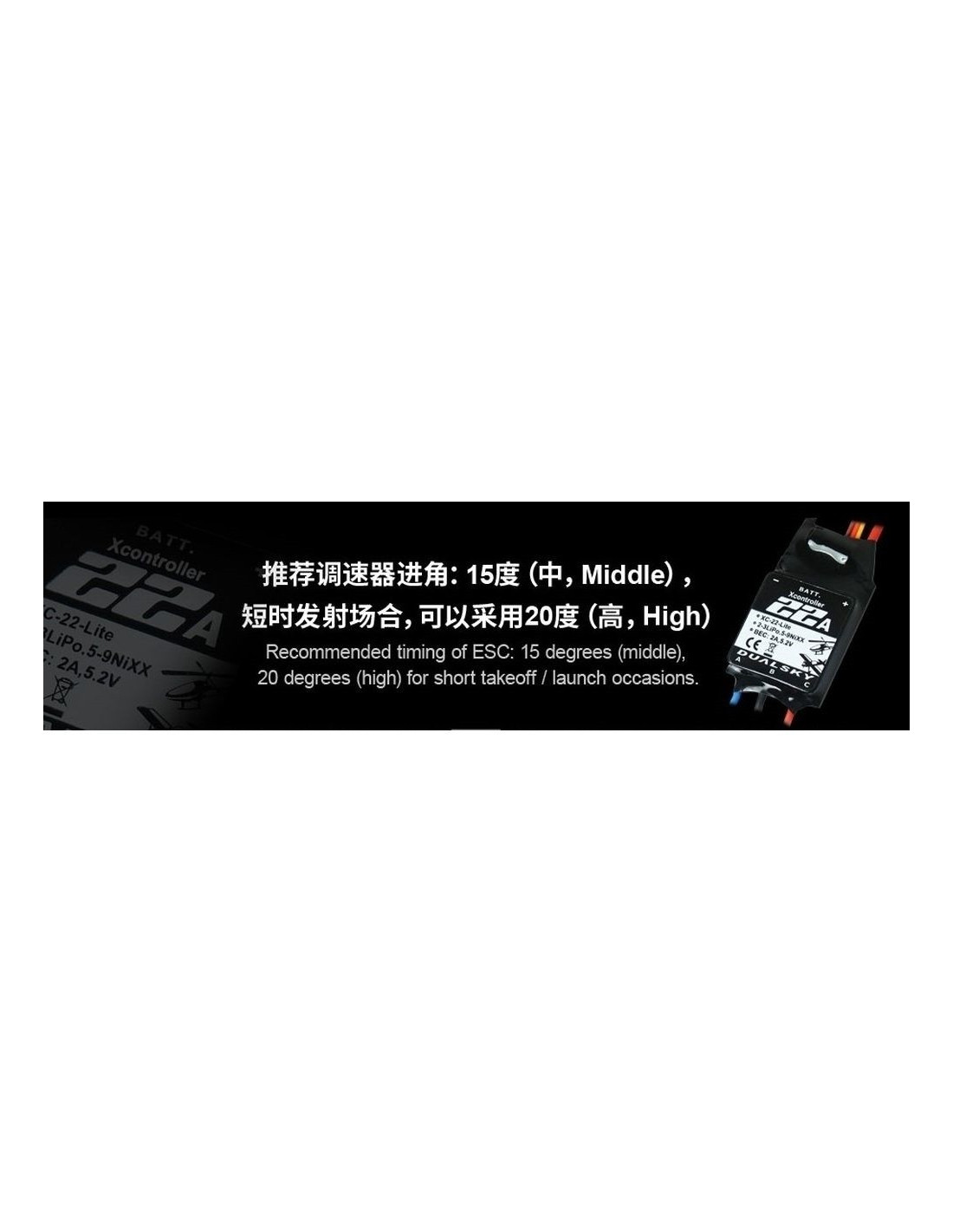

• Brushless controller 40A or more
